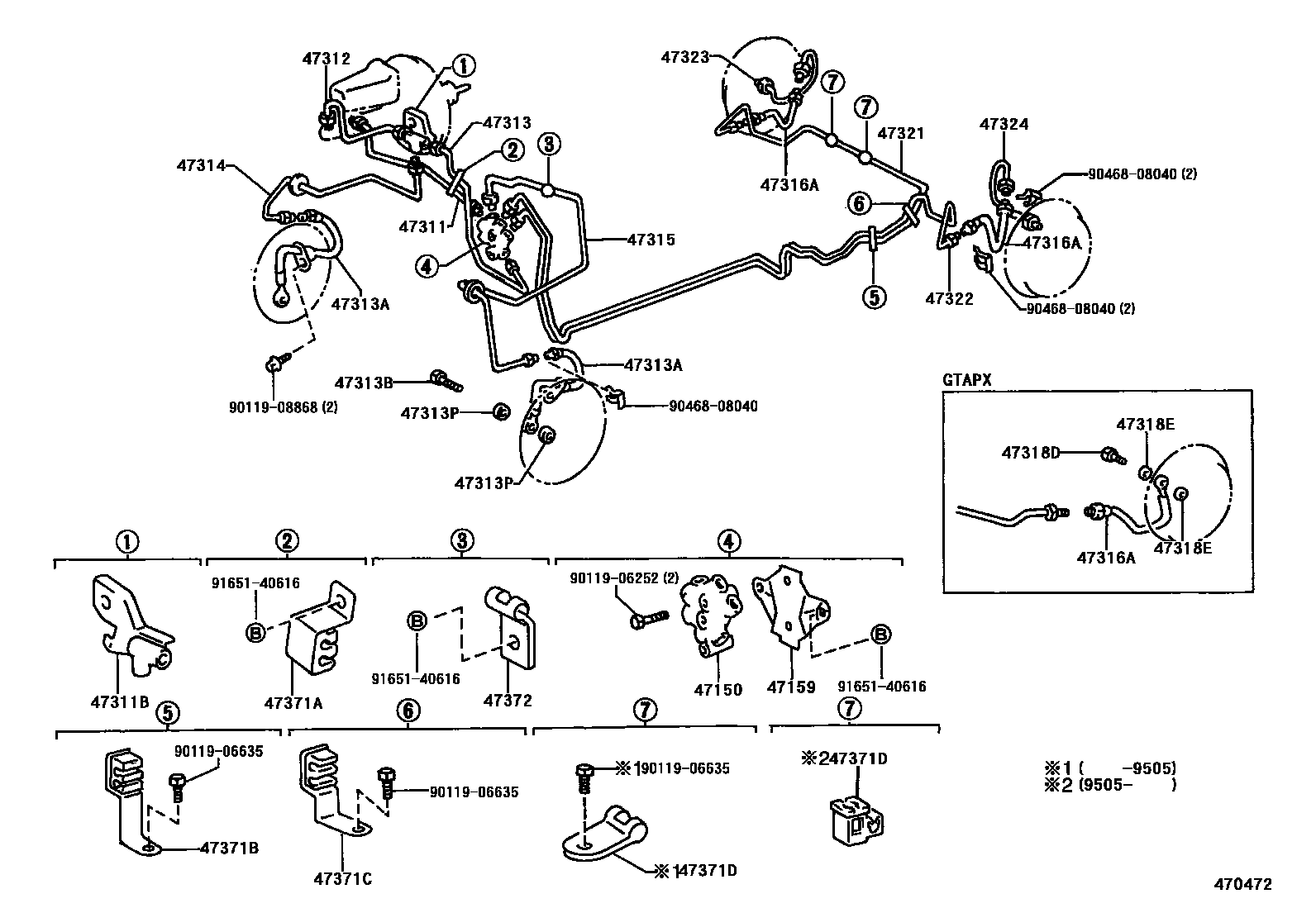

BRAKE TUBE & CLAMP

0001 1 0003 1 0004 1 0005 1 0006 1W(ABS) 0007 1 0008 1 0009 1W(ABS) 0011 1 0012 1W(ABS) 0013 1W(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-10090iAE101..LHD..XL199305-199805

VENEZUELA SPEC

main47150-12150iAE101..GTAPX199108-199505

W(ABS & SUPER STRUT SUSPENSION)

main47150-12160iAE100;AE101..SJ199108-199711

W(ABS)

main47150-12270iAE101,CE100,EE10#199108-199905

main47150-16050iAE101..GTAPX199108-199505

main47150-20140iEE100..RHD;AE101..RHD..(GLI,SEG)199108-199510

main47150-20240iAE101..GTAPX199108-199305

W(ABS)

main47150-20250iAE101..GTAPX199305-199505

W(ABS)

main47150-20280iAE100;AE101..SJ199305-199505

W(ABS)

main47150-44020iAE101..SED..TUR199708-199807

W(ABS)

47159BRACKET, PROPORTIONING VALVE

main47159-12070iAE101,EE10#..RHD199108-199905

47311TUBE, FRONT BRAKE, NO.1

main47311-12440iAE100;AE101..SJ199108-199305

W(ABS)

main47311-12450iAE10#,EE10#..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI)199108-199401

main47311-12460iAE101..GTAPX199108-199505

main47311-12470iAE101..GTAPX199108-199305

W(ABS)

main47311-12480iAE101..GTAPX199108-199305

W(ABS & SUPER STRUT SUSPENSION)

main47311-12490iAE10#,EE100..LHD199205-199905

main47311-12500iAE101..GTAPX199305-199505

W(ABS & SUPER STRUT SUSPENSION)

main47311-12520iAE101..LHD..GLI..GEN199703-199805

W(ABS)

main47311-12530iAE100;AE101..SJ199305-199505

W(ABS)

main47311-12540iEE101;AE101,EE104..L,SEG199305-199511

main47311-12550iAE101..GTAPX199305-199505

W(ABS)

main47311-12560iAE101,EE100,105..RHD..(GL,GLI,STD,XL,XLI)199505-199905

main47311-12610iEE105..LHD199704-199910

main47311-12630iAE101..SED..TUR199805-199807

W(ABS)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-12010iAE100,101,CE100,EE100,101,104,105..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI)199305-199905

main47391-12030iAE101..GTAPX199305-199505

main90412-10116iAE100;AE101..CP199108-199505

W(ABS)

main90412-10207iAE101..LHD..GLI..GEN199703-199807

W(ABS)

main90413-10159iAE101,102,CE100,EE100,105..LHD199205-199910

main90413-10262iEE108199108-199401

47312TUBE, FRONT BRAKE, NO.2

main47312-12260iAE10#,EE100..LHD199205-199905

main47312-12290iEE108199108-199401

main47312-12330iAE100,101,CE100,EE100,101,104,105..RHD199305-199905

main47312-12350iEE105..LHD199704-199910

47313TUBE, FRONT BRAKE, NO.3

main47313-12250iAE100;AE101..CP199108-199305

W(ABS)

main47313-12260iEE108199108-199401

main47313-12270iAE101..GTAPX199108-199305

main47313-12280iAE101..GTAPX199108-199305

W(ABS & SUPER STRUT SUSPENSION)

main47313-12290iAE101..GTAPX199305-199505

W(ABS & SUPER STRUT SUSPENSION)

main47313-12300iAE10#..LHD..(GLI,XLI)199205-199905

main47313-12310iAE101..LHD..SED..(GLI,XLI)199703-199805

W(ABS)

main47313-12330iAE100;AE101..SJ199305-199505

W(ABS)

main47313-12340iEE101;AE101,EE104..L,SEG199305-199511

main47313-12350iAE101..GTAPX199305-199505

main47313-12360iAE101..GTAPX199305-199505

W(ABS)

main47313-12370iAE101,CE100,EE100,104,105..RHD..(GL,GLI,L,STD,XL,XLI)199505-199905

main47313-12410iAE101,EE10#..LHD..XL199704-199910

main47313-12440iAE101..SED..TUR199805-199807

W(ABS)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02659iAE10#,CE100,EE10#199108-199405

RH

sub90947-02798

main90947-02660iAE10#,CE100,EE10#199108-199405

LH

sub90947-02799

main90947-02662iAE101..GTAPX199108-199405

W(ABS & SUPER STRUT SUSPENSION)

sub90947-02806

main90947-02798iAE10#,CE100,EE100199405-199811

RH

sub90947-02910

main90947-02799iAE10#,CE100,EE10#199405-199811

LH

sub90947-02913

main90947-02806iAE101..GTAPX199405-199505

W(ABS & SUPER STRUT SUSPENSION)

main90947-02910iAE101,CE100,EE10#199704-199905

RH

sub90947-02911

main90947-02913iEE105199704-199905

LH

sub90947-02912

main90947-02914iEE105199704-199910

ROUGH ROAD PACKAGE,RH

main90947-02917iEE105199704-199910

ROUGH ROAD PACKAGE,LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iAE101,CE100,EE100199108-199908

main90401-10045iAE101..GTAPX199108-199505

W(ABS & SUPER STRUT SUSPENSION)

main90401-10058iEE105199908-199910

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iEE105199908-199910

main90430-10074iAE101,CE100,EE100199108-199908

47314TUBE, FRONT BRAKE, NO.4

main47314-12290iAE101,CE100,EE100,104,105..RHD..(GL,GLI,L,STD,XL,XLI)199505-199905

main47314-12320iAE10#,EE10#..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI)199108-199401

main47314-12330iAE101..GTAPX199108-199305

main47314-12340iAE101..GTAPX199108-199305

W(ABS & SUPER STRUT SUSPENSION)

main47314-12350iAE101..LHD..GLI..GEN199703-199807

W(ABS)

main47314-12360iAE100;AE101..CP199108-199505

W(ABS)

main47314-12370iAE101,102,CE100,EE100,105..LHD199205-199704

main47314-12371iAE10#,EE10#..LHD199704-199910

main47314-12400iEE101;AE101..SEG199305-199511

main47314-12410iAE101..GTAPX199305-199505

W(ABS & SUPER STRUT SUSPENSION)

47315TUBE, FRONT BRAKE, NO.5

main47315-12420iAE101,102,CE100,EE100,105..LHD199205-199910

main47315-12450iAE100;AE101..CP199108-199505

W(ABS)

main47315-12460iAE101,CE100,EE10#..RHD199108-199905

main47315-12470iAE101..GTAPX199108-199505

W(ABS & SUPER STRUT SUSPENSION)

47316TUBE, FRONT BRAKE, NO.6

main47316-12190iAE100;AE101..SJ199108-199305

main47316-12200iAE101..GTAPX199108-199305

W(ABS)

main47316-12210iAE101..GTAPX199108-199305

W(ABS & SUPER STRUT SUSPENSION)

main47316-12240iAE101..GTAPX199305-199505

W(ABS & SUPER STRUT SUSPENSION)

main47316-12260iAE101..LHD..GLI..GEN199703-199805

main47316-12280iAE100;AE101..SJ199305-199505

main47316-12290iAE101..GTAPX199305-199505

W(ABS)

main47316-12330iAE101..SED..TUR199805

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02657iAE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI199108-199405

sub90947-02809

main90947-02658iAE101..GTAPX199108-199205

sub90947-02740

main90947-02678iEE104,105,108199109-199508

sub90947-02830

main90947-02740iAE101..GTAPX199205-199505

main90947-02783iAE10#,CE100,EE100..GL,GLI,STD,XL,XLI199505-199811

sub90947-02921

main90947-02809iAE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI199405-199511

main90947-02830iEE104,105199508-199704

sub90947-02908

main90947-02921iAE101,CE100,EE100199811-199905

47318TUBE, FRONT BRAKE, NO.8

main47318-12180iAE100;AE101..SJ199108-199305

main47318-12190iAE101..GTAPX199108-199305

W(ABS)

main47318-12200iAE101..GTAPX199108-199305

W(ABS & SUPER STRUT SUSPENSION)

main47318-12230iAE101..GTAPX199305-199505

W(ABS & SUPER STRUT SUSPENSION)

main47318-12240iAE101..LHD..GLI..GEN199703-199805

main47318-12250iAE100;AE101..SJ199305-199505

main47318-12260iAE101..GTAPX199305-199505

W(ABS)

main47318-12320iAE101..SED..TUR199805

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iAE101..GTAPX199108-199505

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iAE101..GTAPX199108-199505

47321TUBE, REAR BRAKE, NO.1

main47321-12100iEE101;AE101..SEG199108-199511

main47321-12120iAE101,102,CE100,EE100..LHD199205-199508

main47321-12130iAE101,CE100,EE100199505-199905

main47321-12150iAE10#,CE100,EE100..LHD199505-199701

sub47321-12190

main47321-12190iAE10#,CE100,EE100..LHD199701-199905

main47321-12210iAE101..GLI..TUR199706-199708

W(ABS)

main47321-13060iEE104,105,108..RHD199109-199910

main47321-13070iEE105..LHD199205-199910

47322TUBE, REAR BRAKE, NO.2

main47322-12260iEE101;AE101..SEG199108-199511

main47322-12270iAE101,102,CE100,EE100..LHD199205-199508

main47322-12280iAE101,CE100,EE100199505-199905

main47322-12300iAE10#,CE100,EE100..LHD199505-199701

sub47322-12340

main47322-12340iAE10#,CE100,EE100..LHD199701-199905

main47322-12360iAE101..GLI..TUR199706-199708

W(ABS)

main47322-13100iEE104,105,108..RHD199109-199910

main47322-13110iEE105..LHD199205-199910

47323TUBE, REAR BRAKE, NO.3

main47323-12250iAE10#,CE100,EE100,101..GL,GLI,LX,SEG,SJ,STD,XL,XLI199108-199905

main47323-13090iEE104,105,108199109-199910

47324TUBE, REAR BRAKE, NO.4

main47324-12210iAE101,CE100,EE100199108-199905

main47324-13090iEE104,105,108199109-199910

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12090iAE100;AE101..CP199108-199505

W(ABS)

main47371-12100iAE101,CE100,EE10#..RHD199108-199905

main47371-12110iAE101..LHD..SED..(GLI,XLI)199703-199805

W(ABS)

main47371-12120iAE10#,EE100..LHD199205-199905

main47371-12190iAE101..SED..TUR199805-199807

W(ABS)

main47371-12200iEE105..LHD199704-199910

47371BCLAMP, BRAKE TUBE, NO.6

main47375-12010iEE101;AE101..SEG;AE101,EE100..GCC199108-199511

main47375-12040iAE10#,CE100,EE100..GL,GLI,STD,XL,XLI199505-199905

47371CCLAMP, BRAKE TUBE, NO.7

main47375-12020iEE101;AE101..SEG199108-199511

main47375-12060iAE10#,CE100,EE100..GL,GLI,STD,XL,XLI199505-199905

47371DCLAMP, BRAKE TUBE, NO.8

main47371-12150iAE10#,CE100,EE100..(GL,GLI,STD,XL,XLI)..(GEN,TUR)199505-199811

main47371-12150iAE101..GLI..TUR199706-199708

W(ABS)

main90461-08652iEE104,105,108199109-199704

main90461-08687iEE101;AE101..SEG199108-199511

main90949-01B45iAE101,CE100,EE100199811-199905

47372CLAMP, BRAKE TUBE, NO.2

main47372-12010iAE101..GTAPX199108-199505

W(ABS & SUPER STRUT SUSPENSION)

main47372-12020iAE100;AE101..CP199108-199505

W(ABS)

main47372-12040iAE101..LHD..GLI..GEN199703-199805

W(ABS)

main47372-12070iAE101..SED..TUR199805-199807

W(ABS)

main90461-06119iAE101,CE100,EE10#199108-199905

main90461-08652iAE101,102,CE100,EE100,105..LHD199205-199704

9011906252

main90119-06252

9011906635

main90119-06635

9011908868

main90119-08868

9046808040

main90468-08040

9165140616

main91651-40616
