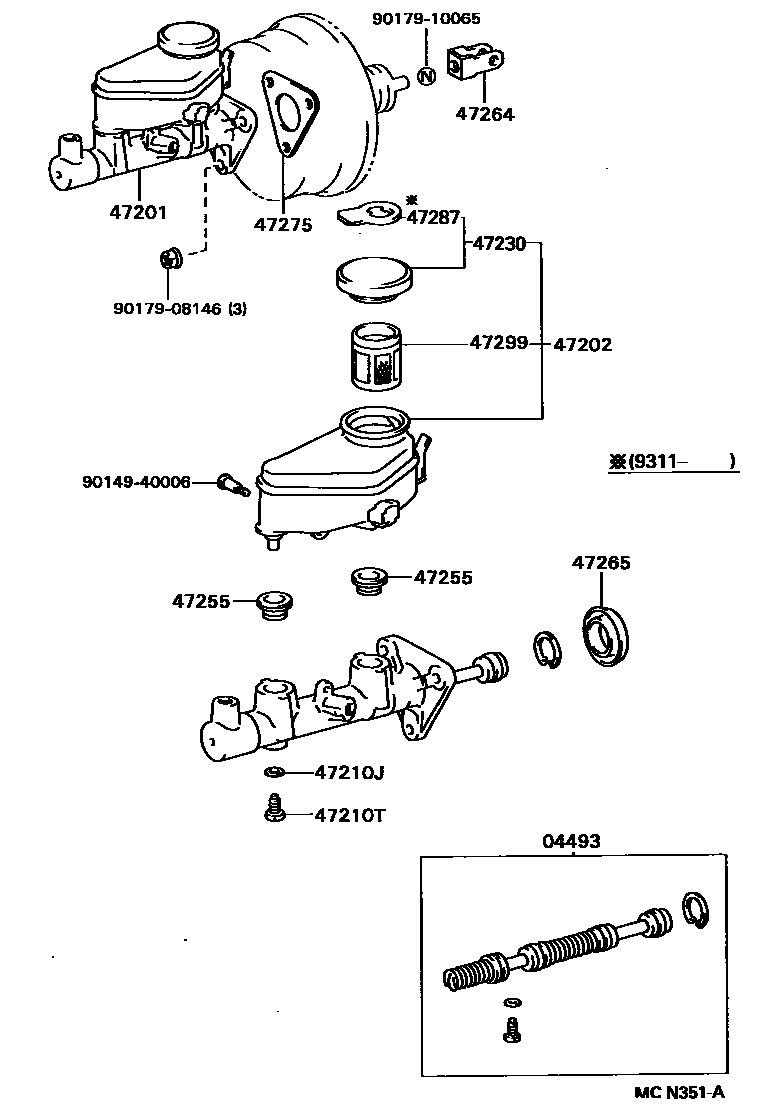

BRAKE MASTER CYLINDER

0001 1 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-10130iAE101..GTAPX199108-199505

W(ABS & SUPER STRUT SUSPENSION)

main04493-10130iAE100;AE101..SJ199108-199505

W(ABS)

main04493-12170iAE101..GTAPX199108-199505

*HAP & W(*66)

main04493-12170iAE101..GTAPX199108-199505

W(ABS)

main04493-12180iAE10#,CE100,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL,XLI199108-199511

main04493-12200iAE101..GLI..TUR199706-199807

W(ABS)

main04493-16080iAE10#,CE100,EE100,104,105..GL,GLI,L,STD,XL,XLI199505-199905

main04493-16090iAE101..LHD..GLI..GEN199703-199711

W(ABS)

main04493-20210iAE101..GTAPX199108-199505

sub04493-16110

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02010iAE101..LHD..(GCC,GEN);AE102,CE100,EE100,105..LHD199411-199505

(L)

main47201-12680iEE108199108-199401

main47201-12690iAE101..GTAPX199108-199505

main47201-12710iAE100;AE101..SJ199108-199505

W(ABS)

main47201-12710iAE101..GTAPX199108-199305

W(ABS & SUPER STRUT SUSPENSION)

main47201-12720iAE101..4FC..SJ199108-199505

W(ABS)

main47201-12720iAE101..4FC..SJ199108-199505

*HAP & W(*66)

main47201-12800iAE101..TUR199409-199505

main47201-12800iAE101..LHD..4FC..GLI..GEN;AE101..LHD..5F..(GLI,XLI)..GEN199308-199505

W(14 INCHES DISC WHEEL)

main47201-12830iAE101,102,CE100,EE100,105..LHD199205-199407

sub47201-12800

main47201-12830iAE101..LHD..(GCC,GEN);AE102,CE100,EE100,105..LHD199407-199505

(J)

sub47201-12800

main47201-12870iEE101;AE101,EE104..L,SEG199305-199511

main47201-12880iAE101..GTAPX199305-199505

W(ABS & SUPER STRUT SUSPENSION)

main47201-1A020iEE105..LHD199505-199910

main47201-1A050iAE101,CE100,EE10#..RHD199505-199905

sub47201-1A410

main47201-1A110iAE101..TUR199505-199905

main47201-1A130iAE101..LHD..GLI..GEN199703-199711

W(ABS)

main47201-1A150iAE101..GLI..TUR199706-199807

W(ABS)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-12390iEE101;AE101,EE104..L,SEG199108-199511

sub47220-32060

main47202-12390iAE100,101,EE10#..RHD199407-199505

(J)

sub47220-32060

main47220-02020iAE101..LHD..(GCC,GEN);AE102,CE100,EE100,105..LHD199411-199505

(L)

main47220-17020iAE101..LHD..4FC..GLI..GEN;AE101..LHD..5F..(GLI,XLI)..GEN199308-199311

W(14 INCHES DISC WHEEL)

main47220-17050iAE101..LHD..4FC..GLI..GEN;AE101..LHD..5F..(GLI,XLI)..GEN199311-199505

W(14 INCHES DISC WHEEL)

main47220-17050iAE101..TUR199409-199905

main47220-32060iAE102,CE100,EE100,104,105;AE101..(GL,GLI,XL,XLI)..(GCC,GEN)199505-199905

sub47220-12180

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAE10#,CE100,EE10#199108-199905

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAE10#,CE100,EE10#199108-199905

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iAE10#,CE100,EE10#199108-199905

main47230-20100iAE101..LHD..4FC..GLI..GEN;AE101..LHD..5F..(GLI,XLI)..GEN199308-199311

W(14 INCHES DISC WHEEL)

sub47230-47090

main47230-20140iAE101..TUR199311-199905

W(14 INCHES DISC WHEEL)

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-03010iAE101..LHD..(GCC,GEN);AE102,CE100,EE100,105..LHD199411-199505

(L)

main47255-16010iAE100,101,EE10#..RHD199108-199905

main47255-16010iAE101,102,CE100,EE100,105..LHD199407-199910

(J)

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16020iAE101..GLI..TUR;AE101,CE100..RHD199108-199910

main47264-32020iAE101,CE100,EE100199910

main47264-33010iAE100,101,EE10#..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI)199407-199910

W(ABS)

main47264-33010iAE101..LHD..4FC..GLI..GEN;AE101..LHD..SED..5F..(GLI,XLI)..GEN199407-199711

W(14 INCHES DISC WHEEL)

main47264-33010iAE101..GCC,TUR;AE101..GL,SEG,XL;AE101..LHD..WG..GEN;AE102,CE100,EE100,101,105;AE101..LHD..4FC..XLI..GEN199505-199509

47265BOOT, MASTER CYLINDER

main47265-03010iAE101..LHD..(GCC,GEN);AE102,CE100,EE100,105..LHD199411-199505

(L)

main47265-20050iAE101,102,CE100,EE100,105..LHD199407-199505

(J)

main47265-20050iAE100,101,EE10#..RHD199108-199511

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iAE100,101,CE100,EE100,101,104,105..RHD..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI)199305-199905

W(ABS)

main47275-12020iAE101..GTAPX199305-199505

W(ABS & SUPER STRUT SUSPENSION)

main47275-32010iAE100,102;AE101..CP;AE101,CE100,EE100,105..LHD199108-199910

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iAE101..TUR199311-199905

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iAE10#,CE100,EE10#199108-199905

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

15 parts on this diagram · 2 diagrams in section
