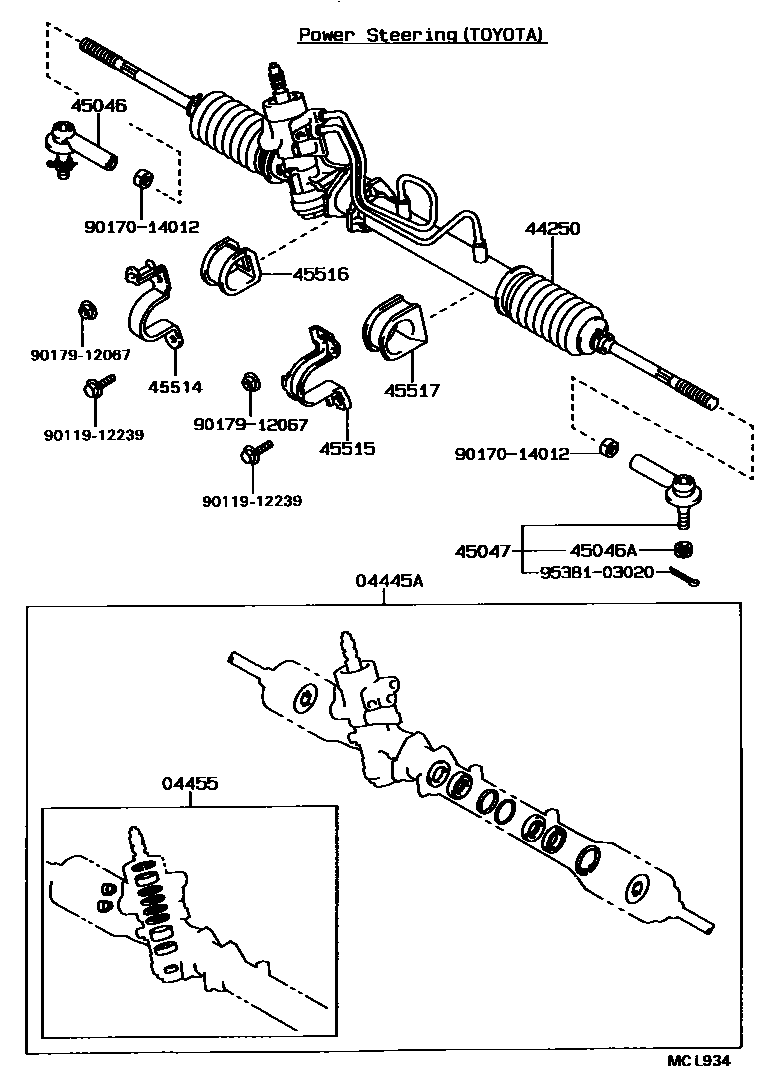

FRONT STEERING GEAR & LINK

0001 1 0006 1 0007 1 0008 1W(SUPER STRUT SUSPENSION) 0009 1 0010 1 0015 1 0016 1 0017 1W(SUPER STRUT SUSPENSION) 0018 1 0019 1 0021 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12100iAE10#..RHD..(GLI,GTAPX,LX,SEG,SJ)199108-199208

KOYO GEAR BOX

main04445-12100iAE101..(CP,WG)..GEN199208-199305

main04445-12110iAE101..SEG199205-199510

TOYOTA GEAR BOX

main04445-12110iAE101..SED;EE100..3FC,4F;AE101..WG..GCC;EE100..LHD..5F;EE100..RHD..GL;AE100,102,CE100,EE101,104,105,108199205-199505

NEW ZEALAND SPEC

main04445-12110iEE101199108-199511

main04445-12110iAE100..ATM199405-199505

*HAP

main04445-12130iAE101..CP199404-199510

KOYO GEAR BOX

main04445-12130iAE101..(CP,WG)..GEN199305-199404

main04445-12150iAE101..RHD..(GL,GLI,XL,XLI)199505-200111

TOYOTA GEAR BOX

main04445-12150iAE101..RHD..(GL,GLI,XL,XLI)199505-200111

NEW ZEALAND SPEC

main04445-12160iAE101..RHD..(GL,GLI,XL,XLI)199505-200111

KOYO GEAR BOX

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-10040iAE101..SEG199108-199510

KOYO GEAR BOX

main04455-10040iAE101..(CP,WG)..GEN199208-199404

main04455-12090iAE101..SEG199505-199510

NEW ZEALAND SPEC & CKD SPEC

main04455-12090iEE10#199108-200111

main04455-12090iEE100..RHD..5F..XL;AE101..RHD..(GLI,SEG)199205-200111

NEW ZEALAND SPEC

main04455-12090iEE100..RHD..5F..XL;AE101..RHD..(GLI,SEG)199205-200111

TOYOTA GEAR BOX

main04455-12090iAE100..ATM199405-199505

*HAP

main04455-12210iAE101..RHD..(GL,GLI,XL,XLI)199505-200111

KOYO GEAR BOX

sub04455-10030

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12290iAE101..WG..GEN199208-199305

sub44250-12440

main44250-12290iAE10#..RHD..(GLI,LX,SEG)199108-199208

KOYO GEAR BOX

sub44250-12440

main44250-12321iAE101..GTAPX199108-199305

W(SUPER STRUT SUSPENSION)

sub44250-12470

main44250-12330iAE101..SJ199108-199305

TOYOTA GEAR BOX

sub44250-12450

main44250-12340iAE101..GTAPX199108-199305

main44250-12390iAE101..SEG199505-199510

NEW ZEALAND SPEC & CKD SPEC

sub44250-12510

main44250-12390iEE100..RHD..5F..XL;AE101..RHD..SED..(GLI,SEG,XLI)199205-199505

NEW ZEALAND SPEC

sub44250-12510

main44250-12400iAE101,102,CE100,EE100,105..LHD199205-199505

sub44250-12560

main44250-12420iAE101..RHD..SED;AE100,EE10#..RHD199207-199511

sub44250-12620

main44250-12420iAE101..SEG199404-199510

TOYOTA GEAR BOX

sub44250-12620

main44250-12440iAE101..WG..GEN199305-199404

main44250-12440iAE101..SEG199404-199510

KOYO GEAR BOX

main44250-12450iAE101..SJ199305-199505

main44250-12460iAE101..GTAPX199305-199505

main44250-12470iAE101..GTAPX199305-199505

W(SUPER STRUT SUSPENSION)

sub44250-12500

main44250-12490iAE100..ATM199405-199505

*HAP

sub44250-12570

main44250-12510iEE100..RHD..5F..XL;AE101..RHD..4FC..GLI;AE101..RHD..SED..XLI199505-199707

NEW ZEALAND SPEC

main44250-12530iAE101..RHD..(GL,GLI,XL,XLI)199505-200111

KOYO GEAR BOX

main44250-12540iAE101..RHD..4FC..GLI;AE101,EE100..RHD..(XL,XLI)199707-199710

NEW ZEALAND SPEC

sub44250-12541

sub90178-08013

main44250-12560iAE10#,CE100,EE100,105..LHD199505-199910

sub44250-12561

sub90178-08013

main44250-12620iAE101,EE10#..RHD..(SED,WG)199108-199207

main44250-12620iCE100,EE100,104,105..RHD199505-200111

TOYOTA GEAR BOX

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAE10#,CE100,EE10#199108-199505

main45046-29305iAE10#,CE100,EE10#199505-200111

main45460-19245iAE101..GTAPX199503-199505

W(SUPER STRUT SUSPENSION)

main45460-29385iAE101..GTAPX199108-199503

W(SUPER STRUT SUSPENSION)

sub45460-19245

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAE101,CE100,EE10#199108-199905

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAE10#,CE100,EE10#199108-199505

main45046-29305iAE10#,CE100,EE10#199505-200111

main45470-19075iAE101..GTAPX199503-199505

W(SUPER STRUT SUSPENSION)

main45470-29145iAE101..GTAPX199108-199503

W(SUPER STRUT SUSPENSION)

sub45470-19075

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12090iAE101..GCC;AE101..GL,STD,XL;CE100,EE100,101,105199108-199905

W(POWER STEERING)

main45514-12090iAE101..GLI..TUR;AE10#,EE104..(GLI,GTAPX,L,LX,SEG,SJ,XLI)..GEN199409

main45514-12100iEE100199108-199205

sub45514-12110

main45514-12110iCE100,EE10#199205-199905

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12170iAE101,CE100,EE10#199108-199905

main45515-12180iAE101..GLI..GCC;AE101..XLI..(GCC,TUR);AE101,CE100,EE100,105..LHD..(GL,STD,XL)199205-199910

W(POWER STEERING)

main45515-12180iAE101..LHD..XLI..GEN;AE101,102..LHD..GLI..(GEN,TUR)199409-199807

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12060iAE10#,CE100,EE10#199108-199905

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12111iAE10#,CE100,EE10#199108-199602

main45517-12111iAE101..GLI..TUR;AE10#,CE100,EE10#..GCC,GEN199602-199905

W(MECHANICAL *80)

main45517-12130iCE100,EE100..RHD..5F199602

PAKISTAN SPEC

main45517-12130iEE100..LHD..5F..XL..GEN199602-199711

PHILIPPINES SPEC

main45517-12130iAE101,EE100..(XL,XLI)..TUR199602-199905

9011912239

main90119-12239

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

14 parts on this diagram · 12 diagrams in section
