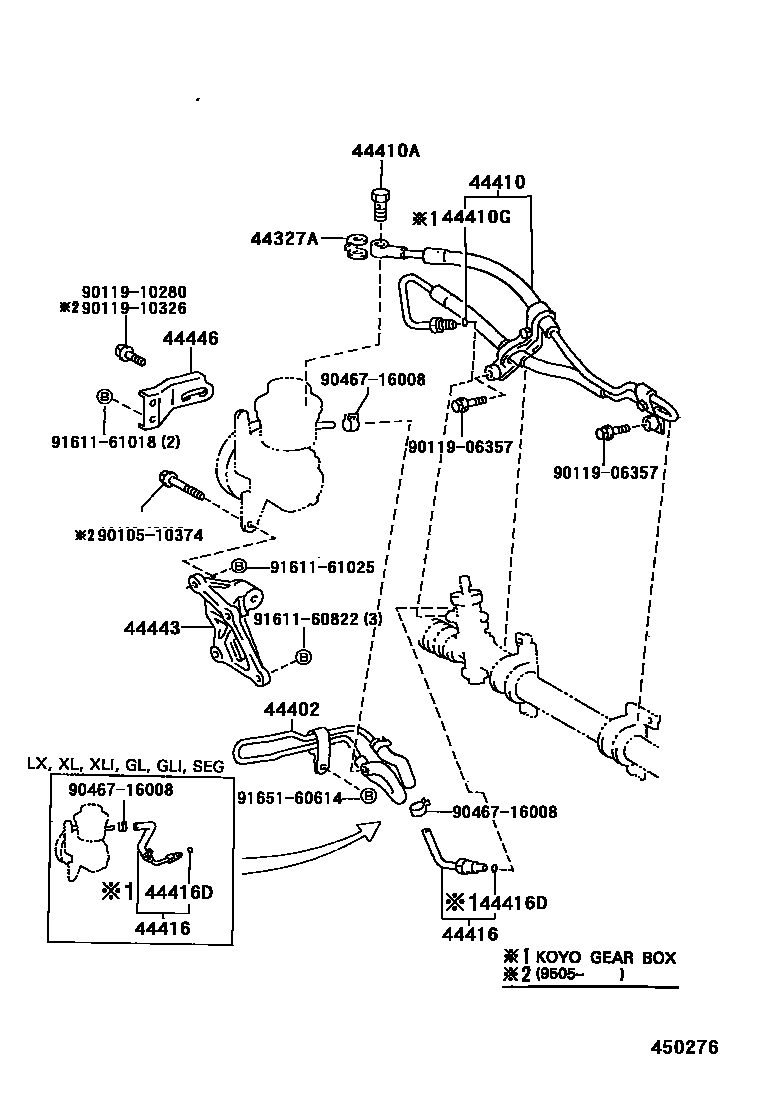

POWER STEERING TUBE

0001 1 0002 1W(OIL COOLER) 0005 1W/O(OIL COOLER) 0006 1 0007 1 0008 1 0009 1 0010 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE10#,CE100..GL,GLI,LX,SEG,SJ,STD,XL,XLI199108-199301

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-12120iAE10#..GLI,LX,SEG,SJ199108-199204

main44402-12130iAE101..RHD..SED..XLI;AE101..RHD..4FC..GLI199505-199705

main44402-12140iAE102;AE101..LHD..XL199301-199805

main44402-12150iAE101..TUR199509-199905

main44402-12160iAE101..GCC199207-199705

main44402-12210iAE101..XLI..GEN;AE101..RHD..4FC..GLI199705

44410TUBE ASSY, PRESSURE FEED

main44040-12041iAE101..GTAPX199108-199305

W(SUPER STRUT SUSPENSION)

main44040-12051iAE101..GTAPX199108-199305

main44040-12073iCE100..RHD199603

main44040-12080iEE10#..RHD199108-199305

main44040-12120iEE100,105..LHD199205-199305

main44040-12121iEE100,105..LHD199305-199905

main44040-12130iCE100199205-199305

main44040-12131iCE100199305-199306

main44040-12132iCE100199306-199512

main44040-12133iCE100..LHD199512-199704

main44040-12182iEE105..RHD199704-199910

main44040-12190iEE100..RHD..5F..XL; EE100..RHD..GL;EE101,104,105..RHD;EE100..RHD..(3FC,4F)199505-199507

NEW ZEALAND SPEC & CKD SPEC

main44040-12191iEE100..GL199705-199905

main44410-12370iAE10#..SED199108-199205

main44410-12371iAE101..WG..GEN199208-199404

main44410-12380iAE101..SJ199108-199205

main44410-12381iAE101..SJ199205-199505

main44410-12391iAE100,101..RHD..(SED,WG); AE100..ATM; AE101..RHD..SED..(GLI,XLI)199404-199505

*HAP; NEW ZEALAND SPEC; TOYOTA GEAR BOX

main44410-12451iAE101..RHD..(GL,GLI,XL,XLI)199505

KOYO GEAR BOX

main44410-12481iAE101..RHD..(GL,GLI,XL,XLI)199505-199812

TOYOTA GEAR BOX

main44410-12492iAE102;AE101..GCC199207-199409

main44410-12500iAE101..GEN199812

TOYOTA GEAR BOX

main44410-12511iAE101..LHD..(GL,STD,XL)199205-199208

main44410-12512iAE101..LHD..(GL,STD,XL)199209-199301

main44410-12532iAE101..LHD..(GLI,XLI)..GEN199205-199711

main44410-12540iAE101..LHD..XL199301-199805

VENEZUELA SPEC & W(POWER STEERING)

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iAE101..4FC..XL;AE100,102,CE100;AE101..GL,GLI,SEG,SJ,STD,XLI199301-199409

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009iAE10#..RHD..(GLI,GTAPX,LX,SEG,SJ)199108-199208

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44406-12160iAE101..LHD..(GL,GLI,XLI);AE102,CE100,EE100,105..LHD199509-199905

main44406-12170iAE10#..RHD..(GLI,LX,SEG)199204-199208

KOYO GEAR BOX

main44406-12171iAE100,101..RHD..(SED,WG)199404

KOYO GEAR BOX

main44406-12180iAE101..RHD..(GL,XL,XLI)199205-199208

main44406-12181iAE100,101..RHD..(SED,WG)199404

TOYOTA GEAR BOX

main44416-12210iEE100..RHD..GL;EE100..RHD..(3FC,4F);CE100,EE101,104,105..RHD199505-199704

main44416-12220iAE101..CP199204-199505

main44416-12240iEE105..RHD199704-199910

44416DRING, O(FOR RETURN TUBE)

main90301-07009iAE100,101..RHD199404

44443BRACKET, PUMP

main44443-10030iEE101,104199205-199704

main44443-12050iAE10#..GLI,LX,SEG,SJ199108-199205

main44443-12070iEE105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL199505-199905

main44443-12090iAE101..GTAPX199108-199505

main44443-12100iAE101199905

main44443-13010iEE108199109-199401

44446STRUT, ADJUSTING

main44446-10050iEE101199205-199511

main44446-12050iEE105;EE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL199505-199905

main44446-12060iAE101199905

main44446-12090iAE102199309-199805

main44446-16051iEE104199401-199704

main44446-16061iEE108199109-199401

9010510374

main90105-10374

9011906357

main90119-06357

9011910280

main90119-10280

9011910326

main90119-10326

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9165160614

main91651-60614

18 parts on this diagram · 8 diagrams in section
