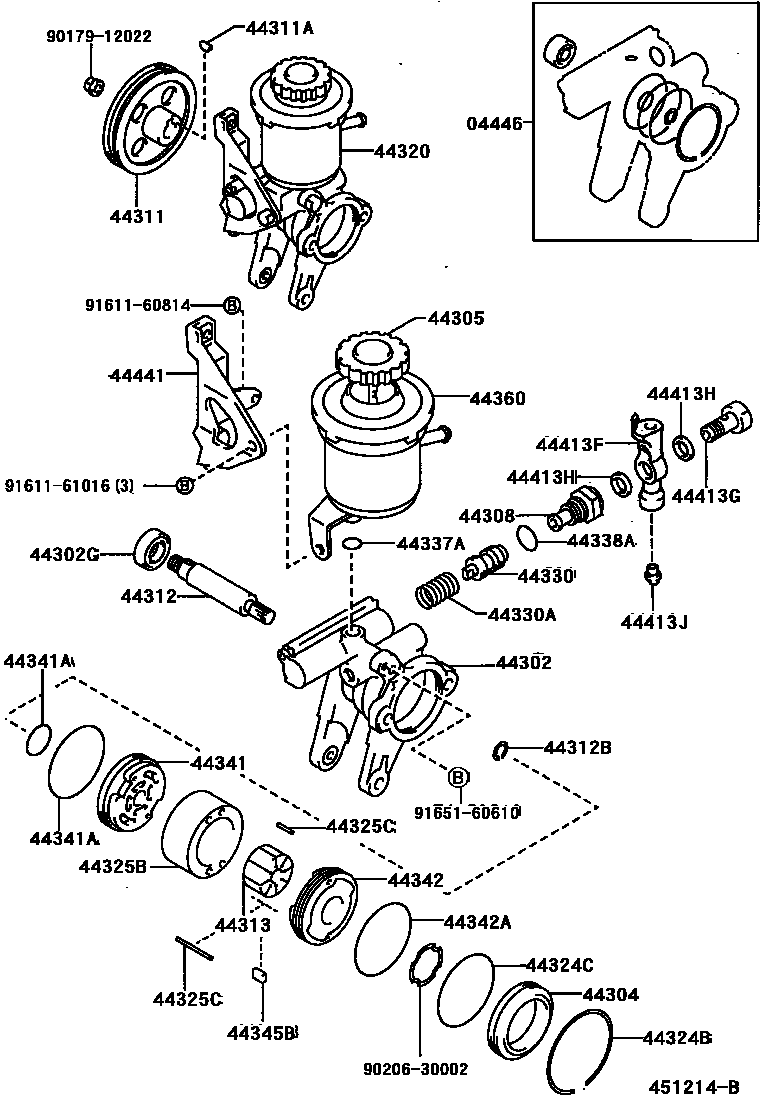

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-12051iAE10#..GLI,LX,SEG,SJ199108-199205

main04446-12060iAE101..GTAPX199108-199505

main04446-20030iCE100,EE10#199108-199502

main04446-20120iEE10#199502-199905

main04446-27011iCE100199502

main04446-32011iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12041iCE100199205

main44302-12100iAE10#..GLI,LX,SEG,SJ199108-199205

main44302-12110iEE10#199108-199905

main44302-12150iAE101..GTAPX199108-199505

main44302-12160iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-15010iAE101..GTAPX199108-199505

main90311-18007iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

main90311-18015iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-12020iAE101..GTAPX199108-199505

main44324-02020iAE101,102..GLI,SEG,XLI199306-199410

main44324-12031iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

main44324-26031iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205-199410

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-12030iEE100..RHD..5F..XL199505

NEW ZEALAND SPEC

main44305-12030iEE100..GL;CE100,EE105199108-199905

main44305-22040iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199108

44308UNION SUB-ASSY, PRESSURE PORT

main44308-12022iCE100199205-199509

main44308-12032iEE100,105199108-199509

main44308-12042iEE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,104,105199509-199905

main44308-12042iEE100..RHD..5F..XL199509

NEW ZEALAND SPEC

main44308-12050iEE101,104,108199109-199509

main44308-12080iAE101..GTAPX199305-199505

main44308-12080iAE101..GTAPX199108-199305

W(SUPER STRUT SUSPENSION)

main44308-12090iAE101..GTAPX199108-199305

main44308-12100iAE10#..SED199108-199205

main44308-12110iAE10#..SED,WG199205

main44308-12120iAE101..SJ199205-199505

main44338-12110iAE101..SJ199108-199205

44311PULLEY, VANE PUMP

main44311-02030iAE101,102..GLI,SEG,XLI199306-199410

main44311-12030iCE100199205-199208

main44311-12040iAE10#..GLI,LX,SEG,SJ199108-199205

main44311-12090iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205-199410

main44311-12100iEE10#199108-199905

main44311-12110iEE104,108199109-199704

main44311-12130iCE100199208-199408

44311AKEY, VANE PUMP PULLEY

main90280-05008iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

44312SHAFT, VANE PUMP

main44303-12010iAE101..GTAPX199108-199505

main44312-12030iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

main44312-32020iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iAE10#,CE100,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL,XLI199108-199905

main90520-10007iAE101..GTAPX199108-199505

44313ROTOR, VANE PUMP

main44313-06010iAE101,102..GLI,SEG,XLI199205-199410

NO MARK,(L)

main44313-06020iAE101,102..GLI,SEG,XLI199205-199410

MARK 1,(L)

main44313-06030iAE101,102..GLI,SEG,XLI199205-199410

MARK 2,(L)

main44313-06040iAE101,102..GLI,SEG,XLI199205-199410

MARK 3,(L)

main44313-06050iAE101,102..GLI,SEG,XLI199205-199410

MARK 4,(L)

main44313-22040iCE100,EE10#199108-199905

NO MARK

main44313-22050iCE100,EE10#199108-199905

MARK 1

main44313-22060iCE100,EE10#199108-199905

MARK 2

main44313-22070iCE100,EE10#199108-199905

MARK 3

main44313-22080iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

MARK 4

main44313-26060iAE100;AE101..SJ199205-199505

NO MARK,(J)

main44313-26060iAE101,102..SED,WG199410

NO MARK

main44313-26070iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205-199505

MARK 1,(J)

main44313-26070iAE101,102..SED,WG199410

MARK 1

main44313-26080iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205-199505

MARK 2,(J)

main44313-26080iAE101,102..SED,WG199410

MARK 2

main44313-26090iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205-199505

MARK 3,(J)

main44313-26090iAE101,102..SED,WG199410

MARK 3

main44313-26100iAE101..GLI,SEG,XLI199205-199505

MARK 4,(J)

main44313-26100iAE101,102..SED,WG199410

MARK 4

44320PUMP ASSY, VANE

main44046-12010iAE101..GTAPX199305-199505

main44046-12010iAE101..GTAPX199108-199305

W(SUPER STRUT SUSPENSION)

main44310-12310iAE101..GTAPX199108-199305

main44320-02020iAE101..GLI..TUR;AE101,102..(GLI,SEG,XLI)..GEN199306-199410

W(POWER STEERING),(L)

main44320-02020iAE101..GLI..TUR;AE101,102..(GLI,SEG,XLI)..GEN199306-199410

(L)

main44320-12212iEE10#199108-199905

main44320-12241iEE101,104,108199109-199704

main44320-12270iCE100199205-199206

main44320-12271iCE100199206

main44320-12310iAE100199108-199205

main44320-12311iAE100199205-199505

main44320-12320iAE101..SED199108-199205

main44320-12321iAE101..GLI..TUR;AE101,102..(GLI,SEG,XLI)..GEN199306-199410

W(POWER STEERING),(J)

main44320-12321iAE101..GLI,SEG,XLI199205-199306

main44320-12321iAE101..GLI..TUR;AE101,102..(GLI,SEG,XLI)..GEN199306-199410

(J)

main44320-12330iAE101..SJ199108-199205

main44320-12331iAE101..SJ199205-199505

main44320-12341iAE101..GL,STD,XL199205-199805

main44320-12390iAE101,102..GLI,SEG,XLI199410

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-52001iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199502

main90301-53006iCE100,EE10#199502-199905

44325BRING, VANE PUMP CAM

main44325-12110iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

NO MARK

main44325-12120iCE100,EE10#199108-199905

MARK 1

main44325-12130iCE100,EE10#199108-199905

MARK 2

main44325-12140iCE100,EE10#199108-199905

MARK 3

main44325-12150iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

MARK 4

main44325-12270iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

NO MARK

main44325-12280iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

MARK 1

main44325-12290iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

MARK 2

main44325-12300iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

MARK 3

main44325-12310iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

MARK 4

44325CPIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

L=28,OD=4.0

main90250-04049iCE100,EE10#199108-199905

L=43,OD=4.0

main90250-04071iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

L=23.3,OD=4.0

44330VALVE ASSY, FLOW CONTROL

main44330-12071iAE100199108-199205

MARK A

main44330-12081iAE100199108-199205

MARK B

main44330-12091iAE100199108-199205

MARK C

main44330-12101iAE100199108-199205

MARK D

main44330-12111iAE100199108-199205

MARK E

main44330-12121iAE100199108-199205

MARK F

main44330-12131iCE100199205-199505

MARK A

main44330-12141iCE100199205-199505

MARK B

main44330-12151iCE100199205-199505

MARK C

main44330-12161iCE100199205-199505

MARK D

main44330-12171iCE100199205-199505

MARK E

main44330-12181iCE100199205-199505

MARK F

main44330-12311iEE10#199108-199905

MARK A

main44330-12321iEE10#199108-199905

MARK B

main44330-12331iEE10#199108-199905

MARK C

main44330-12341iEE10#199108-199905

MARK D

main44330-12351iEE10#199108-199905

MARK E

main44330-12361iEE10#199108-199905

MARK F

main44330-12490iAE101..GTAPX199108-199305

W(SUPER STRUT SUSPENSION),KAYABA

main44330-12490iAE101..GTAPX199305-199505

KAYABA

main44330-12500iAE101..GTAPX199108-199305

KAYABA

main44330-12510iAE100199205-199505

MARK A

main44330-12520iAE100199205-199505

MARK B

main44330-12530iAE100199205-199505

MARK C

main44330-12540iAE100199205-199505

MARK D

main44330-12550iAE100199205-199505

MARK E

main44330-12560iAE100199205-199505

MARK F

main44330-12570iAE101,102..GL,GLI,SEG,SJ,STD,XL,XLI199205-199410

MARK A

main44330-12580iAE101..GL,SJ,STD,XL199205-199410

MARK B

main44330-12590iAE101..GL,SJ,STD,XL199205-199410

MARK C

main44330-12600iAE101..GL,SJ,STD,XL199205-199410

MARK D

main44330-12610iAE101,102..GL,GLI,SEG,SJ,STD,XL,XLI199205-199410

MARK E

main44330-12620iAE101..GL,SJ,STD,XL199205-199410

MARK F

main44330-20010iAE101..GTAPX199108-199305

MARK A,W(SUPER STRUT SUSPENSION),TOYODA KOKI

main44330-20010iAE101..SED199108-199205

MARK A

main44330-20010iAE101..GTAPX199305-199505

MARK A,TOYODA KOKI

main44330-20020iAE101..GTAPX199305-199505

MARK B,TOYODA KOKI

main44330-20020iAE101..GTAPX199108-199305

MARK B,W(SUPER STRUT SUSPENSION),TOYODA KOKI

main44330-20020iAE101..SED199108-199205

MARK B

main44330-20030iAE101..GTAPX199108-199305

MARK C,W(SUPER STRUT SUSPENSION),TOYODA KOKI

main44330-20030iAE101..GTAPX199305-199505

MARK C,TOYODA KOKI

main44330-20030iAE101..SED199108-199205

MARK C

main44330-20040iAE101..SED199108-199205

MARK D

main44330-20040iAE101..GTAPX199305-199505

MARK D,TOYODA KOKI

main44330-20040iAE101..GTAPX199108-199305

MARK D,W(SUPER STRUT SUSPENSION),TOYODA KOKI

main44330-20050iAE101..GTAPX199108-199305

MARK E,W(SUPER STRUT SUSPENSION),TOYODA KOKI

main44330-20050iAE101..SED199108-199205

MARK E

main44330-20050iAE101..GTAPX199305-199505

MARK E,TOYODA KOKI

main44330-20060iAE101..GTAPX199108-199305

MARK F,W(SUPER STRUT SUSPENSION),TOYODA KOKI

main44330-20060iAE101..GTAPX199305-199505

MARK F,TOYODA KOKI

main44330-20060iAE101..SED199108-199205

MARK F

main44330-20070iCE100199505

MARK A

main44330-20080iCE100199505

MARK B

main44330-20090iCE100199505

MARK C

main44330-20100iCE100199505

MARK D

main44330-20110iCE100199505

MARK E

main44330-20120iCE100199505

MARK F

main44330-32070iAE101..SJ199108-199205

MARK A

main44330-32070iAE101..GTAPX199108-199305

MARK A,TOYODA KOKI

main44330-32080iAE101..GTAPX199108-199305

MARK B,TOYODA KOKI

main44330-32080iAE101..SJ199108-199205

MARK B

main44330-32090iAE101..SJ199108-199205

MARK C

main44330-32090iAE101..GTAPX199108-199305

MARK C,TOYODA KOKI

main44330-32100iAE101..GTAPX199108-199305

MARK D,TOYODA KOKI

main44330-32100iAE101..SJ199108-199205

MARK D

main44330-32110iAE101..GTAPX199108-199305

MARK E,TOYODA KOKI

main44330-32110iAE101..SJ199108-199205

MARK E

main44330-32120iAE101..SJ199108-199205

MARK F

main44330-32120iAE101..GTAPX199108-199305

MARK F,TOYODA KOKI

main44330-32191iAE101,102..GLI,SEG,XLI199205-199410

MARK A

main44330-32201iAE101,102..GLI,SEG,XLI199205-199410

MARK B

main44330-32211iAE101,102..GLI,SEG,XLI199205-199410

MARK C

main44330-32221iAE101,102..GLI,SEG,XLI199205-199410

MARK D

main44330-32231iAE101,102..GLI,SEG,XLI199205-199410

MARK E

main44330-32241iAE101,102..GLI,SEG,XLI199205-199410

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

main90501-12141iAE101..GTAPX199108-199505

main90501-13034iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

44337UNION, POWER STEERING SUCTION PORT

main44337-12060iEE10#199108-199905

main44337-12080iAE101..GTAPX199108-199505

main44337-12090iCE100199205-199206

main44337-12091iCE100199206

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11010iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205-199610

main90301-11016iEE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE10#,CE100,EE104,105199610-199905

main90301-11016iEE100..RHD..5F..XL199610

NEW ZEALAND SPEC

main90301-12003iCE100,EE10#199108-199610

main90301-17008iAE101..GTAPX199108-199505

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-13001iAE101..GTAPX199108-199505

ID=13.5,OD=16.5

main90301-17008iAE101..GTAPX199108-199505

ID=17.8,OD=22.6

main90301-19003iAE10#,CE100,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL,XLI199108-199610

ID=19.5,OD=22.5

main90301-19013iEE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;AE10#,CE100,EE104,105199610-199905

ID=19.2,OD=22.3

main90301-19013iEE100..RHD..5F..XL199610

ID=19.2,OD=22.3,NEW ZEALAND SPEC

44341PLATE, VANE PUMP SIDE, FRONT

main44341-12040iAE101..GTAPX199108-199505

main44341-32010iCE100,EE10#199108-199905

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-16004iAE101..GTAPX199108-199505

OUTER

main90301-25001iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

INNER

main90301-47004iAE101..GTAPX199108-199505

INNER

main90301-52001iCE100,EE10#199108-199905

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44342-06010iAE101,102..GLI,SEG,XLI199306-199410

main44342-26020iAE100;AE101..GL,SJ,STD,XL199205-199410

main44342-32010iCE100,EE10#199108-199905

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-18007iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

INNER

main90301-47001iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

OUTER

main90301-52001iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

44345BPLATE, VANE PUMP

main44345-12010iCE100,EE10#199108-199905

L=14.997

main44345-12020iCE100,EE10#199108-199905

L=14.995

main44345-12030iCE100,EE10#199108-199905

L=14.993

main44345-12040iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

L=14.991

main44345-12050iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL199108-199905

L=14.989

main44345-26010iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

L=15.000

main44345-26020iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

L=14.998

main44345-26030iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

L=14.996

main44345-26040iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

L=14.994

main44345-26050iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205

L=14.992

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-12100iAE101,102..GLI,SEG,XLI199205-199410

main44306-12120iAE10#..GLI,LX,SEG,SJ199108-199205

main44306-12160iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205-199410

main44360-12050iEE100..3FC,4F;EE100..LHD..5F;EE100..RHD..GL;CE100,EE101,104,105199108-199905

main44360-12050iEE100..RHD..5F..XL199505

NEW ZEALAND SPEC

44413FTUBE, PRESSURE FEED, NO.2

main44413-12150iAE101..GL,STD,XL199205-199805

main44413-12160iAE10#..GLI,LX,SEG,SJ,XLI199108

44413GBOLT, UNION(FOR PRESSURE FEED TUBE NO.2)

main90401-16005iAE10#..GLI,LX,SEG,SJ199108-199205

main90401-16008iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199205-199408

main96341-41603iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199408

44413HGASKET(FOR PRESSURE FEED TUBE NO.2)

main90430-16242iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199108

44413JSEAT, UNION(FOR PRESSURE FEED TUBE NO.2)

main90410-05035iAE10#..GL,GLI,LX,SEG,SJ,STD,XL,XLI199108

44441BRACKET, PUMP, FRONT

main44441-02020iAE101,102..GLI,SEG,XLI199205-199410

main44441-12040iAE10#..GLI,LX,SEG,SJ199108-199205

main44441-12070iAE100;AE101..GL,SJ,STD,XL199205-199410

9017912022

main90179-12022

9020630002

main90206-30002

9161160814

main91611-60814

9161161016

main91611-61016

9165160610

main91651-60610

37 parts on this diagram · 5 diagrams in section
