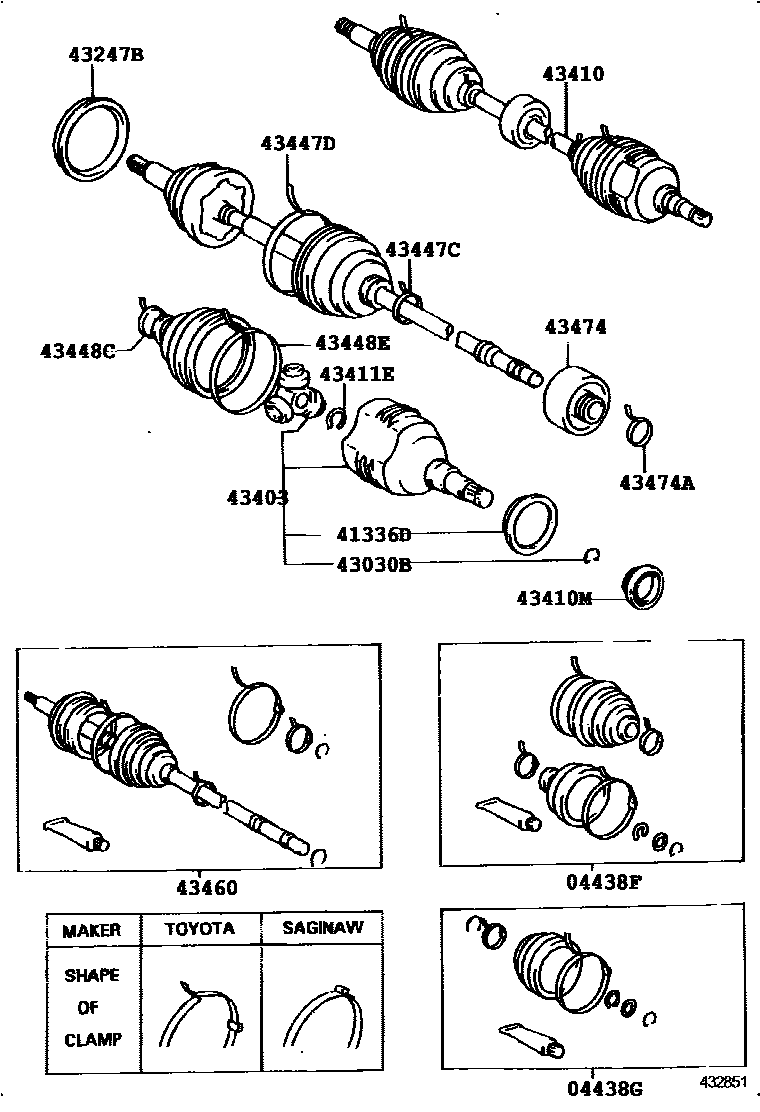

FRONT DRIVE SHAFT

0001 1TOYOTA,RH 0003 1SAGINAW,RH 0004 1RH 0005 1RH 0006 1TOYOTA,LH 0008 1SAGINAW,LH 0009 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-10060iEE104,108199109-199405

sub04438-16040

main04438-10060iEE104199405-199511

TYPE A

sub04438-16040

main04438-12172iAE101..GCC;AE101..GL,STD,XL;AE100,EE100,101,105199303-199306

TOYOTA

sub04428-12270

main04438-12172iAE10#,EE100,101,105..GL,GLI,LX,SEG,SJ,STD,XL,XLI199108-200111

sub04428-12270

main04438-12172iEE104199405-199704

TYPE B

sub04428-12270

main04438-12270iCE100199205-199408

sub04438-12290

main04438-12290iCE100;AE101..GTAPX199108-199804

sub04438-20131

main04438-12481iCE100200104-200111

sub04428-12250

main04438-16040iEE104199511-199704

TYPE A

sub04428-16010

main04438-20110iAE102199505-199804

sub04438-20131

main04438-20131iAE102,CE100199804-199901

sub04438-20134

main04438-20132iCE100199901-200104

sub04438-20133

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-02050iAE101..SJ199303-199505

SAGINAW

main04438-10050iEE104,108199109-199405

sub04438-16140

main04438-10050iEE104199405-199511

TYPE A

sub04438-16140

main04438-12162iAE101..GCC;AE101..GL,STD,XL;AE100,EE100,101,105199303-199505

TOYOTA

sub04438-12410

main04438-12162iAE10#,EE100,101,105199108-199511

sub04438-12410

main04438-12162iEE104199405-199511

TYPE B

sub04438-12410

main04438-12260iCE100;AE101..GTAPX199205-199511

sub04438-12420

main04438-12280iAE101..GTAPX199108-199311

sub04438-12260

main04438-12410iAE101,EE10#199511-200111

sub04438-12840

main04438-12410iEE104199511-199704

TYPE B

sub04438-12840

main04438-12420iCE100199511-199804

sub04438-20121

main04438-12470iCE100200104-200111

sub04438-32240

main04438-16140iEE104199511-199704

TYPE A

sub04438-16070

main04438-20121iAE102,CE100199804-200104

sub04438-12470

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-01010iAE101..LHD..(GLI,XLI)..GEN199303-199505

SAGINAW

main41336-12010iAE101..(GLI,SEG,SJ,XLI)..GEN199303-199505

TOYOTA

main41336-12010iAE10#,EE10#..GL,GLI,L,LX,SEG,SJ,STD,XL,XLI199108-200111

main41336-12060iCE100200011-200111

main41336-20011iAE101..GTAPX199108-199305

sub41336-20050

main41336-32010iCE100199205-200011

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90080-52015iAE101..LHD..(GLI,XLI)..GEN199303-199505

SAGINAW

main90521-26004iAE101..GCC;AE100,EE10#;AE101..RHD..(GLI,XLI);AE101..GL,SEG,SJ,STD,XL199303-199505

TOYOTA

main90521-26004iAE10#,EE10#199108-200111

main90521-27005iCE100199205-200111

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iAE101..LHD..GLI..GEN199703-199711

PHILIPPINES SPEC

main43247-12010iAE100;AE101..CP199108-199807

W(ABS)

main43247-33010iAE10#,CE100,EE10#199108-199905

43403JOINT SET, FRONT AXLE INBOARD, RH

main43030-12030iAE101..GTAPX199108-199305

main43030-20020iCE100199205-200111

main43047-02030iAE101..(GLI,SEG,SJ,XLI)..GEN199303-199505

SAGINAW

main43403-10010iEE104,108199109-199405

sub43403-10011

main43403-10010iEE104199405-199704

TYPE A

sub43403-10011

main43403-12040iEE104199405-199704

TYPE B

main43403-12040iAE10#,EE100,101,105..GL,GLI,LX,SEG,SJ,STD,XL,XLI199108-200111

main43403-12040iAE101..LHD..(GLI,XLI)..GEN199303-199505

TOYOTA

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02030iAE101..SJ199303-199505

SAGINAW

sub43410-02031

main43410-02040iAE101..SJ199305-199505

W(*66),SAGINAW

sub43410-02041

main43410-12260iEE104199405-199704

TYPE A

sub43410-12261

sub90178-22001

main43410-12260iEE104,108199109-199405

sub43410-12261

sub90178-22001

main43410-12360iAE101..GTAPX199108-199505

sub43410-12361

sub90178-22001

main43410-12370iAE101..GTAPX199108-199505

W(*66)

sub43410-12371

sub90178-22001

main43410-20341iCE100199205-199709

sub43410-20342

sub90178-22001

main43410-20342iCE100199709-199901

sub43410-20343

main43410-20343iCE100199901-200104

sub43410-20344

main43410-20344iCE100200104-200111

main43410-20420iAE102199505-199709

sub43410-20421

sub90178-22001

main43410-20421iAE102199709-199805

sub43410-20422

main43410-20440iAE101..LHD..(GLI,XLI)..GEN199303-199505

TOYOTA

sub43410-20441

sub90178-22001

main43410-20440iAE10#,EE100,101,105..GL,GLI,LX,SEG,SJ,STD,XL,XLI199108-199709

sub43410-20441

sub90178-22001

main43410-20440iEE104199405-199704

TYPE B

sub43410-20441

sub90178-22001

main43410-20441iAE101,EE10#199709-200111

sub43410-20442

main43410-20450iAE101..SJ199305-199505

W(*66),TOYOTA

sub43410-20451

sub90178-22001

main43410-20450iAE100199108-199708

W(*66)

sub43410-20451

sub90178-22001

main43410-20450iEE100..LHD..GEN;AE101..LHD..SED..(GLI,XLI)199708-199709

W(ABS)

sub43410-20451

sub90178-22001

main43410-20451iEE100..LHD..GEN;AE101..LHD..SED..(GLI,XLI)199709-199807

W(ABS)

sub43410-20452

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34012iAE100,101,EE100,101..3FC199108-199803

main90311-34016iAE100,101,EE10#..MTM199108-200008

main90311-34019iCE100199410-199507

main90311-34023iAE101..3FC199802-200111

main90311-34026iCE100199205-199410

main90311-35033iCE100199507-200111

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90080-52008iAE101..(GLI,SEG,SJ,XLI)..GEN199303-199505

SAGINAW

main90520-22001iEE104199405-199704

TYPE A

sub90520-22029

main90520-22001iEE104,108199109-199405

sub90520-22029

main90520-22005iAE101..GCC;AE101..GL,STD,XL;AE100,CE100,EE100,101,105199303-199505

TOYOTA

main90520-22005iAE10#,CE100,EE100,101,105199108-200111

main90520-22005iEE104199405-199704

TYPE B

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12150iCE100200104

ID=29.6

sub42345-12190

main42345-14010iAE102,CE100199108-199505

main42345-16010iEE105199704-199910

ID=32.5

main42345-16010iAE101..SJ199307-199505

TOYOTA

main42345-20090iCE100199901-200104

ID=27.15

sub42345-20100

main42345-20100iCE100199901-200104

ID=31.1

main90080-46147iAE101..(GLI,SEG,SJ,XLI)..GEN199303-199505

SAGINAW

main90949-01078iAE101,EE10#199108-199705

ID=32.7

main90949-01078iAE101..LHD..(GLI,XLI)..GEN199303-199307

ID=32.7,TOYOTA

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12140iCE100200104

ID=92.0

sub42345-12180

main42345-16020iAE101..SJ199307-199505

TOYOTA

main42345-16020iAE101,EE10#199109-199907

main42345-16040iCE100;AE101..GTAPX199307-199901

main42345-20110iCE100199901-200104

ID=87.25

sub42345-20120

main42345-20120iCE100199901-200104

ID=90.6

main90080-46149iAE101..(GLI,SEG,SJ,XLI)..GEN199303-199505

SAGINAW

main90949-01076iCE100;AE101..GTAPX199108-199307

sub42345-12160

main90949-01080iAE101..GCC;AE100,EE10#;AE101..GL,STD,XL199108-199910

ID=88.2

main90949-01080iAE101..(GLI,SEG,SJ,XLI)..GEN199303-199307

ID=88.2,TOYOTA

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16010iAE101..SJ199307-199505

TOYOTA

main90080-46148iAE101..SJ199303-199505

SAGINAW

main90949-01078iAE10#,CE100,EE10#199108-199705

main90949-01078iAE101..LHD..(GLI,XLI)..GEN199303-199307

TOYOTA

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16040iEE104199405-199704

TYPE B

main42345-16040iAE101..SJ199307-199505

TOYOTA

main42345-16040iAE10#,CE100,EE100,101,105199505-199509

main42345-16080iEE108199109-199405

main42345-16080iEE104199405-199704

TYPE A

main90080-46150iAE101..(GLI,SEG,SJ,XLI)..GEN199303-199505

SAGINAW

main90949-01076iAE10#,CE100,EE100,101,105..GL,GLI,GTAPX,LX,SEG,STD,XL,XLI199303-199307

TOYOTA

sub42345-12160

main90949-01076iAE10#,CE100,EE100,101,105199108-199910

sub42345-12160

main90949-01146iEE108199206-199307

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09050iAE101..(GLI,SEG,SJ,XLI)..GEN199303-199505

SAGINAW

sub43460-09051

main43460-09060iAE101..SJ199305-199505

W(*66),SAGINAW

sub43460-09061

main43460-19635iEE104199405-199704

TYPE A

sub43460-19636

sub90178-22001

main43460-19635iEE104,108199109-199405

sub43460-19636

sub90178-22001

main43460-29098iAE101..LHD..(GLI,XLI)..GEN199303-199505

TOYOTA

sub43460-29099

sub90178-22001

main43460-29098iEE104199405-199704

TYPE B

sub43460-29099

sub90178-22001

main43460-29098iAE10#,EE100,101,105..GL,GLI,LX,SEG,SJ,STD,XL,XLI199108-199709

sub43460-29099

sub90178-22001

main43460-29099iAE101,EE10#199709-200111

sub43460-80094

main43460-29117iAE102199505-199709

sub43460-29118

sub90178-22001

main43460-29118iAE102199709-199804

sub43460-29119

main43460-29119iAE102199804-199805

sub43460-29121

main43460-29147iCE100199205-199709

sub43460-29148

sub90178-22001

main43460-29148iCE100199709-199804

sub43460-29149

main43460-29149iCE100199804-199901

sub43460-29150

main43460-29150iCE100199901-200104

sub43460-29151

main43460-29151iCE100200104-200111

main43460-29167iAE101..SJ199108-199709

W(*66)

sub43460-29168

sub90178-22001

main43460-29167iAE100199305-199505

W(*66),TOYOTA

sub43460-29168

sub90178-22001

main43460-29168iEE100..LHD..GEN;AE101..LHD..SED..(GLI,XLI)199709-199807

W(*66)

sub43460-80095

main43470-19645iAE101..GTAPX199108-199305

sub43470-19646

sub90178-22001

main43470-19655iAE101..GTAPX199108-199305

W(*66)

sub43470-19656

sub90178-22001

43474DAMPER, DRIVE SHAFT

main43474-12020iCE100199205-200111

main43474-12040iAE101,EE10#199704-200111

sub43474-12130

main43474-20050iAE102199108-199805

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iAE10#,CE100,EE100,101,105..GL,GLI,LX,SEG,SJ,STD,XL,XLI199108-199307

main42345-16030iEE108199109-199907

16 parts on this diagram · 7 diagrams in section
