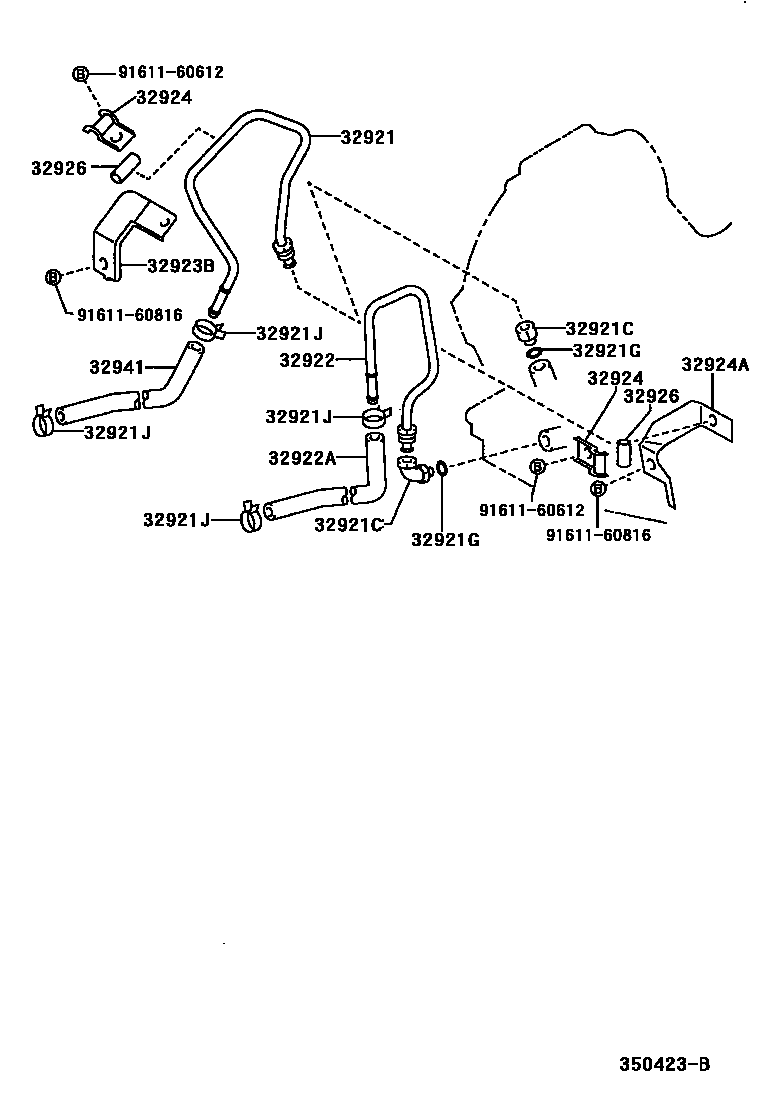

Toyota COROLLA SED/CP/WG151 — OIL COOLER & TUBE (ATM)
32921TUBE, OIL COOLER INLET, NO.1
32921CUNION(FOR OIL COOLER TUBE)
32921GRING, O(FOR OIL COOLER TUBE UNION)
32921JCLIP(FOR OIL COOLER HOSE)
32922TUBE, OIL COOLER OUTLET, NO.1
32922AHOSE(FOR OIL COOLER OUTLET)
32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32924ACLAMP(FOR OIL COOLER TUBE, NO.2)
9161160612
9161160816
13 parts on this diagram · 4 diagrams in section
OIL COOLER & TUBE (ATM) for Toyota COROLLA SED/CP/WG151
This section contains 16 genuine Toyota parts for the OIL COOLER & TUBE (ATM) system of the Toyota COROLLA SED/CP/WG151. Key components include: TUBE, OIL COOLER INLET, NO.1, UNION(FOR OIL COOLER TUBE), RING, O(FOR OIL COOLER TUBE UNION), CLIP(FOR OIL COOLER HOSE), TUBE, OIL COOLER OUTLET, NO.1.
