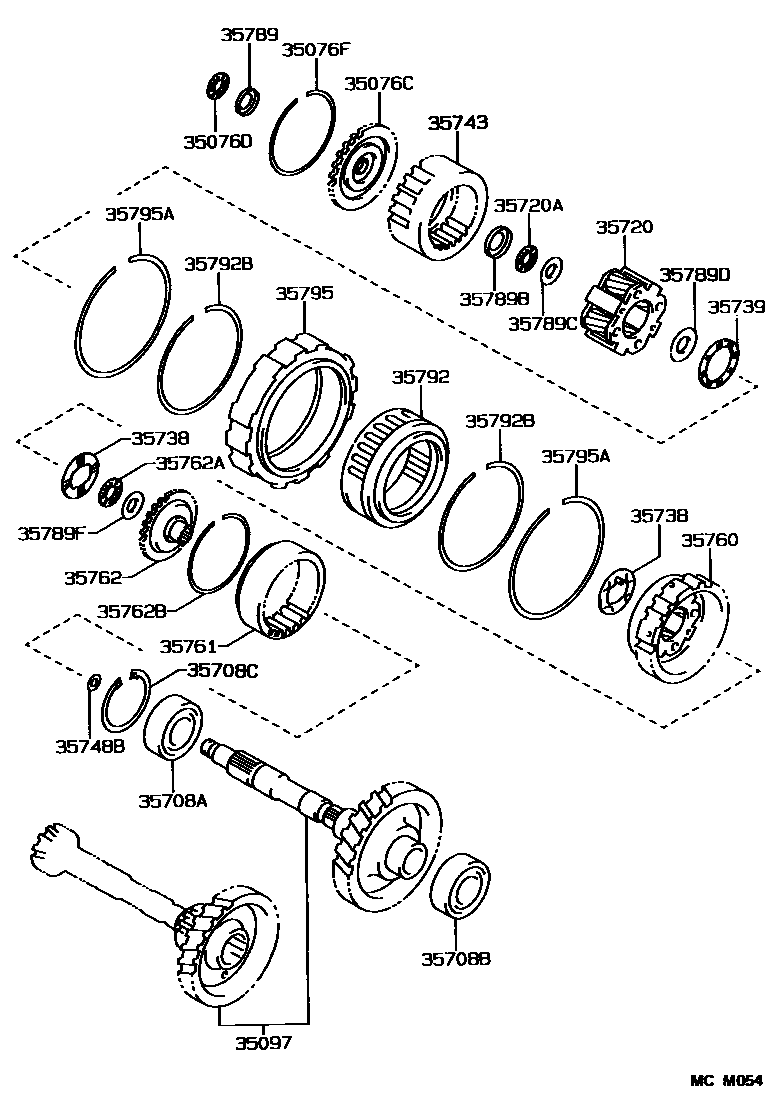

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A131L,A132L 0002 1A240L,A240E 0004 1A245E 0005 1A240L

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-12020iAE101..4FC..SJ199305-199505

main35076-32011iAE10#,EE100,101..ATM199108-199305

35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)

main90374-22001iAE101..3FC199801-199805

main90374-22005iAE10#..4FC199801-200111

main90374-25007iAE101..4FC..SJ199305-199505

35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)

main90521-99014iAE10#,EE100,101..ATM199108-199409

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-12040iEE100,101..3FC199206-199704

main35097-12050iAE101..4FC..SJ199305-199505

main35097-20010iAE10#..(SED,WG)..4FC199305-199409

main35097-20020iAE100,101..3FC199108-199705

35708ABEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT FRONT)

main90363-40024iAE10#,EE100,101..ATM199108-199305

35708BBEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT REAR)

main90363-40024iAE10#..4FC199108-199305

main90363-40027iAE101..3FC199705-199805

main90363-45004iAE100,101..3FC199108-199705

35708CRING, HOLE SNAP (FOR INTERMEDIATE SHAFT FRONT BEARING)

main90521-76003iAE10#,EE100,101..ATM199108-199305

35720GEAR ASSY, FRONT PLANETARY

main35720-12030iAE101..4FC199505-200111

main35720-32010iAE102..4FC;AE101,EE100,101..3FC199505-199704

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-22001iAE10#,EE100,101..ATM199108-199305

main90374-22004iAE101..4FC..SJ199305-199505

main90374-22005iAE10#..4FC199801-200111

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-12010×2iAE101..4FC199505-200111

main35738-32010×2iAE10#,EE100,101..ATM199108-199409

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-32011iAE10#,EE100,101..ATM199108-199409

35743GEAR, FRONT PLANETARY RING

main35743-32040iAE10#,EE100,101..ATM199108-199409

35748BRING, INTERMEDIATE SHAFT OIL SEAL

main35748-32010iAE10#,EE100,101..ATM199108-199409

35760GEAR ASSY, REAR PLANETARY

main35760-12020iAE101..4FC199505-200111

main35760-32010iAE102..4FC;AE101,EE100,101..3FC199505-199704

35761GEAR, REAR PLANETARY RING

main35761-32010iAE10#,EE100,101..(SED,WG)..ATM199305-199409

35762FLANGE, REAR PLANETARY RING GEAR

main35762-32010iAE10#,EE100,101..ATM199108-199305

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-24002iAE10#,EE100,101..ATM199108-199305

35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90521-90001iAE10#,EE100,101..ATM199409-199704

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-12040iAE101..4FC..SJ199305-199505

main35789-32050iAE10#,EE100,101..(SED,WG)..ATM199305-199409

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-32040iAE10#,EE100,101..(SED,WG)..ATM199305-199409

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-32060iAE10#,EE100,101..ATM199108-199409

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-32070iAE10#,EE100,101..ATM199108-199305

35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)

main35789-32080iAE10#,EE100,101..(SED,WG)..ATM199409-199704

35792CLUTCH, 1 WAY, NO.2

main35792-12010iAE100,101,EE100,101..3FC199108

main35792-32011iAE100..3FC199108-199112

HONG KONG SPEC

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-99010×2iAE10#,EE100,101..ATM199108-199409

35795RACE, 1 WAY CLUTCH OUTER

main35795-12020iAE101..4FC..SJ199305-199505

main35795-32010iAE10#,EE100,101..(SED,WG)..ATM199305-199409

35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)

main90521-99011×2iAE10#,EE100,101..ATM199108-199409

27 parts on this diagram · 4 diagrams in section
