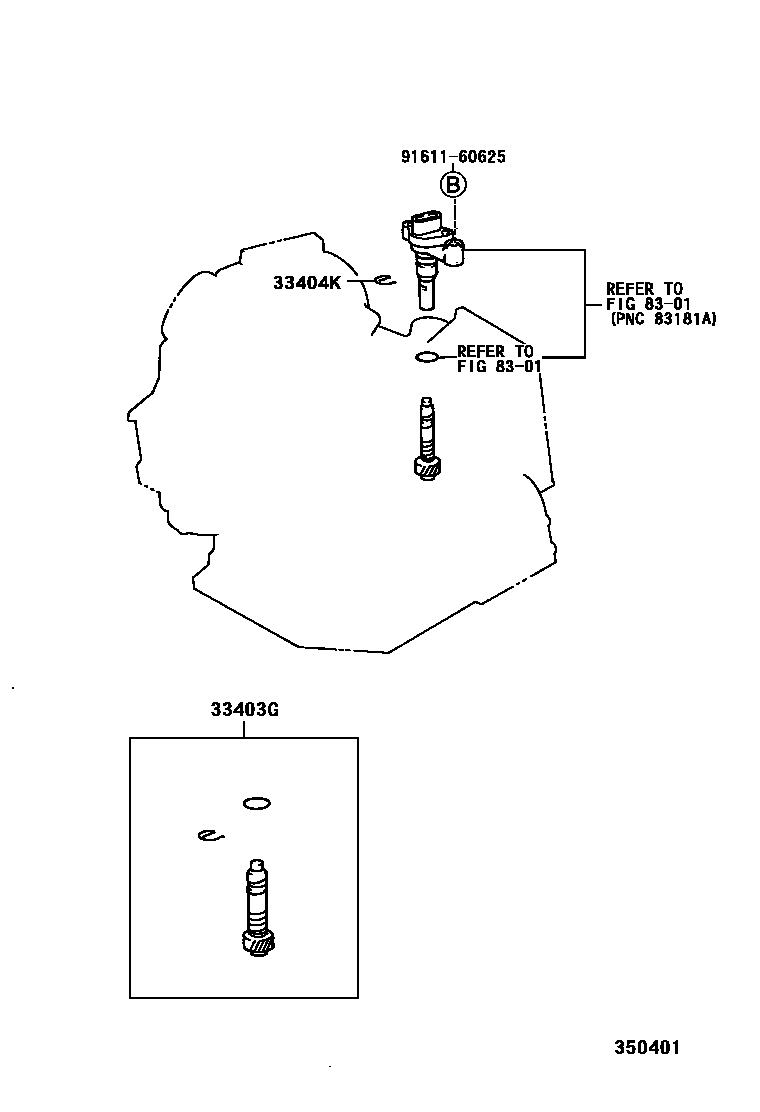

Toyota COROLLA SED/CP/WG151 — SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

8301METER

→ Go to FIG 83-01

9161160625

91611-60625

4 parts on this diagram · 2 diagrams in section

SPEEDOMETER DRIVEN GEAR (ATM) for Toyota COROLLA SED/CP/WG151

This section contains 5 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (ATM) system of the Toyota COROLLA SED/CP/WG151. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM), CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE), METER.
