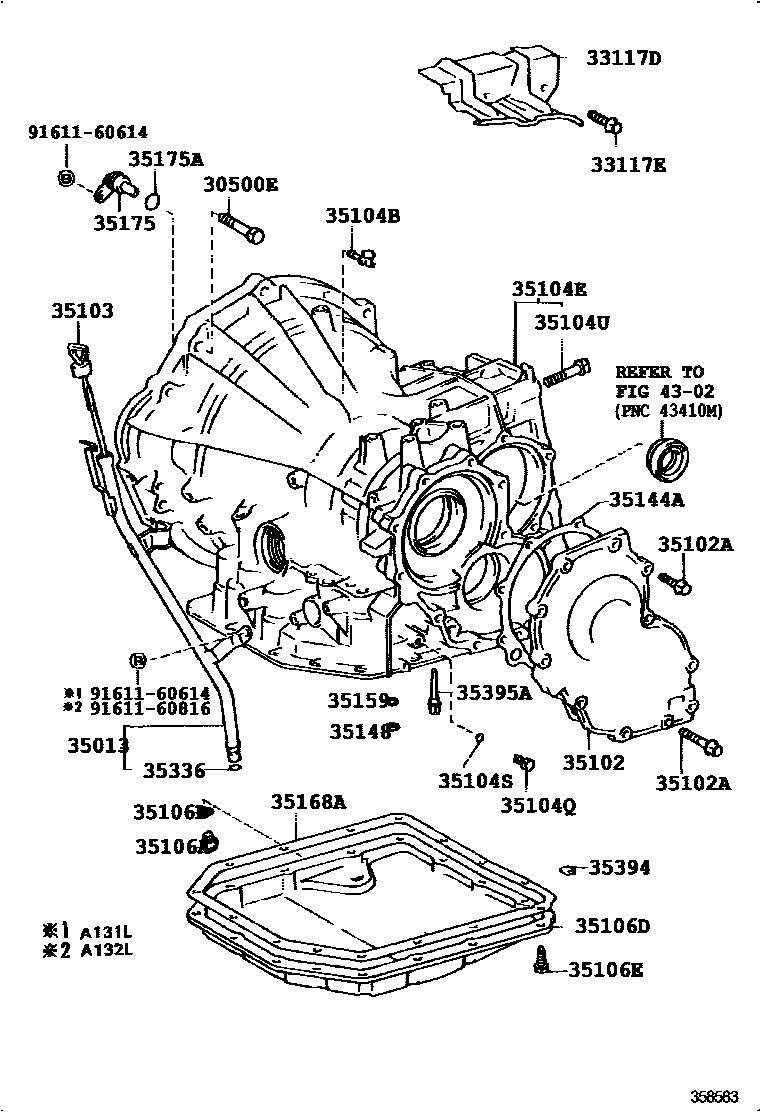

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A131L,A132L 0002 1A240L,A240E 0004 1A132L 0005 1A240L 0006 1A245E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10077iAE10#..(SED,WG)..ATM199301-199305

*10-1.25PX43-26

main90105-10097iEE100,101..3FC199108-199704

*10-1.25PX60-22

main90119-12168iAE10#,EE100,101..ATM199409-199704

*12-1.25PX55-30

main91611-61025iAE102..4FC;AE101..ATM..(GL,XL)199605-199805

*10-1.25PX25-25

main91619-61245×2iAE10#,EE100,101..ATM199305-199409

*12-1.25PX45-30

main91621-60614iEE100..3FC199108-199704

*6-1.00PX14-14

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAE10#..4FC199108-199409

main33117-12040iAE101,EE100,101..3FC199505-199704

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAE10#,EE100,101..ATM199108-199305

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12280iAE100,102..4FC;AE101..LHD..4FC..GLI;AE101..4FC..(GL,SEG,XL,XLI)199409-199505

main35013-12290iAE100..3FC199108-199109

main35013-12291iAE100..3FC199109-199505

main35013-12300iEE100..3FC199108-199301

main35013-12310iEE101..3FC199205-199505

main35013-12350iAE101..4FC..SJ199305-199505

main35013-12360iAE101..3FC199205-199805

main35013-12380iEE101..3FC199505-199511

main35013-12390iAE10#..4FC199505-199705

main35013-12391iAE10#..4FC199705

main35013-12430iEE100..3FC199301-199704

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011iAE101..3FC199705-199805

main35102-12020iAE100,101..3FC199108-199705

main35102-20050iAE10#..4FC199108-199305

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198×2iAE101..4FC..SJ199305-199505

*6-1.00PX32-32

main90105-08050×9iAE101..3FC199704-199805

*8-1.25PX28-28

main90105-08056×2iAE101..3FC199704-199805

*8-1.25PX40-40

main90105-08065×10iAE10#..4FC199108-199305

*8-1.25PX45-35

main90105-08068×3iAE10#..(SED,WG)..4FC199409-200111

*8-1.25PX35-30

main91511-80625×11iAE101..4FC..SJ199305-199505

*6-1.0PX25-25

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12140iAE100,102..4FC;AE101..LHD..4FC..GLI;AE101..4FC..(GL,SEG,XL,XLI)199305-199409

main35103-12170iAE100,101..3FC199108-199506

main35103-12171iAE101..3FC199506-199805

main35103-12180iEE100,101..3FC199505-199704

main35103-12190iEE101..3FC199205-199505

main35103-12220iEE100..3FC199108-199301

main35103-12240iAE101..4FC..SJ199305-199505

main35103-12270iAE10#..4FC199505-199705

main35103-12271iAE10#..4FC199705

main35103-12310iEE100..3FC199301-199505

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iAE100,101,EE100,101..3FC199108-199704

main90930-03101iAE10#..4FC199108-199305

main90930-03132iAE101..4FC..SJ199305-199505

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-12161iAE100..3FC199108-199205

main35104-12162iAE100,101..3FC199205-199705

main35104-12193iEE100,101..3FC199108-199704

main35104-12202iAE101..3FC199705-199805

main35104-12230iAE101..4FC..SJ199305-199505

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iAE10#..4FC199108-199409

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iAE10#..4FC199108-199409

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10008×2iAE100,101,EE100,101..3FC199108-199704

*10-1.25PX53-26

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iAE10#..4FC199108-199407

main90341-10011iAE101..4FC..SJ199407-199505

main90341-18016iAE100,101,EE100,101..3FC199108-199704

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAE10#..4FC199108-199409

main90430-18008iAE101..3FC199704-199705

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10022iAE101..3FC199705-199805

main35106-12070iAE10#..(SED,WG)..4FC199409-200111

main35106-12080iAE100,101..3FC199108-199705

main35106-12090iAE101..4FC..SJ199305-199505

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iAE10#..4FC199409-200111

35144AGASKET, TRANSAXLE REAR COVER

main35144-12010iEE100,101..3FC199108-199310

main35144-12020iAE101..3FC199704-199805

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAE10#..ATM199704-200111

35159GASKET, BRAKE DRUM

main35159-20010iAE10#..4FC199409-200111

main35159-32011iAE101..3FC199704-199805

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iAE10#..(SED,WG)..4FC199409-200111

main35168-12030iAE101..4FC..SJ199305-199505

main35168-32010iAE101..3FC199704-199805

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iAE100,101,EE100,101..3FC199108-199704

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iAE100,101,EE100,101..3FC199108-199704

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAE10#,EE100,101..ATM199108-199301

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iAE10#..(SED,WG)..ATM; EE100,101..3FC;AE101..4FC..SJ199212-199305

35395ASTRAINER, GOVERNOR OIL

main35395-12020iAE10#..(SED,WG)..4FC199409-200111

main35395-32011iAE100,101..3FC199108-199705

main35395-32020iEE100,101..3FC199108-199404

main35395-32030iAE101..3FC199705-199805

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9161160614

main91611-60614

9161160816

main91611-60816

28 parts on this diagram · 5 diagrams in section
