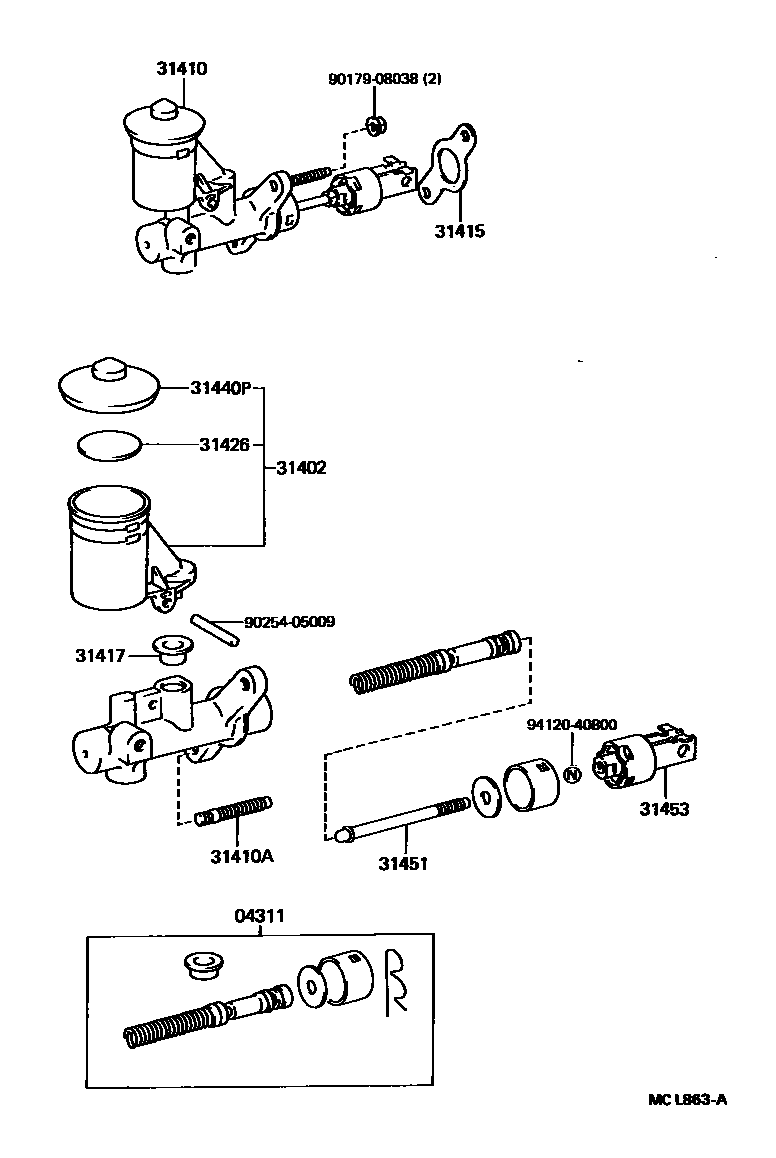

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12100iAE100,CE100,EE101,108..5F;AE101,EE100,105..RHD..MTM199108-199208

main04311-12110iCE100..RHD;AE100,101,EE10#..MTM199311-199704

main04311-34010iEE105..LHD199704-199910

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12030iAE101,CE100,EE100..RHD..5F199705

main31402-12040iAE101,EE100,105..LHD..MTM199409-199509

main31402-12050iAE102,EE105..LHD..5F199704-199910

main31402-12060iAE101..GTAPX199311-199505

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12300iAE10#,EE10#..MTM..(GL,GLI,L,LX,SEG,SJ,STD,XL)199108-199202

main31410-12301iAE100,101,EE100,105,108..RHD..MTM..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI)199202-199311

main31410-12302iAE100,101,EE10#..RHD..MTM..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI)199311-199704

main31410-12310iAE101..GTAPX199108-199202

main31410-12311iEE101..5F;AE101..GTAPX199202-199208

main31410-12312iEE105..RHD199704-199910

main31410-12362iCE100..RHD199603

main31410-12370iAE101,EE100,105..LHD..MTM199205-199704

main31410-12371iAE101,EE100..TUR199807-199905

main31410-12380iAE102,EE105..LHD..5F199704-199807

main31410-12381iEE105..LHD199807-199910

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146×2iAE10#,CE100,EE10#..MTM199108-199907

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iAE101,CE100,EE10#..5F199905

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iAE100,101,CE100,EE10#..MTM199108-199409

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iAE101,CE100,EE100,105..LHD..MTM199205-199409

main31426-30011iAE100,101,CE100,EE10#..RHD..MTM199108

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAE100,101,CE100,EE10#..MTM199108-199409

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20090iAE100,101,EE100,105,108..MTM..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI)199310-199311

main31451-35070iAE100,101,EE100,105,108..MTM..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI)199108-199310

main31451-35080iAE101..GTAPX;CE100,EE101..5F199108-199311

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-12020iAE101..GTAPX199108-199110

main31404-17010iAE102,CE100,EE105..5F199704

main31453-10020iAE100,101,EE100,105,108..MTM..(GL,GLI,L,LX,SEG,SJ,STD,XL,XLI)199108-199310

main31453-10040iAE101,EE10#..MTM199509-199704

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 6 diagrams in section
