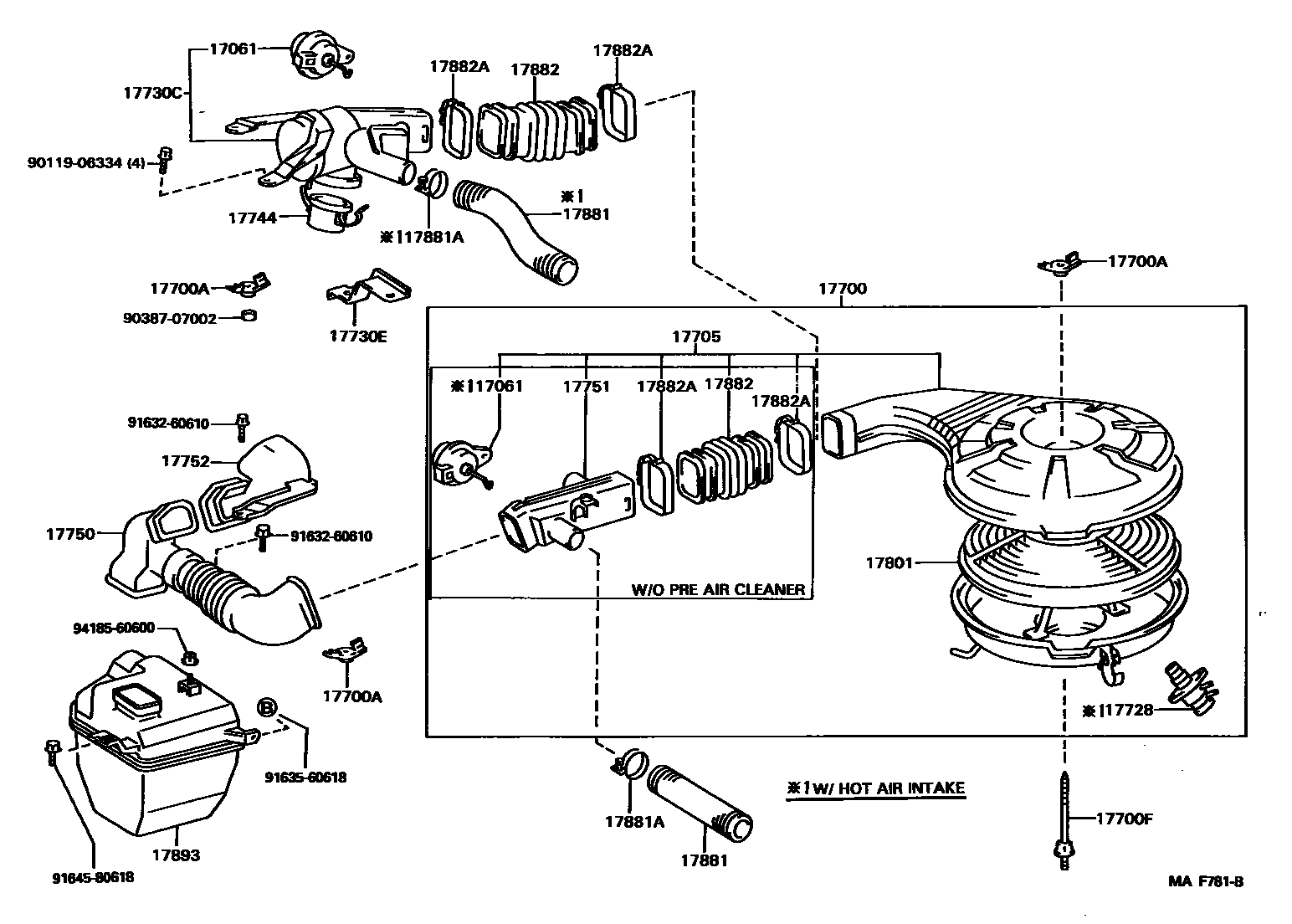

AIR CLEANER
17061DIAPHRAGM SUB-ASSY
W(HOT AIR INTAKE & PRE AIR CLEANER)
W(HOT AIR INTAKE)
17700CLEANER ASSY, AIR
(L)
MARK 11780
W(PRE AIR CLEANER & HOT AIR INTAKE)
MARK 11790
MARK 11800
(J)
sub17700-16840
W(HOT AIR INTAKE)
W(PRE AIR CLEANER)
W(HOT AIR INTAKE & PRE AIR CLEANER)
sub17700-64391
sub17700-64470
17700ANUT, WING(FOR AIR CLEANER)
17700FBOLT, STUD(FOR AIR CLEANER SETTING)
17705CAP SUB-ASSY, AIR CLEANER
(L)
W(HOT AIR INTAKE)
W(PRE AIR CLEANER & POWER STEERING)
W(PRE AIR CLEANER)
sub17705-11600
(J)
sub17705-15190
sub17705-16450
W(HOT AIR INTAKE)
W(PRE AIR CLEANER)
W(HOT AIR INTAKE & PRE AIR CLEANER)
17728VALVE, THERMOSTATIC
17730PRECLEANER ASSY, AIR W/HOSE
W(PRE AIR CLEANER & POWER STEERING)
W(HOT AIR INTAKE)
W(POWER STEERING)
17730CCASE, PRECLEANER
W(HOT AIR INTAKE & PRE AIR CLEANER)
17730EBRACKET, PRECLEANER, NO.1
W(HOT AIR INTAKE)
W(PRE AIR CLEANER & POWER STEERING)
W(POWER STEERING)
17744CUP, PRECLEANER
W(PRE AIR CLEANER & POWER STEERING)
W(PRE AIR CLEANER)
17750COVER ASSY, AIR CLEANER INLET, SEAL
17752INLET, AIR CLEANER, NO.2
(L)
(J)
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(J)
17881HOSE, AIR CLEANER, NO.1
(L)
(L)
TYPE B:REFER TO ILLUSTRATION
sub17881-10033
main17881-10033i2E..EE105;2E..EE100..GL;2E..EE100..(3FC,4F)..GEN;2E..EE100..LHD..5F..XL..(GEN,TUR)199205-199505
W(HOT AIR INTAKE)
(J)
(J)
TYPE A:REFER TO ILLUSTRATION
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
sub90460-73011
AIR CLEANER SIDE
AIR CLEANER SIDE
sub90460-80006
THROTTLE BODY SIDE
17882HOSE, AIR CLEANER, NO.2
W(PRE AIR CLEANER)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
W(PRE AIR CLEANER),AIR CLEANER CAP SIDE
W(PRE AIR CLEANER)
W(PRE AIR CLEANER),PRECLEANER CASE SIDE
(L)
TYPE B:REFER TO ILLUSTRATION
(L)
(J)
TYPE A:REFER TO ILLUSTRATION
17893RESONATOR, INTAKE AIR
(L)
(J)
9011906334
main90119-06334
9038707002
main90387-07002
9163260610
main91632-60610
9163560618
main91635-60618
9164580618
main91645-80618
9418560600
main94185-60600
25 parts on this diagram · 13 diagrams in section
