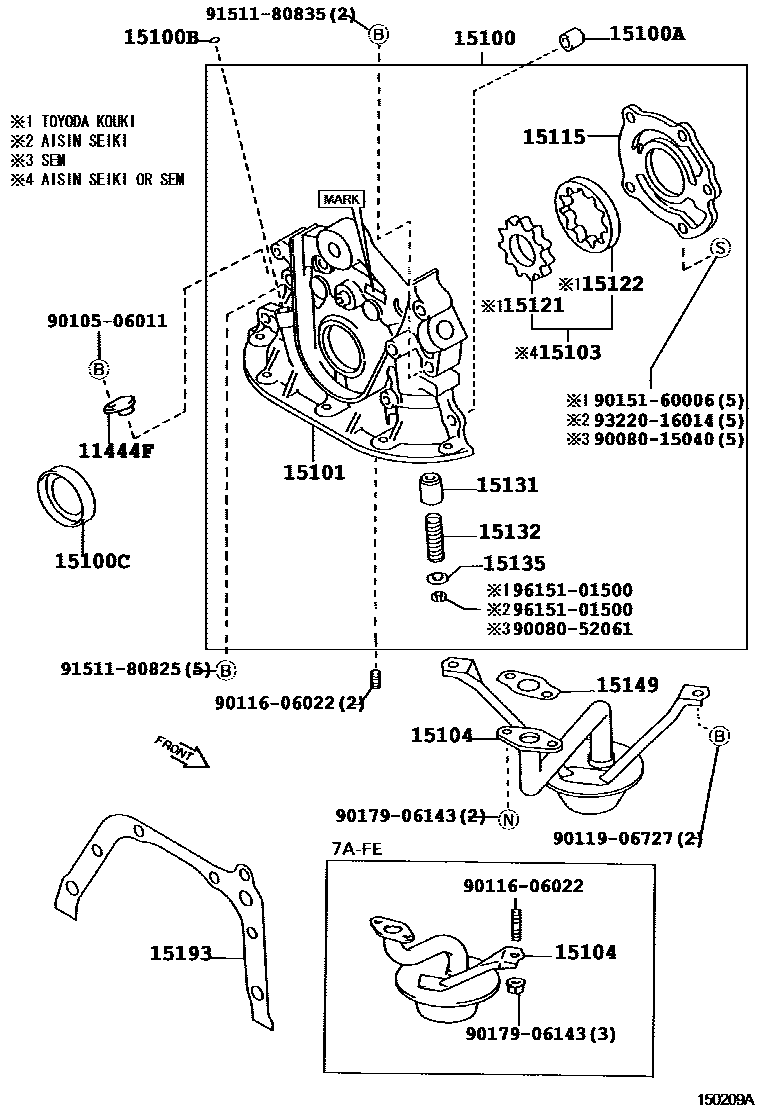

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

11444FPLUG, HOLE(FOR OIL PUMP)

main11444-02010i4AFE..AE101..TUR199710-199905

15100PUMP ASSY, OIL

main15100-02030i4AFE..AE101..TUR199412-199710

SEM

sub15100-15060

main15100-02050i4AFE..AE101..TUR199710-199905

SEM

main15100-11021i3E..EE108199109-199401

main15100-11050i2E..EE100,105199108-199407

main15100-11051i2E..EE10#199407-199704

main15100-11070i4EFE,5EFE..EE101,104199205-199407

main15100-11071i4EFE,5EFE..EE101,104199407-199704

main15100-15040i4AF..AE101199408-199805

sub15100-15050

main15100-15050i4AF..AE101199205-199408

main15100-15060i4AFE,5AFE..AE100,101..GCC,GEN199108-199412

main15100-15060i4AFE..AE101..TUR199412-199710

AISIN SEIKI

main15100-15080i4AFE..AE101..TUR199710-199905

AISIN SEIKI

main15100-16040i7AFE..AE102199309-199805

main15100-19036i4AGE..AE101199108-199505

main15100-64040i2C..CE100199205-199812

sub15100-64041

sub90119-08B81

main15100-64041i2C..CE100199812

sub15100-64042

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001i2E,3E,4EFE,5EFE..EE10#199108-199704

main90253-11021i4AF#,4AGE,5AFE,7AFE..AE10#199108-199509

15100BRING, O(FOR OIL PUMP)

main90301-55005i2E..EE10#199108-199704

main90301-62006i3E,4EFE,5EFE..EE101,104,108199109-199704

main96721-19010i4AF#,7AFE..AE10#199108-199509

15100CSEAL(FOR OIL PUMP)

main90029-21007i2E,3E,4EFE..EE10#199108-199207

sub90029-21020

main90029-21020i2E..EE10#199207-199704

main90029-21022i2C..CE100199205-199308

sub04151-64010

sub04151-64020

main90311-32018i4AF#,4AGE,5AFE,7AFE..AE10#199108-199702

sub90311-32020

main90311-32020i4AF#,7AFE..AE10#199702-199912

15101BODY SUB-ASSY, OIL PUMP

main15011-15050i4AF..AE101199205-199510

AISIN SEIKI

main15011-15060i4AFE,5AFE..AE100,101199108-199710

AISIN SEIKI

main15011-15060i4AFE..AE101..TUR199409-199412

main15011-15080i4AFE..AE101..TUR199710-199905

AISIN SEIKI

main15011-16040i7AFE..AE102199309-199805

AISIN SEIKI

main15101-02030i4AFE..AE101..TUR199412-199710

SEM

main15101-02050i4AFE..AE101..TUR199710-199905

SEM

main15101-15040i4AF..AE101199205-199510

TOYODA KOUKI

main15101-15040i4AF..AE101199510-199805

main15101-15070i4AFE,5AFE..AE100,101..GCC,GEN199108

TOYODA KOUKI

main15101-16050i7AFE..AE102199309-199805

TOYODA KOUKI

main15101-64030i2C..CE100199205-199308

sub15100-64031

sub15100-64042

sub90119-08B81

15103GEAR SET, OIL PUMP

main15103-02030i4AFE..AE101..TUR199412-199710

SEM

main15103-02100i4AFE..AE101..TUR199710-199905

SEM

sub15103-02030

main15103-15020i4AFE..AE101..TUR199409-199905

AISIN SEIKI

main15103-15020i4AF#,5AFE..AE100,101..GCC,GEN199108-199510

AISIN SEIKI (PNC 15101):REFER TO ILLUST.

main15103-15020i4AFE..AE101..GCC,GEN199510

main15103-16030i4AGE..AE101199108-199505

main15103-16040i7AFE..AE102199309-199805

15104STRAINER SUB-ASSY, OIL

main15104-11040i2E,3E..EE100,105,108199108-199211

main15104-11041i2E,3E..EE100,105,108199211-199508

main15104-11100i4EFE..EE101199205-199211

main15104-11140i4EFE,5EFE..EE101,104199211-199511

main15104-11180i2E..EE100,105199505-199704

main15104-11190i5EFE..EE104199508-199704

main15104-15080i4A#,5AFE..AE10#199108-199201

sub15104-15090

main15104-15090i4AF#..AE101199201-199509

main15104-16040i7AFE..AE102199309-199408

sub15104-16060

main15104-16060i7AFE..AE102199408-199805

main15104-64060i2C..CE100199205-199206

sub15104-64070

main15104-64070i2C..CE100199206

15115COVER, OIL PUMP

main15115-02030i4AFE..AE101..TUR199412-199905

SEM

main15115-15020i4AFE,7AFE..AE10#199108-199510

AISIN SEIKI

main15115-15020i4AGE..AE101199108-199505

main15115-15030i4AF#,5AFE..AE10#199108-199211

TOYODA KOUKI

sub15115-16060

main15115-16060i4AF..AE101199510-199805

main15115-16060i4AF#,5AFE,7AFE..AE10#..GCC,GEN199211-199510

TOYODA KOUKI

15121GEAR, OIL PUMP DRIVE

main15121-15040i4AF#,5AFE..AE100,101..GCC,GEN199108

TOYODA KOUKI (PNC 15101):REFER TO ILLUST.

main15121-16050i7AFE..AE102199309

15122GEAR, OIL PUMP DRIVEN

main15122-15040i4AF#,5AFE..AE100,101..GCC,GEN199108

TOYODA KOUKI (PNC 15101):REFER TO ILLUST.

main15122-16050i7AFE..AE102199309

15131VALVE, OIL PUMP RELIEF

main15131-02030i4AFE..AE101..TUR199412-199905

SEM

main15131-15030i4AF#,5AFE,7AFE..AE10#..GCC,GEN199108-199810

TOYODA KOUKI

main15131-15030i4AF..AE101199510-199805

main15131-24010i4AF#,5AFE,7AFE..AE10#199108-199510

AISIN SEIKI

main15131-24010i4AGE..AE101199108-199505

main15131-64020i2C..CE100199205-199812

main15131-64041i2C..CE100199812

15132SPRING, OIL PUMP RELIEF VALVE

main15132-02030i4AFE..AE101..TUR199412-199905

SEM

main15132-15030i4AFE..AE101..5F..GEN199108-199810

TOYODA KOUKI

main15132-15030i4AF..AE101199510-199805

main15132-17010i2C..CE100199812

main15132-40010i4AFE,7AFE..AE10#199108-199510

AISIN SEIKI

main15132-40010i4AGE..AE101199108-199505

main15132-64012i2C..CE100199205-199812

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-02030i4AFE..AE101..TUR199412-199905

SEM

main15135-15010i4AF#,7AFE..AE10#199108-199510

AISIN SEIKI

main15135-15010i4AGE..AE101199108-199505

main15135-15030i4AFE..AE101..4FC199108-199810

TOYODA KOUKI

main15135-15030i4AF..AE101199510-199805

15149GASKET, OIL STRAINER FLANGE

main15149-02020i4AFE..AE101..TUR199409-199905

main15149-15011i4A#,5AFE..AE10#199108-199205

sub15149-16010

main15149-16010i4AF#,4AGE,5AFE,7AFE..AE10#..GCC,GEN199205

15193GASKET, OIL PUMP

main15193-64021i2C..CE100199205-199804

sub15193-64022

main15193-64022i2C..CE100199804

main15197-02020i4AFE..AE101..TUR199508-199905

main15197-02020i4AFE..AE101..TUR199412-199508

(L)

main15197-15012i4AFE..AE101..TUR199409-199508

(J)

sub15197-15030

main15197-15012i4AF#,4AGE,5AFE..AE100,101199108-199408

sub15197-15030

main15197-15030i4AF#,4AGE,5AFE..AE100,101..GCC,GEN199408-199908

sub15197-16030

main15197-16010i7AFE..AE102199309-199805

main15197-16030i4AFE..AE101199908

9008015040

main90080-15040

9008052061

main90080-52061

9010506011

main90105-06011

9011606022

main90116-06022

9011906727

main90119-06727

9015160006

main90151-60006

9017906143

main90179-06143

9151180825

main91511-80825

9151180835

main91511-80835

9322016014

main93220-16014

9615101500

main96151-01500

27 parts on this diagram · 5 diagrams in section
