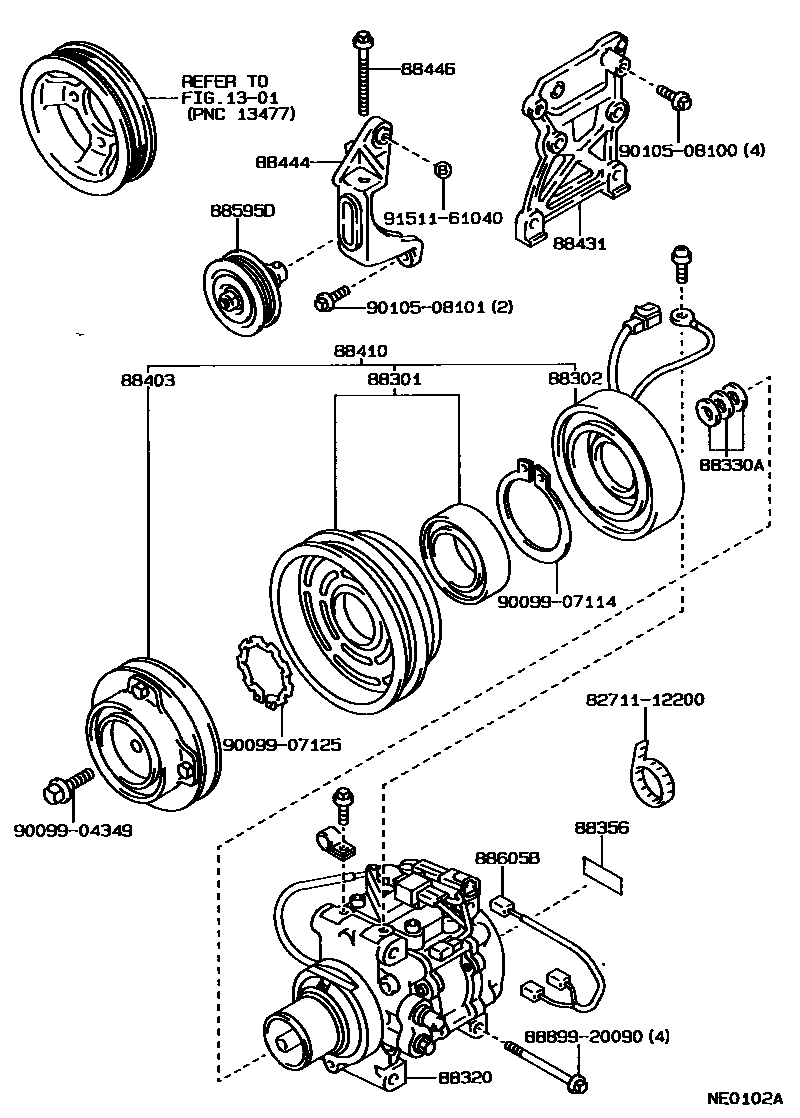

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iAE95..ARL198802-198908

main88412-12190iAE92..(GL,SE,XL)..SA198808-198908

main88412-16030iEE90;AE92,EE97..(LB,WG)..MTM..(GTI,STD,XL)198705-198712

main88412-16050iEE9#198908-199308

main88412-32011iCE90198908-199205

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12141iAE9#..(GL,SE,SR5,XL)..(ARL,SA); AE9#..LHD..GEN; AE9#..RHD..(GL,XL)..GEN198908-199109

DEALER OPTION

main88411-14050iCE90198705-199205

main88411-16020iEE9#..LHD; EE90..RHD;AE92,EE97..RHD..MTM..(GTI,STD,XL)198705-198709

W(POWER STEERING)

main88411-16021iEE9#..LHD; EE90..RHD;AE92,EE97..RHD..MTM..(GTI,STD,XL)198705-198709

main88411-35020iAE9#..(GL,STD,XL)..GEN; AE92..GCC198908-199109

main88411-60030iAE92..GT..GEN198908-199205

88320COMPRESSOR ASSY, COOLER

main88320-12500iCE90198712-199205

main88320-12520iAE9#..(GL,STD,XL)..GEN198908-199205

DEALER OPTION

main88320-12530iAE92..GT..SA198808-199308

W(POWER STEERING)

main88320-12540iAE92..GT198808-198810

main88320-12720iAE9#..(GL,STD,XL)..GEN198908-199205

LOW PULLEY

main88320-12740iAE92..GTI198810-198908

main88320-12810iAE92..GT..GEN198908-199205

W(POWER STEERING)

main88320-12820iAE92..GT..GEN198908-199205

main88320-12830iAE92..GT..GEN198908-199205

W(POWER STEERING)

main88320-12840iAE92..GT..GEN198908-199205

main88320-12850iEE9#..GEN198908-198909

main88320-12860iEE9#..LHD..GEN; EE9#..RHD..GEN198908-199205

W(POWER STEERING)

main88320-12880iAE9#..(GL,STD,XL)..GEN198908-199205

main88320-20560iCE90198712-199205

W(POWER STEERING),DEALER OPTION

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iCE90198705-199205

main88335-14020iAE9#,EE9#198705-198908

88356LABEL, COMPRESSOR CAUTION

main88356-12010iAE9#,EE97;EE90..GCC,GEN198705-198908

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iCE90198705-199205

main88403-16010iEE9#..LHD; EE90..RHD..GEN;AE92,EE97..RHD..MTM..(GTI,STD,XL)..GEN198705-198810

main88403-16011iAE92..GTI; EE9#..LHD..GEN; EE9#..RHD..GEN; EE90..GCC198712-198810

88410CLUTCH ASSY, MAGNET

main88410-10210iEE9#..GCC,GEN198908-199207

main88410-12160iCE90198908-199205

main88410-12230iAE92..GTI198705-198708

main88410-12240iAE92..GL,STD,XL; AE95198712-198802

DEALER OPTION

main88410-12270iAE9#..(GL,STD,XL)..GEN198802-198908

DEALER OPTION

main88410-12300iAE92..GT..GEN198908-199205

main88410-12320iAE9#..(GL,STD,XL)..GEN198908-199205

DEALER OPTION,LOW PULLEY

main88410-12330iAE9#..(GL,STD,XL)..GEN198908-199205

LOW PULLEY

main88410-12340iCE90198908-199205

DEALER OPTION

main88410-12420iAE92..GCC198908-199207

main88410-16021×2iAE92..GTI; EE90198705-198708

main88410-16050iEE90..SA198808-199308

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12370iEE9#198705-199308

main88431-12380iAE92..LHD..LB..GL;AE92..LHD..SED..(STD,XL)198810-199205

main88431-12390iAE92..GT..SA198808-199308

W(POWER STEERING)

main88431-12410iAE92..GTI198705-198712

88444BRACKET, IDLE PULLEY

main88444-10031iEE9#..GCC,GEN198705-199207

main88444-12040iCE90198705-198908

main88444-12050iCE90198908-199205

88446BOLT, IDLE PULLEY

main88446-12030iAE92..XL..GCC;AE92..RHD..(GL,SE,XL);AE95,EE9#..ARL,GCC,GEN;AE92..LHD..SED..(GL,SE)198908-199308

main88446-35010iAE92..GT,GTI198705-199308

88595DPULLEY ASSY, IDLE

main88440-12170iCE90,EE9#..GCC,GEN198705-198908

main88440-12190iCE90198908-199205

main88440-17010iAE9#..GL,SE,SR5,STD,XL198705-198810

main88440-32030iAE92..GT,GTI198705-199308

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-1A720iEE9#..GEN;AE92..GT..SA198908-199308

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9010508100

main90105-08100

9010508101

main90105-08101

9151161040

main91511-61040

21 parts on this diagram · 7 diagrams in section
