HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

1708VACUUM PIPING

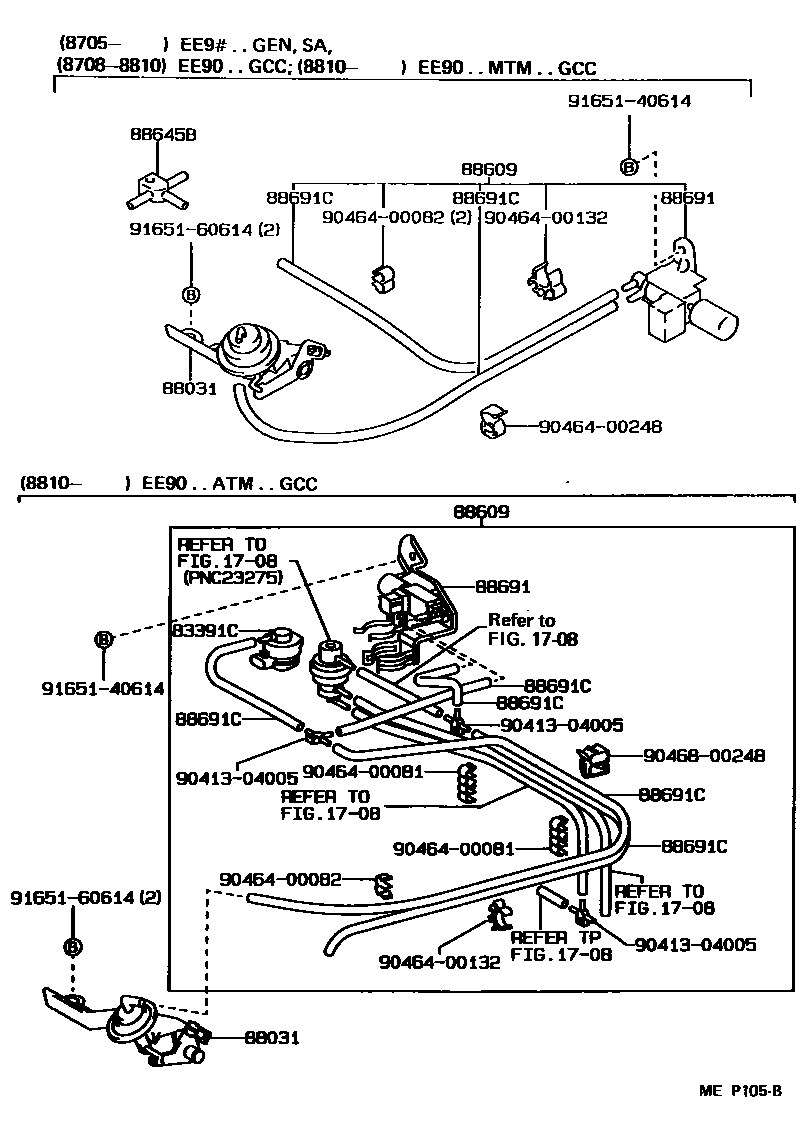

→ Go to FIG 17-08

83391CSWITCH, COOLER VACUUM

main83391-20060iAE92,EE90..3FC..GCC198810-199207

88031ACTUATOR SET, IDLE-UP

main88031-10010iEE9#198705-199308

main88031-12140iAE9#..(GL,SE,STD,XL)..(GCC,GEN,SA)198705-199308

main88031-12150iCE90198705-198908

main88031-20080iCE90198908-199205

88609DEVICE SUB-ASSY, IDLE UP

main88609-12420iEE9#..RHD198705-199308

main88609-12430iEE9#..LHD..MTM;EE90..LHD..3FC..GEN198810-198908

main88609-12440iAE9#..RHD..(GL,SE,XL)..(GEN,SA)198705-199308

main88609-12450iAE9#..LHD..5F;AE92..3FC..GEN198908-199207

main88609-12470iAE92..GT,GTI198705-199308

main88609-12490iCE90198705-198908

main88609-12511iCE90198908-199205

main88609-12550iEE90..3FC..GCC198810-198901

main88609-12551iEE90..3FC..GCC198901-199207

main88609-12580iAE92..3FC..GCC198908-199207

main88609-12590iEE90..MTM..GCC198908-199207

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04005iEE9#..GEN198908-199205

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-12430iAE9#..LHD198705-198712

main88690-12530iAE92..GTI198705-198908

main88690-12740iEE90..3FC..GCC198810-198901

main88690-12760iEE90..3FC..GCC198901-198908

main88691-10010iAE92..GTI;AE95..LHD;EE90..GCC198712-198802

main88691-20040iAE9#,EE9#..RHD..(GL,SR5,STD,XL)..(ARL,GEN)198705-199205

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90999-92002×2iAE92..GTI198705-198801

L=300

main90999-92003iEE9#..RHD..GEN198705-199205

L=600

main90999-92004iAE9#..RHD..(GL,XL)..GEN; CE90;AE95..ARL198705-198908

L=950

main95411-10030iAE9#..LHD..GEN198705-199205

L=300,MARK=#0

main95411-19926iAE9#..LHD..GEN198705-199205

*H,L=260,MARK=#*

9041304005

main90413-04005

9046400081

main90464-00081

9046400082

main90464-00082

9046400132

main90464-00132

9046400248

main90464-00248

9046800248

main90468-00248

9165140614

main91651-40614

9165160614

main91651-60614

15 parts on this diagram · 4 diagrams in section
