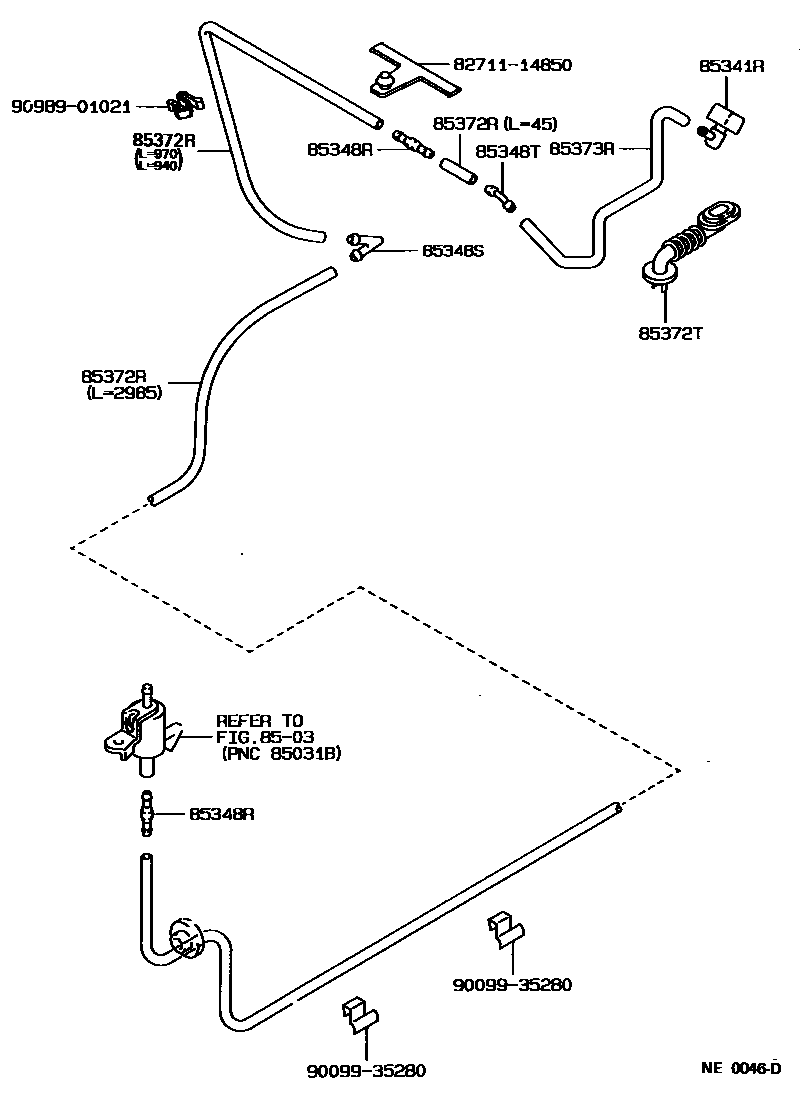

REAR WASHER

0001 1 0002 1 0004 1 0005 1 0006 1

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85341RNOZZLE ASSY, WASHER

main85341-12210iAE92,EE90..LB198705-199205

main85341-12240iAE95..WG198802-199009

main85341-13030iAE92,EE9#..WG198708-199007

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×4iAE95,EE90..RHD..WG; EE9#..WG..4F;AE95..LHD..WG198804-198809

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-12360iAE92,EE90..LB198705-199205

main85355-20200iEE97198708-199108

85348TJOINT, REAR WASHER HOSE, NO.2

main85355-20080iAE9#,EE9#..LB,WG198908-199007

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iAE92,EE9#..WG198708-199007

L=1450

main90099-33185iAE95..WG198802-198804

L=120

main90099-33299iAE95,EE90..WG198908-199007

L=1000

main90099-33511iAE95..WG198804-199009

L=4000

main90099-33533iAE95..WG198802-198804

L=4985(*H,L=4345)

main90099-33580iAE92,EE90..LB198705-199205

L=2985

main90446-07001iEE90..WG..GCC198710-199007

L=1800

85372TGROMMET, WASHER

main85372-12020iAE9#,EE90..(LB,WG)..(3FC,4FC,5F)199007-199207

main85372-13010iEE97198708-199108

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iEE90..WG..5F;AE92,EE97..WG199007-199207

L=1450

main90099-33299iAE95..WG198802-199009

L=1000

8271114850WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14850

9009935280

main90099-35280

9098901021

main90989-01021

11 parts on this diagram · 5 diagrams in section
