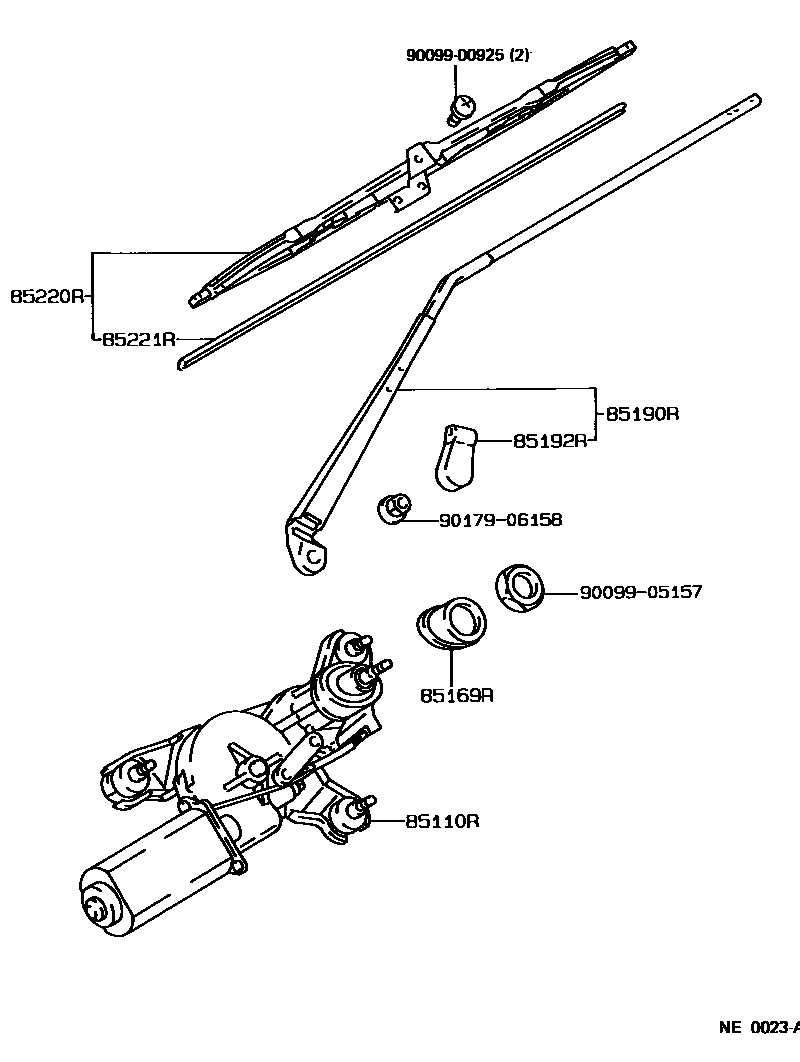

REAR WIPER

0001 1 0002 1 0003 1

85110RMOTOR ASSY, REAR WIPER

main85110-12470iAE95..WG198802-199009

main85110-12690iAE92,EE90..LB198705-199205

main85110-13040iEE9#..WG198708-198710

main85110-13050iAE92,EE9#..WG198710-199207

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-12690iAE92,EE90..LB198705-199205

main85179-16150iAE92,EE9#..WG198708-199207

main90210-28002iAE95..WG198802-199009

85190RARM ASSY, REAR WIPER

main85190-12850iAE92,EE90..LB198705-198911

sub85190-12851

main85190-12851iAE92,EE90..LB198911-199205

main85190-12870iAE95..WG198809-198906

sub85190-12H00

main85190-13060iEE9#..WG198708-198710

main85190-13070iEE9#..WG198710-198908

sub85190-13071

main85190-13071iEE90..WG..5F;AE92,EE97..WG198908-199207

main85190-1A060iAE95198802-198911

sub85190-1A061

main85190-1A061iAE95198911-199009

85192RCOVER, REAR WIPER ARM

main85192-12850iAE92,EE90..LB198705-198911

main85192-12870iAE95..WG198809-198908

main85192-13060iEE9#..WG198708-199207

85220RBLADE ASSY, REAR WIPER

main85220-16440iAE92,EE90..LB198705-198911

sub85220-16441

main85220-16441iAE92,EE90..LB198911-199205

main85220-22530iAE95..WG198802-198911

sub85220-22531

main85220-22531iAE95198911-199009

sub85242-23010

main85220-22590iEE9#..WG198708-198710

main85220-22620iEE9#..WG198710-198907

sub85220-22621

main85220-22621iAE92,EE9#..WG198907-199207

main85220-22640iAE95..WG198809-198908

sub85190-12H00

85221RBLADE, REAR WIPER

main85221-12160iAE95..WG198809-198906

main85221-13010iEE90..WG..5F;AE92,EE97..WG198710-199207

sub85214-12H90

main85221-16070iEE9#..WG198708-199009

sub85214-12H90

main85221-16080iAE92,EE90..LB198705-198911

main85221-91C01iAE92,EE90..LB198911-199205

sub85214-12H90

9009900925

main90099-00925

9009905157

main90099-05157

9017906158

main90179-06158

9 parts on this diagram · 3 diagrams in section
