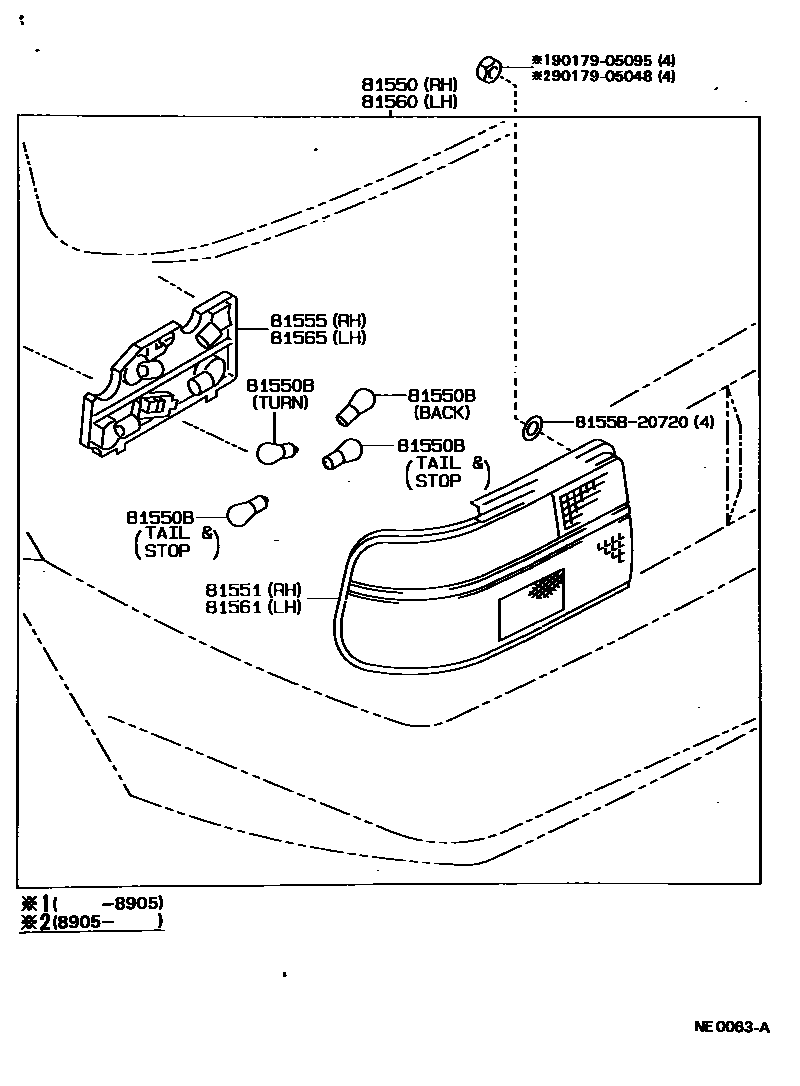

Toyota COROLLA SED/LB/WG151 — REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
81551LENS, REAR COMBINATION LAMP, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561LENS, REAR COMBINATION LAMP, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
8155820720SHADE, REAR COMBINATION LAMP, NO.1 RH
9017905048
9017905095
10 parts on this diagram · 6 diagrams in section
REAR COMBINATION LAMP for Toyota COROLLA SED/LB/WG151
This section contains 20 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota COROLLA SED/LB/WG151. Key components include: ROOF SIDE VENTILATOR, LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP BODY, RH.
