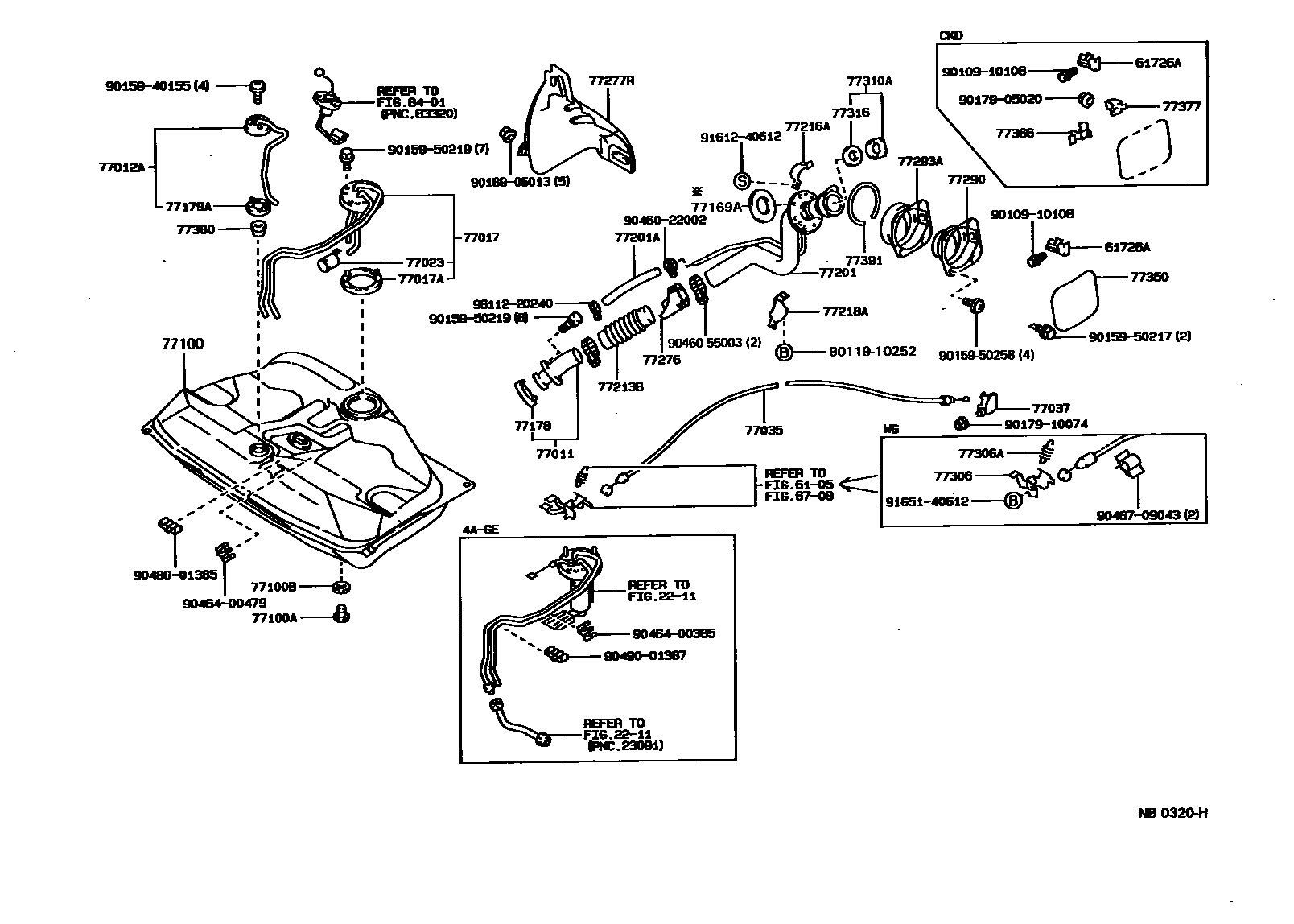

FUEL TANK & TUBE
2211FUEL INJECTION SYSTEM
6105LUGGAGE COMPARTMENT DOOR & LOCK
61726APLATE, FUEL INLET BOX COVER
6709BACK DOOR LOCK & HANDLE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017AGASKET, FUEL TANK VENT
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
PLANT.B11,K21
PLANT.A31,32
W(FUEL LID OPENER)
W(FUEL LID OPENER)
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
L=385
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77276PROTECTOR, FUEL HOSE
77277RPROTECTOR, FUEL TANK FILLER PIPE
FOR USA
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
W(CKD COUNTRIES) OR NEW ZEALAND SPEC
main77350-12200iAE92..LHD..SED..5F..GL;EE90..LHD..SED..MTM..XL..GEN; AE92..RHD..SED..5F..GL..GEN; AE92..SED..4FC..GL;AE92,EE90..RHD..SED..5F..XL..GEN; CE90;EE90..LHD..GL;AE92..SED..3FC..GL;EE90..LHD..3FC..GEN;AE92,EE90..RHD..(3FC,4F,4FC)..XL..GEN; EE90..RHD..SED..GL198908-199205
NEW ZEALAND SPEC;W(CKD COUNTRIES) OR INDONESIA SPEC; W(CKD COUNTRIES); W(CKD COUNTRIES) OR INDONESIA SPEC; W(CKD COUNTRIES) OR NEW ZEALAND SPEC; W(CKD COUNTRIES) OR PHIPPINES SPEC
W(FUEL LID OPENER)
77366SPRING, FUEL FILLER OPENING LID HINGE
main77360-12010iAE92..LHD..SED..5F..GL;EE90..LHD..SED..MTM..XL..GEN; AE92..RHD..SED..5F..GL..GEN; AE92..SED..4FC..GL;AE92,EE90..RHD..SED..5F..XL..GEN; CE90;AE92..SED..3FC..GL;EE90..LHD..3FC..GEN;EE90..LHD..(GL,STD)..GEN;AE92,EE90..RHD..(3FC,4F,4FC)..(STD,XL)..GEN; EE90..RHD..SED..GL198908-199205
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
8401SWITCH & RELAY & COMPUTER
9010910108
main90109-10108
9011910252
main90119-10252
9015940155
main90159-40155
9015950217
main90159-50217
9015950219
main90159-50219
9015950258
main90159-50258
9017905020
main90179-05020
9017910074
main90179-10074
9018906013
main90189-06013
9046022002
main90460-22002
9046055003
main90460-55003
9046400385
main90464-00385
9046400479
main90464-00479
9046709043
main90467-09043
9048001385
main90480-01385
9049001387
main90490-01387
9161240612
main91612-40612
9165140612
main91651-40612
9611220240
main96112-20240
55 parts on this diagram · 8 diagrams in section
