MUDGUARD & SPOILER
76081ASPOILER SUB-ASSY, FRONT RH
SUPER RED 2,3E5
GRAY M,168
DARK BLUE MICA M,8E9
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
M GRAY M,26E
M GRAY M,22M
DK BLUEISH GRAY M,183
DK BLUE MICA M,8J7
76082SPOILER SUB-ASSY, FRONT CENTER
SUPER RED 2,3E5
GRAY M,168
SUPER WHITE 2,040
M GRAY M,26E
SUPER RED 2,3E5
W(LARGE LICENCE PLATE),SUPER RED 2,3E5
GRAY M,168
W(LARGE LICENCE PLATE),GRAY M,168
DARK BLUE MICA M,8E9
GRAYISH GREEN M,6K6
W(LARGE LICENCE PLATE),SUPER WHITE 2,040
SUPER WHITE 2,040
M GRAY M,26E
W(LARGE LICENCE PLATE),M GRAY M,26E
M GRAY M,22M
DK BLUEISH GLAY M,183
DK BLUE MICA M,8J7
76083ASPOILER SUB-ASSY, FRONT LH
SUPER RED 2,3E5
GRAY M,168
DARK BLUE MICA M,8E9
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
M GRAY M,22M
M GRAY M,26E
DK BLUEISH GLAY M,183
DK BLUE MICA M,8J7
76085SPOILER SUB-ASSY, REAR
TREATED FOR PAINTING
76086RETAINER SUB-ASSY, REAR SPOILER
76087SPOILER SUB-ASSY, REAR NO.1
76088SPOILER SUB-ASSY, REAR NO.2
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
BLACK M,205
SUPER RED 2,3E5
GRAY M,168
GRAY M,168 ,27M
DARK BLUE M,22G
BEIGE M,8E9
DARK GRAYISH BROWN M,23G
DARK GREEN M,21G
SUPER WHITE 2,040
RED MAICA,3H4
MEDIUM GRAY M,22M
DARK BLUE MICA M,25M
LIGHT BEIGE M,4K1
GRAYISH GREEN M,040 ,6K6
GRAYISH GREEN M,040 ,205 ,6K6
GRAYISH GREEN M,040 ,26M ,6K6
DARK ROSE M,3J1
DK BLUEISH GLAY M,183
RED MICA M,3K4
BEIGE MICA M,4J1
DK BLUE MICA M,8J7
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
BLACK M,205
SUPER RED 2,3E5
GRAY M,168
GRAY M,168 ,27M
DARK BLUE M,22G
BEIGE M,8E9
DARK GRAYISH BROWN M,23G
DARK GREEN M,21G
SUPER WHITE 2,040
RED MAICA,3H4
MEDIUM GRAY M,22M
DARK BLUE MICA M,25M
LIGHT BEIGE M,4K1
GRAYISH GREEN M,040 ,6K6
GRAYISH GREEN M,040 ,26M ,6K6
GRAYISH GREEN M,040 ,205 ,6K6
DARK ROSE M,3J1
DK BLUEISH GLAY M,183
RED MICA M,3K4
BEIGE MICA M,4J1
DK BLUE MICA M,8J7
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
main76625-19245iAE92..LB..XL;AE92..LHD..SED;AE92..RHD..XL..GEN;AE92..RHD..(GL,GT,GTI,SE);AE95,CE90,EE90..(LB,SED)..(GCC,GEN)198705-199308
GRAY M,168
GRAYISH GREEN M,6K6
SUPER WHITE,040
RED MAICA,3H4
MEDIUM GRAY M,22M
LIGHT BEIGE M,4K1
DARK ROSE M,3J1
DK BLUEISH GLAY M,183
RED MICA M,3K4
BEIGE MICA M,4J1
DARK BLUE M,22G
DARK GRAYISH BROWN M,23G
DARK GREEN M,21G
SUPER WHITE 2,040
DARK BLUE MICA M,25M
GRAYISH GREEN M,26M
GRAY M,27M
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
GRAY M,168
GRAYISH GREEN M,6K6
SUPER WHITE 2,040
RED MAICA,3H4
MEDIUM GRYE M,22M
LIGHT BEIGE M,4K1
DARK ROSE M,3J1
DK BLUEISH GLAY M,183
RED MICA M,3K4
BEIGE MICA M,4J1
DARK BLUE M,22G
DARK GRAYISH BROWN M,23G
DARK GREEN M2,21G
SUPER WHITE 2,040
DARK BLUE MICA M,25M
GRAYISH GREEN M,26M
GRAY M,27M
76841PROTECTOR, REAR SPOILER SIDE, NO.5 RH
76842PROTECTOR, REAR SPOILER SIDE, NO.5 LH
76843PROTECTOR, REAR SPOILER, NO.11 RH
76844PROTECTOR, REAR SPOILER, NO.11 LH
76855RETAINER, FRONT SPOILER, LOWER NO.1 CENTER
76857RETAINER, FRONT SPOILER SIDE, RH
76858RETAINER, FRONT SPOILER SIDE, LH
76863RETAINER, FRONT SPOILER, LOWER NO.2 RH
76864RETAINER, FRONT SPOILER, LOWER NO.2 LH
76868RETAINER, REAR SPOILER SIDE, LH
76872PROTECTOR, REAR SPOILER, NO.1
76874PROTECTOR, REAR SPOILER, NO.3
76879CLIP, REAR SPOILER, NO.1
76887SEAL, REAR SPOILER
76889CLIP, REAR SPOILER, NO.2
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
9010906091
main90109-06091
9011906042
main90119-06042
9015960182
main90159-60182
9016840062
main90168-40062
9016840082
main90168-40082
9017905012
main90179-05012
9017906070
main90179-06070
9017906091
main90179-06091
9046709075
main90467-09075
9054004007
main90540-04007
9356815012
main93568-15012

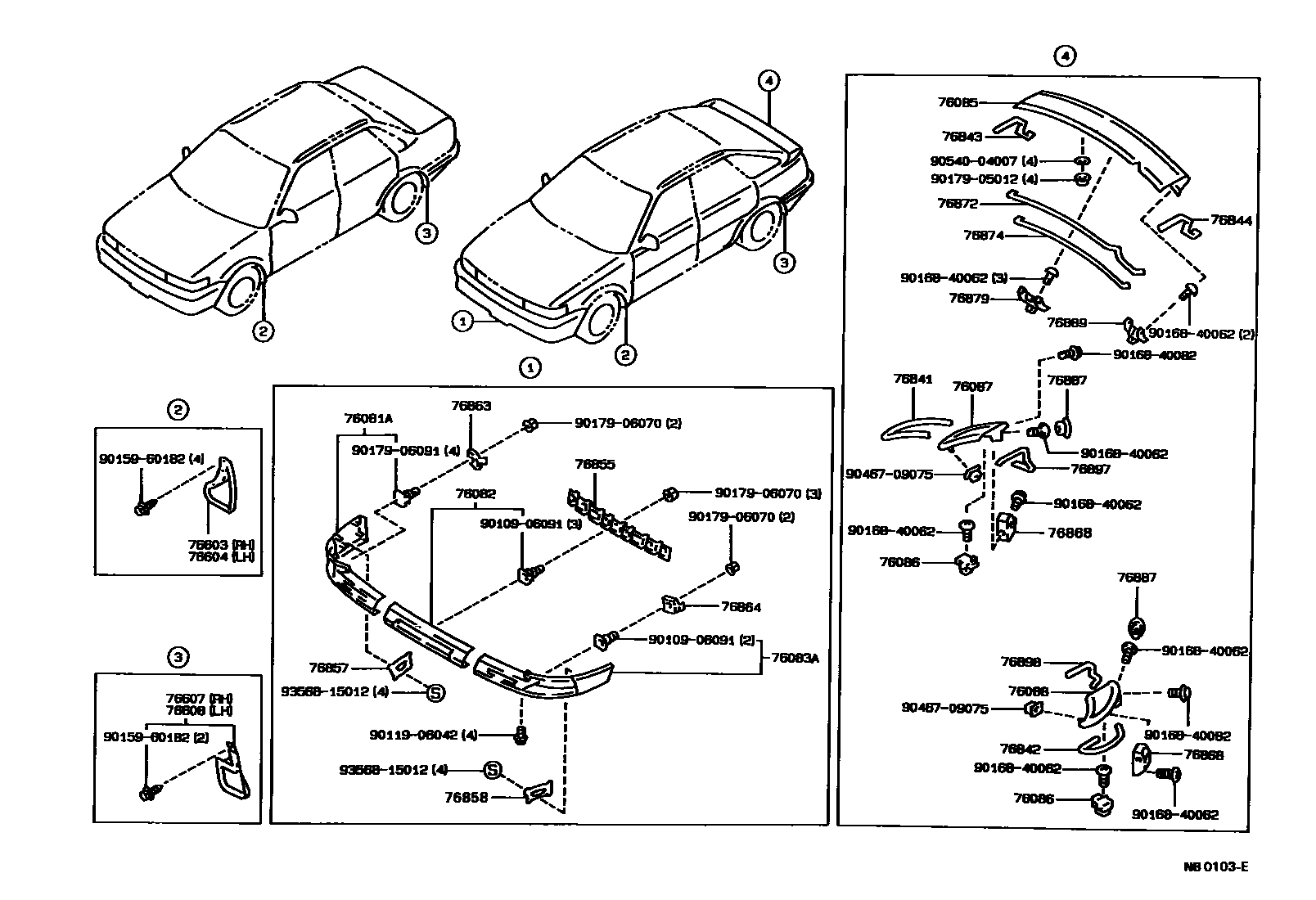

39 parts on this diagram · 3 diagrams in section
