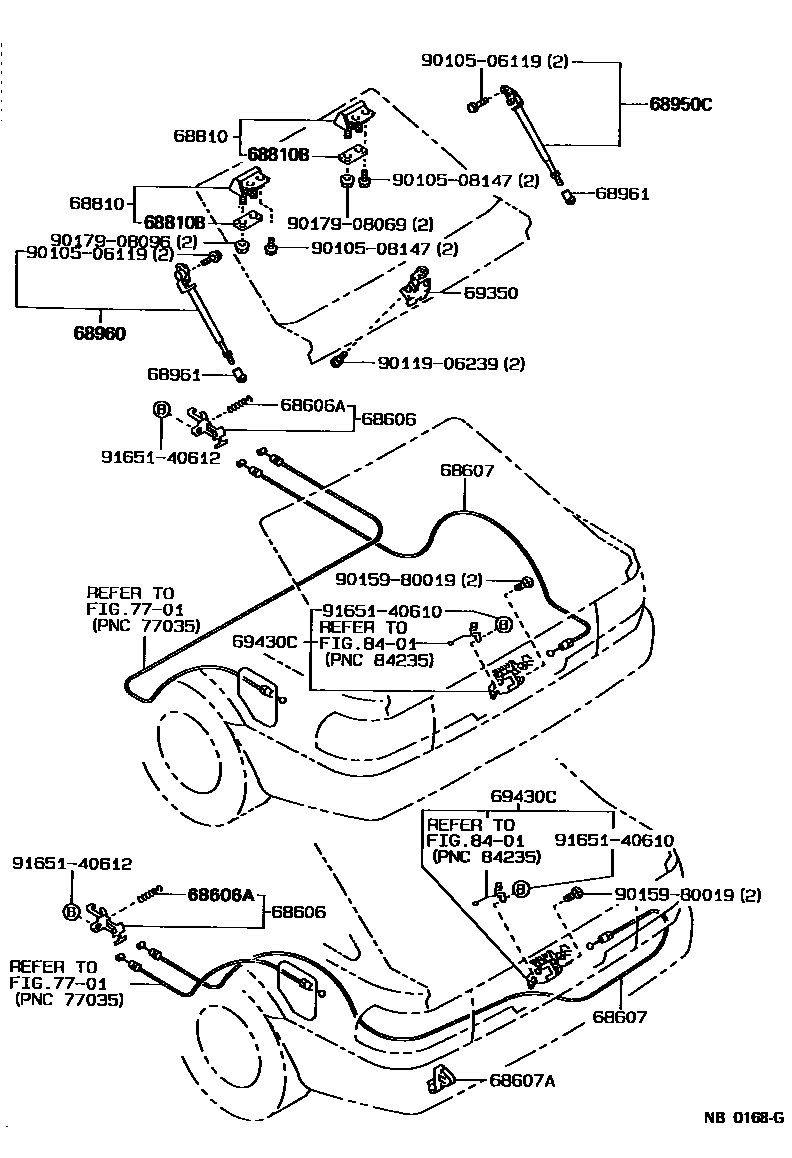

BACK DOOR LOCK & HANDLE

0001 1 0002 1 0003 1

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-12050iAE92,EE90..LHD..LB198705-199205

main64606-12060iAE92,EE90..RHD..LB198705-199205

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09034×2iAE92,EE90..LB198705-199205

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-12180iAE92,EE90..LHD..LB198705-199205

main64607-12450iAE92,EE90..RHD..LB198705-199205

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010iAE95..WG198802-199009

68810HINGE ASSY, BACK DOOR, UPPER

main68801-12030×2iAE92,EE90..LB198705-198808

main68801-12031×2iAE92,EE90..LB198808-199205

main68801-12050×2iAE95..WG198802-198808

main68801-12051×2iAE95..WG198808-199009

main68801-13080×2iEE9#..WG198708-198808

main68801-13081×2iAE92,EE9#..WG198808-199207

68810BPAD, BACK DOOR HINGE

main68838-14021×2iAE92,EE90..LB198705-198808

main68838-14022×2iAE9#,EE9#..LB,WG198808-199207

68950CSTAY ASSY, BACK DOOR, RH

main68950-13070iAE92,EE9#..WG198708-199207

main68950-13080iAE92,EE90..WG..GEN198906-199205

NEW ZEALAND SPEC OR W(REAR AIR SPOILER)

main68950-13090iAE92,EE90..WG..GEN198906-199205

NEW ZEALAND SPEC & W(REAR AIR SPOILER)

main68950-19575iAE92,EE90..LB..(GL,XL)198705-198808

main68950-19576iAE92,EE90..LB..(GL,XL)198808-199205

main68950-19585iAE92,EE90..LB..(GL,XL); AE92..GTI198705-198808

W(*RW)

main68950-19586iAE92,EE90..LB..(GL,XL)198808-199205

W(*RW)

main68950-19595iAE92,EE90..LB..GL198712-198802

W(REAR AIR SPOILER)

main68950-19596iAE92,EE90..LB..GL198808-199205

W(REAR AIR SPOILER & *RW)

main68950-19625iAE95..WG..XL198802-198808

main68950-19626iAE95..GEN198908-199008

main68950-19645iAE95..SR5; AE95..WG..XL198802-198808

W(*RW)

main68950-19646iAE95..SR5; AE95..WG..XL198808-198908

W(*RW)

68960STAY ASSY, BACK DOOR, LH

main68960-13070iAE92,EE9#..WG198708-199207

main68960-13080iEE9#..WG198708-198906

W(*RW)

main68960-13090iAE92,EE90..WG..GEN198906-199205

NEW ZEALAND SPEC & W(REAR AIR SPOILER)

main68960-19265iAE92,EE90..LB..(GL,XL)198705-198808

main68960-19266iAE92,EE90..LB..(GL,XL)198808-199205

main68960-19275iAE92,EE90..LB..(GL,XL); AE92..GTI198705-198808

W(*RW)

main68960-19276iAE92,EE90..LB..(GL,XL)198808-199205

W(*RW)

main68960-19285iAE92,EE90..LB..GL198802-198808

W(REAR AIR SPOILER & *RW)

main68960-19286iAE92..GTI198808-198908

W(REAR AIR SPOILER)

main68960-19315iAE95..WG..XL198802-198808

main68960-19316iAE95..LHD199008-199009

W(*RW)

main68960-19335iAE95..SR5; AE95..WG..XL198802-198808

W(*RW)

main68960-19336iAE95..ARL; AE95..GEN198908-199008

W(*RW)

68961BOLT, BACK DOOR STAY

main68961-12040×2iAE92,EE90..LB198803-198908

main68961-14030iAE92,EE90..LB198908-199205

TOKICO

69350LOCK ASSY, BACK DOOR

main69350-12110iAE92,EE90..LB198705-199205

main69350-12161iAE95..WG198802-199009

main69350-13080iAE92,EE9#..WG198708-199207

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-12180iAE92,EE90..LB198705-199205

main69430-12250iAE95..WG198802-199009

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506119

main90105-06119

9010508147

main90105-08147

9011906239

main90119-06239

9015980019

main90159-80019

9017908069

main90179-08069

9017908096

main90179-08096

9165140610

main91651-40610

9165140612

main91651-40612

21 parts on this diagram · 3 diagrams in section
