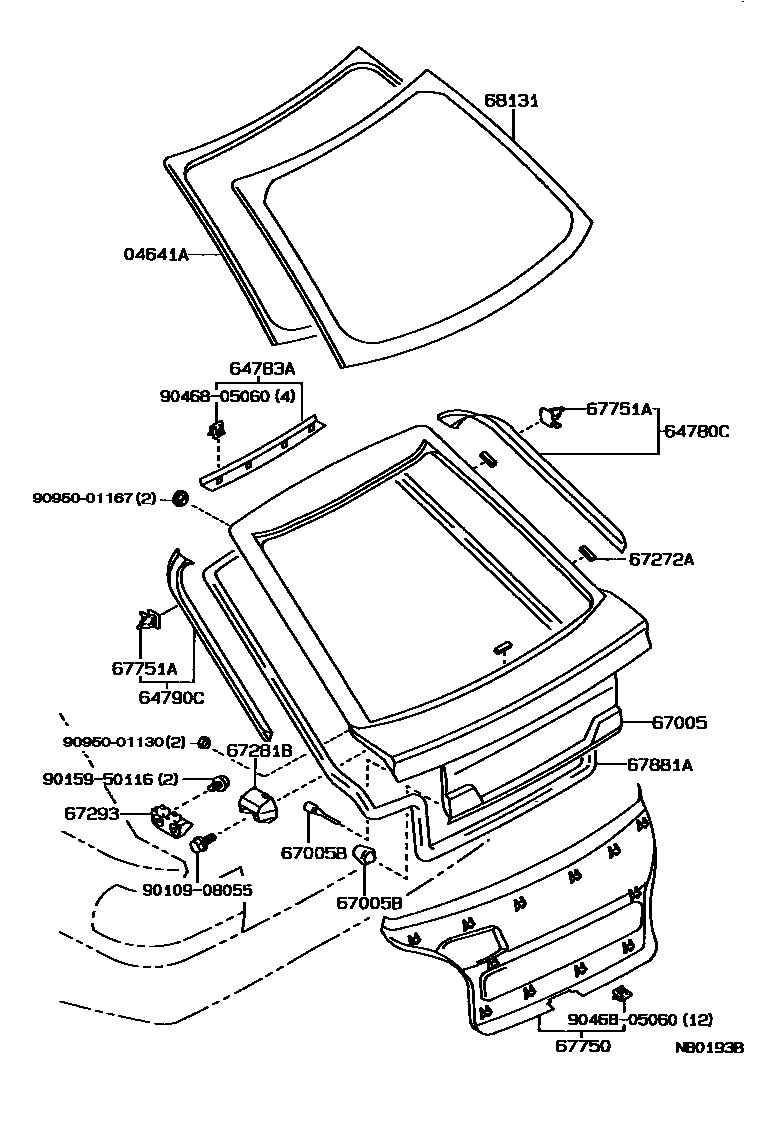

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main04562-12010iAE9#,CE90,EE9#198705-199308

main04562-12020iAE92,EE90..LB198908-199205

64780CPANEL ASSY, BACK DOOR TRIM, RH

main64780-12030-02iAE92,EE90..RHD..LB..(GL,XL)198705-198908

MAROON,TRIM3#

sub64780-12030

main64780-12030-03iAE92,EE90..LB198705-199205

SHADOW GRAY,TRIM1#

sub64780-12030

main64780-12030-04iAE92,EE90..LHD..LB198705-199205

DARK BLUE,TRIM8#

sub64780-12030

main64780-12030-05iAE92,EE90..LB..(GL,XL)198705-198908

DARK BEIGE,TRIM4#

sub64780-12030

main64780-12030-06iAE92,EE90..LHD..LB198908-199008

BROWN,TRIM4#

sub64780-12030

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-12010-02iAE92,EE90..RHD..LB..(GL,XL)198705-198908

MAROON,TRIM3#

sub64783-12010

main64783-12010-03iAE92,EE90..LB198705-199205

SHADOW GRAY,TRIM1#

sub64783-12010

main64783-12010-04iAE92,EE90..LHD..LB198705-199205

DARK BLUE,TRIM8#

sub64783-12010

main64783-12010-05iAE92,EE90..LB..(GL,XL)198705-198908

DARK BEIGE,TRIM4#

sub64783-12010

main64783-12010-06iAE92,EE90..LHD..LB198908-199008

BROWN,TRIM4#

sub64783-12010

64790CPANEL ASSY, BACK DOOR TRIM, LH

main64790-12010-02iAE92,EE90..RHD..LB..(GL,XL)198705-198908

MAROON,TRIM3#

sub64790-12010

main64790-12010-03iAE92,EE90..LB198705-199205

SHADOW GRAY,TRIM1#

sub64790-12010

main64790-12010-04iAE92,EE90..LHD..LB198705-199205

DARK BLUE,TRIM8#

sub64790-12010

main64790-12010-05iAE92,EE90..LB..(GL,XL)198705-198908

DARK BEIGE,TRIM4#

sub64790-12010

main64790-12010-06iAE92,EE90..LHD..LB198908-199008

BROWN,TRIM4#

sub64790-12010

67005PANEL SUB-ASSY, BACK DOOR

main67005-13660iEE97198708-199108

W(*RWD)

main67005-13730iAE92,EE90..WG..GEN198906-199205

NEW ZEALAND SPEC

main67005-13780iEE97198708-199108

main67005-13790iEE97198708-199108

W(*RW)

main67005-13840iAE92,EE90..WG198708-199207

main67005-13850iAE92,EE90..WG198708-199207

W(*RWD)

main67005-13860iAE92,EE90..WG..GEN198708-199205

W(*RW)

main67005-13870iEE97198708-199108

W(*RW & *RWD)

main67005-13880iAE92,EE90..WG198708-199207

W(*RW & *RWD)

main67005-1A250iAE92,EE90..LB..(GL,XL)198705-199205

W(REAR FOG LAMP)

main67005-1A260iAE92..GTI198705-198908

W(REAR FOG LAMP)

main67005-1A260iAE92,EE90..LB..(GL,XL)198705-199205

W(*RW & REAR FOG LAMP)

main67005-1A270iAE92,EE90..LB..(GL,XL)198705-199205

main67005-1A280iAE92,EE90..LB..(GL,XL)198705-199205

W(*RW)

sub67005-1A590

main67005-1A280iAE92..GTI198705-198908

sub67005-1A590

main67005-1A290iAE92,EE90..LB..GL198705-199205

W(LARGE LICENCE PLATE & REAR AIR SPOILER)

main67005-1A300iAE92..GTI198705-199205

W(*RW & REAR AIR SPOILER)

sub67005-1A600

main67005-1A450iAE95..WG..XL198802-198908

main67005-1A460iAE95..SR5198802-198908

W(*RW)

main67005-1A460iAE95..GEN198908-199009

main67005-1A470iAE95..WG..GEN198802-198908

W(LARGE LICENCE PLATE)

main67005-1A480iAE95..GEN198908-199009

W(LARGE LICENCE PLATE)

sub67005-1A481

sub90950-01326

main67005-1A480iAE95..WG..GEN198802-198908

W(LARGE LICENCE PLATE & *RW)

sub67005-1A481

sub90950-01326

main67005-1A540iAE95..XL..ARL198808-198908

sub67005-1A450

sub64173-12030

main67005-1A550iAE95..XL..ARL198808-198908

W(*RW)

sub67005-1A460

sub64173-12030

main67005-1A550iAE95..ARL198908-199009

NEW ZEALAND SPEC

sub67005-1A460

sub64173-12030

main67005-1A590iAE92..RHD..LB..GL;EE90..RHD..LB..5F..XL198906-199205

NEW ZEALAND SPEC & *RW)

main67005-1A600iAE92..RHD..LB198908-199205

NEW ZEALAND SPEC & W(*RW & REAR AIR SPOILER)

main67005-1F010iAE92,EE90..WG..GEN198906-199205

NEW ZEALAND SPEC & *RWD)

main67005-1F020iAE92,EE90..WG..GEN198906-199205

NEW ZEALAND SPEC & *RW)

main67005-1F030iAE92,EE90..WG..GEN198906-199205

NEW ZEALAND SPEC & *RW & *RWD)

67005BCUSHION(FOR BACK DOOR PANEL)

main64459-12010iAE92,EE90..LB198911-199205

LWR

main90541-09041iAE92,EE90..LB198705-199205

UPR

main90541-20002iAE92,EE90..LB198705-198911

LWR

sub64459-12010

67272ACUSHION, BACK DOOR STOPPER, NO.2

main67272-12010iEE90..RHD..LB..5F..XL198705-199205

main67272-12030iAE95..WG198802-199009

67281BSTOPPER, BACK DOOR, LOWER

main67281-12040iAE92,EE90..LB198705-199205

main67281-13050iAE92,EE9#..WG198708-199207

main67283-12010iAE95..WG198802-199009

RH

main67284-12010iAE95..WG198802-199009

LH

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-12030iAE92,EE90..LB198705-199205

main67293-13010iAE92,EE9#..WG198708-199207

main67293-20020iAE95..WG198802-199009

67750BOARD ASSY, BACK DOOR TRIM

main67750-12020-02iAE92,EE90..RHD..LB..GL198705-198908

MAROON,TRIM3#

main67750-12020-03iAE92,EE90..LB198705-199205

SHADOW GRAY,TRIM1#

main67750-12020-04iAE92,EE90..LB198705-199205

DARK BLUE,TRIM8#

main67750-12020-05iAE92,EE90..LB..(GL,XL)198705-198908

DARK BEIGE,TRIM4#

main67750-12020-06iAE92,EE90..LHD..LB198908-199008

BROWN,TRIM4#

main67750-12030-02iAE92..RHD..LB..GL;EE90..RHD..LB..5F..XL198906-198908

NEW ZEALAND SPEC,MAROON,TRIM3#

main67750-12030-03iAE92..RHD..LB..GL;EE90..RHD..LB..5F..XL198906-199205

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

main67750-12030-04iAE92..RHD..LB;EE90..RHD..LB..XL198908-199205

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

main67750-12030-05iAE92..RHD..LB..GL;EE90..RHD..LB..5F..XL198906-198908

NEW ZEALAND SPEC,DARK BEIGE,TRIM4#

67751BOARD, BACK DOOR TRIM

main67751-12110-03iAE95..WG198802-199009

SHADOW GRAY,TRIM1#

main67751-12110-04iAE95..WG198802-199009

DARK BLUE,TRIM8#

main67751-12110-05iAE95..WG198802-198908

DARK BEIGE,TRIM4#

main67751-12110-06iAE95..LHD198908-199009

BROWN,TRIM4#

main67751-12120-03iAE95..RHD..GEN198908-199009

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

main67751-12120-03iAE95..ARL198808-199009

SHADOW GRAY,TRIM1#

main67751-12120-04iAE95..RHD..GEN198908-199009

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

main67751-12120-04iAE95..RHD..GEN198908-199009

DARK BLUE,TRIM8#

main67751-12120-05iAE95..ARL198808-198908

DARK BEIGE,TRIM4#

main67751-13090-03iEE97198708-199108

SHADOW GRAY,TRIM1#

sub67751-13090

main67751-13090-04iEE97198708-199108

DARK BLUE,TRIM8#

sub67751-13090

main67751-13090-05iEE97198708-198908

DARK BEIGE,TRIM4#

sub67751-13090

main67751-13100-03iAE92,EE90..WG198708-199207

SHADOW GRAY,TRIM1#

sub67751-13100

main67751-13100-04iAE92..WG;EE90..WG..GCC198710-199207

DARK BLUE,TRIM8#

sub67751-13100

main67751-13100-05iEE90..WG198708-198908

DARK BEIGE,TRIM4#

sub67751-13100

main67751-13100-06iAE92,EE90..WG..GCC198908-199207

BROWN,TRIM4#

sub67751-13100

main67751-13110-03iAE92,EE90..WG..GEN198906-199205

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

main67751-13110-04iAE92..WG..GEN198908-199205

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

main67751-13110-05iEE90..WG..GEN198906-198908

NEW ZEALAND SPEC,DARK BEIGE,TRIM4#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-05062-03iAE95..WG198802-199009

SHADOW GRAY,TRIM1#

sub90467-05062

main90467-05062-04iAE95..WG198802-198809

DARK BLUE,TRIM8#

sub90467-05062

main90467-05062-05iAE95..WG198802-198809

DARK BEIGE,TRIM4#

sub90467-05062

main90467-05062-06iAE95..LHD198908-198909

BROWN,TRIM4#

sub90467-05062

main90467-05062-E0iAE95..WG198809-198908

DARK BEIGE,TRIM4#

sub90467-05062

main90467-05062-E2iAE95..LHD198909-199009

BROWN,TRIM4#

sub90467-05062

main90467-05062-J0iAE95..WG198809-199009

DARK BLUE,TRIM8#

sub90467-05062

main90467-07076-03iEE97198708-199108

SHADOW GRAY,TRIM1#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-04iEE97..LHD..XL198708-199108

DARK BLUE,TRIM8#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-05iEE97198708-198908

DARK BEIGE,TRIM4#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07083-03iAE92,EE90..WG198708-199207

SHADOW GRAY,TRIM1#

sub90467-07083

main90467-07083-04iAE92..WG;EE90..WG..GCC198710-199207

DARK BLUE,TRIM8#

sub90467-07083

main90467-07083-06iAE92,EE90..WG..GCC198908-199207

BROWN,TRIM4#

sub90467-07083

main90467-07083-R8iAE92..WG..GEN198908-199205

NEW ZEALAND SPEC,DARK BLUE,TRIM8#

sub90467-07083

main90467-10084iAE92,EE90..LB198705-199205

67881AWEATHERSTRIP, BACK DOOR

main67881-12180iAE92,EE90..LB198705-199205

main67881-12220iAE95..WG198802-199009

main67881-13100iEE90..WG;EE97..LHD198708-198709

sub67881-13110

main67881-13110iAE92,EE90..WG198709-199207

main67881-13140iEE97..RHD198708-198709

sub67881-13160

main67881-13160iEE97..RHD198708-199108

68131GLASS, BACK DOOR

main68131-12460iAE92,EE90..LB..XL198705-199205

*TT,T=4.0

sub68131-12470

main68131-12470iAE92,EE90..LB..GL198705-199205

*EHTT,T=4.0

main68131-12510iEE90..LB..XL198705-199205

*TEM,T=4.0

main68131-12520iAE92,EE90..RHD..LB..GL198705-199205

*EHT,T=4.0

sub68131-12470

main68131-12840iAE95..WG..GEN198802-198908

*TT,T=4.0

main68131-12860iAE95..XL..ARL198802-198808

*EHTT,T=3.5

main68131-12860iAE95..WG..GEN198802-198908

*EHTT,T=3.5,W(REAR WINDOW DEFOGGER)

main68131-12870iAE95..GEN198908-199009

*TT,T=3.5

main68131-12870iAE95..WG..GEN198802-198908

*TT,T=3.5,W(*RW)

main68131-12890iAE95..SR5198802-198808

*EHTT,T=3.5,W(*RW)

main68131-12890iAE95..WG..GEN198802-198908

*EHTT,T=3.5,W(*RW & REAR WINDOW DEFOGGER)

main68131-12890iAE95..GEN198908-199009

*EHTT,T=3.5,W(REAR WINDOW DEFOGGER)

main68131-12890iAE95..XL..ARL198802-198808

*EHTT,T=3.5

main68131-13170iAE92,EE9#..WG198708-199207

*TEM,T=3.5

sub68131-13190

main68131-13190iAE92,EE9#..WG198708-199207

*EHT,T=3.5

main68131-13210iAE92,EE90..WG..GEN198906-199205

*EHT,T=3.5,NEW ZEALAND SPEC & W(REAR WINDOW DEFOGGER)

main68131-1A190iAE95..XL..ARL198808-198908

*EHTT,T=3.5

main68131-1A200iAE95..RHD..GEN198808-199009

*EHTT,T=3.5

9010908055

main90109-08055

9015950116

main90159-50116

9046805060

main90468-05060

9095001130

main90950-01130

9095001167

main90950-01167

19 parts on this diagram · 3 diagrams in section
