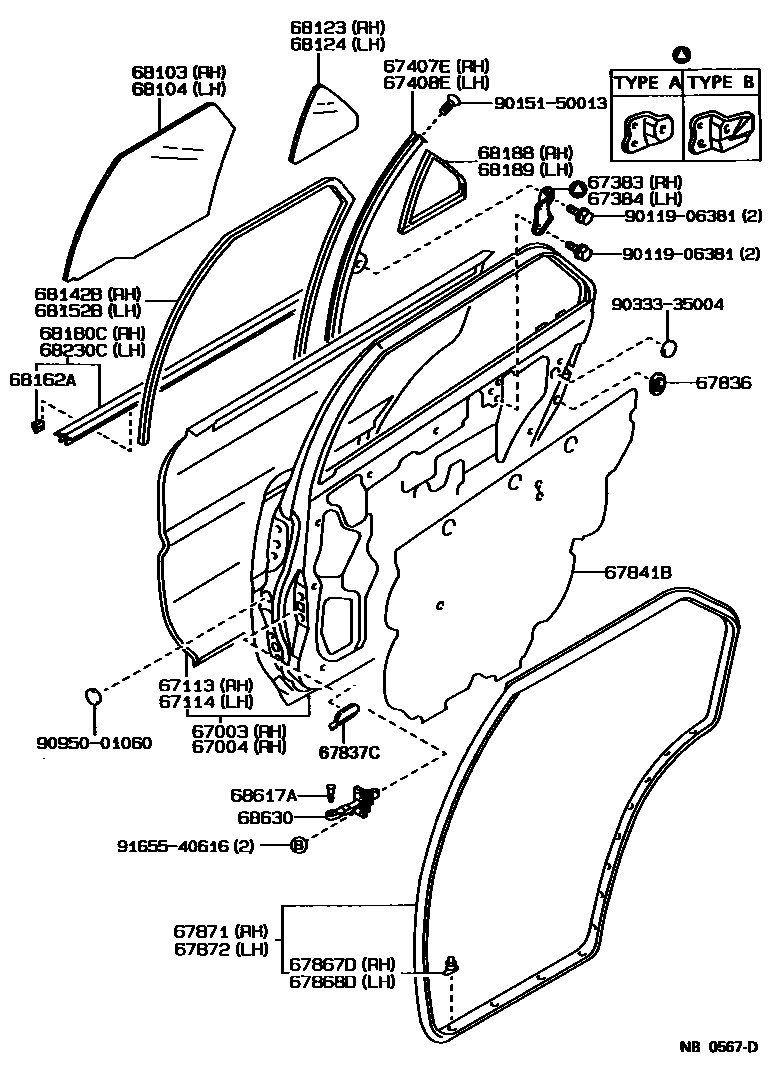

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12500iAE9#,CE90,EE90..SED..GEN198705-199205

main67003-12510iAE92,EE90..SED..GCC198708-199207

main67003-12550iAE92,EE90..LB198705-198802

sub67003-12551

main67003-12551iAE92,EE90..LB198802-199205

main67003-12590iAE95..WG..GEN198802-199009

main67003-12620iAE95..ARL198802-199009

main67003-13210iAE92,EE9#..WG..GEN198708-199205

main67003-13220iAE92,EE90..WG..GCC198710-199207

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12500iAE9#,CE90,EE90..SED..GEN198705-199205

main67004-12510iAE92,EE90..SED..GCC198708-199207

main67004-12550iAE92,EE90..LB198705-198802

sub67004-12551

main67004-12551iAE92,EE90..LB198802-199205

main67004-12590iAE95..WG..GEN198802-199009

main67004-12620iAE95..ARL198802-199009

main67004-13210iAE92,EE9#..WG..GEN198708-199205

main67004-13220iAE92,EE90..WG..GCC198710-199207

67113PANEL, REAR DOOR, OUTER RH

main67113-12140iAE95,CE90..SED;AE92,EE9#..(SED,WG)..(GCC,GEN)198705-199207

main67113-12170iAE92,EE90..LB198705-198802

sub67113-12171

main67113-12171iAE95..WG;AE92,EE90..LB198802-199205

67114PANEL, REAR DOOR, OUTER LH

main67114-12140iAE95,CE90..SED;AE92,EE9#..(SED,WG)..(GCC,GEN)198705-199207

main67114-12170iAE92,EE90..LB198705-198802

sub67114-12171

main67114-12171iAE95..WG;AE92,EE90..LB198802-199205

67383BRACKET, REAR DOOR INSIDE PANEL, NO.2 RH

main67383-12030iAE9#,CE90,EE9#..SED,WG198705-199308

67384BRACKET, REAR DOOR INSIDE PANEL, NO.2 LH

main67384-12030iAE9#,CE90,EE9#..SED,WG198705-199308

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12140iAE9#,CE90,EE90..SED198705-199308

main67407-13020iEE97..LHD..XL198802-199108

W(*EL)

main67407-13020iEE9#..WG..XL..GEN198708-198802

W(*EL OR *PW)

main67407-13020iAE95..WG;AE92,EE90..WG..GCC198710-199207

main67407-13030iAE92,EE9#..WG..GEN198708-199205

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12140iAE9#,CE90,EE90..SED198705-199308

main67408-13020iEE9#..WG..XL..GEN198708-198802

W(*EL OR *PW)

main67408-13020iEE9#..WG..XL..GEN198802-199108

W(*EL)

main67408-13020iAE95..WG;AE92,EE90..WG..GCC198710-199207

main67408-13030iAE92,EE9#..WG..GEN198708-199205

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12030iAE9#,EE90..ARL,GCC,SA198708-199308

67837CSEAL, REAR DOOR DUST PROOF

main67837-12040iAE95..ARL198802-199009

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-12210iEE90..GCC198708-199308

main67841-12220iAE9#,CE90,EE9#..ARL,GEN,SA198705-199207

sub67841-12210

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12120iAE92,EE9#..WG198708-199207

main67868-12050iAE95;AE92,CE90,EE90..LB,SED198705-199308

main67868-12050iAE92,CE90,EE90..SED..(GCC,GEN)198910-199008

ORANGE

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-12050iAE95;AE92,CE90,EE90..LB,SED198705-199308

main67868-12050iAE92,CE90,EE90..SED..(GCC,GEN)198910-199008

ORANGE

main67868-12070iAE92,EE90..WG198708-199207

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12290iAE9#,CE90,EE90..SED198705-199308

main67871-12300iAE92,EE90..LB198705-198802

sub67871-12301

main67871-12301iAE92,EE90..LB198802-199205

main67871-12330iAE95..WG198802-199009

main67871-13110iEE90..WG198708-198908

sub67871-13112

main67871-13112iAE92,EE90..WG198908-199207

main67871-13130iEE97198708-199109

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12290iAE9#,CE90,EE90..SED198705-199308

main67872-12300iAE92,EE90..LB198705-198802

sub67872-12301

main67872-12301iAE92,EE90..LB198802-199205

main67872-12330iAE95..WG198802-199009

main67872-13100iEE90..WG198708-198908

sub67872-13102

main67872-13102iAE92,EE90..WG198908-199207

main67872-13120iEE97198708-199109

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12150iAE92..GT..GEN;EE90..SED..GL;AE92..LHD..SED..GL198705-199308

*TEM,T=3.5

sub68113-12190

main68113-12190iAE92,CE90,EE90..SED..XL198705-199308

*TT,T=3.5

main68113-12200iAE92,EE90..RHD..SED..GL..GEN199008-199205

*TEM,T=3.5,BRONZE

main68113-12220iAE92,EE90..RHD..LB..(GL,GTI)198705-199205

*TEM,T=3.5

sub68113-12230

main68113-12230iAE92,EE90..LB..XL198705-199205

*TT,T=3.5

main68113-13090iAE92,EE9#..WG198708-199207

*TEM,T=3.5

sub68113-13100

main68113-13100iAE92,EE90..WG..GCC198708-199207

*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12180iAE92..GT..GEN;EE90..SED..GL;AE92..LHD..SED..GL198705-199308

*TEM,T=3.5

sub68114-12190

main68114-12190iAE92,CE90,EE90..SED..XL198705-199308

*TT,T=3.5

main68114-12200iAE92,EE90..RHD..SED..GL..GEN199008-199205

*TEM,T=3.5,BRONZE

main68114-12220iAE92,EE90..RHD..LB..(GL,GTI)198705-199205

*TEM,T=3.5

sub68114-12230

main68114-12230iAE92,EE90..LB..XL198705-199205

*TT,T=3.5

main68114-13090iAE92,EE9#..WG198708-199207

*TEM,T=3.5

sub68114-13100

main68114-13100iEE97..LHD;AE92,EE90..WG..GEN198708-199207

*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-12380iAE92..RHD..SED..GL..GEN198705-199308

*TEM,T=3.5

sub68123-12390

main68123-12390iAE92,EE90..SED..(SE,XL)..GCC198705-199308

*TT,T=3.5

main68123-12400iAE92,EE90..RHD..SED..GL..GEN199008-199205

*TEM,T=3.5,BRONZE

main68123-12540iAE95..WG198802-199009

*TT,T=3.5,BLUE

main68123-13100iAE92,EE9#..WG198708-199207

*TEM,T=3.5

main68123-13110iEE97..LHD;AE92,EE90..WG..GEN198708-199207

*TT,=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-12380iAE92..GT..GEN;EE90..SED..GL;AE92..LHD..SED..GL198705-199308

*TEM,T=3.5

sub68124-12390

main68124-12390iAE92,CE90,EE90..SED..XL198705-199308

*TT,T=3.5

main68124-12400iAE92,EE90..RHD..SED..GL..GEN199008-199205

*TEM,T=3.5,BRONZE

main68124-12540iAE95..WG198802-199009

*TT,T=3.5,BLUE

main68124-13090iAE92,EE9#..WG198708-199207

*TEM,T=3.5

main68124-13100iEE97..RHD198708-199207

*TT,T=3.5

68142BRUN, REAR DOOR WINDOW, RH

main68142-12090iAE9#,CE90,EE90..SED198705-199308

main68142-12130iAE92,EE90..LB198705-199205

main68142-13050iAE95..WG198708-199207

68152BRUN, REAR DOOR WINDOW, LH

main68152-12010iAE92,EE90..SA198705-199308

main68152-12050iAE92,EE90..LB198705-199205

main68152-13010iEE9#..WG198708-199207

68162ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-12160iEE97;EE90..STD..GCC;AE9#,CE90,EE90..SED..(STD,XL)..(GEN,SA)198705-199308

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-12080iEE90..STD..GCC;AE9#,CE90,EE90..SED..(STD,XL)..(GEN,SA)198705-199308

main68180-12090iEE97198708-199108

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12180iAE92,EE90..STD..(GEN,SA)198705-199308

main68188-12190iEE90..STD..SA199111-199308

W(FULL DOOR TRIM)

main68188-12200iEE90..STD..GCC;AE92,CE90,EE90..SED..(GL,GT,SE,XL)..(GCC,GEN)198705-199207

sub68188-12190

main68188-12230iAE95..WG198802-199009

main68188-13040iEE97..STD198708-199108

main68188-13050iAE92,EE9#..WG..XL198708-199207

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12180iAE92,EE90..STD..(GCC,GEN)198705-199308

main68189-12190iEE90..STD..SA199111-199308

W(FULL DOOR TRIM)

main68189-12190iAE9#,CE90,EE90..SED..(GL,GT,SE,XL)198705-199308

main68189-12240iAE95..WG198802-199009

main68189-13040iEE97..STD198708-199108

main68189-13050iAE92,EE9#..WG..XL198708-199207

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-12050iEE90..STD..GCC;AE9#,CE90,EE90..SED..(STD,XL)..(GEN,SA)198705-199308

main68230-12060iEE97198708-199108

68617APIN, REAR DOOR CHECK

main68617-12030iAE92,CE90,EE90198809-199308

main68617-22020iAE9#,CE90,EE9#198705-198809

68630CHECK ASSY, REAR DOOR

main68630-12040iAE9#,CE90,EE9#198705-199308

9011906381

main90119-06381

9015150013

main90151-50013

9033335004

main90333-35004

9095001060

main90950-01060

9165540616

main91655-40616

33 parts on this diagram · 6 diagrams in section
