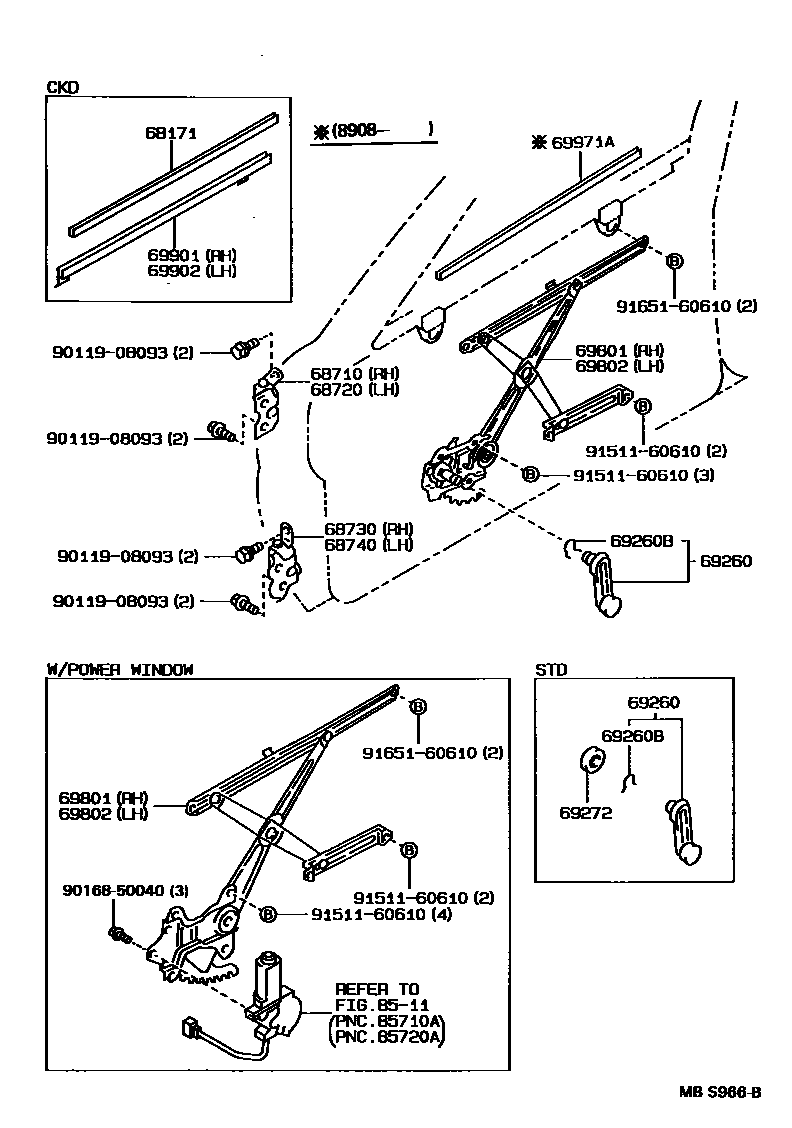

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-20030×2iEE97..RHD;AE92,CE90,EE90..(LB,SED)..GEN199008-199109

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12100iAE92,CE90,EE90..GEN,SA199109-199308

main68710-12110iAE92,EE90..GCC198708-199207

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12100iAE9#,CE90,EE9#..ARL,GEN,SA198705-199109

main68720-12110iAE92,EE90..GCC198708-199207

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12060iAE9#,CE90,EE9#..ARL,GEN,SA198705-199109

main68730-12070iAE92,EE90..GCC198708-199207

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12060iAE9#,CE90,EE9#..ARL,GEN,SA198705-199109

main68740-12070iAE92,EE90..GCC198708-199207

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-12×2iAE92,EE90..RHD..SED..XL..GEN198908-199008

MAROON,TRIM3#

main69260-10040-43×2iAE92..LHD..LB..5F;AE92..LHD..3FC..GL198705-198810

GRAY,TRIM1#

main69260-10040-55×2iAE92..LHD..LB..5F;AE92..LHD..3FC..GL198705-198810

VENEZUELA SPEC,DARK BEIGE,TRIM4#

main69260-10040-57×2iAE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL; AE92..LHD..LB198908-199008

BROWN,TRIM4#; VENEZUELA SPEC,BROWN,TRIM4#

main69260-10040-58×2iAE92..LHD..LB..GL198810-199205

DARK BLUE,TRIM8#

main69260-12070-13×2iAE92,EE90..(STD,XL)..SA198808-198908

GRAY,TRIM1#

main69260-12070-15×2iAE92,EE90..(STD,XL)..SA198808-198908

DARK BEIGE,TRIM4#

main69260-12080-02×2iAE92,EE90..RHD..SED..GL..GEN198908-199205

MAROON,TRIM3#

main69260-12080-03×2iAE9#,EE90..(GL,GT,GTI,SR5)..(ARL,GEN)198705-199205

SHADOW GRAY,TRIM1#

main69260-12080-04×2iAE9#,EE90..(GL,SR5)..(ARL,GEN)198908-199205

BLUE,TRIM8#

main69260-12080-05×2iAE9#,EE90..(GL,SR5)..(ARL,GEN)198705-198908

DARK BEIGE,TRIM4#

main69260-12080-06×2iAE92,EE90..LHD..SED..GL199008-199205

BROWN,TRIM4#

main69260-12090-03×2iAE92..(GL,GT,SE)..SA198808-198908

SHADOW GRAY,TRIM1#

main69260-12090-05×2iAE92..(GL,SE)..SA198808-198908

DARK BEIGE,TRIM4#

main69260-14030-53×2iAE92,EE90..(STD,XL)..SA198808-198908

SHADOW GRAY,TRIM1#

main69260-14030-55×2iAE92,EE90..(STD,XL)..SA198808-198908

DARK BEIGE,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iAE92..LHD..LB..5F;AE92..LHD..3FC..GL198705-198810

VENEZUELA SPEC

main90520-01005×2iAE9#,EE90..(GL,GT,GTI,SE,SR5)..(ARL,GEN,SA)198705-199308

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010×2iAE92..LHD..LB..GL198810-199205

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12100iAE92..(GT,SE)..SA199107-199308

W(*PW)

main69810-12290iAE92,CE90,EE90199109-199308

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12100iEE97..LHD..XL;AE92..GL,GT,SE;AE9#,CE90..XL..GEN;EE90..(LB,SED)..(GL,XL)..(GCC,GEN)198908-199008

W(*PW)

main69820-12290iAE9#,CE90,EE9#198705-199109

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12190iEE90..WG..GEN; EE97..RHD;AE92,CE90,EE90..(LB,SED)..GEN198902-198908

W(FRONT DOOR GLASS T=4.0)

main69901-12230iEE97..RHD;AE92,CE90,EE90..GEN198902-198908

W(FRONT DOOR GLASS T=3.5)

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-12130iEE97..RHD;AE92,CE90,EE90..GEN198705-198902

main69902-12170iEE97..RHD;AE92,CE90,EE90..GEN198902-198908

W(FRONT DOOR GLASS T=3.5)

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-12090×2iAE92,CE90,EE90..(LB,SED)..GEN198908-199205

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908093

main90119-08093

9016850040

main90168-50040

9151160610

main91511-60610

9165160610

main91651-60610

18 parts on this diagram · 1 diagram in section
