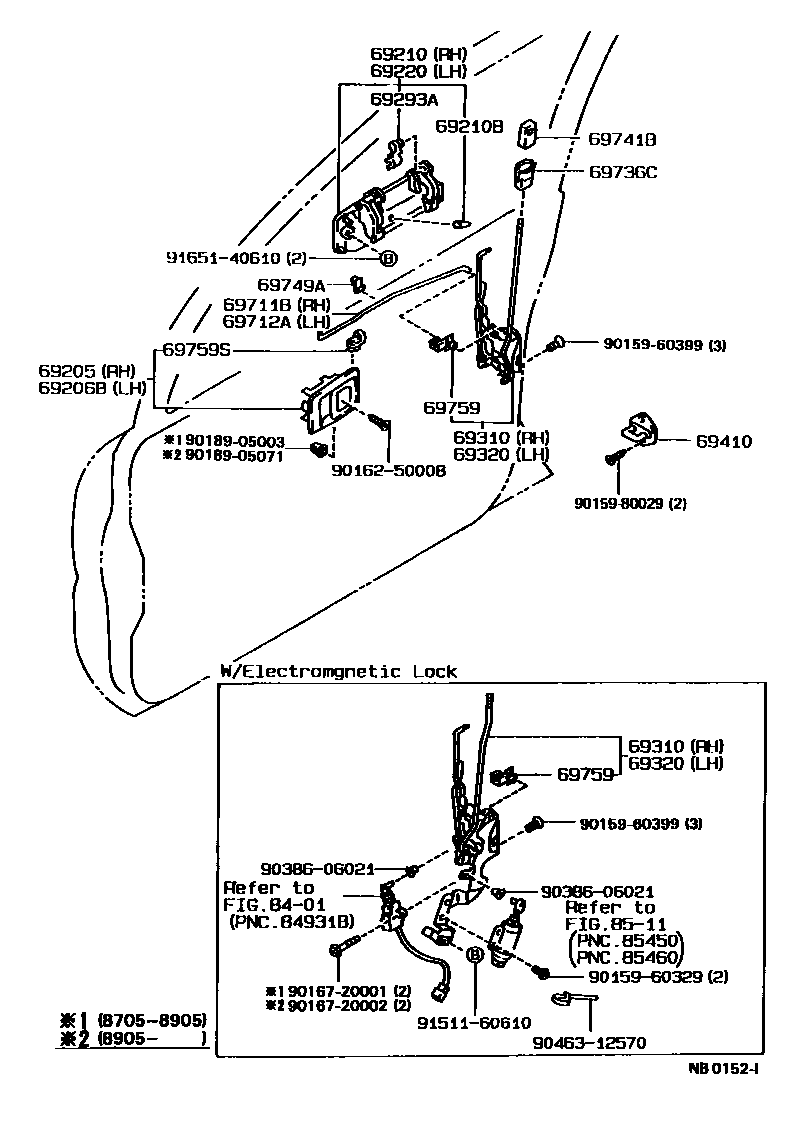

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12120-02iAE92,EE90..RHD..SED..GL..GEN198705-199205

MAROON,TRIM3#

sub69205-12120

main69205-12120-03iAE9#,EE90..GL,GT,GTI,SE,SR5198705-199205

SHADOW GRAY,TRIM1#

sub69205-12120

main69205-12120-04iAE95..SR5;AE92,EE90..LHD..GL198705-199205

BLUE,TRIM8#

sub69205-12120

main69205-12120-05iAE9#,EE90..GL,SE,SR5198705-198908

DARK BEIGE,TRIM4#

sub69205-12120

main69205-12120-06iAE92,EE90..LHD..SED..GL198908-199205

BROWN,TRIM4#

sub69205-12120

main69206-10040-02iAE92..SE..GCC;AE92,EE90..RHD..SED..XL..GEN198705-199207

MAROON,TRIM3#

sub69206-10040

sub69206-10030

main69206-10040-05iAE92,EE90..(STD,XL)..SA198908-199308

DARK BEIGE

sub69206-10040

sub69206-10030

main69206-10040-05iAE92..LHD..LB..GL198705-198908

VENEZUALA SPEC,DARK BEIGE,TRIM4#

sub69206-10040

sub69206-10030

main69206-10040-05iAE9#,CE90,EE9#..STD,XL198705-198908

DARK BEIGE,TRIM4#

sub69206-10040

sub69206-10030

main69206-10040-13iAE92..LHD..LB..5F;AE92..LHD..3FC..GL198705-199205

VENEZUALA SPEC,GRAY,TRIM1#

sub69206-10040

sub69206-10030

main69206-10040-13iAE9#,CE90,EE9#..STD,XL198705-199207

GRAY,TRIM1#

sub69206-10040

sub69206-10030

main69206-10040-13iAE92..RHD..LB..5F199105-199205

NEW ZEALAND GL EXTRA SPEC,GRAY,TRIM1#

sub69206-10040

sub69206-10030

main69206-10040-26iAE92..LHD..LB198908-199008

VENEZUALA SPEC,BROWN,TRIM4#

sub69206-10040

sub69206-10030

main69206-10040-26iAE9#,CE90..LHD..XL;EE90..LHD..(LB,SED)..XL198908-199207

BROWN,TRIM4#

sub69206-10040

sub69206-10030

main69206-10040-34iAE92..RHD..LB..5F199105-199205

NEW ZEALAND GL EXTRA SPEC,BLUE,TRIM8#

sub69206-10040

sub69206-10030

main69206-10040-34iAE95..WG..XL;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL198705-199207

BLUE,TRIM8#

sub69206-10040

sub69206-10030

main69206-10040-34iAE92..LHD..LB..5F;AE92..LHD..3FC..GL198705-199205

VENEZUALA SPEC,BLUE,TRIM8#

sub69206-10040

sub69206-10030

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69205-10040-02iAE9#,EE90..RHD..(LB,SED)..XL..GEN198705-199207

MAROON,TRIM3#

sub69205-10040

sub69205-10030

main69205-10040-05iAE9#,CE90,EE9#..STD,XL198705-198908

VENEZUELA SPEC,DARK BEIGE,TRIM4#

sub69205-10040

sub69205-10030

main69205-10040-05iAE9#,CE90,EE9#..STD,XL198705-198908

DARK BEIGE,TRIM4#

sub69205-10040

sub69205-10030

main69205-10040-05iAE92,EE90..(STD,XL)..SA198908-199308

DARK BEIGE

sub69205-10040

sub69205-10030

main69205-10040-13iAE92..LHD..SED..3FC..GL198705-199207

GRAY,TRIM1#

sub69205-10040

sub69205-10030

main69205-10040-26iAE92..LHD..LB198908-199207

BROWN,TRIM4#

sub69205-10040

sub69205-10030

main69205-10040-26iAE92..LHD..LB198908-199008

VENEZUELA SPEC,BROWN,TRIM4#

sub69205-10040

sub69205-10030

main69205-10040-34iAE92..LHD..LB..GL198705-199205

VENEZUELA SPEC,BLUE,TRIM8#

sub69205-10040

sub69205-10030

main69205-10040-34iAE92..LHD..LB..5F;AE92..LHD..3FC..GL198705-199207

BLUE,TRIM8#

sub69205-10040

sub69205-10030

main69205-10040-34iAE92..RHD..LB..5F199105-199205

NEW ZEALAND GL EXTRA SPEC,BLUE,TRIM8#

sub69205-10040

sub69205-10030

main69206-12120-02iAE92,EE90..RHD..GL..GEN198705-199205

MAROON,TRIM3#

sub69206-12120

main69206-12120-03iAE9#,EE90..(GL,GT,SR5)..(ARL,GEN)198705-199205

SHADOW GRAY,TRIM1#

sub69206-12120

main69206-12120-04iAE9#,EE90..(GL,SR5)..(ARL,GEN)198705-199205

BLUE,TRIM8#

sub69206-12120

main69206-12120-05iAE9#,EE90..GL,SE,SR5198705-198908

DARK BEIGE,TRIM4#

sub69206-12120

main69206-12120-06iAE92,EE90..LHD..SED..GL198908-199205

BROWN,TRIM4#

sub69206-12120

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12100iAE92..SE..GCC;AE92,EE90..RHD..SED..GL..GEN198705-199207

SE LIMITED

main69210-12100iAE92..GT..GEN198908-199205

main69210-12110iAE92..GT..SA;AE92,CE90,EE90..GL,SE,STD,XL198705-199308

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014iAE92,CE90,EE90198705-199308

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12100iAE92..GT..GEN198908-199205

main69220-12100iAE92,EE90..RHD..SED..GL..GEN198705-199207

SE LIMITED

main69220-12110iAE92..GT..SA;AE92,CE90,EE90..GL,SE,STD,XL198705-199308

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAE92,CE90,EE90198705-199308

RH

main69293-12040iAE92,CE90,EE90198705-199308

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-12250iAE95,EE90..ARL,GCC198708-198908

sub69310-12251

main69310-12251iAE9#,EE90..ARL,GCC198908-199207

main69310-12260iAE9#,CE90,EE9#..LHD..(SED,WG)..(GL,XL)..GEN198705-199109

W(*EL)

sub69310-12380

main69310-12261iAE9#,CE90,EE9#..LHD..(GL,XL)..GEN198908-199205

W(*EL)

main69310-12270iAE95..SR5;EE90..SED..XL..GCC198708-198908

W(*EL)

sub69310-12271

main69310-12271iAE92..GCC198908-199207

W(*PW)

main69310-12271iAE95..SR5;EE90..SED..XL..GCC198908-199207

W(*EL)

main69310-12370iAE9#,CE90,EE9#..GEN,SA198705-198908

sub69310-12380

main69310-12371iAE92,CE90,EE90..GEN,SA198908-199308

main69310-12380iAE9#,EE97..RHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE92..RHD..(GL,GT,GTI,SE)198705-198908

W(*EL)

main69310-12381iAE9#..RHD..XL..GEN;AE92..RHD..(GL,GT,SE);EE90..RHD..(GL,XL)..GEN198908-199308

W(*EL)

69320LOCK ASSY, FRONT DOOR, LH

main69320-12270iAE95,EE90..ARL,GCC198708-198908

sub69320-12271

main69320-12271iAE9#,EE90..ARL,GCC198908-199207

main69320-12280iAE9#,EE97..RHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE92..RHD..(GL,GT,GTI,SE)198705-198908

W(*EL)

sub69320-12400

main69320-12281iAE92..RHD..(GL,GT,SE);AE92..RHD..SED..XL..GEN;AE95,EE90..RHD..(GL,XL)..GEN198908-199308

W(*EL)

main69320-12290iAE95..SR5;EE90..SED..XL..GCC198708-198908

W(*EL)

sub69320-12291

main69320-12291iAE92..GCC198908-199207

W(*PW)

main69320-12291iAE95..SR5;EE90..SED..XL..GCC198908-199207

W(*EL)

main69320-12390iAE9#,CE90,EE9#..GEN,SA198705-198908

sub69320-12400

main69320-12391iAE9#,CE90,EE9#..GEN,SA198908-199308

main69320-12400iAE9#,CE90,EE9#..LHD..(GL,XL)..GEN198705-199109

W(*EL)

main69320-12401iAE92,CE90,EE90..LHD..(GL,XL)..GEN198908-199205

W(*EL)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iAE9#,CE90,EE9#198705-199308

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-12100iAE9#,CE90,EE9#198705-199308

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-12110iAE9#,CE90,EE9#198705-199308

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12030iAE9#,CE90,EE9#..GL,GT,GTI,SE,SR5,XL198705-199005

main69736-20090iEE90..5F..STD;AE9#,CE90,EE9#..(GL,GT,SE,SR5,XL)..(ARL,GCC,GEN)199005-199308

sub69736-12030

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-90K00-02iAE9#,EE90..RHD..(LB,SED)..(GL,XL)..GEN198705-198809

MAROON,TRIM3#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-03iAE92,EE90..LB;AE92,EE9#..STD198705-199207

SHADOW GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-05iAE9#,CE90,EE9#..GL,SE,SR5,STD,XL198705-198809

DARK BEIGE,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-34iAE95..WG;EE9#..LHD..(GL,XL);AE9#,CE90..LHD..(LB,SED)..(GL,XL)198705-198809

BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-D0iAE92,EE90..RHD..SED..(GL,XL)..GEN198809-199207

MAROON,TRIM3#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-E0iAE92,EE9#..STD;AE92,EE90..LB..(GL,XL)198809-198908

DARK BEIGE,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-E1iAE9#,CE90..LHD..(GL,XL);EE90..LHD..(LB,SED)..(GL,XL)198908-199207

BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-J0iAE92,EE90..LHD..LB198809-199207

DARK BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20010iAE9#,CE90,EE9#198705-199308

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iAE95..SR5;EE90..SED..XL..GCC198705-199205

W(*EL),LH,YELLOW

main69759-20040iAE9#,CE90,EE9#..GEN,SA198705-199308

LH,YELLOW

main69759-20050iAE92,CE90,EE9#198705-199308

RH,BROWN

main69759-20050iAE92,CE90,EE90..LHD..(GL,XL)..GEN198705-199205

W(*EL),RH,BROWN

main69759-20100iAE92,EE90..RHD..LB198705-198908

W(*EL),RH,RED

main69759-20110iAE92,EE90..RHD..(GL,GTI,XL)198705-198908

W(*EL),LH,BLACK

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iAE92,CE90,EE90198705-199308

RH

main69759-20070iAE92,CE90,EE90198705-199308

LH

8401

8511

9015960329

main90159-60329

9015960399

main90159-60399

9015980029

main90159-80029

9016250008

main90162-50008

9016720001

main90167-20001

9016720002

main90167-20002

9018905003

main90189-05003

9018905071

main90189-05071

9038606021

main90386-06021

9046312570

main90463-12570

9151160610

main91511-60610

9165140610

main91651-40610

30 parts on this diagram · 1 diagram in section
