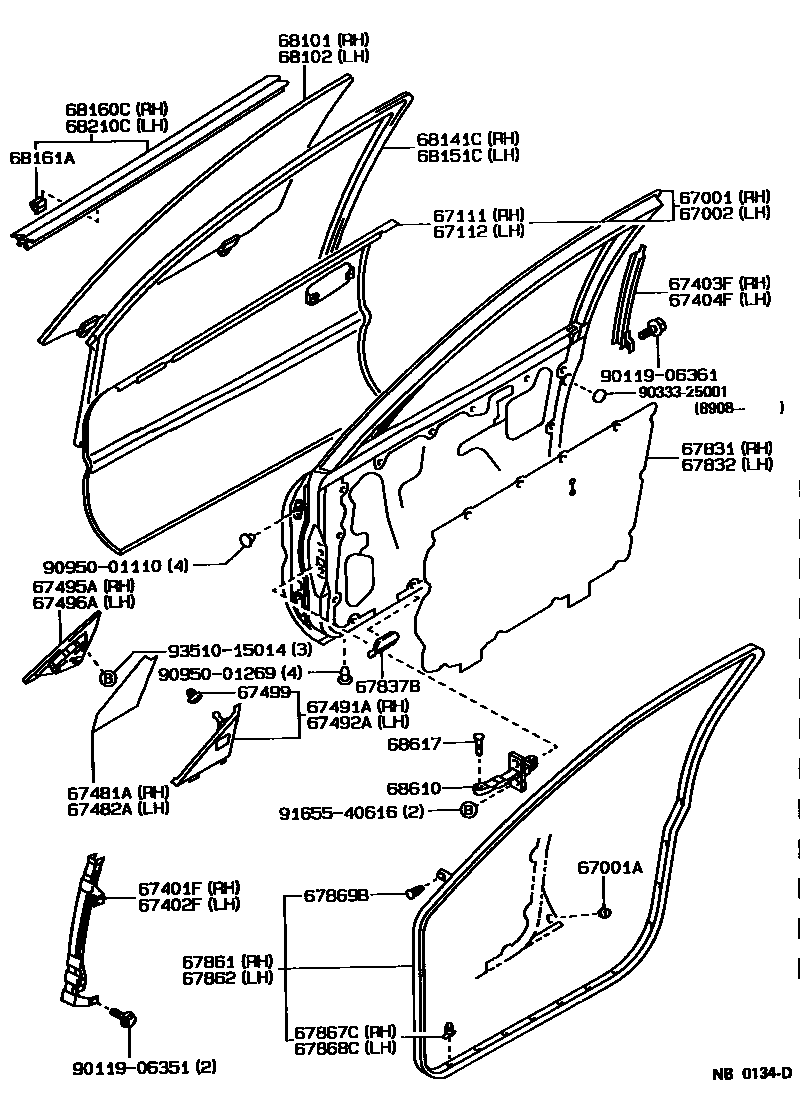

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
main90541-09035×2iAE92..SE..GCC;EE90..SED..5F..GCC;EE90..(3FC,4F)..GCC;AE9#,CE90,EE9#..ARL,GEN,SA198705-199308
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-12150iAE92,EE90..RHD..SED..(STD,XL)..GEN; AE92,EE90..RHD..SED..GL..GEN; AE92..LHD..SED..(STD,XL); AE92..LHD..SED..3FC..GL; CE90,EE90..LHD..SED..(STD,XL)..GEN; EE90..LHD..GL;AE92..LHD..SED..5F..GL198705-198908
VENEZUALA SPEC & W(DOOR MIRROR);W(CKD COUNTRIES & DOOR MIRROR); VENEZUELA SPEC & W(DOOR MIRROR);W(CKD COUNTRIES & DOOR MIRROR); W(CKD COUNTRIES & DOOR MIRROR)
main67491-12160iAE95..RHD..SED;EE90..RHD..SED..(3FC,4F);EE90..RHD..(SED,WG)..5F..GEN;AE92,EE97..RHD..(SED,WG)..GEN198705-199308
W(MANUAL REMOTO CONTROL MIRROR)
main67491-12170iAE92,EE90..LHD..LB..XL; AE92..LHD..LB..GL; AE95..SR5;AE95..WG..GEN;AE92,EE90..LB; EE90..RHD..LB..XL198705-199205
VENEZUALA SPEC & W(DOOR MIRROR);W(CKD COUNTRIES & DOOR MIRROR); W(CKD COUNTRIES & DOOR MIRROR)
W(MANUAL REMOTO CONTROL MIRROR)
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-12130iAE92,EE9#..RHD..(3FC,4F,4FC)..(STD,XL)..GEN; AE92,EE90..LHD..SED..GL; AE92,EE90..RHD..SED..5F..XL..GEN; AE92..3FC..XL..GEN; AE92..GT..GEN; AE92..LHD..5F..(STD,XL)..GEN; AE92..RHD..SED..5F..GL..GEN; AE92..SED..4FC..GL; CE90;EE90..LHD..STD..GEN;EE90..LHD..3FC..GEN; EE90..LHD..SED..MTM..XL..GEN; EE90..RHD..SED..GL198908-199205
INDONESIA SPEC & W(ELECTRIC REMOTE CONTROL MIRROR); NEW ZEALAND SPEC & W(DOOR MIRROR);W(CKD COUNTRIES & DOOR MIRROR); NEW ZEALAND SPEC & W(DOOR MIRROR);W(CKD COUNTRIES & DOOR MIRROR);INDONESIA SPEC &W(ELECTRIC REMOTE CONTROL MIRROR); VENEZUALA SPEC & W(DOOR MIRROR);W(CKD COUNTRIES & DOOR MIRROR); W(CKD COUNTRIES & DOOR MIRROR)
W(MANUAL REMOTO CONTROL MIRROR)
main67492-12170iAE92,EE90..LHD..LB..XL; AE92..LHD..LB..GL; AE95..SR5;AE95..WG..GEN;AE92,EE90..LB; EE90..RHD..LB..XL198705-199205
NEW ZEALAND SPEC & W(DOOR MIRROR);W(CKD COUNTRIES & DOOR MIRROR); VENEZUALA SPEC & W(DOOR MIRROR);W(CKD COUNTRIES & DOOR MIRROR); W(CKD COUNTRIES & DOOR MIRROR)
W(MANUAL REMOTO CONTROL MIRROR)
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67831COVER, FRONT DOOR SERVICE HOLE, RH
W(*PW)
67832COVER, FRONT DOOR SERVICE HOLE, LH
W(*PW)
W(*PW)
67837BSEAL, FRONT DOOR DUST PROOF
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=3.5
*TT,T=3.5
*TEM,T=3.5,BRONZE
*TEM,T=3.5
*TT,T=3.5
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68102-12530iAE92..GT..GEN;EE90..SED..GL;AE92..LHD..SED..GL; AE92..RHD..SED..GL..GEN198908-199205
*TEM,T=3.5
*TT,T=3.5
*TEM,T=3.5,BRONZE
*TEM,T=3.5
*TT,T=3.5
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610CHECK ASSY, FRONT DOOR
68617PIN, FRONT DOOR CHECK
9011906351
main90119-06351
9011906361
main90119-06361
9033325001
main90333-25001
9095001110
main90950-01110
9095001269
main90950-01269
9165540616
main91655-40616
9351015014
main93510-15014
40 parts on this diagram · 8 diagrams in section
