DECK BOARD & DECK TRIM COVER

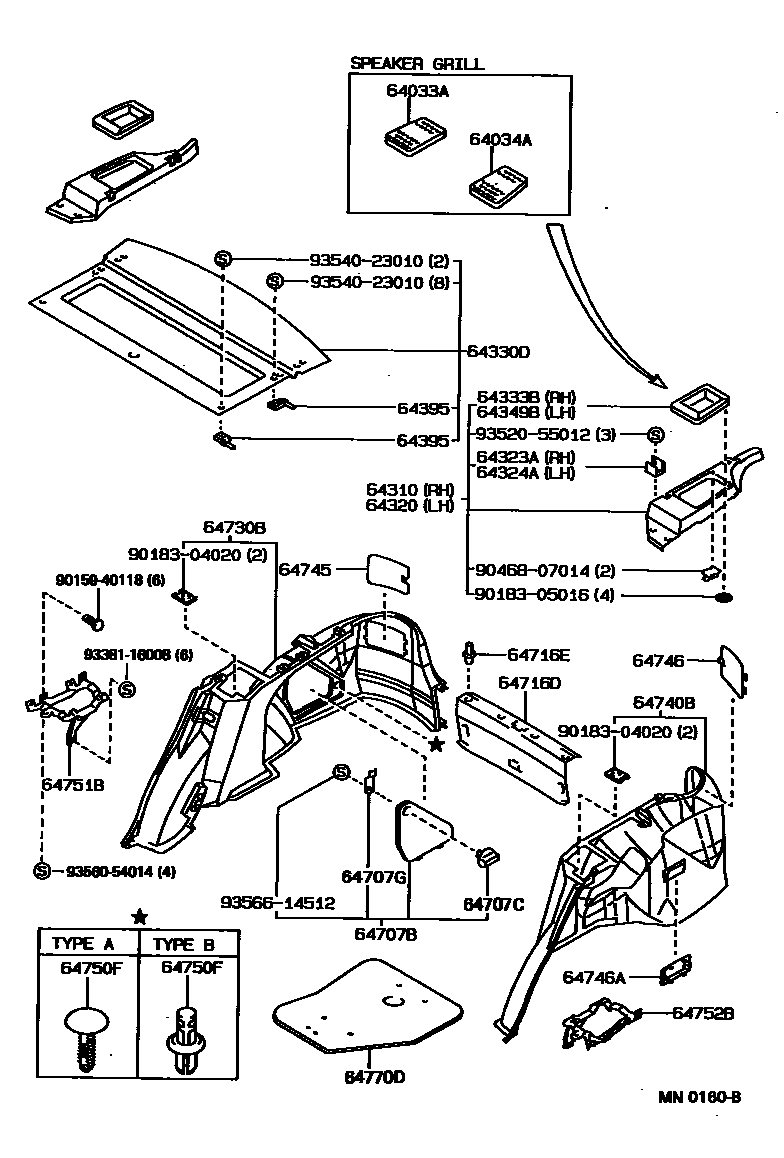

Parts diagram
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-12070-02i198705-198908
MAROON,TRIM3#
main64033-12070-03i198705-199205
SHADOW GRAY,TRIM1#
main64033-12070-04i198705-199205
DARK BLUE,TRIM8#
main64033-12070-05i198705-198908
DARK BEIGE,TRIM4#
main64033-12070-06i198908-199008
BROWN,TRIM4#
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
main64034-12010-02i198705-198908
MAROON,TRIM3#
main64034-12010-03i198705-199205
SHADOW GRAY,TRIM1#
main64034-12010-04i198705-199205
DARK BLUE,TRIM8#
main64034-12010-05i198705-198908
DARK BEIGE,TRIM4#
main64034-12010-06i198908-199008
BROWN,TRIM4#
64310BRACKET, PACKAGE TRAY TRIM, RH
main64301-12140-02i198705-198908
MAROON,TRIM3#
sub64301-12141
main64301-12140-03i198705-198911
SHADOW GRAY,TRIM1#
sub64301-12141
main64301-12140-04i198705-198911
DARK BLUE,TRIM8#
sub64301-12141
main64301-12140-05i198705-198908
DARK BEIGE,TRIM4#
sub64301-12141
main64301-12140-06i198908-198911
BROWN,TRIM4#
sub64301-12141
main64301-12141-03i198911-199205
SHADOW GRAY,TRIM1#
main64301-12141-04i198911-199205
DARK BLUE,TRIM8#
main64301-12141-06i198911-199008
BROWN,TRIM4#
main64301-12180-02i198705-198908
W(REAR SPEAKERS),MAROON,TRIM3#
sub64301-12181
main64301-12180-03i198705-198911
W(REAR SPEAKERS),SHADOW GRAY,TRIM1#
sub64301-12181
main64301-12180-04i198705-198911
W(REAR SPEAKERS),DARK BLUE,TRIM8#
sub64301-12181
main64301-12180-05i198705-198908
W(REAR SPEAKERS),DARK BEIGE,TRIM4#
sub64301-12181
main64301-12180-06i198908-198911
W(REAR SPEAKERS),BROWN,TRIM4#
sub64301-12181
main64301-12181-03i198911-199205
W(REAR SPEAKERS),SHADOW GRAY,TRIM1#
main64301-12181-04i198911-199205
W(REAR SPEAKERS),DARK BLUE,TRIM8#
main64301-12181-06i198911-199008
W(REAR SPEAKERS),BROWN,TRIM4#
64320BRACKET, PACKAGE TRAY TRIM, LH
main64302-12140-02i198705-198908
MAROON,TRIM3#
sub64302-12141
main64302-12140-03i198705-198911
SHADOW GRAY,TRIM1#
sub64302-12141
main64302-12140-04i198705-198911
DARK BLUE,TRIM8#
sub64302-12141
main64302-12140-05i198705-198908
DARK BEIGE,TRIM4#
sub64302-12141
main64302-12140-06i198908-198911
BROWN,TRIM4#
sub64302-12141
main64302-12141-03i198911-199205
SHADOW GRAY,TRIM1#
main64302-12141-04i198911-199205
DARK BLUE,TRIM8#
main64302-12141-06i198911-199008
BROWN,TRIM4#
main64302-12170-02i198705-198908
W(REAR SPEAKERS),MAROON,TRIM3#
sub64302-12171
main64302-12170-03i198705-198911
W(REAR SPEAKERS),SHADOW GRAY,TRIM1#
sub64302-12171
main64302-12170-04i198705-198911
W(REAR SPEAKERS),DARK BLUE,TRIM8#
sub64302-12171
main64302-12170-05i198705-198908
W(REAR SPEAKERS),DARK BEIGE,TRIM4#
sub64302-12171
main64302-12170-06i198908-198911
W(REAR SPEAKERS),BROWN,TRIM4#
sub64302-12171
main64302-12171-03i198911-199205
W(REAR SPEAKERS),SHADOW GRAY,TRIM1#
main64302-12171-04i198911-199205
W(REAR SPEAKERS),DARK BLUE,TRIM8#
main64302-12171-06i198911-199008
W(REAR SPEAKERS),BROWN,TRIM4#
64323ACLAMP, PACKAGE TRAY TRIM, RH
main64323-12020i198705-199205
main64323-12030i198802-199009
FRONT
main64323-12040i198802-199009
REAR
64324ACLAMP, PACKAGE TRAY TRIM, LH
main64323-12030i198802-199009
FRONT
main64323-12040i198802-199009
REAR
main64324-12010i198705-199205
64330DPANEL ASSY, PACKAGE TRAY TRIM
main64330-1A020-02i198705-198908
MAROON,TRIM3#
sub64330-1A020
main64330-1A020-03i198705-199205
SHADOW GRAY,TRIM1#
sub64330-1A020
main64330-1A020-04i198705-199205
DARK BLUE,TRIM8#
sub64330-1A020
main64330-1A020-05i198705-198908
DARK BEIGE,TRIM4#
sub64330-1A020
main64330-1A020-06i198908-199008
BROWN,TRIM4#
sub64330-1A020
main64330-1A220-03i198802-199009
SHADOW GRAY,TRIM1#
sub64330-1A220
main64330-1A220-04i198802-199009
DARK BLUE,TRIM8#
sub64330-1A220
main64330-1A220-05i198802-198908
DARK BEIGE,TRIM4#
sub64330-1A220
main64330-1A220-06i198908-199009
BROWN,TRIM4#
sub64330-1A220
main64330-1A230-03i198808-199009
SHADOW GRAY,TRIM1#
sub64330-1A230
main64330-1A230-03i198908-199009
NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
sub64330-1A230
main64330-1A230-04i198808-199009
DARK BLUE,TRIM8#
sub64330-1A230
main64330-1A230-04i198908-199009
NEW ZEALAND SPEC,DARK BLUE,TRIM8#
sub64330-1A230
main64330-1A230-05i198808-198908
DARK BEIGE,TRIM4#
sub64330-1A230
main64330-1A260-02i198906-198908
NEW ZEALAND SPEC,MAROON,TRIM3#
sub64330-1A260
main64330-1A260-03i198906-199205
NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#
sub64330-1A260
main64330-1A260-04i198908-199205
NEW ZEALAND SPEC,DARK BLUE,TRIM8#
sub64330-1A260
main64330-1A260-05i198906-198908
NEW ZEALAND SPEC,DARK BEIGE,TRIM4#
sub64330-1A260
64333BCOVER, PACKAGE TRAY TRIM SIDE, RH
main64333-12060-02i198705-198908
MAROON,TRIM3#
main64333-12060-03i198705-199205
SHADOW GRAY,TRIM1#
main64333-12060-04i198705-199205
DARK BLUE,TRIM8#
main64333-12060-05i198705-198908
DARK BEIGE,TRIM4#
main64333-12060-06i198908-199008
BROWN,TRIM4#
64349BCOVER, PACKAGE TRAY TRIM SIDE, LH
main64349-12020-02i198705-198908
MAROON,TRIM3#
main64349-12020-03i198705-199205
SHADOW GRAY,TRIM1#
main64349-12020-04i198705-199205
DARK BLUE,TRIM8#
main64349-12020-05i198705-198908
DARK BEIGE,TRIM4#
main64349-12020-06i198908-199008
BROWN,TRIM4#
64395PIN, PACKAGE TRAY TRIM HINGE
main64395-12050i198705-199205
FRONT
main64395-12060i198705-199205
CENTER-RH & REAR-LH
main64395-12070i198705-199205
CENTER-LH & REAR-RH
main64395-12110i198902-199009
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
main64707-12040-02i198705-198908
MAROON,TRIM3#
sub64707-12040
main64707-12040-03i198705-199205
SHADOW GRAY,TRIM1#
sub64707-12040
main64707-12040-04i198705-199205
DARK BLUE,TRIM8#
sub64707-12040
main64707-12040-05i198705-198908
DARK BEIGE,TRIM4#
sub64707-12040
main64707-12040-06i198908-199008
BROWN,TRIM4#
sub64707-12040
main64707-12060-03i198802-199009
SHADOW GRAY,TRIM1#
main64707-12060-04i198802-199009
DARK BLUE,TRIM8#
main64707-12060-05i198802-198908
DARK BEIGE,TRIM4#
main64707-12060-06i198908-199009
BROWN,TRIM4#
main64707-13060-03i198708-199207
SHADOW GRAY,TRIM1#
sub64707-13060
main64707-13060-04i198710-199207
DARK BLUE,TRIM8#
sub64707-13060
main64707-13060-05i198708-198908
DARK BEIGE,TRIM4#
sub64707-13060
main64707-13060-06i198908-199207
BROWN,TRIM4#
sub64707-13060
64707CKNOB, JACK COVER
main64982-16020-23i198705-198802
GRAY,TRIM1#
sub64982-16020
main64982-16020-25i198705-198908
DARK BEIGE,TRIM4#
sub64982-16020
main64982-16020-30i198802-199207
SHADOW GRAY,TRIM1#
sub64982-16020
main64982-16020-32i198705-198908
MAROON,TRIM3#
sub64982-16020
main64982-16020-50i198908-199207
BROWN,TRIM4#
sub64982-16020
main64982-16020-54i198705-199207
DARK BLUE,TRIM8#
sub64982-16020
64707GSTOPPER, JACK COVER
main64981-13010i198708-199207
main64981-16021i198705-199205
64716DCOVER, DECK TRIM, REAR
main64716-12120-02i198705-198908
MAROON,TRIM3#
main64716-12120-03i198705-199205
SHADOW GRAY,TRIM1#
main64716-12120-04i198705-199205
DARK BLUE,TRIM8#
main64716-12120-05i198705-198908
DARK BEIGE,TRIM4#
main64716-12120-06i198908-199008
BROWN,TRIM4#
main64716-13010-03i198708-199207
SHADOW GRAY,TRIM1#
sub64716-13020
sub64716-13010
main64716-13010-04i198710-199207
DARK BLUE,TRIM8#
sub64716-13020
sub64716-13010
main64716-13010-05i198708-198908
DARK BEIGE,TRIM4#
sub64716-13020
sub64716-13010
main64716-13010-06i198908-199207
BROWN,TRIM4#
sub64716-13020
sub64716-13010
64716ECLIP(FOR DECK TRIM REAR COVER)
main90467-06085-03i198708-199207
SHADOW GRAY,TRIM1#
sub90467-06085
main90467-06085-04i198710-199207
DARK BLUE,TRIM8#
sub90467-06085
main90467-06085-05i198708-198908
DARK BEIGE,TRIM4#
sub90467-06085
main90467-06085-06i198908-199207
BROWN,TRIM4#
sub90467-06085
main90467-07073-02i198705-198908
MAROON,TRIM3#
sub90467-07073
main90467-07073-03i198705-199009
SHADOW GRAY,TRIM1#
sub90467-07073
main90467-07073-04i198705-198811
DARK BLUE,TRIM8#
sub90467-07073
main90467-07073-05i198705-198908
DARK BEIGE,TRIM4#
sub90467-07073
main90467-07073-06i198908-199008
BROWN,TRIM4#
sub90467-07073
main90467-07073-B4i199009-199205
SHADOW GRAY,TRIM1#
sub90467-07073
main90467-07073-J1i198811-199205
DARK BLUE,TRIM8#
sub90467-07073
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-12280-03i198802-199009
SHADOW GRAY,TRIM1#
main64730-12280-04i198802-199009
DARK BLUE,TRIM8#
main64730-12280-05i198802-198908
DARK BEIGE,TRIM4#
main64730-12280-06i198908-199009
BROWN,TRIM4#
main64730-12290-03i198802-199009
W(3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#
main64730-12290-03i198802-199009
SHADOW GRAY,TRIM1#
main64730-12290-04i198802-199009
W(3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#
main64730-12290-04i198802-199009
DARK BLUE,TRIM8#
main64730-12290-05i198802-198908
DARK BEIGE,TRIM4#
main64730-12290-05i198802-198908
W(3-POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#
main64730-12290-06i198908-199009
W(3-POINT TYPE REAR SEAT BELT),BROWN,TRIM4#
main64730-13010-03i198708-199207
SHADOW GRAY,TRIM1#
main64730-13010-04i198710-199207
DARK BLUE,TRIM8#
main64730-13010-05i198708-198908
DARK BEIGE,TRIM4#
main64730-13010-06i198908-199207
BROWN,TRIM4#
main64730-13020-03i198708-199205
W(3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#
main64730-13020-04i198908-199205
W(3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#
main64730-13020-05i198708-198908
W(3-POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#
main64730-13030-03i198708-199207
W(TONNEAU COVER),SHADOW GRAY,TRIM1#
main64730-13030-04i198710-199207
W(TONNEAU COVER),DARK BLUE,TRIM8#
main64730-13030-05i198708-198908
W(TONNEAU COVER),DARK BEIGE,TRIM4#
main64730-13030-06i198908-199207
W(TONNEAU COVER),BROWN,TRIM4#
main64730-13040-03i198708-199006
W(TONNEAU COVER & 3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#
main64730-13040-03i199006-199205
W(TONNEAU COVER & 3-POINT TYPE REAR SEAT BELT,SHADOW GRAY,TRIM1#
main64730-13040-04i198911-199006
W(TONNEAU COVER & 3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#
main64730-13040-04i199006-199205
W(TONNEAU COVER & 3-POINT TYPE REAR SEAT BELT,DARK BLUE,TRIM8#
main64730-13040-05i198708-198908
W(TONNEAU COVER & 3-POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#
main64731-12210-02i198705-198908
MAROON,TRIM3#
main64731-12210-03i198705-199205
SHADOW GRAY,TRIM1#
main64731-12210-04i198705-199205
DARK BLUE,TRIM8#
main64731-12210-05i198705-198908
DARK BEIGE,TRIM4#
main64731-12210-06i198908-199008
BROWN,TRIM4#
64740BBOARD, DECK TRIM SIDE, LH
main64732-12240-02i198705-198908
MAROON,TRIM3#
main64732-12240-03i198705-199205
SHADOW GRAY,TRIM1#
main64732-12240-04i198705-199205
DARK BLUE,TRIM8#
main64732-12240-05i198705-198908
DARK BEIGE,TRIM4#
main64732-12240-06i198908-199008
BROWN,TRIM4#
main64740-12280-03i198802-199009
SHADOW GRAY,TRIM1#
main64740-12280-04i198802-199009
DARK BLUE,TRIM8#
main64740-12280-05i198802-198908
DARK BEIGE,TRIM4#
main64740-12280-06i198908-199009
BROWN,TRIM4#
main64740-12290-03i198802-199009
SHADOW GRAY,TRIM1#
main64740-12290-03i198802-199009
W(3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#
main64740-12290-04i198802-199009
W(3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#
main64740-12290-04i198802-199009
DARK BLUE,TRIM8#
main64740-12290-05i198802-198908
W(3-POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#
main64740-12290-05i198802-198908
DARK BEIGE,TRIM4#
main64740-12290-06i198908-199009
W(3-POINT TYPE REAR SEAT BELT),BROWN,TRIM4#
main64740-13010-03i198708-199207
SHADOW GRAY,TRIM1#
main64740-13010-04i198710-199207
DARK BLUE,TRIM8#
main64740-13010-05i198708-198908
DARK BEIGE,TRIM4#
main64740-13010-06i198908-199207
BROWN,TRIM4#
main64740-13020-03i198708-199205
W(3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#
main64740-13020-04i198908-199205
W(3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#
main64740-13020-05i198708-198908
W(3-POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#
main64740-13030-03i198708-199207
W(TONNEAU COVER),SHADOW GRAY,TRIM1#
main64740-13030-04i198710-199207
W(TONNEAU COVER),DARK BLUE,TRIM8#
main64740-13030-05i198708-198908
W(TONNEAU COVER),DARK BEIGE,TRIM4#
main64740-13030-06i198908-199207
W(TONNEAU COVER),BROWN,TRIM4#
main64740-13040-03i198708-199006
W(TONNEAU COVER & 3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#
main64740-13040-03i199006-199205
W(TONNEAU COVER & 3-POINT TYPE REAR SEAT BELT,SHADOW GRAY,TRIM1#
main64740-13040-04i199006-199205
W(TONNEAU COVER & 3-POINT TYPE REAR SEAT BELT,DARK BLUE,TRIM8#
main64740-13040-04i198911-199006
W(TONNEAU COVER & 3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#
main64740-13040-05i198708-198908
W(TONNEAU COVER & 3-POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-12070-02i198705-198908
MAROON,TRIM3#
sub64745-12070
main64745-12070-03i198705-199205
SHADOW GRAY,TRIM1#
sub64745-12070
main64745-12070-04i198705-199205
DARK BLUE,TRIM8#
sub64745-12070
main64745-12070-05i198705-198908
DARK BEIGE,TRIM4#
sub64745-12070
main64745-12070-06i198908-199008
BROWN,TRIM4#
sub64745-12070
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64745-12070-02i198705-198908
MAROON,TRIM3#
sub64745-12070
main64745-12070-03i198705-199205
SHADOW GRAY,TRIM1#
sub64745-12070
main64745-12070-04i198705-199205
DARK BLUE,TRIM8#
sub64745-12070
main64745-12070-05i198705-198908
DARK BEIGE,TRIM4#
sub64745-12070
main64745-12070-06i198908-199008
BROWN,TRIM4#
sub64745-12070
64746ACOVER, DECK TRIM SIDE LAMP HOLE
main64746-12080-02i198705-198908
MAROON,TRIM3#
sub64746-12080
main64746-12080-03i198705-198912
SHADOW GRAY,TRIM1#
sub64746-12080
main64746-12080-04i198705-198912
DARK BLUE,TRIM8#
sub64746-12080
main64746-12080-05i198705-198908
DARK BEIGE,TRIM4#
sub64746-12080
main64746-12080-06i198908-198912
BROWN,TRIM4#
sub64746-12080
64750FCLIP(FOR DECK SIDE TRIM PANEL)
main90467-06049-01i198705-199008
BLACK,TRIM1#,4#,8#,TYPE A
sub90467-06049
main90467-06049-01i198802-199009
BLACK,TRIM1#,4#,8#
sub90467-06049
main90467-06049-01i198908-199009
BLACK,TRIM1#,8#
sub90467-06049
main90467-06049-01i198908-199205
BLACK,TRIM1#,8#,TYPE A
sub90467-06049
main90467-06049-01i198705-198908
BLACK,TRIM1#,TYPE A
sub90467-06049
main90467-06049-01i198705-198908
BLACK,TRIM1#,3#,4#,TYPE A
sub90467-06049
main90467-06049-03i198802-198908
GRAY,TRIM1#
sub90467-06049
main90467-06049-03i198705-198908
GRAY,TRIM1#,TYPE A
sub90467-06049
main90467-06049-12i198705-198809
MAROON,TRIM3#,TYPE A
sub90467-06049
main90467-06049-15i198802-198809
DARK BEIGE,TRIM4#
sub90467-06049
main90467-06049-15i198705-198809
DARK BEIGE,TRIM4#,TYPE A
sub90467-06049
main90467-06049-16i198908-198909
BROWN,TRIM4#
sub90467-06049
main90467-06049-16i198908-198909
BROWN,TRIM4#,TYPE A
sub90467-06049
main90467-06049-24i198802-198809
DARK BLUE,TRIM8#
sub90467-06049
main90467-06049-24i198705-198809
DARK BLUE,TRIM8#,TYPE A
sub90467-06049
main90467-06049-25i198802-198908
LIGHT BEIGE,TRIM4#
sub90467-06049
main90467-06049-26i198908-199009
LIGHT BROWN,TRIM4#
sub90467-06049
main90467-06049-34i198802-199009
LIGHT BLUE,TRIM8#
sub90467-06049
main90467-06049-43i198802-199009
LIGHT GRAY,TRIM1#
sub90467-06049
main90467-06049-B0i198908-199009
SHADOW GRAY,TRIM1#
sub90467-06049
main90467-06049-B0i198908-199205
SHADOW GRAY,TRIM1#,TYPE A
sub90467-06049
main90467-06049-D0i198809-198908
MAROON,TRIM3#,TYPE A
sub90467-06049
main90467-06049-E0i198809-198908
DARK BEIGE,TRIM4#
sub90467-06049
main90467-06049-E0i198809-198908
DARK BEIGE,TRIM4#,TYPE A
sub90467-06049
main90467-06049-E4i198909-199009
BROWN,TRIM4#
sub90467-06049
main90467-06049-E4i198909-199008
BROWN,TRIM4#,TYPE A
sub90467-06049
main90467-06049-J1i198809-199009
DARK BLUE,TRIM8#
sub90467-06049
main90467-06049-J1i198809-199205
DARK BLUE,TRIM8#,TYPE A
sub90467-06049
main90467-07073-02i198705-198908
MAROON,TRIM3#,TYPE B
sub90467-07073
main90467-07073-03i198705-199009
SHADOW GRAY,TRIM1#,TYPE B
sub90467-07073
main90467-07073-04i198705-198811
DARK BLUE,TRIM8#,TYPE B
sub90467-07073
main90467-07073-05i198705-198908
DARK BEIGE,TRIM4#,TYPE B
sub90467-07073
main90467-07073-06i198908-199008
BROWN,TRIM4#,TYPE B
sub90467-07073
main90467-07073-B4i199009-199205
SHADOW GRAY,TRIM1#,TYPE B
sub90467-07073
main90467-07073-J1i198811-199205
DARK BLUE,TRIM8#,TYPE B
sub90467-07073
64751BBRACKET, SPEAKER SET, NO.1 RH
main64751-12010i198705-199205
main64751-12030i198802-199009
64752BBRACKET, SPEAKER SET, NO.1 LH
main64752-12010i198705-199205
main64752-12030i198802-199009
64770DCOVER ASSY, SPARE WHEEL
main64770-12110i198705-199205
main64770-16080i198802-199009
9015940118
main90159-40118
9018304020
main90183-04020
9018305016
main90183-05016
9046807014
main90468-07014
9338116008
main93381-16008
9352055012
main93520-55012
9354023010
main93540-23010
9356054014
main93560-54014
9356614512
main93566-14512

33 parts on this diagram · 3 diagrams in section

DECK BOARD & DECK TRIM COVER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
