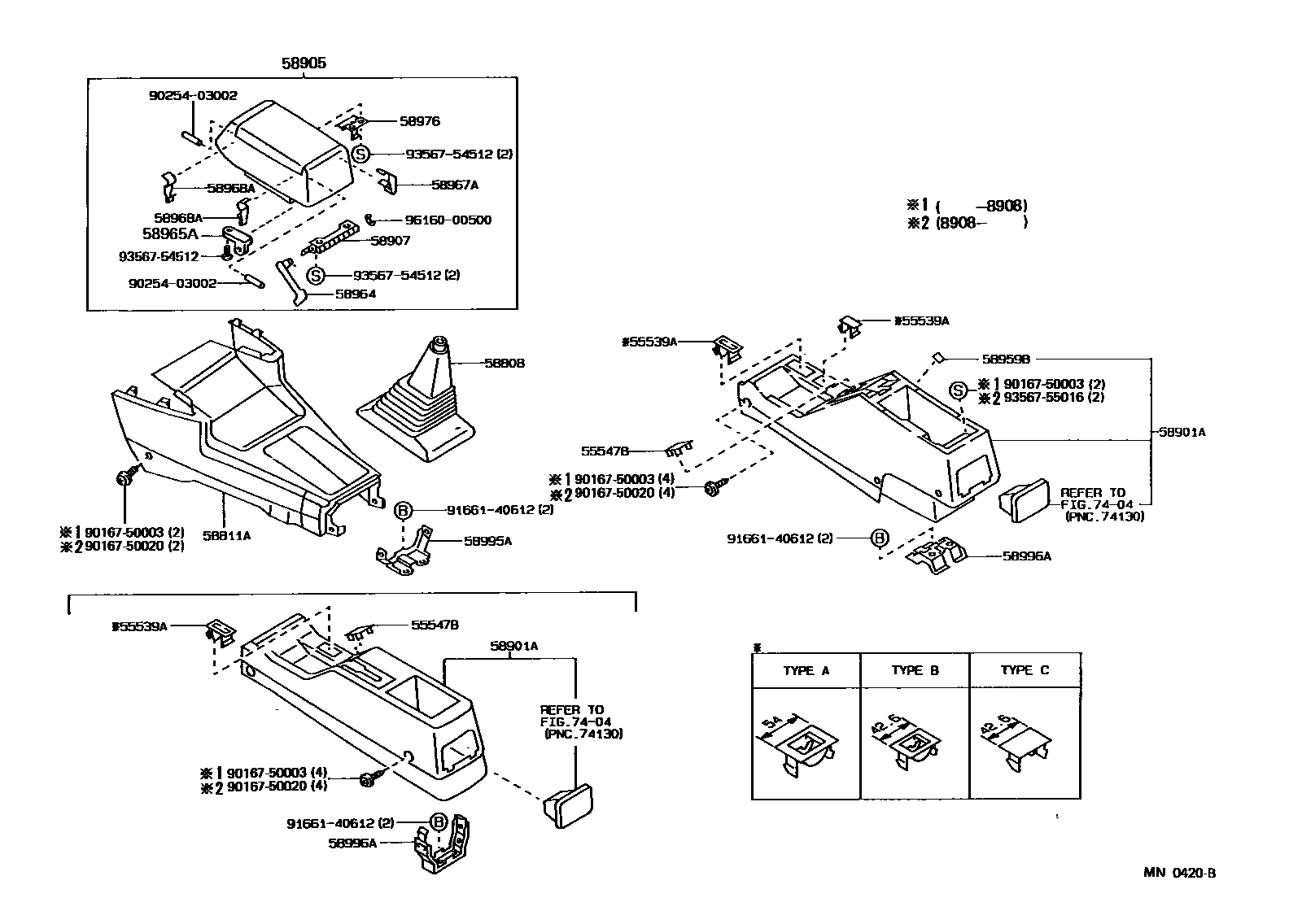

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-12070-02iAE92,EE90..RHD..SED..GL..GEN198908-199205

MAROON,TRIM3#,TYPE A

main55539-12070-03iAE92,EE90..(GL,GT,GTI,SE)..(GEN,SA)198705-199308

SHADOW GRAY,TRIM1#,TYPE A

main55539-12070-04iAE92,EE90..LHD..GL198705-198908

DARK BLUE,TRIM8#,TYPE A

main55539-12070-05iAE92,EE90..GL,SE198705-198908

DARK BEIGE,TRIM4#,TYPE A

main55539-12070-06iAE92..(GL,SE)..SA;AE92,EE90..LHD..SED..GL199008-199308

BROWN,TRIM4#,TYPE A

main55539-20020-03iAE92..SE..GCC;AE9#,CE90,EE9#..SR5,STD,XL198705-199208

SHADOW GRAY,TRIM1#

main55539-20020-05iAE9#,CE90,EE9#..SR5,STD,XL198705-198908

BEIGE,TRIM4#

main55539-20020-22iAE9#,EE90..RHD..(LB,SED)..XL198705-198807

MAROON,TRIM3#

main55539-20020-34iAE95..WG;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL198705-198807

DARK BLUE,TRIM8#

main55539-20020-D0iAE92,EE90..RHD..SED..XL..GEN198908-199008

MAROON,TRIM3#

main55539-20020-E0iAE9#,CE90,EE90..LHD..XL;AE92,EE90..(STD,XL)..SA198908-199008

BROWN,TRIM4#

main55539-20020-J0iAE95..WG;EE9#..LHD..XL;AE9#,CE90..LHD..(LB,SED)..XL198807-198908

DARK BLUE,TRIM8#

main55539-20020-P0iAE92,EE90..STD,XL199208-199308

SHADOW GRAY,TRIM1#

main55539-20030-03iAE92..SE..GCC199008-199207

GRAY,TRIM1#,TYPE C

main55539-20030-05iAE92,EE90..GL,SE198705-198908

DARK BEIGE,TRIM4#,TYPE C

main55539-20030-12iAE92..SE..GCC199008-199207

MAROON,TRIM3#,TYPE C

main55539-20030-14iAE92,EE90..GL..GEN198908-199205

DARK BLUE,TRIM8#,TYPE C

main55539-20030-36iAE92..(GL,SE)..SA;AE92,EE90..LHD..SED..GL199008-199308

BROWN,TRIM4#,TYPE C

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-20020-03iAE9#,CE90,EE9#..GL,GT,GTI,SE,STD,XL198705-199308

SHADOW GRAY,TRIM1#

main55547-20020-05iAE9#,CE90,EE9#..GL,SE,STD,XL198705-198908

DARK BEIGE,TRIM4#

main55547-20020-12iAE92..SE..GCC;AE92,EE90..RHD..SED..(GL,XL)..GEN199008-199207

MAROON,TRIM3#

main55547-20020-14iAE9#,CE90,EE9#..(GL,SE,STD,XL)..(ARL,GCC,GEN)198908-199207

DARK BLUE,TRIM8#

main55547-20020-16iAE9#,CE90,EE90..LHD..(GL,XL);AE92,EE90..(GL,SE,STD,XL)..SA198908-199008

BROWN,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12090-01iAE92..GT,GTI198705-199308

BLACK,TRIM1#

main58808-12090-02iAE92..5F..SE;AE92,EE90..RHD..SED..MTM..(GL,XL)..GEN199008-199207

MAROON,TRIM3#

main58808-12090-03iAE92,CE90,EE9#..MTM..(GL,SE,STD,XL)198705-199308

SHADOW GRAY,TRIM1#

main58808-12090-04iAE92,CE90,EE9#..MTM..(GL,SE,STD,XL)..(GCC,GEN)198908-199207

DARK BLUE,TRIM8#

main58808-12090-05iAE92,CE90,EE9#..MTM..(GL,STD,XL)198705-198908

DARK BEIGE,TRIM4#

main58808-12090-06iEE90..SA;AE92..5F..(GL,XL)..(GCC,SA);AE92,CE90..LHD..SED..5F..(GL,XL);EE90..LHD..(SED,WG)..MTM..(GL,XL)199008-199308

BROWN,TRIM4#

main58808-12100-02iAE95..RHD..SED198710-198908

MAROON,TRIM3#

main58808-12100-03iAE95..5F198710-199009

SHADOW GRAY,TRIM1#

main58808-12100-04iAE95..WG..5F;AE95..LHD..SED198710-199009

DARK BLUE,TRIM8#

main58808-12100-05iAE95..5F198710-198908

DARK BEIGE,TRIM4#

main58808-12100-06iAE95..LHD198908-199009

BROWN,TRIM4#

58811ABOX, CONSOLE, FRONT

main58811-12390-03iEE97..LHD..STD;AE92,CE90,EE90..LHD..(LB,SED)198705-198908

SHADOW GRAY,TRIM1#

main58811-12390-04iAE92,CE90,EE9#..LHD..(GL,XL)198705-198811

DARK BLUE,TRIM8#

main58811-12390-05iAE92,CE90,EE9#..LHD198705-198908

DARK BEIGE,TRIM4#

main58811-12390-06iAE92,CE90,EE90..LHD..(GL,XL)198908-198909

BROWN,TRIM4#

main58811-12390-B1iAE92,CE90,EE9#..LHD199009-199207

SHADOW GRAY,TRIM1#

main58811-12390-D0iAE92..SE..GCC199008-199207

MAROON,TRIM3#

main58811-12390-E0iAE92,CE90,EE90..LHD..(SED,WG)..(GL,XL)199008-199207

BROWN,TRIM4#

main58811-12390-J0iAE92,CE90,EE9#..LHD198908-199207

DARK BLUE,TRIM8#

main58811-12400-02iAE92,EE90..RHD..SED..(GL,XL)..GEN198908-199205

MAROON,TRIM3#

main58811-12400-03iAE92,EE9#..RHD..(GL,SE,STD,XL)198705-199308

SHADOW GRAY,TRIM1#

main58811-12400-04iAE92,EE9#..RHD..(GL,STD,XL)..GEN198908-199205

DARK BLUE,TRIM8#

main58811-12400-05iAE92,EE9#..RHD..(GL,SE,STD,XL)198705-198908

DARK BEIGE,TRIM4#

main58811-12400-06iAE92,EE90..(GL,SE,STD,XL)..SA198908-199308

BROWN,TRIM4#

main58811-12400-13iAE92..GT,GTI198705-199308

SHADOW GRAY,TRIM1#

main58811-12430-02iAE95..RHD..SED198710-198908

MAROON,TRIM3#

main58811-12430-03iAE95..RHD198710-199009

SHADOW GRAY,TRIM1#

main58811-12430-04iAE95..RHD..WG198802-199009

DARK BLUE,TRIM8#

main58811-12430-05iAE95..RHD198710-198908

DARK BEIGE,TRIM4#

main58811-12440-03iAE95..LHD198710-199009

SHADOW GRAY,TRIM1#

main58811-12440-04iAE95..LHD198710-199009

DARK BLUE,TRIM8#

main58811-12440-05iAE95..LHD198710-198908

DARK BEIGE,TRIM4#

main58811-12440-06iAE95..LHD198908-199009

BROWN,TRIM4#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12140-02iAE92,EE90..RHD..(LB,SED)..XL..GEN198705-198811

MAROON,TRIM3#

main58901-12140-03iAE92..SE..GCC;AE92,CE90,EE9#..STD,XL198705-199009

SHADOW GRAY,TRIM1#

main58901-12140-04iAE92,CE90,EE9#..LHD..XL198705-198811

DARK BLUE,TRIM8#

main58901-12140-05iAE92,CE90,EE9#..STD,XL198705-198908

DARK BEIGE,TRIM4#

main58901-12140-06iAE92,CE90,EE90..LHD..XL;AE92,EE90..(STD,XL)..SA198908-198909

BROWN,TRIM4#

main58901-12140-B1iAE92..SE..GCC;AE92,CE90,EE9#..STD,XL199009-199308

SHADOW GRAY,TRIM1#

main58901-12140-D0iAE92,EE90..RHD..(LB,SED)..XL..GEN198811-198908

MAROON,TRIM3#

main58901-12140-E0iEE90..SA;AE92..XL..(GCC,SA);AE92,CE90..LHD..XL..GEN;EE90..LHD..(SED,WG)..XL199008-199308

BROWN,TRIM4#

main58901-12140-J0iAE92,CE90,EE9#..LHD..XL198811-198908

DARK BLUE,TRIM8#

main58901-12150-02iAE92,EE90..RHD..GL..GEN198705-198908

MAROON,TRIM3#

main58901-12150-03iAE92..SE..GCC199008-199009

SHADOW GRAY,TRIM1#

main58901-12150-04iAE92,EE90..GL..GEN198908-198910

DARK BLUE,TRIM8#

main58901-12150-05iAE92,EE90..GL,SE198705-198908

DARK BEIGE,TRIM4#

main58901-12150-06iAE92..(GL,SE)..SA;AE92,EE90..LHD..GL198908-198910

BROWN,TRIM4#

main58901-12150-B1iAE92..SE..GCC199009-199207

SE SALOON OR SE LIMITED,SHADOW GRAY,SHADOW GRAY,TRIM1#

main58901-12150-D0iAE92..SE..GCC199008-199207

SE SALOON OR SE LIMITED,MAROON,MAROON,TRIM3#

main58901-12150-E0iAE92,EE90..LHD..GL198910-199008

BROWN,TRIM4#

main58901-12150-J0iAE92,EE90..GL..GEN198910-199205

DARK BLUE,TRIM8#

main58901-12170-02iAE95..RHD..SED198710-198908

MAROON,TRIM3#

main58901-12170-03iAE95..XL198710-199009

SHADOW GRAY,TRIM1#

main58901-12170-04iAE95..WG..XL;AE95..LHD..SED198710-199009

DARK BLUE,TRIM8#

main58901-12170-05iAE95..XL198710-198908

DARK BEIGE,TRIM4#

main58901-12170-06iAE95..LHD198908-199009

BROWN,TRIM4#

main58901-12180-03iAE95..SR5198802-199009

SHADOW GRAY,TRIM1#

main58901-12180-04iAE95..SR5198802-199009

DARK BLUE,TRIM8#

main58901-12180-05iAE95..SR5198802-198908

DARK BEIGE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12070-03iAE92..GL..SA198808-199308

SHADOW GRAY,TRIM1#

main58905-12070-05iAE92..GL..SA198808-198908

DARK BEIGE,TRIM4#

main58905-12070-06iAE92..GL..SA198908-199308

BROWN,TRIM4#

main58905-12080-02iAE92,EE90..RHD..SED..GL..GEN198908-199205

MAROON,TRIM3#

main58905-12080-03iAE92..(GT,SE)..SA;AE9#,EE90..RHD..(GL,GT,GTI,SR5)..(ARL,GEN)198705-199308

SHADOW GRAY,TRIM1#

main58905-12080-04iAE95..SR5198802-198908

DARK BLUE,TRIM8#

main58905-12080-05iAE92..SE;AE9#,EE90..RHD..(GL,SR5)..(ARL,GEN)198705-198908

DARK BEIGE,TRIM4#

main58905-12080-06iAE92..SE..SA198908-199308

BROWN,TRIM4#

main58905-12090-03iAE92..SE..GCC199008-199009

SHADOW GRAY,TRIM1#

main58905-12090-04iAE92,EE90..LHD..GL198705-199205

DARK BLUE,TRIM8#

main58905-12090-05iAE92,EE90..LHD..GL198705-198908

DARK BEIGE,TRIM4#

main58905-12090-06iAE92,EE90..LHD..GL198908-199008

BROWN,TRIM4#

main58905-12090-B1iAE92..SE..GCC199009-199207

SHADOW GRAY,TRIM1#

main58905-12090-D0iAE92..SE..GCC199008-199207

MAROON,TRIM3#

main58905-12090-J0iAE92..SE..GCC199008-199207

DARK BLUE,TRIM8#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12020iAE92..(GT,SE)..SA;AE9#,EE90..(GL,GT,GTI,SR5)..(ARL,GEN)198705-199308

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010×2iAE92..SE..GCC199008-199207

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20020iAE92..SE..GCC199008-199207

main58964-30030iAE9#,EE90..GL,GTI,SR5198705-198805

main58964-30060iAE9#,EE90..GL,GTI,SR5198805-198806

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iAE92..GL..SA198808-199308

58967ASPRING, CONSOLE DOOR STOPPER

main58967-12010iAE95..SR5198802-198908

58968ABRACKET, CONSOLE DOOR STOPPER

main58968-12010×2iAE95..SR5198802-198908

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iAE92..SE..GCC199008-199207

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12060iAE92,CE90,EE9#198705-199308

main58995-12070iAE95..LHD198905-198908

main58995-12071iAE95..RHD198905-198908

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12030iAE92..SE..GCC;AE92,CE90,EE9#..STD,XL198705-199308

main58996-12050iAE92,EE90..(GL,GT,GTI,SE)..(GEN,SA)198705-199308

main58996-12060iAE95..XL198710-199009

main58996-12070iAE95..SR5198802-199009

7404ASH RECEPTACLE

→ Go to FIG 74-04

9016750003

main90167-50003

9016750020

main90167-50020

9025403002

main90254-03002

9166140612

main91661-40612

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

23 parts on this diagram · 1 diagram in section
