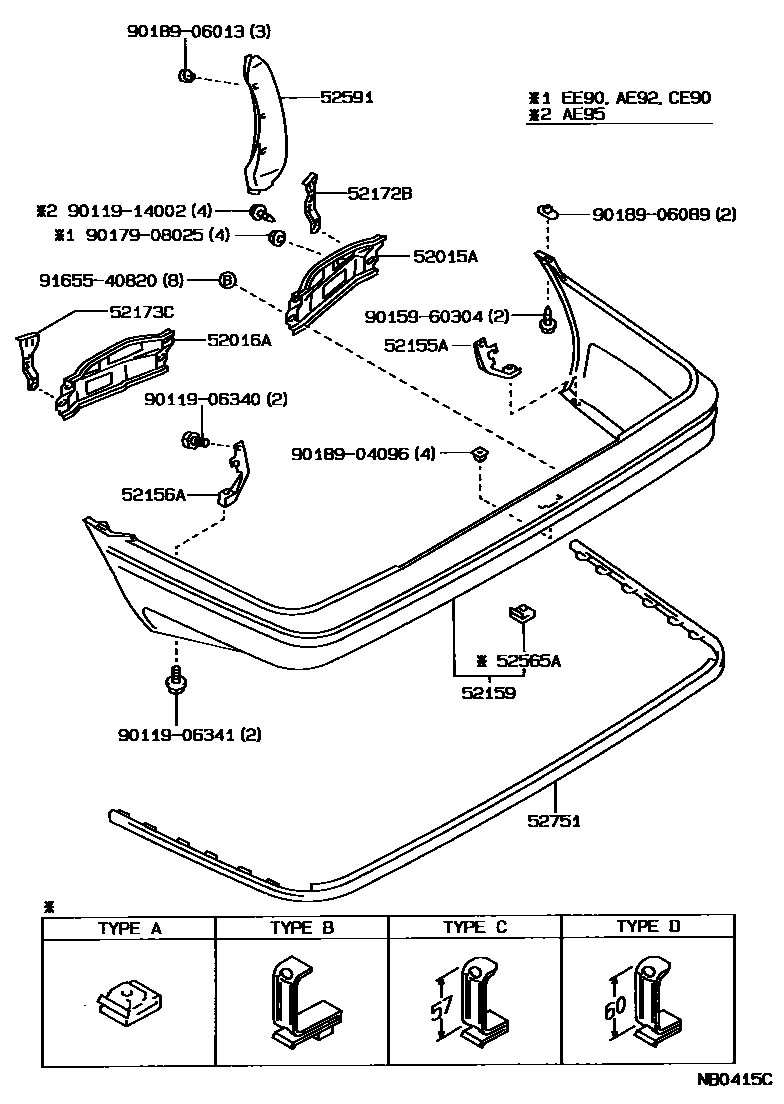

REAR BUMPER & BUMPER STAY

0001 1FOR FRONT BUMPER TYPE F 0003 1 0004 1 0005 1FOR FRONT BUMPER TYPE E

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-12210iAE95..WG198802-199009

main52015-12230iAE95198710-198802

main52015-12231iAE95..SED198802-198908

main52015-13070iEE97198708-199108

main52015-13080iAE92,EE90..WG198708-199207

main52181-12280iAE92..GT..SA;AE92,CE90,EE90..SED..(GL,SE,STD,XL)198705-199008

main52181-12300iAE92,EE90..LB198705-199205

main52181-12370iAE92,EE90..RHD..SED..(GL,XL)..GEN; EE90..RHD..STD..GEN198908-199205

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-12210iAE95..WG198802-199009

main52016-12220iAE95198710-198802

main52016-12221iAE95..SED198802-198908

main52016-13060iEE97198708-199108

main52016-13070iAE92,EE90..WG198708-199207

main52182-12230iAE92..GT..SA;AE92,CE90,EE90..SED..(GL,SE,STD,XL)198705-199008

main52182-12250iAE92,EE90..LB198705-199205

main52182-12290iAE92,EE90..RHD..SED..(GL,XL)..GEN; EE90..RHD..STD..GEN198908-199205

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12150iAE9#,CE90,EE90..LB,SED198705-199308

main52155-13030iAE92,EE9#..WG198708-199207

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-12140iAE92,CE90,EE90..LB,SED198705-199308

main52156-12170iAE95..SED198710-198908

main52156-13030iAE92,EE9#..WG198708-199207

52159COVER, REAR BUMPER

main52159-12710iEE90..4F..STD..GCC;AE9#,CE90,EE90..SED..(STD,XL)..(GEN,SA)198705-199308

TYPE F

main52159-12770iAE92,EE90..LB198705-199205

main52159-12830iAE92,EE90..SED..GL..GEN199008-199205

TYPE F,W(BUMPER MOULDING)

main52159-13020iAE92,EE9#..WG198708-199207

main52159-1A060iAE95..WG198802-199009

main52159-1A210iAE92,EE90..RHD..SED..(GL,XL)..GEN; EE90..RHD..STD..GEN198908-199205

TYPE E

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-12140iAE92,EE90..LB198705-199205

52173CREINFORCEMENT, REAR BUMPER, NO.3

main52173-12130iAE92,EE90..LB198705-199205

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040×8iAE9#,CE90,EE90..SED..XL..GEN; AE9#,EE9#..WG; AE92,EE90..LB; EE90..SED..XL..GCC;AE92,EE90..SED..(GL,SE)..(GCC,GEN); EE90..STD..GCC;AE92..(GL,XL)..SA;EE90..SED..(STD,XL)..(GEN,SA);AE9#,CE90..SED..(STD,XL)..GEN198805-198910

TYPE A

main52565-12100×2iAE92,CE90,EE90..SED..(GL,XL)..GEN199008-199205

TYPE B

main52565-12110iAE92,CE90,EE90..SED198705-198805

TYPE C

main52565-12160iAE92,CE90,EE90..SED..(GL,XL)..GEN199008-199205

TYPE D

main52565-16020×8iAE95;EE90..SED..GCC;AE92..(GT,SE)..(GCC,GEN)199008-199207

TYPE A

52591SEAL, REAR BUMPER SIDE, RH

main52591-12050iAE9#,CE90,EE90..LB,SED198705-198905

main52591-12051iAE9#,CE90,EE90..LB,SED198905-199308

52751MOULDING, REAR BUMPER

main52751-12080iEE90..SED..GCC;AE92..(GT,SE)..(GCC,GEN)199008-199207

W/O(PAINTED BUMPER)

main52751-12120iAE9#,CE90,EE90..SED..(GL,XL)..(GCC,GEN)198705-198908

main52751-12150iAE92,EE90..LB198705-199205

main52751-12190iAE92,EE90..SED..(SE,XL)..GCC;AE92,EE90..RHD..SED..(GL,GT,XL)..GEN199008-199207

W(PAINTED BUMPER)

9011906340

main90119-06340

9011906341

main90119-06341

9011914002

main90119-14002

9015960304

main90159-60304

9017908025

main90179-08025

9018904096

main90189-04096

9018906013

main90189-06013

9018906089

main90189-06089

9165540820

main91655-40820

19 parts on this diagram · 4 diagrams in section
