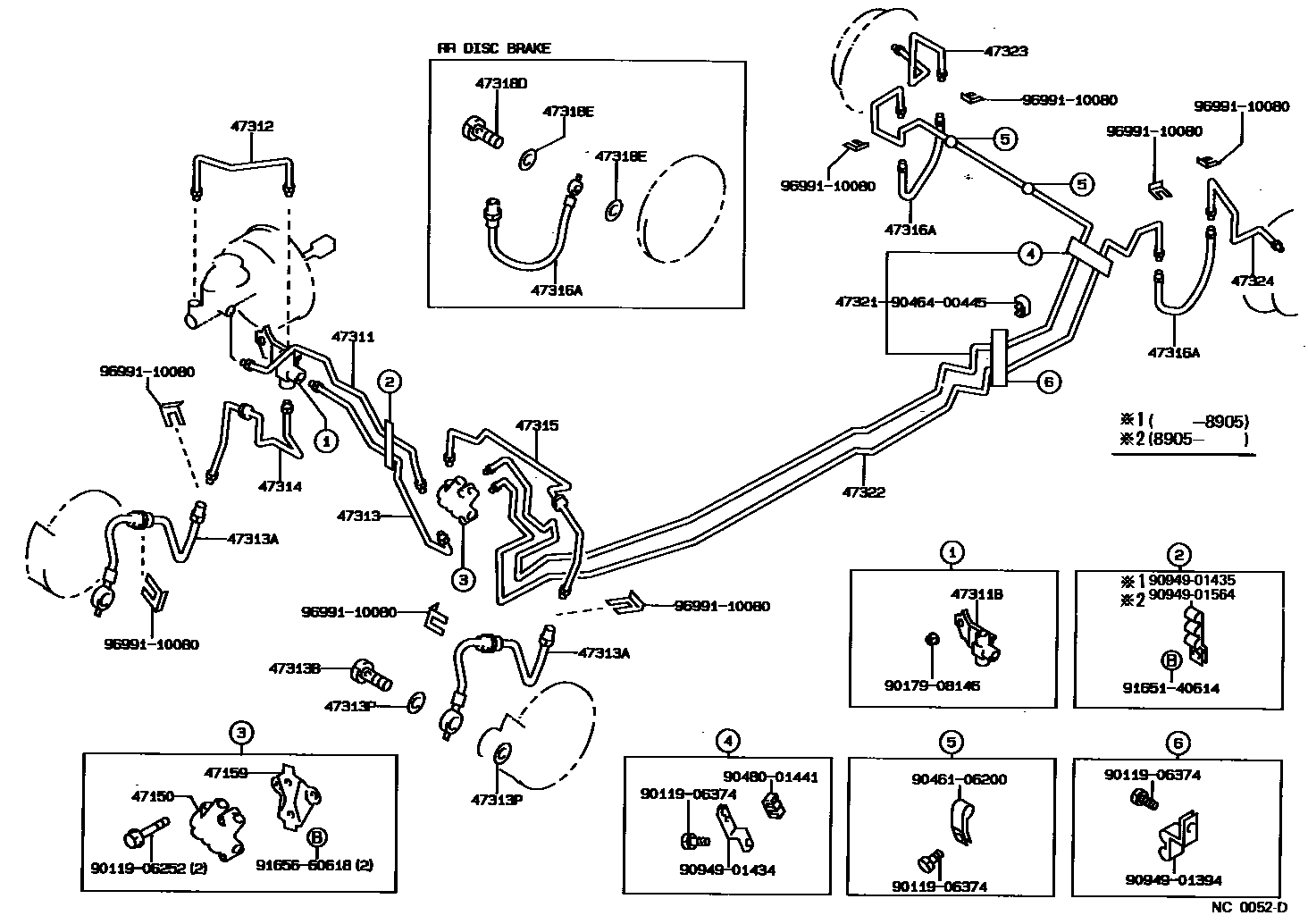

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47150VALVE ASSY, PROPORTIONING

main47150-12060iEE90..WG..GCC;AE92,CE90,EE9#..(GL,STD,XL)..GEN198705-199207

sub47150-12270

main47150-12070iAE92..(GT,GTI)..GEN198705-199205

main47150-12110iAE95198908-199009

sub47150-12250

main47150-16040iAE95198710-198908

sub47150-12260

main47150-16070iCE90198908-199205

sub47150-10090

main47150-20140iAE92,EE90..SA198708-199308

47159BRACKET, PROPORTIONING VALVE

main47159-12050iAE9#,EE9#..RHD198705-199308

47311TUBE, FRONT BRAKE, NO.1

main47311-12380iAE9#,EE9#..RHD..(GL,GTI,SE,SR5,STD,XL)198705-198905

main47311-12390iAE9#,CE90,EE9#..LHD198705-199207

main47311-12430iAE9#,EE9#..RHD198905-199308

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10159iAE95..LHD198908-199009

main90413-10164iEE9#..RHD..WG198708-199308

main90413-10193iAE92..GTI198705-198711

main90413-10219iAE9#,CE90,EE9#..LHD198705-199207

main90413-10221iAE92..GT;AE95..RHD198711-199308

47312TUBE, FRONT BRAKE, NO.2

main47312-12150iAE92..GTI198705-198711

main47312-12260iAE9#,CE90,EE9#..LHD198708-199207

main47312-12270iAE92,EE90..SA198705-199308

47313TUBE, FRONT BRAKE, NO.3

main47313-12180iAE9#,EE9#..RHD..(GL,GTI,SE,SR5,STD,XL)198705-198905

main47313-12190iAE9#,CE90,EE9#..LHD198705-199207

main47313-12240iAE9#,EE9#..RHD198905-199308

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02532iAE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL198705-199308

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iAE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL198705-199308

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iAE9#,CE90,EE9#..GL,GTI,SE,SR5,STD,XL198705-199308

47314TUBE, FRONT BRAKE, NO.4

main47314-12260iAE9#,EE9#..RHD..(GL,GTI,SE,SR5,STD,XL)198705-199308

main47314-12270iAE9#,CE90,EE9#..LHD198705-199207

47315TUBE, FRONT BRAKE, NO.5

main47315-12400iAE9#,EE9#..RHD198705-199308

main47315-12410iAE9#,CE90,EE9#..LHD198705-198908

main47315-12440iAE9#,CE90,EE9#..LHD198908-199207

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02533iAE92..GT..SA;AE92,CE90,EE90..GL,SE,STD,XL198705-199308

main90947-02539iEE97198708-199108

main90947-02541iAE92..GT..GEN198908-199308

main90947-02558iAE95198710-199009

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iAE92..GT..GEN198908-199308

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iAE92..GT..GEN198908-199308

47321TUBE, REAR BRAKE, NO.1

main47321-12030iAE92,EE90..RHD..(GL,STD,XL)198705-199308

main47321-12050iAE92,CE90,EE90..LHD198705-199207

main47321-12060iAE95..RHD198710-199009

main47321-12070iAE95..LHD198710-199009

main47321-13010iEE97..RHD198708-199108

main47321-13020iEE97..LHD198708-199108

47322TUBE, REAR BRAKE, NO.2

main47322-12180iAE92,EE90..RHD198705-199308

main47322-12200iAE92,CE90,EE90..LHD198705-199207

main47322-12210iAE95..RHD198710-199009

main47322-12240iAE95..LHD198710-199009

main47322-13050iEE97..RHD198708-199108

main47322-13060iEE97..LHD198708-199108

47323TUBE, REAR BRAKE, NO.3

main47323-12210iAE92,CE90,EE90..LHD198705-199308

main47323-12220iAE95198710-199009

main47323-13020iEE97198708-199108

47324TUBE, REAR BRAKE, NO.4

main47324-12170iAE92,CE90,EE90..LHD198705-199308

main47324-12180iAE95198710-199009

main47324-13060iEE97198708-199108

9011906252

main90119-06252

9011906374

main90119-06374

9017908146

main90179-08146

9046106200

main90461-06200

9046400445

main90464-00445

9048001441

main90480-01441

9094901394

main90949-01394

9094901434

main90949-01434

9094901435

main90949-01435

9094901564

main90949-01564

9165140614

main91651-40614

9165660618

main91656-60618

9699110080

main96991-10080

31 parts on this diagram · 6 diagrams in section
