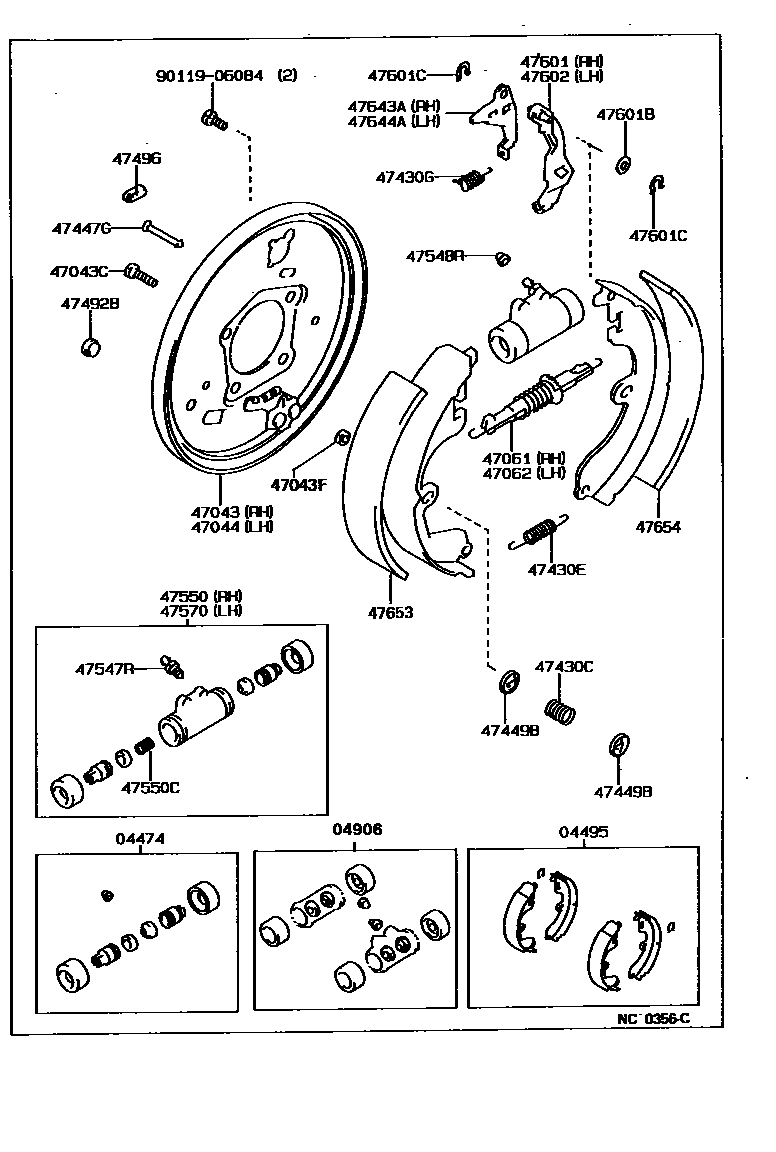

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-10032×2iAE95198710-199009

main04474-16020×2iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198705-199205

04495SHOE KIT, REAR BRAKE

main04495-12100iAE92,CE90,EE9#..(GL,STD,XL)..(GCC,GEN)198705-198809

main04495-12101iAE92,EE90..GCC199205-199207

main04495-12130iAE95198710-198809

main04495-12131iAE95198809-198908

main04495-12181iAE95198908-199009

MARK AK LA509

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iAE95198710-199009

main04906-16020iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198705-199205

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12070iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198705-199205

main47043-16030iAE95198710-199009

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22020×8iAE95,EE97198708-199205

*10-1.25PX26-10

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10095×8iAE95198710-199009

main94181-11000×8iEE97198708-199205

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12070iAE92,EE90..GCC199205-199207

main47044-16030iAE95198710-199009

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-12020iAE95198710-199009

main47061-32010iAE92,EE90..GCC199205-199207

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-12020iAE95198710-199009

main47062-32010iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198705-199205

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-10010×4iAE95198710-198908

main90501-18017×2iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198908-199205

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18034iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198908-199205

main90506-18299iAE95198908-199009

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12036iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198908-199205

main90506-12276×2iAE95198710-198908

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-10010×4iAE95198710-198908

main47447-30010×4iAE92,CE90,EE9#..(GL,STD,XL)..(GCC,GEN)198705-198908

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030×8iAE92,CE90,EE9#..(GL,STD,XL)..(GCC,GEN)198705-198908

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010×2iAE9#,CE90,EE9#..(GL,SR5,STD,XL)..(ARL,GCC,GEN)198705-198908

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iAE9#,CE90,EE9#..(GL,SR5,STD,XL)..(ARL,GCC,GEN)198705-198908

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iAE9#,CE90,EE9#..(GL,SR5,STD,XL)..(ARL,GCC,GEN)198705-198908

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iAE9#,CE90,EE9#..(GL,SE,SR5,STD,XL)..(ARL,GCC,GEN)198705-199205

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-10042iAE95198710-199009

main47550-16030iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198908-199006

main47550-20120iAE92,EE90..GCC199205-199207

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006iAE92,EE90..GCC199205-199207

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-10042iAE95198710-199009

main47570-16010iAE92,CE90,EE9#..(GL,STD,XL)..(GCC,GEN)198705-198908

main47570-20030iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)199006-199205

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32010iAE92,EE90..GCC199205-199207

main47611-12050iAE95198710-199009

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198705-199205

T=0.3

main90564-08151iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198705-199205

T=0.6

main90564-08152iAE92,EE90..GCC199205-199207

T=0.9

main90564-08172iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198705-199205

T=0.2

main90564-08173iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198705-199205

T=0.4

main90564-08174iAE92,EE90..GCC199205-199207

T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×2iAE95198710-198908

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32010iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198705-199205

main47612-12050iAE95198710-199009

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-12030iAE95198710-199009

main47643-32010iAE92,EE90..GCC199205-199207

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-12030iAE95198710-199009

main47644-32010iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198705-199205

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-12020×2iAE95198710-198908

main47651-16030×2iAE92,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198705-199205

main47651-20170×2iAE95198908-199009

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-12020×2iAE95198710-198908

main47651-16030×2iAE92,EE90..GCC199205-199207

main47651-20170×2iAE95198908-199009

9011906084

main90119-06084

30 parts on this diagram · 2 diagrams in section
