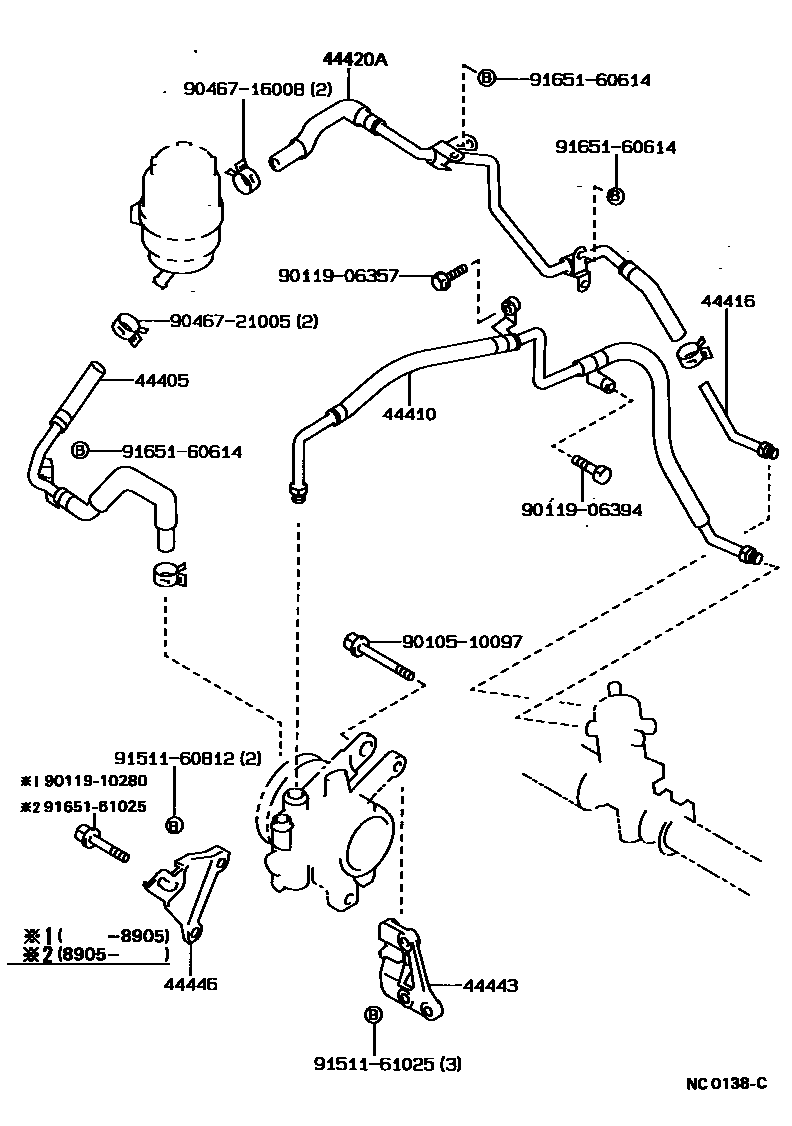

POWER STEERING TUBE

0001 1 0002 1 0003 1 0005 1 0007 1 0009 1 0010 1 0011 1 0012 1

44405TUBE SUB-ASSY, OIL RESERVOIR TO PUMP, NO.1

main44405-12010iAE92..GT,GTI198705-199308

main44405-12020iCE90198705-199205

main44405-12031iEE90..GCC;EE90..LHD..LB;EE90..LHD..GL;EE90..RHD..GEN;EE90..LHD..(3FC,4F)..GEN199110-199207

44410TUBE ASSY, PRESSURE FEED

main44410-12220iAE9#..RHD..(GL,SE,SR5,XL)198705-199308

main44410-12230iAE92..LHD..SED..5F..GL199110-199205

PHILIPPINES SPEC

main44410-12250iAE92..3FC..GL;AE92..LHD..LB..5F;AE92..LHD..(STD,XL)..GEN; AE92..LHD..SED..5F..GL199110-199205

main44410-12260iAE92..GT,GTI198705-198905

main44410-12261iAE92..GT,GTI198905-199005

main44410-12262iAE92..GT199005-199308

main44410-12270iCE90198705-199205

main44410-12280iEE9#..GCC,GEN198705-199110

main44410-12300iAE92..GCC;AE95..LHD198908-199207

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-12170iEE97;AE95..ARL;AE92..GT,GTI;EE90..RHD..GEN198705-198908

44420ATUBE ASSY, RETURN

main44420-12010iEE9#..RHD..GEN198908-199205

main44420-12020iEE90..GCC198708-199207

main44420-12030iCE90;EE90..LHD..LB;EE90..LHD..GL;EE90..LHD..(3FC,4F)..GEN; EE90..LHD..SED..5F..XL..GEN199110-199205

main44420-12070iAE92..GT,GTI198905-199308

44443BRACKET, PUMP

main44443-12050iAE92..3FC..GL;AE92..LHD..LB..5F;AE92..RHD..(GL,SE,XL);AE92..LHD..(SE,STD,XL)199110-199308

main44443-12060iAE92..GT,GTI198705-199308

main44443-12070iEE90..LHD..SED..5F..XL..GEN199110-199205

44446STRUT, ADJUSTING

main44446-12040iAE9#..GL,SE,SR5,STD,XL198705-199110

main44446-12050iEE90..GCC;EE90..LHD..LB;EE90..LHD..GL;EE90..RHD..GEN;EE90..LHD..(3FC,4F)..GEN199110-199207

9010510097

main90105-10097

9011906357

main90119-06357

9011906394

main90119-06394

9011910280

main90119-10280

9046716008

main90467-16008

9046721005

main90467-21005

9151160812

main91511-60812

9151161025

main91511-61025

9165160614

main91651-60614

9165161025

main91651-61025

16 parts on this diagram · 9 diagrams in section
