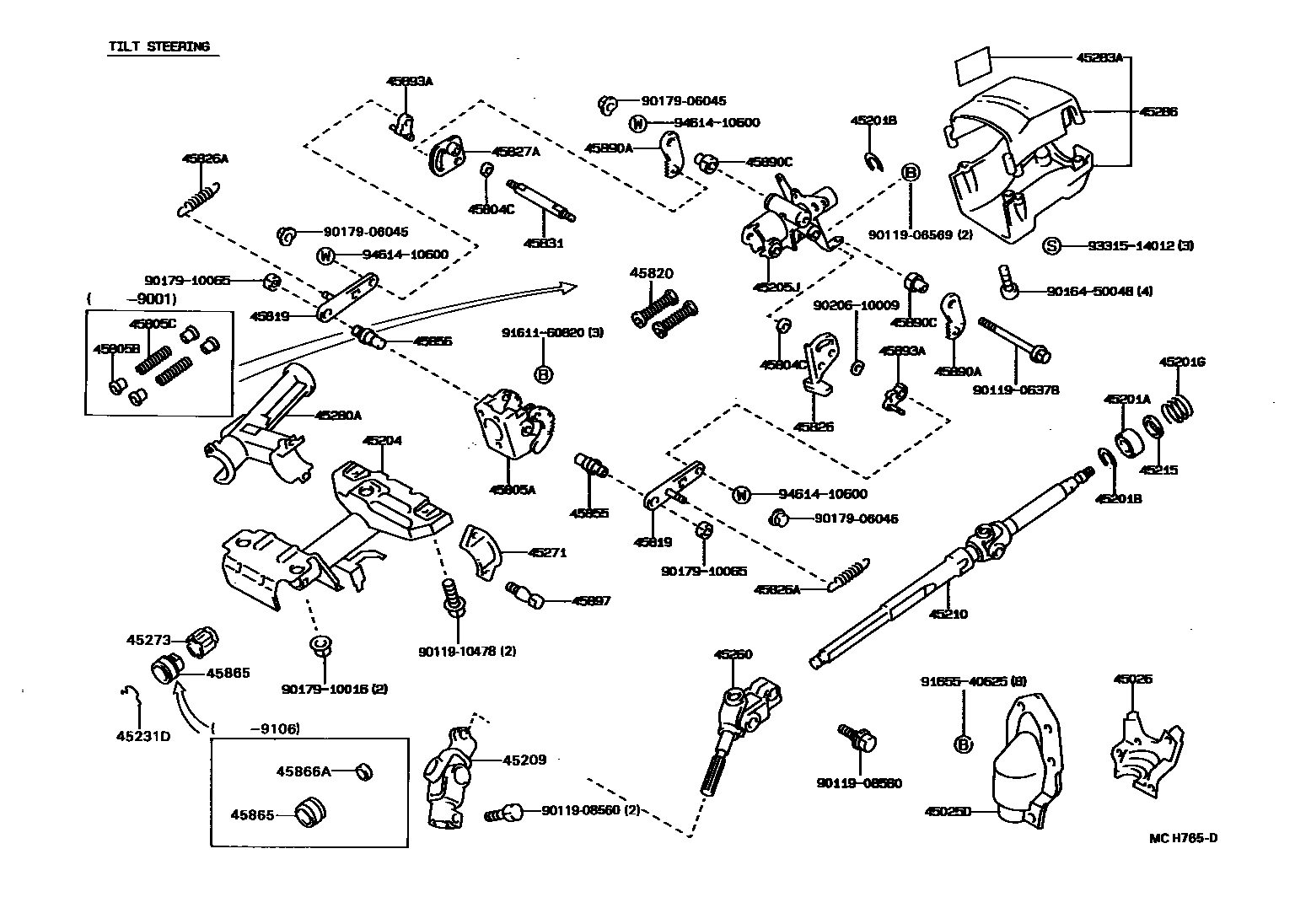

STEERING COLUMN & SHAFT

0001 1 0003 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12170iAE9#,EE9#..RHD198705-199308

main45025-12180iAE9#,EE97..RHD;EE90..RHD..GEN198705-199308

W(POWER STEERING)

main45025-12190iAE9#,CE90,EE9#..LHD198705-199207

main45025-12200iAE92,CE90,EE9#..LHD199106-199207

W(POWER STEERING)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-12010iAE9#,EE9#..RHD198705-199308

main45026-12020iAE9#,EE97..RHD;EE90..RHD..GEN198705-199308

W(POWER STEERING)

main45026-12030iAE9#,CE90,EE9#..LHD198705-199207

main45026-12040iAE92,CE90,EE9#..LHD199106-199207

W(POWER STEERING)

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18004iAE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN)198705-198809

main90363-18005iAE92,CE90,EE9#199106-199308

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iAE92,EE90..GL,STD,XL; AE92..GT,SE199304-199308

T=1.20; T=1.20,T=1.20,LWR

main90520-17196×2iAE92,EE9#..RHD..(GL,STD,XL)199009-199106

T=1.35-1.45

main90520-17269iAE92,EE90..GL,STD,XL199304-199308

T=1.20,T=1.20,UPR

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-12090iAE9#,CE90,EE9#..LHD198905-198908

main45204-12091iAE92..GT,SE;AE9#,EE9#..RHD..(GL,GTI,SR5,XL)..(ARL,GEN)198905-198908

main45204-12092iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-12250iAE92..GT,SE;AE9#,EE9#..RHD..(GL,GTI,SR5,XL)..(ARL,GEN)198705-198809

main45205-12251iAE92..(GT,SE)..SA;AE9#,EE9#..RHD..(GL,GT,GTI,SR5,XL)..(ARL,GEN)198809-199101

main45205-12260iAE9#,CE90,EE9#..LHD198705-198809

main45205-12261iAE92,CE90,EE9#..LHD199106-199207

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12050iAE95..SR5;EE90..RHD..GEN;AE9#,EE97..RHD..(GEN,SA); AE95..XL..ARL;AE9#,CE90,EE9#..LHD198908-199009

W(POWER STEERING); W(TILT STEERING & POWER STEERING)

main45209-32010iAE92,CE90,EE9#199106-199308

45210SHAFT ASSY, STEERING MAIN

main45210-12300iAE9#,EE9#..RHD..(GL,STD,XL)..(GEN,SA)198705-199308

main45210-12310iAE95..XL..ARL198802-199009

main45210-12320iEE90..RHD..GEN;AE9#,EE97..RHD..(GL,STD,XL)..(GEN,SA)198705-199308

W(POWER STEERING)

main45210-12340iAE92,CE90,EE9#..LHD199106-199207

main45210-12390iAE92..LHD..SED..5F..GL;EE90..LHD..SED..5F..XL..GEN199110-199205

PHILIPPINES SPEC & W(POWER STEERING)

main45210-12400iAE92,EE90..LHD..STD; EE97..LHD..STD;AE9#,CE90,EE9#..(GL,XL)..(ARL,GCC,GEN)198705-198908

W(TILT STEERING & POWER STEERING); W(TILT STEERING)

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iAE92..(GT,SE)..SA199101-199106

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-01005iAE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD198705-198802

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12150iAE92,EE9#..RHD..(GL,XL)..GEN199106-199205

W(TILT STEERING)

main45260-12160iAE95..SR5; AE95..XL..ARL198802-199009

W(TILT STEERING)

main45260-12170iAE9#,EE9#..RHD..(GL,XL)..GEN; AE92..RHD..(GT,GTI,SE)198705-199009

W(POWER STEERING); W(TILT STEERING & POWER STEERING)

main45260-12180iAE95..SR5; AE95..XL..ARL198802-199009

W(POWER STEERING); W(TILT STEERING & POWER STEERING)

main45260-12190iAE92,CE90,EE9#..LHD..(GL,SE,XL)199106-199207

W(TILT STEERING)

main45260-12210iAE92,CE90,EE9#..LHD..(GL,SE,XL); AE92,EE9#..LHD..STD199106-199207

W(TILT STEERING & POWER STEERING)

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iAE92..SE..GCC;AE9#,CE90,EE9#..GL,STD,XL198705-199009

main45271-12060iAE92,CE90,EE9#..(GL,SE,XL)..(GCC,GEN); AE92,EE9#..LHD..STD199106-199207

W(TILT STEERING & POWER STEERING); W(TILT STEERING)

main45271-12070iAE92..(GL,XL)..SA199108-199308

W(POWER STEERING)

main45271-12080iAE92..GT..GEN199106-199108

W(POWER STEERING)

45273BUSH, STEERING MAIN SHAFT

main45273-16010iAE92..LHD..SED..5F..GL;EE90..LHD..SED..5F..XL..GEN199110-199205

PHILIPPINES SPEC & W(POWER STEERING)

main45273-22020iAE9#,CE90,EE9#..(GL,SE,XL)..(ARL,GCC,GEN); AE92,EE9#..LHD..STD199006-199009

W(TILT STEERING & POWER STEERING); W(TILT STEERING)

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12100iAE92,CE90,EE9#..LHD..GEN;AE92,EE90..(3FC,4F,5F)..(GL,SE,STD,XL)..(GCC,SA)199106-199108

main45280-12110iAE92..LHD..SED..5F..GL;EE90..LHD..SED..5F..XL..GEN199110-199205

PHILIPPINES SPEC & W(POWER STEERING)

main45280-12120iAE9#,CE90,EE9#..(GL,SE,XL)..(ARL,GCC,GEN); AE92,EE9#..LHD..STD198908-199009

W(TILT STEERING & POWER STEERING); W(TILT STEERING)

main45280-12130iAE92..GT..GEN199106-199108

W(POWER STEERING)

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iAE92..GT..SA;AE92,EE9#..RHD..(GL,SE,STD,XL)199101-199106

45286COVER, STEERING COLUMN

main45286-12940-02iAE92,EE90..RHD..SED..(GL,XL)..GEN198908-199205

MAROON,TRIM3#

main45286-12940-03iAE9#,EE9#..RHD..(GL,STD,XL)198705-199308

SHADOW GRAY,TRIM1#

main45286-12940-04iAE95..RHD..WG..XL198802-198908

DARK BLUE,TRIM8#

main45286-12940-05iAE9#,EE9#..RHD..(GL,STD,XL)198705-198908

BEIGE,TRIM4#

main45286-12940-06iAE92,EE90..(GL,STD,XL)..SA198908-199308

BROWN,TRIM4#

main45286-12941-02iAE92..SE..GCC199008-199207

MAROON,TRIM3#

main45286-12941-03iAE9#,CE90,EE9#..LHD198705-199207

SHADOW GRAY,TRIM1#

main45286-12941-04iAE9#,CE90,EE9#..LHD..(GL,XL)198705-198908

DARK BLUE,TRIM8#

main45286-12941-05iAE95..LHD..SED;AE92,CE90,EE9#..LHD198705-198808

BEIGE,TRIM4#

main45286-12941-06iAE9#,CE90,EE90..LHD..(GL,XL)198908-199008

BROWN,TRIM4#

main45286-12942-01iAE92..GT,GTI198705-199308

BLACK,TRIM1#

main45286-12942-02iAE92,EE90..RHD..SED..(GL,XL)..GEN198908-199205

W(TILT STEERING),MAROON,TRIM3#

main45286-12942-03iAE9#..RHD..(SE,SR5)198802-199308

SHADOW GRAY,TRIM1#

main45286-12942-04iAE9#,EE9#..RHD..(GL,XL)..(ARL,GEN)198908-199205

W(TILT STEERING),DARK BLUE,TRIM8#

main45286-12942-05iAE9#,EE9#..RHD..XL;AE92,EE90..RHD..LB..GL198705-198808

W(TILT STEERING),BEIGE,TRIM4#

main45286-12942-06iAE92..SE..SA198908-199308

BROWN,TRIM4#

main45286-12943-02iAE92..SE..GCC199008-199207

W(TILT STEERING),MAROON,TRIM3#

main45286-12943-03iAE95,CE90,EE97..LHD;AE92,EE90..LHD..(GL,XL)198705-198809

W(TILT STEERING),SHADOW GRAY,TRIM1#

main45286-12943-04iAE9#,CE90,EE9#..LHD..(GL,XL)198710-198908

W(TILT STEERING),DARK BLUE,TRIM8#

main45286-12943-05iAE9#,CE90,EE9#..LHD198705-198908

W(TILT STEERING),BEIGE,TRIM4#

main45286-12943-06iAE9#,CE90,EE90..LHD..(GL,XL)198908-199008

W(TILT STEERING),BROWN,TRIM4#

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-10283×2iEE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN)198705-199009

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-12010iEE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN)198705-199009

45805BBUSH(FOR TILT STEERING SUPPORT)

main90386-06031×4iEE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN198908-199001

45805CSPRING, COMPRESSION(FOR TILT STEERING SUPPORT)

main90501-20072×2iEE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN198908-198911

main90501-20117×2iAE92..(GT,SE)..SA199001-199308

45819RETAINER, TILT LEVER

main45819-12010×2iAE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD198705-198802

main45819-12020×2iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12010×2iEE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN199001-199009

main45820-12020iAE92..GT,SE199301-199308

45826LEVER, STEERING TILT

main45826-12020iAE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN)198705-198905

main45826-12021iEE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN)198905-199009

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-12029×2iEE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN)198705-199009

45827ALEVER, STEERING TILT SUB

main45827-12010iAE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN)198705-198905

main45827-12011iEE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN198908-199106

main45827-12020iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12010iAE92..(GT,SE)..SA199101-199106

45855BOLT, TILT STEERING, NO.1

main45855-12010iAE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD198705-198802

OD=9.989-9.998

main45855-12020iEE90..LHD..STD;AE92..(GT,SE)..SA;EE90..(GL,XL)..(GCC,GEN);AE9#,CE90,EE97..ARL,GCC,GEN198908-199106

OD=9.998-10.007

main45855-12030iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

OD=9.989-9.998

main45855-12040iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

OD=9.998-10.007

45856BOLT, TILT STEERING, NO.2

main45856-12010iAE92..GTI;AE95..ARL;AE9#,CE90,EE9#..LHD198802-198808

OD=9.989-9.998

main45856-12020iAE9#,CE90;EE9#..GL,XL;EE9#..LHD..STD198705-198802

OD=9.998-10.007

main45856-12030iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

OD=9.989-9.998

main45856-12040iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

OD=9.998-10.007

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iAE92..GTI;AE95..ARL;AE9#,CE90,EE9#..LHD198802-198808

main45865-12060iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-12010iAE92..GTI;AE95..ARL;AE9#,CE90,EE9#..LHD198802-198808

45890APAWL ASSY, TILT STEERING

main45890-12020iAE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN)198705-198905

LH

main45890-12021iAE92..(GT,SE)..SA199101-199106

LH

main45890-12030iAE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN)198705-198905

RH

main45890-12031iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

RH

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-07004iAE92..(GT,SE)..SA;AE92,EE9#..RHD..(GL,GT,XL)..GEN199009-199101

MARK 0

main90389-07005iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

MARK 2

main90389-07006iEE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN)198705-199009

MARK 3

main90389-07007iEE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN)198705-199009

MARK 4

main90389-07008iEE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN)198705-199009

MARK A

main90389-07009iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

MARK 6

main90389-07010iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

MARK 7

main90389-07011iAE92..(GT,SE)..SA;AE92,EE9#..RHD..(GL,GT,XL)..GEN199009-199101

MARK 8

45893ASTOPPER, TILT STEERING PAWL

main45893-12020iAE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN)198705-198905

LH

main45893-12021iAE92..(GT,SE)..SA;AE92,EE9#..RHD..(GL,GT,XL)..GEN199009-199101

MARK A,LH

main45893-12070iAE92..GT,SE;EE9#..LHD..STD;AE9#,CE90..ARL,GEN;EE9#..(GL,XL)..(GCC,GEN)198705-198905

RH

main45893-12071iAE92..(GT,SE)..SA;AE92,EE9#..RHD..(GL,GT,XL)..GEN199009-199101

MARK F OR 11,RH

main45893-12120iAE92..(GT,SE)..SA;AE92,EE9#..RHD..(GL,GT,XL)..GEN199009-199101

MARK B,LH

main45893-12130iAE92..(GT,SE)..SA199101-199106

MARK C,LH

main45893-12140iEE90..LHD..STD;AE92..(GT,SE)..SA;AE92,CE90,EE97..GCC,GEN;EE90..(GL,XL)..(GCC,GEN)199106-199308

MARK D,LH

main45893-12150iEE9#..LHD..STD;AE92..(GT,SE)..SA;AE9#,CE90..ARL,GCC,GEN;EE9#..(GL,XL)..(GCC,GEN)198905-199009

MARK E,LH

main45893-12160iAE92..(GT,SE)..SA199101-199106

MARK G OR 12,RH

main45893-12170iAE92..(GT,SE)..SA;AE92,EE9#..RHD..(GL,GT,XL)..GEN199009-199101

MARK H OR 13,RH

main45893-12180iAE92..(GT,SE)..SA199101-199106

MARK I OR 14,RH

main45893-12190iAE92..(GT,SE)..SA;AE92,EE9#..RHD..(GL,GT,XL)..GEN199009-199101

MARK J OR 15,RH

45897BOLT, STEERING LOCK SET

main45897-12020×2iAE9#,CE90,EE9#198705-199009

9011906378

main90119-06378

9011906569

main90119-06569

9011908560

main90119-08560

9011910478

main90119-10478

9016450048

main90164-50048

9017906045

main90179-06045

9017910016

main90179-10016

9017910065

main90179-10065

9020610009

main90206-10009

9161160820

main91611-60820

9165540625

main91655-40625

9331514012

main93315-14012

9461410600

main94614-10600

48 parts on this diagram · 2 diagrams in section
