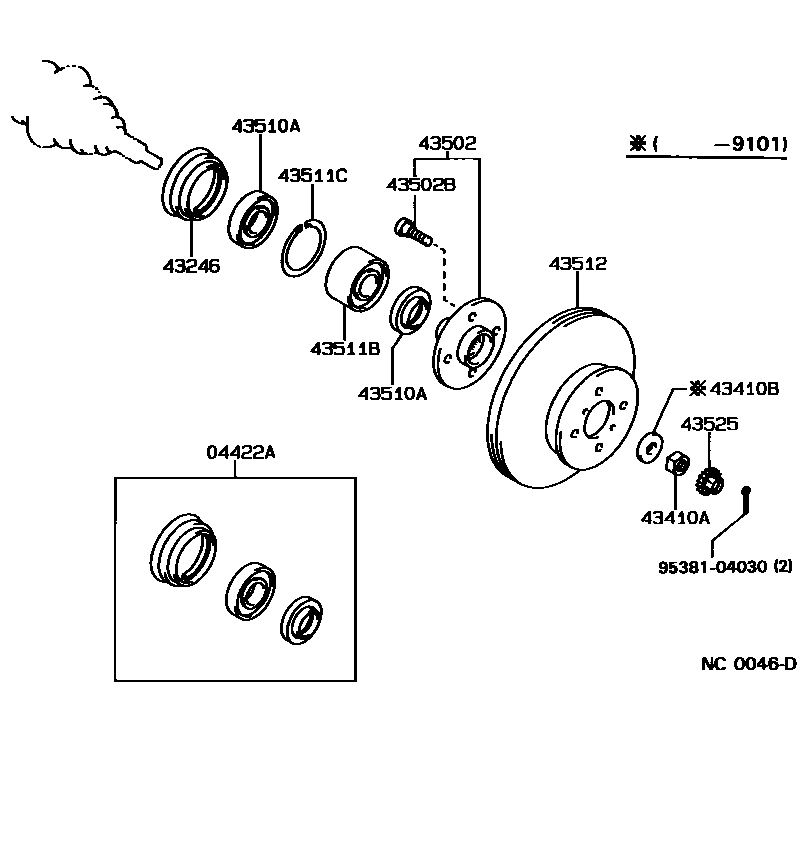

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-12020iAE95..SED198705-199106

main04422-12020iCE90198908-199106

VARIABLE GEAR RATIO & W(POWER STEERING)

main04422-12040iAE92,CE90,EE9#199106-199308

sub04422-12070

main04422-12040iCE90199106-199111

VARIABLE GEAR RATIO & W(POWER STEERING)

sub04422-12070

main04422-12040iEE90..RHD..5F..XL..GEN199106-199207

W(POWER STEERING)

sub04422-12070

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-12010iEE90..RHD..5F..XL..GEN199008-199207

W(POWER STEERING)

main43246-12010iAE9#,CE90,EE9#198705-199308

main43246-12010iAE92..LHD..LB199203-199308

VENEZUELA SPEC

main43246-12030iAE92..GT..SA199106-199203

sub43246-12040

43410ANUT (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90170-19001iAE9#,CE90,EE9#198705-199101

main90179-22020iAE92,CE90,EE90199101-199308

43410BWASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90201-20012iAE9#,CE90,EE9#198705-199101

43502HUB SUB-ASSY, FRONT AXLE

main43502-12080iAE92..GT..GEN199006-199105

W(POWER STEERING)

sub43502-12100

main43502-12100iAE92,CE90,EE9#199105-199106

sub43502-12110

sub90311-52012

main43502-12110iAE92,CE90,EE90199106-199308

main43502-12110iEE90..RHD..5F..XL..GEN199106-199207

W(POWER STEERING)

main43502-20030iAE9#,CE90,EE9#..ARL,GCC,GEN198705-199105

sub43502-12100

sub43502-20110

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iAE92..RHD..SED..GEN;AE92..RHD..LB..5F..GL198710-198905

ROUGH ROAD PACKAGE

main90942-02047iCE90198705-198908

W(POWER STEERING)

main90942-02047iAE9#,CE90,EE9#198705-199105

main90942-02049iEE90..LHD199105-199207

W(POWER STEERING)

main90942-02049iAE92,CE90,EE9#199105-199308

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-52006iAE95,CE90..SED;AE92..LHD..SED;EE90..LHD..GEN;AE92..LHD..LB..5F;AE92,EE97..(LB,WG)..(STD,XL)198705-199106

OUTER

main90311-52006iAE95..WG..GEN198705-199106

1UTER

main90311-52011iAE92,EE9#..(GL,SE,STD,XL)..(GCC,GEN)199106-199207

OUTER

main90311-52012iAE92,EE9#..LHD..GEN199106-199205

W(POWER STEERING),OUTER

sub90311-52018

main90311-52012iAE92,EE9#..LHD..GEN199106-199308

OUTER

sub90311-52018

main90311-56008iAE92..RHD..SED..GEN;AE92..RHD..LB..5F..GL198705-199106

INNER

main90311-56018iEE90..RHD..5F..XL..GEN199106-199205

W(POWER STEERING),INNER

sub90311-56026

main90311-56018iEE90..RHD..3FC199106-199308

INNER

sub90311-56026

43511BBEARING (FOR FRONT AXLE HUB)

main90363-38006iCE90198705-198908

main90369-38011iEE90..RHD..4F..GEN198705-199308

sub90363-38006

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-77001iEE90..RHD..GL198705-199308

OD=77

43512DISC, FRONT

main43512-12160iAE92,EE90..(GL,SE,STD,XL)..SA198808-199308

main43512-12230iAE92,EE90..WG..GCC198705-199207

sub43512-12500

main43512-12250iAE95,CE90;AE92..GT..SA198705-199207

sub43512-12440

main43512-12270iAE92..GT..GEN198908-199205

sub43512-12460

main43512-12300iCE90199007-199009

ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2

sub43512-12480

main43512-12440iAE92..GT..SA199203-199308

main43512-12480iCE90199009-199205

ROUGH ROAD PACKAGE 1 OR ROUGH ROAD PACKAGE 2

sub43512-12440

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iAE9#,CE90,EE9#198705-199101

main43525-20030iAE92,CE90,EE90199101-199308

9538104030

main95381-04030

12 parts on this diagram · 1 diagram in section
