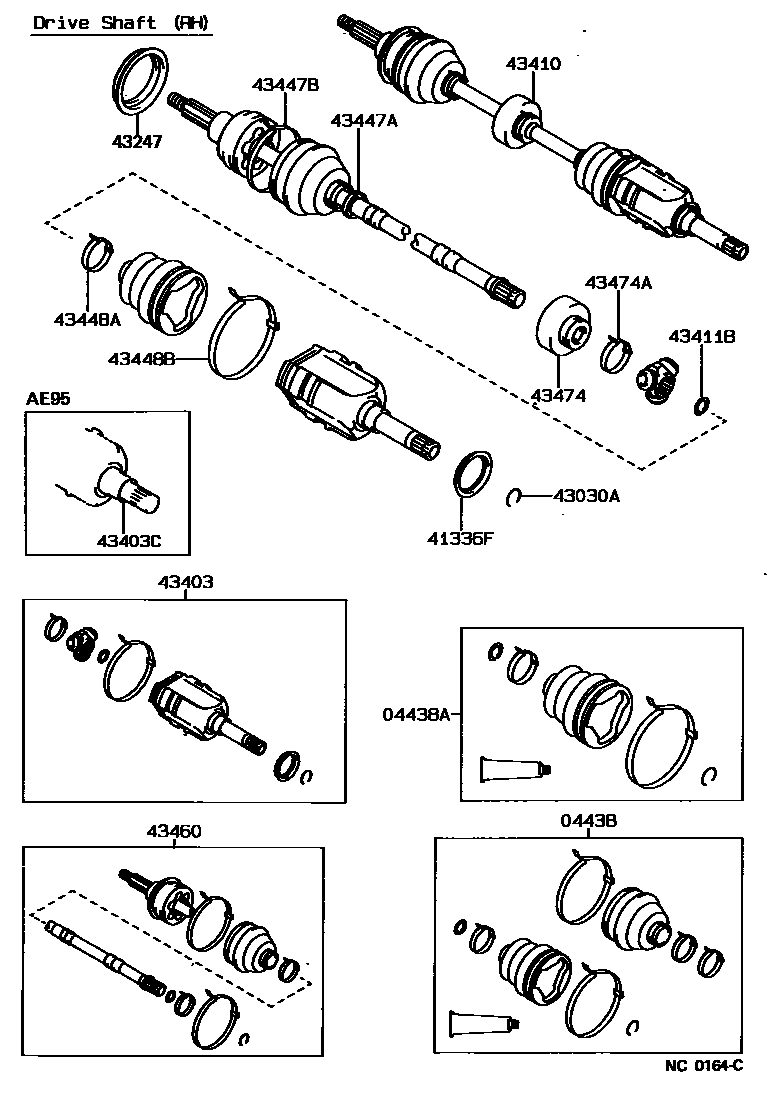

FRONT DRIVE SHAFT

0001 1 0004 1 0007 1 0009 1 0011 1 0014 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12031iCE90198705-199009

main04438-12040iAE92..GTI198705-198709

main04438-12080iAE92..3FC..(GEN,SA)198705-199002

sub04438-12170

main04438-12110iAE95198710-198802

sub04438-12180

main04438-12120iAE92..GT,GTI198709-199002

sub04438-12190

main04438-12140iAE95198802-199002

sub04438-12200

main04438-12170iAE92,EE9#..(GL,SE,STD,XL)..(GCC,GEN)199002-199009

sub04438-12171

main04438-12171iAE92,EE9#..(GL,SE,STD,XL)..(GCC,GEN)199009-199207

sub04438-12370

main04438-12181iAE92,EE90..(GL,SE,STD,XL)..SA199009-199308

sub04438-12390

main04438-12190iAE92..GT..SA199002-199308

main04438-12191iAE92..GT..GEN199009-199205

sub04438-20110

main04438-12200iAE95199002-199009

sub04438-12201

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-12050iCE90198705-199009

main04438-12060iAE92..GTI198705-198709

sub04438-17031

main04438-12070iEE9#;AE92..SA;AE92..LHD..XL;AE92..RHD..3FC..XL..GEN;AE92..(3FC,5F)..(GL,GT,GTI,STD)..GEN198705-199002

sub04438-12160

main04438-12130iAE95198710-198802

sub04438-32080

main04438-12150iAE95198802-199002

sub04438-12210

main04438-12160iAE92,EE9#..(GL,SE,STD,XL)..(GCC,GEN)199002-199308

sub04438-12161

main04438-12161iAE92,EE9#..(GL,SE,STD,XL)..(GCC,GEN)199009-199207

sub04438-12410

main04438-12210iAE95199002-199009

sub04438-12211

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-12010iAE92,EE90..SA;AE92..GT..GEN198705-199308

main41336-12040iAE95198710-199009

LH

main41336-20040iAE95198710-199010

RH

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90521-26004iAE92,EE9#..GL,STD,XL198705-199308

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-32011iAE9#,CE90,EE9#198705-199106

sub43247-33010

main43247-33010iAE92,CE90,EE90199106-199308

43403JOINT SET, FRONT AXLE INBOARD, RH

main43030-20020iCE90199009-199205

main43403-12040iAE92,EE9#..GCC,GEN198909-199207

main43403-12050iAE95199001-199010

main43403-19055iAE92,EE9#..GL,STD,XL198705-198709

sub43403-19085

main43403-19065iAE95198710-199001

sub43403-12050

main43403-19085iAE92,EE9#198709-199308

main43403-39016iCE90198705-199009

main43403-39025iAE92..GTI198705-198709

43403CRING, O (FOR FRONT DRIVE INBOARD JOINT)

main90301-26006iAE95198710-199010

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12030iAE95198710-198802

sub43410-12180

main43410-12130iAE92,EE9#..GL,SE,STD,XL198705-199101

sub43410-12131

sub43525-20030

sub90179-22020

main43410-12131iAE92,EE9#..GL,SE,STD,XL199101-199308

sub43410-12122

sub90178-22001

main43410-12140iAE92..GTI198705-198709

sub43410-12141

sub43525-20030

sub90179-22020

main43410-12150iCE90198705-199009

sub43410-12151

sub43525-20030

sub90179-22020

main43410-12170iAE92..GT,GTI198709-199101

sub43410-12171

sub43525-20030

sub90179-22020

main43410-12171iAE92..GT199101-199308

sub43410-12172

sub90178-22001

main43410-12180iAE95198802-199009

sub43410-12230

main43410-20340iCE90199009-199101

sub43410-20341

sub43525-20030

sub90179-22020

main43410-20341iCE90199101-199205

sub43410-20342

sub90178-22001

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iAE9#,CE90,EE9#198705-199308

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-14010iAE95;AE92..GT..GEN198705-199205

main90949-01078iAE92,EE9#..(GL,SE,STD,XL)..(GCC,GEN)198705-199308

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01076iAE95,CE90;AE92..GT,GTI198705-199308

sub42345-12160

main90949-01080iAE92,EE9#..GL,SE,STD,XL198705-199308

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010iCE90198705-199308

main90949-01078iAE95;AE92..GT..GEN;AE92,EE90..(GL,SE,STD,XL)..SA198705-199308

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14020iCE90198705-199009

main90949-01076iAE9#,EE9#198705-199308

sub42345-12160

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19275iAE92,EE9#..GL,SE,STD,XL198705-199101

sub43460-19276

sub43525-20030

sub90179-22020

main43460-19276iAE92,EE9#..GL,SE,STD,XL199101-199308

sub43460-19277

sub90178-22001

main43460-19285iCE90;AE92..GTI198705-199009

sub43460-19286

sub43525-20030

sub90179-22020

main43460-19305iAE92..GTI198709-199101

sub43460-19306

sub43525-20030

sub90179-22020

main43460-19306iAE92..GT199101-199308

sub43460-19309

sub90178-22001

main43460-29145iCE90199009-199101

sub43460-29146

sub43525-20030

sub90179-22020

main43460-29146iCE90199101-199205

sub43460-29147

main43470-19265iAE95198710-199008

sub43470-19266

main43470-19266iAE95199008-199010

sub43470-19267

sub43525-20030

sub90179-22020

43474DAMPER, DRIVE SHAFT

main43474-12020iAE92,CE90,EE9#198705-199308

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iAE92..GT..SA;AE92,CE90,EE9#..GL,GTI,SE,STD,XL198705-199308

16 parts on this diagram · 6 diagrams in section
