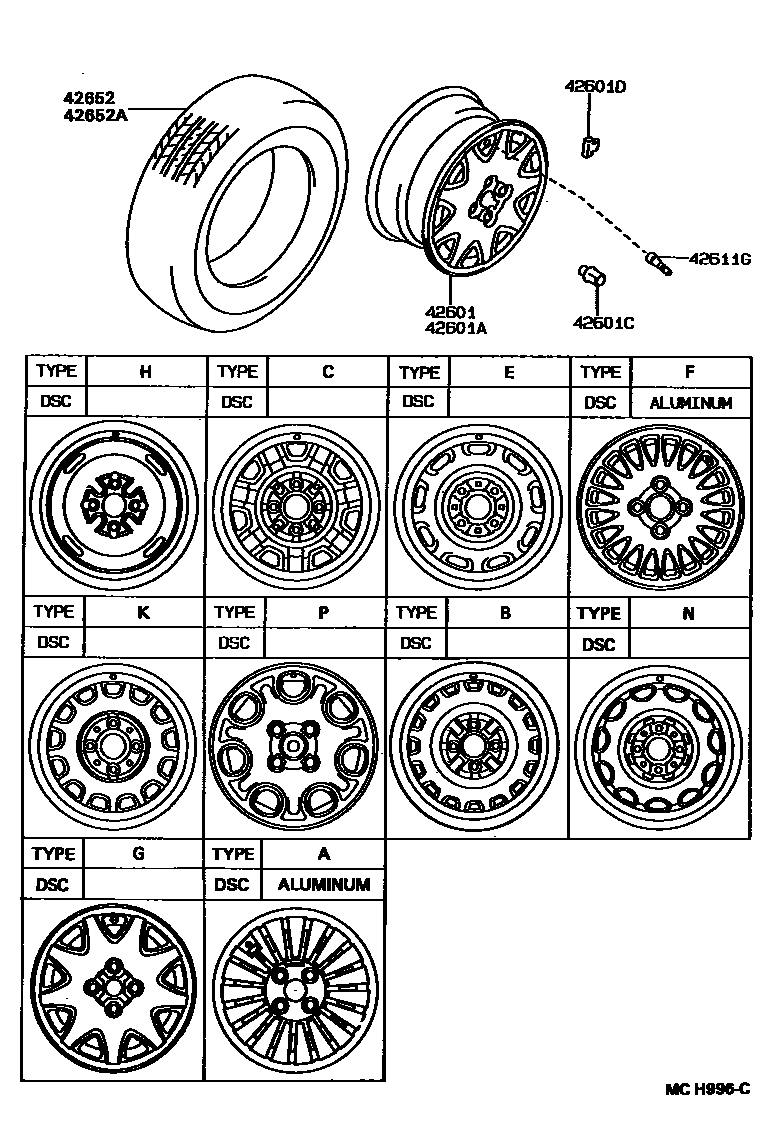

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
14X5J,TYPE A,ALUMINUM
13X5J,TYPE K
13X5J,ALUMINUM,SILVER,TYPE K
14X5.5JJ,TYPE N
14X5.5JJ,SILVER,000,TYPE N:REFER ILLUST.; 14X5.5JJ,SILVER,040 ,168 ,204 ,26E ,3E5 ,6J7 ,8B5 ,8E3,TYPE N:REFER ILLUST.
13X5J,ALUMINUM, PHILIPPINES SPEC,TYPE F
14X5.5JJ,TYPE G,ALUMINUM
13X5J,TYPE B
13X5J,SILVER,TYPE B
main42611-16170-03×4iAE92,EE90..(LB,SED)..(GL,XL)..GEN; CE90; EE90..WG..GEN; EE97..RHD..XL198712-198908
13X5J,SILVER,TYPE B
14X5.5JJ,ALUMINUM,TYPE S:REFER ILLUST.
13X5J,ALUMINUM,TYPE P
14X5.5JJ,TYPE B
main42611-20300-03×4iAE92..LB..ATM;AE92..LHD..LB..5F;EE90..LHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE92..SED..(GL,XL)..GEN; AE92..RHD..LB..5F; EE90..LHD..GL; EE97..LHD..XL; EE97..RHD198908-199009
13X5J,DARK GRAY,TYPE C
13X5J,SILVER M,TYPE E; 13X5J,TYPE E,SILVER M
42601AWHEEL, DISC (FOR SPARE)
13X5J,TYPE K
13X5J,SILVER,TYPE K
14X5.5JJ,TYPE N
14X5.5JJ,SILVER,000,TYPE N:REFER ILLUST.; 14X5.5JJ,SILVER,040 ,168 ,204 ,26E ,3E5 ,6J7 ,8B5 ,8E3,TYPE N:REFER ILLUST.
13X5J,ALUMINUM,TYPE F
14X5.5JJ,TYPE G,ALUMINUM
13X5J,TYPE B
13X5J,SILVER,TYPE B
main42611-16170-03iAE92,EE90..(LB,SED)..(GL,XL)..GEN; CE90; EE90..WG..GEN; EE97..RHD..XL198712-198908
13X5J,SILVER,TYPE B
14X4T,TYPE H
13X5J,ALUMINUM,TYPE P:REFER ILLUST.
14X5.5JJ,TYPE B
main42611-20300-03iAE92..STD; AE92..WG..GEN; EE90..LHD..GL; EE97..LHD..XL; EE97..RHD; EE97..RHD;AE92..LB..ATM;AE92..LHD..LB..5F;EE90..(GL,XL)..GEN;AE92..SED..(GL,XL)..GEN199011-199106
13X5J,DARK GRAY,TYPE C; 13X5J,TYPE C,DARK GRAY
13X5J,SILVER M,TYPE E
42601CNUT, HUB (FOR AXLE)
CAP NUT(CHROME PLATED)
W(13INCHES ALUMINUM WHEEL)
W(14INCHES ALUMINUM WHEEL)
CAP NUT(BLACK)
W(14INCHES ALUMINUM WHEEL)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
10G,W(13INCHES ALUMINUM WHEEL)
15G,W(13INCHES ALUMINUM WHEEL)
20G,W(13INCHES ALUMINUM WHEEL)
25G,W(13INCHES ALUMINUM WHEEL)
30G,W(13INCHES ALUMINUM WHEEL)
35G,W(13INCHES ALUMINUM WHEEL)
40G,W(13INCHES ALUMINUM WHEEL)
45G,W(13INCHES ALUMINUM WHEEL)
50G,W(13INCHES ALUMINUM WHEEL)
55G,W(BINCHES ALUMINUM WHEEL)
60G,W(13INCHES ALUMINUM WHEEL)
65G,W(13INCHES ALUMINUM WHEEL)
70G,W(14INCHES ALUMINUM WHEEL)
75G,W(13INCHES ALUMINUM WHEEL)
80G,W(13INCHES ALUMINUM WHEEL)
42611GVALVE (FOR TUBELESS TIRE)
42652TIRE
155SR13,W(TUBE)
185/70SR13,W(TUBE)
175/70SR13,W(TUBE)
main42605-20100×4iAE92,EE90..(LB,SED)..(GL,XL)..GEN; AE92,EE97..WG..XL..GEN; CE90;AE92,EE9#..STD..GEN198908-199009
165SR13,W(TUBE)
155SR13
155SR13
165SR13,ALL SEASON
175/70SR13
185/70SR13,ALL SEASON
185/70SR13
185/70R13,SAND
185/60R14 82H
main42652-14140×4iAE92..WG..GEN; EE97..RHD;AE92..LB..ATM;AE92..LHD..LB..5F;EE90..(GL,XL)..GEN;AE92..SED..(GL,XL)..GEN199008-199205
165SR13
165SR13
175/70R13 82S
185/60R14 82H
185/60R14 82H
165/80R13 82S
42652ATIRE (FOR SPARE)
155SR13,W(TUBE)
185/70SR13,W(TUBE)
175/70SR13,W(TUBE)
main42605-20100iAE92,EE90..(LB,SED)..(GL,XL)..GEN; AE92,EE97..WG..XL..GEN; CE90;AE92,EE9#..STD..GEN198908-199009
165SR13,W(TUBE)
155SR13
T115/70D14
155SR13
165SR13,ALL SEASON
185/70SR13,ALL SEASON
185/70SR13
185/70R13,SAND
185/60R14 82H
165SR13
165SR13
175/70R13 82S
185/60R14 82H
185/60R14 82H
165/80R13 82S
7 parts on this diagram · 2 diagrams in section
