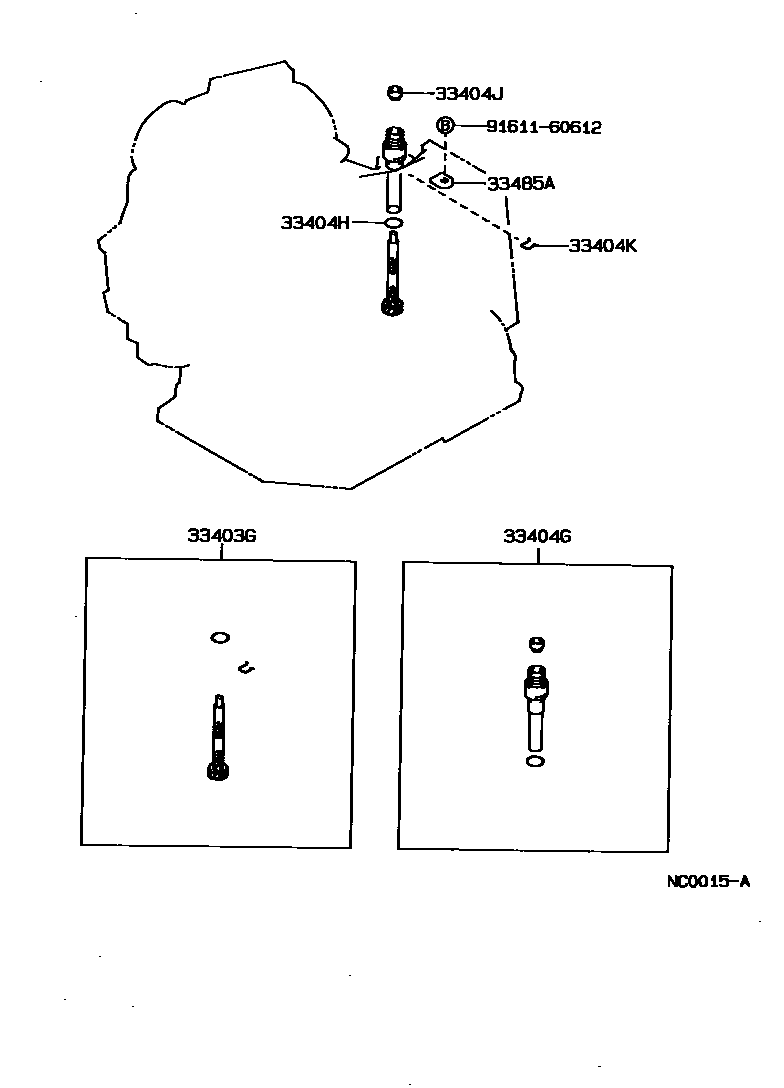

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A131L,A132L 0002 1A241H 0003 1A240L

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19285iAE92..4FC198808-199308

N=31,MARK 31:35

main33403-19305iAE92,EE90..3FC198705-199308

N=22,MARK 22:25

main33403-19415iAE95..4FC198802-199009

N=22,MARK 22:25

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12030iAE92..4FC198808-199308

main33404-32010iAE92,EE90..3FC198705-199308

main33404-35010iAE95..4FC198802-199009

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iAE95..4FC198802-199009

main96711-24018iAE92,EE90..3FC198705-199308

main96711-24030iAE92..4FC198808-199308

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAE9#,EE90..ATM198705-199308

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE9#,EE90..ATM198705-199308

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-12020iAE95..4FC198802-199009

main33485-14010iAE92,EE90..3FC198705-199308

main33485-30020iAE92..4FC198808-199308

9161160612

main91611-60612

7 parts on this diagram · 3 diagrams in section
