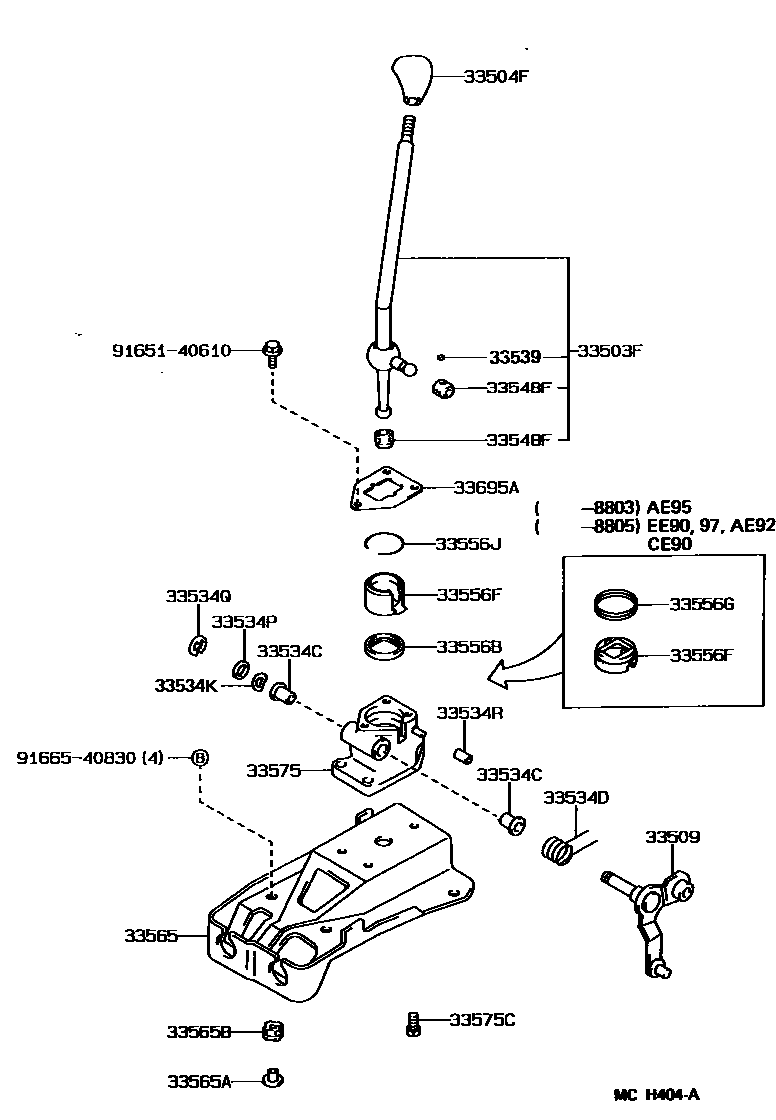

SHIFT LEVER & RETAINER

0001 1 0002 1C40,C50,C52,C140,C150 0003 1S50 0004 1E55F5,E57F5 0005 1 0006 1 0007 1 0008 1 0009 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-12190iAE92,EE90..RHD..3FC198705-198908

main33503-12310iAE92,EE90..LHD..3FC198705-198908

main33503-12320iAE9#..4FC198802-198908

main33503-12330iAE92,EE9#..RHD..MTM198705-198904

main33503-12331iAE92,EE9#..RHD..MTM198904-199308

main33503-12360iAE92,CE90,EE9#..LHD..MTM198705-198904

main33503-12361iEE90..LHD..4F;CE90,EE97..LHD;AE92,EE90..LHD..(LB,SED)..5F198904-199207

main33503-12380iAE95..RHD..5F198710-198803

main33503-12381iAE95..RHD..5F198803-198812

main33503-12382iAE95..RHD..5F198812-199009

main33503-12400iAE95..LHD198710-198803

main33503-12401iAE95..LHD198803-198812

main33503-12402iAE95..LHD198812-199009

main33503-12440iAE92,EE90..RHD..3FC198908-199308

main33503-12460iAE92,EE90..LHD..3FC198908-199207

main33503-12470iAE9#..4FC198908-199308

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12150-11iAE92..GT,GTI198811-198903

BLACK,TRIM1#

main33504-12150-C0iAE92..GT,GTI198903-199308

BLACK,TRIM1#

main33504-14040-15iEE90..STD..SA198908-199308

DARK BEIGE,TRIM4#

main33504-14040-33iEE9#..4F..STD198705-199308

GRAY,TRIM1#

main33504-14040-34iEE9#..4F..STD..(GCC,GEN)198908-199205

DARK BLUE,TRIM8#

main33504-14050-25iAE92..STD198705-198908

DARK BEIGE,TRIM4#

main33504-14050-43iAE92,EE90..5F..STD198705-199009

GRAY,TRIM1#

main33504-14050-B0iAE92,EE90..5F..STD199009-199207

SHADOW GRAY,TRIM1#

main33504-14050-J0iAE92,EE90..5F..STD198908-199106

DARK BLUE,TRIM8#

main33504-14060-22iEE90..RHD..4F..XL198705-199205

MAROON,TRIM3#

main33504-14060-23iEE9#..4F..XL198705-199205

GRAY,TRIM1#

main33504-14060-25iEE9#..4F..XL198705-198908

DARK BEIGE,TRIM4#

main33504-14060-46iEE90..LHD..4F..XL198908-199205

BROWN,TRIM4#

main33504-14060-54iEE9#..4F..XL..GEN; EE90..4F..XL..GCC198908-199110

DARK BLUE,TRIM4#,8#; DARK BLUE,TRIM8#

main33504-24010-20iAE92,EE90..SED..5F..(SE,XL)..GCC;AE9#,CE90,EE90..5F..(GL,SR5,XL)..(ARL,GEN,SA)198811-199009

GRAY,TRIM1#

main33504-24010-52iAE9#,EE90..RHD..(LB,SED)..5F..(GL,XL)198705-198807

MAROON,TRIM3#

main33504-24010-54iAE95..WG..5F;AE9#,CE90,EE90..LHD..(LB,SED)..5F..(GL,XL)198705-198807

DARK BLUE,TRIM8#

main33504-24010-55iAE9#,CE90,EE90..5F..(GL,SR5,XL)198705-198908

DARK BEIGE,TRIM4#

main33504-24010-B3iAE92..5F..SE;AE92,CE90..5F..(GL,XL)..GEN;EE90..(LB,SED)..5F..(GL,XL)..(GCC,GEN)199009-199207

SHADOW GRAY,TRIM1#

main33504-24010-D0iAE92,EE90..RHD..SED..5F..(GL,XL)..GEN198908-199008

MAROON,TRIM3#

main33504-24010-E1iAE9#,CE90,EE90..LHD..5F..(GL,XL)198908-199008

BROWN,TRIM4#

main33504-24010-J0iAE92..5F..SE;AE9#,CE90..5F..(GL,SR5,XL)..(ARL,GEN);EE90..(LB,SED)..5F..(GL,XL)..(GCC,GEN)198908-199207

DARK BLUE,TRIM8#

main33542-12140-02iAE92,EE90..RHD..3FC..GEN198705-199205

MAROON,TRIM3#

main33542-12140-03iAE92,EE90..RHD..3FC198705-199308

SHADOW GRAY,TRIM1#

main33542-12140-04iEE90..RHD..3FC198908-199205

DARK BLUE,TRIM8#

main33542-12140-05iAE92,EE90..RHD..3FC198705-198908

DARK BEIGE,TRIM4#

main33542-12150-03iAE92,EE90..LHD..3FC198705-199008

SHADOW GRAY,TRIM1#

main33542-12150-06iAE92,EE90..LHD..3FC..(GL,XL)198908-199008

BROWN,TRIM4#

main33542-12150-B1iAE92,EE90..LHD..3FC199009-199207

SHADOW GRAY,TRIM1#

main33542-12150-D0iAE92..3FC..SE199008-199207

MAROON,TRIM3#

main33542-12150-E2iAE92,EE90..LHD..(SED,WG)..3FC..(GL,XL)199009-199207

BROWN,TRIM4#

main33542-12150-J0iAE92,EE90..LHD..3FC198908-199207

DARK BLUE,TRIM8#

main33542-20080-02iAE92..SED..4FC..GEN198908-199205

MAROON,TRIM3#

main33542-20080-03iAE9#..4FC198908-199308

GRAY,TRIM1#

main33542-20080-04iAE9#..4FC..(ARL,GEN)198908-199205

BLUE,TRIM8#

main33542-20080-16iAE92..SE..SA198908-199308

BROWN,TRIM4#

main33542-32040-03iAE9#..4FC198802-198908

SHADOW GRAY,TRIM1#

main33542-32040-15iAE9#..4FC198802-198908

DARK BEIGE,TRIM4#

main33542-32040-34iAE95..4FC198802-198908

DARK BLUE,TRIM8#

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-12060iAE9#,CE90,EE9#..MTM198705-198803

main33509-12070iAE95..5F198803-198907

main33509-12071iAE95..5F198907-199009

main33509-12080iEE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE92,CE90,EE9#..MTM..(GEN,SA)198904-199308

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12013×2iAE9#,CE90,EE9#..MTM198705-198803

main90386-12034×2iAE95..5F198803-198805

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-20084iEE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA)198705-199308

33534KWASHER, WAVE (FOR SELECTING BELLCRANK NO.1)

main90206-12003iEE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE92,CE90,EE9#..MTM..(GEN,SA)198904-199308

33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

main90201-12052iEE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA)198705-199308

33534QRING, E (FOR SELECTING BELLCRANK NO.1)

main96160-00900iEE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA)198705-199308

33534RCUSHION (FOR SELECTING BELLCRANK NO.1)

main90540-06029iEE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA)198705-199308

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010×2iAE95..5F198904-198908

main33539-32010×6iAE95..5F198812-198904

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021×2iAE9#,CE90,EE9#..MTM198705-198812

main33548-12030×2iAE95..5F198812-198904

main33548-12040×2iAE95..5F198904-198908

33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90385-34001iAE95..5F198803-198805

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-12040iAE9#,CE90,EE9#..MTM198705-198803

main33556-20020iAE95..5F198803-198805

33556GSPRING (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90501-11040iAE92,CE90,EE9#..MTM198803-198805

33556JRING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT)

main90520-34002iAE95..5F198803-198808

main90520-36018iEE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA)198808-199308

33565PLATE, CONTROL SHIFT LEVER RETAINER

main33565-12030iEE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA)198705-199308

33565ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER PLATE)

main90389-08031×4iEE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA)198705-199308

33565BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER PLATE)

main90389-10020×4iEE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA)198705-199308

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-12120iAE92,CE90,EE9#..MTM198705-198805

main33575-12130iAE95..5F198803-198808

main33575-12131iAE95..5F198808-198907

main33575-12133iAE95..5F198907-199009

main33575-32050iEE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE92,CE90,EE9#..MTM..(GEN,SA)198805-199308

33575CBOLT (FOR CONTROL SHIFT LEVER RETAINER)

main90119-08622×3iEE90..4F..GCC;AE92,EE90..SED..5F..GCC;AE9#,CE90,EE9#..MTM..(ARL,GEN,SA)198705-199308

33695ACOVER, SHIFT LEVER BALL

main33695-12020iAE9#,CE90,EE9#..MTM198705-198803

main33695-12030iAE95..5F198803-198808

main33695-12031iAE92,EE90..LHD..(LB,SED)..MTM; AE92,EE90..RHD..MTM; AE95,CE90,EE97..MTM; EE90..WG..4F198808-199308

9165140610

main91651-40610

9166540830

main91665-40830

23 parts on this diagram · 9 diagrams in section
