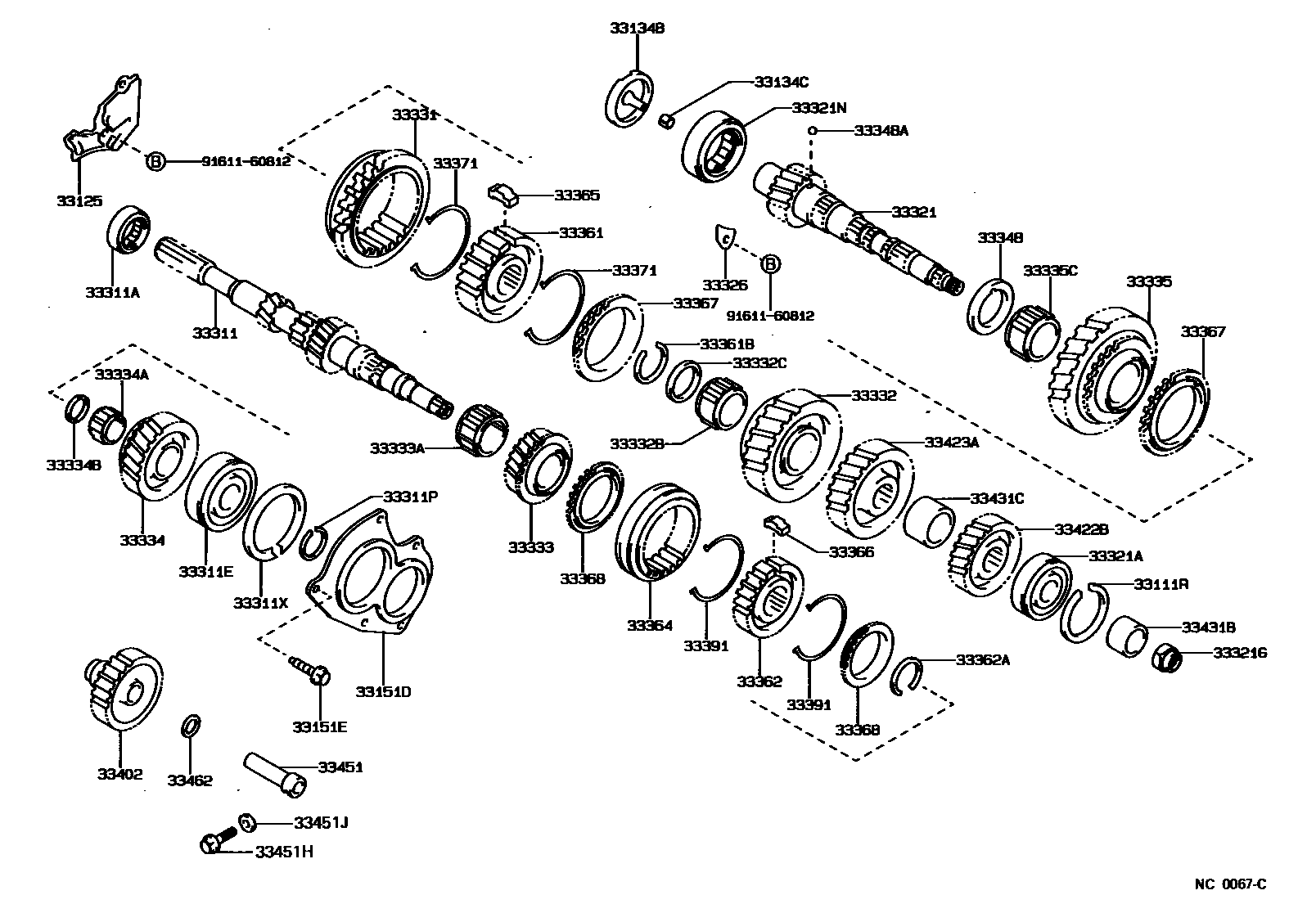

TRANSMISSION GEAR (MTM)

0001 1C40,C140 0002 1C50,C52,C150 0004 1C52 0005 1S50 0006 1S50 0007 1E55F5,E57F5

33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)

main90520-57002iAE92,EE9#..MTM199104-199308

main90521-66004iCE90198705-199106

33125RECEIVER, MANUAL TRANSAXLE CASE

main33125-12010iAE92,EE9#..MTM198705-199308

main33125-20010iAE95..5F198710-199008

main33125-32010iCE90198705-199005

main33125-32011iCE90199005-199106

33134BCOVER, OUTPUT SHAFT(MTM)

main33134-12021iAE92,EE9#..MTM198908-199308

main33134-20010iAE95..5F198710-199008

main33134-32011iCE90198705-199004

main33134-32020iCE90199004-199203

33134CPIN, SLOTTED SPRING(FOR OUTPUT SHAFT)

main90254-10001iAE92,CE90,EE9#..MTM198705-198808

33151DRETAINER, BEARING, REAR(MTM)

main33151-10040iEE90..(LB,SED)..MTM198705-198908

main33151-12020iEE90..WG;AE92,EE97..MTM198705-199104

main33151-12030iAE95..5F198710-198812

main33151-12031iAE95..5F198812-199008

main33151-32011iCE90198705-199004

main33151-32012iCE90199004-199106

33151EBOLT(FOR REAR BEARING RETAINER)

main90105-08045×5iCE90198705-199004

main90105-08237×5iCE90199004-199106

main90119-08944×5iAE92,EE9#..MTM199101-199308

main91611-60820×5iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199101

VENEZUELA SPEC

33311SHAFT, INPUT

main33311-10051iEE90..SED..4F198705-199308

main33311-10061iEE90..(LB,SED)..5F198705-199308

main33311-12041iAE92..5F..(GL,STD,XL)198808-198905

main33311-12051iEE9#..WG..4F198708-199104

main33311-12061iEE90..WG..5F198708-199104

main33311-12090iAE95..WG..5F198802-199008

main33311-12100iAE95..SED198710-198908

main33311-12170iEE90..WG199104-199207

main33311-12180iAE92..5F199104-199308

main33311-12190iEE97199104-199108

main33311-32013iCE90198705-199004

main33311-32030iCE90199004-199203

33311ABEARING (FOR INPUT SHAFT FRONT)

main90365-25021iAE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

VENEZUELA SPEC

main90365-30017iCE90198705-199106

main90365-30023iAE95..5F198710-199008

33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)

main90363-25043iEE90..(LB,SED)..MTM198705-199308

main90363-25048iEE90..WG;AE92,EE97..MTM198705-199308

main90363-29004iCE90198705-199005

main90363-29006iCE90199005-199106

main90363-33005iAE95..5F198710-198904

main90363-33007iAE95..5F198904-199008

33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-22006iAE92,EE9#..MTM199105-199308

T=2.29-2.34,MARK A

main90520-22007iAE92,EE9#..MTM198705-198808

T=2.35-2.40,MARK B

main90520-22008iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

T=2.41-2.46,MARK C; T=2.41-2.46,MARK C,VENEZUELA SPEC

main90520-22009iAE92,EE9#..MTM..(GL,STD,XL)198808-198905

T=2.47-2.52,MARK D

main90520-22010iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

T=2.53-2.58,MARK E; T=2.53-2.58,MARK E,VENEZUELA SPEC

main90520-22011iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

T=2.59-2.64,MARK F; T=2.59-2.64,MARK F,VENEZUELA SPEC

main90520-27018iCE90198705-199106

T=2.15-2.20,MARK A

main90520-27019iCE90198705-199106

T=2.20-2.25,MARK B

main90520-27020iCE90198705-199106

T=2.25-2.30,MARK C

main90520-27021iCE90198705-199106

T=2.30-2.35,MARK D

main90520-27022iCE90198705-199106

T=2.35-2.40,MARK E

main90520-30008iAE95..5F198710-199008

T=2.35-2.40,MARK 1

main90520-30009iAE95..5F198710-199008

T=2.40-2.45,MARK 2

main90520-30010iAE95..5F198710-199008

T=2.45-2.50,MARK 3

main90520-30011iAE95..5F198710-199008

T=2.50-2.55,MARK 4

main90520-30012iAE95..5F198710-199008

T=2.55-2.60,MARK 5

main90520-30013iAE95..5F198710-199008

T=2.60-2.65,MARK 6

main90520-30021iAE95..5F198710-199008

T=2.65-2.69,MARK 7

main90520-30022iAE95..5F198710-199008

T=2.70-2.74,MARK 8

33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-64002iAE92,EE9#..MTM..(GL,STD,XL)198808-198905

main90521-76001iCE90198705-199106

33321SHAFT, OUTPUT

main33302-12010iAE95..SED198710-198908

main33302-12020iAE95..WG..5F198802-199008

main33321-10071iEE90..(LB,SED)..MTM198705-199308

main33321-10081iEE90..MTM..GEN198908-199205

*AXC=-642

main33321-12071iEE9#..WG;AE92..5F..(GL,SE,STD,XL)198705-199308

main33321-17011iEE9#..WG..GEN198708-198908

*AXC=-642

main33321-20090iCE90198705-199005

main33321-32050iCE90199005-199006

main33321-32051iCE90199006-199203

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-25029iAE92..5F;EE90..WG..5F..GCC198705-199104

main90363-25030iEE90..WG..4F;EE9#..WG..GEN198708-199108

main90363-25037iCE90198705-199005

main90363-25044iEE90..(LB,SED)..MTM198705-199308

main90363-25056iCE90199005-199106

main90363-25061iEE90..WG;AE92..5F..(GL,SE,STD,XL)199104-199308

main90366-28002iAE95..5F198710-199008

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-18003iCE90198705-199106

main90179-18005iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

VENEZUELA SPEC

main90179-20012iAE95..5F198710-199008

33321NBEARING (FOR OUTPUT SHAFT FRONT)

main90365-32012iCE90198705-199005

main90365-32013iCE90199005-199106

main90365-33005iAE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

VENEZUELA SPEC

main90366-32016iAE95..5F198710-199008

33326PLATE, BEARING LOCK

main33326-12010iAE92,EE9#..MTM198705-199308

main33326-32010iCE90198705-199004

main33326-32020iCE90199004-199005

33331GEAR, REVERSE

main33331-12020iAE92,EE9#..MTM198705-198908

main33331-12021iAE92,EE9#..MTM199008-199104

main33331-12030iAE95..5F198710-199008

main33331-12050iAE92..5F199104-199308

main33331-32010iCE90198705-199005

main33331-32020iCE90199005-199105

main33331-32022iCE90199105-199106

33332GEAR, 2ND

main33033-10010iEE90..(LB,SED)..MTM198908-199104

main33033-10020iEE90..(LB,SED)..MTM199104-199308

main33033-12010iAE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

VENEZUELA SPEC

main33033-12040iAE95..5F198710-199008

main33033-12050iEE90..WG;AE92,EE97..MTM199104-199308

main33033-32010iCE90198705-199005

main33033-32030iCE90199005-199106

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-32011iCE90198705-199005

main90364-32014iAE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

VENEZUELA SPEC

main90364-32017iEE90..(LB,SED)..MTM198705-199308

main90364-39013iCE90199005-199106

main90364-44001iAE95..5F198710-199008

33332CSPACER (FOR 2ND GEAR BEARING)

main90560-32006iCE90198705-199005

main90560-32008iAE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN; EE90..WG;AE92,EE97..MTM198908-199104

VENEZUELA SPEC

33333GEAR, 3RD

main33034-10011iEE90..(LB,SED)..MTM198705-198908

main33034-10030iEE90..(LB,SED)..MTM199104-199308

main33034-12020iEE90..WG;AE92,EE97..MTM198705-199104

main33034-12060iAE95..5F198710-199008

main33034-12080iEE90..WG;AE92,EE97..MTM199104-199308

main33034-32011iCE90198705-199005

main33034-32030iCE90199005-199208

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-31002iAE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

VENEZUELA SPEC

main90364-31004iEE90..(LB,SED)..MTM198705-199308

main90364-33001iCE90198705-199106

main90364-36011iAE95..5F198710-199008

33334GEAR, 4TH

main33035-12011iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

VENEZUELA SPEC

main33035-12030iAE95..SED198710-198908

main33035-12040iAE95..WG..5F198802-199008

main33035-12060iAE92,EE9#..MTM199104-199308

main33035-32010iCE90198705-199005

main33035-32040iCE90199005-199106

33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)

main90364-29002iAE92,EE9#..MTM198705-199308

main90364-32013iCE90198705-199106

main90364-36014iAE95..5F198710-199008

33334BSPACER (FOR 4TH GEAR BEARING)

main90560-29001iAE92,EE9#..MTM198705-199308

main90560-32007iCE90198705-199106

main90560-36002iAE95..5F198710-199008

33335GEAR, 1ST

main33032-10020iEE90..(LB,SED)..MTM198705-198908

main33032-10040iEE90..(LB,SED)..MTM199104-199308

main33032-12010iAE92..RHD..(LB,SED)..5F..(GL,XL)..GEN199001-199104

VENEZUELA SPEC OR INDONESIA SPEC

main33032-12020iAE92..5F198905-199104

main33032-12030iAE95..SED198710-198908

main33032-12040iAE95..WG..5F198802-199008

main33032-12060iAE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN; AE92..RHD..(LB,SED)..5F..(GL,XL)..GEN199104-199205

VENEZUELA SPEC; VENEZUELA SPEC OR INDONESIA SPEC

main33032-12070iAE92..5F199104-199308

main33032-32010iCE90198705-199005

main33032-32020iCE90199005-199106

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-38004iCE90198705-199106

main90364-38007iAE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

VENEZUELA SPEC

main90364-38008iEE90..(LB,SED)..MTM198705-199308

main90364-45004iAE95..5F198710-199008

33348WASHER, 1ST GEAR THRUST

main33348-12010iAE92,EE9#..MTM..(GL,STD,XL)198808-198905

main33348-32010iCE90198705-199106

33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)

main90360-05012iAE92,EE9#..MTM198705-198808

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-12030iAE92,EE9#..MTM..(GL,STD,XL)198808-198905

main33361-12040iAE95..5F198710-199008

main33361-12060iAE92..5F199104-199308

main33361-32011iCE90198705-199004

main33361-32020iCE90199004-199106

33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)

main90520-29012iCE90198705-199005

T=2.50-2.55,MARK 1

main90520-29013iCE90198705-199005

T=2.55-2.60,MARK 2

main90520-29014iCE90198705-199005

T=2.60-2.65,MARK 3

main90520-29015iCE90198705-199005

T=2.65-2.70,MARK 4

main90520-29016iCE90198705-199005

T=2.70-2.75,MARK 5

main90520-29017iCE90198705-199005

T=2.75-2.80,MARK 6

main90520-29018iAE92,EE9#..MTM..(GL,STD,XL)198808-198905

T=2.50-2.55,MARK A

main90520-29019iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

T=2.56-2.61,MARK B; T=2.56-2.61,MARK B,VENEZUELA SPEC

main90520-29020iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

T=2.62-2.67,MARK C; T=2.62-2.67,MARK C,VENEZUELA SPEC

main90520-29021iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

T=2.68-2.73,MARK D; T=2.68-2.73,MARK D,VENEZUELA SPEC

main90520-29022iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

T=2.74-2.79,MARK E; T=2.74-2.79,MARK E,VENEZUELA SPEC

main90520-29023iAE92,EE9#..MTM198705-198808

T=2.80-2.85,MARK F

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-12020iAE92,EE9#..MTM198705-199104

main33362-12040iAE92..5F199104-199308

main33362-20020iAE95..5F198710-199007

main33362-20021iAE95..5F199007-199008

main33362-32010iCE90198705-199004

main33362-32020iCE90199004-199205

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-27046iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

T=2.30-2.35,MARK 0; T=2.30-2.35,MARK 0,VENEZUELA SPEC

main90520-27047iAE92,EE9#..MTM..(GL,STD,XL)198808-198905

T=2.36-2.41,MARK 1

main90520-27048iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

T=2.42-2.47,MARK 2; T=2.42-2.47,MARK 2,VENEZUELA SPEC

main90520-27049iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

T=2.48-2.53,MARK 3; T=2.48-2.53,MARK 3,VENEZUELA SPEC

main90520-27050iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

T=2.54-2.59,MARK 4; T=2.54-2.59,MARK 4,VENEZUELA SPEC

main90520-27051iAE92,EE9#..MTM199104-199308

T=2.60-2.65,MARK 5

main90520-30002iCE90198705-199106

T=1.95-1.99,MARK 1

main90520-30003iCE90198705-199106

T=2.00-2.04,MARK 2

main90520-30004iCE90198705-199106

T=2.05-2.09,MARK 3

main90520-30005iCE90198705-199106

T=2.10-2.14,MARK 4

main90520-30006iCE90198705-199106

T=2.15-2.19,MARK 5

main90520-30007iCE90198705-199106

T=2.20-2.24,MARK 6

main90520-34003iAE95..5F198710-199008

T=2.30-2.35,MARK H

main90520-34004iAE95..5F198710-199008

T=2.35-2.40,MARK J

main90520-34005iAE95..5F198710-199008

T=2.40-2.45,MARK K

main90520-34006iAE95..5F198710-199008

T=2.45-2.50,MARK L

main90520-34007iAE95..5F198710-199008

T=2.50-2.55,MARK M

main90520-34008iAE95..5F198710-199008

T=2.55-2.60,MARK N

main90520-34009iAE95..5F198710-199008

T=2.60-2.65,MARK P

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-12010iAE92,EE9#..MTM198705-198908

main33364-12011iAE92,EE9#..MTM198908-199008

main33364-20023iAE95..5F198710-199001

main33364-20024iAE95..5F199001-199008

main33364-32011iCE90198705-199105

main33364-32012iCE90199105-199106

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-12021×3iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

VENEZUELA SPEC

main33365-12030×3iAE95..5F198710-199008

main33365-12050×3iAE92..GT..SA;AE92..RHD..(LB,SED)..5F..(GL,XL); AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN199104-199106

VENEZUELA SPEC

main33365-12051×3iAE92..5F199112-199308

main33365-32010×3iCE90198705-199004

main33365-32020×3iCE90199004-199106

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-12020×3iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

VENEZUELA SPEC

main33366-12040×3iAE92..GT..SA;AE92..RHD..(LB,SED)..5F..(GL,XL); AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN199104-199106

VENEZUELA SPEC

main33366-12041×3iAE92..5F199112-199308

main33366-20021×3iAE95..5F198710-199008

main33366-32010×3iCE90198705-199004

main33366-32020×3iCE90199004-199106

33367RING, SYNCHRONIZER, NO.1

main33367-12031×2iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

VENEZUELA SPEC

main33367-12050iAE92..5F199104-199308

1ST GEAR SIDE

main33367-12060iAE92..5F..(GL,SE,STD,XL)199104-199308

2ND GEAR SIDE

main33367-12070iEE9#..MTM199104-199308

1ST GEAR SIDE

main33367-12080iEE9#..MTM199104-199308

2ND GEAR SIDE

main33367-12090iAE92..GT199104-199308

2ND GEAR SIDE

main33367-20030×2iAE95..5F198710-198803

main33367-20040iAE95..5F198803-199008

1ST GEAR SIDE

main33367-20050iAE95..5F198803-199008

2ND GEAR SIDE

main33367-32020×2iCE90199004-199106

main33368-32010×2iCE90198705-199004

33368RING, SYNCHRONIZER, NO.2

main33367-32010×2iCE90198705-199004

main33368-12020×2iAE92,EE9#..MTM198705-198908

main33368-12050iAE92..GT199106-199308

4TH GEAR SIDE

main33368-12060×2iEE9#..MTM199104-199308

main33368-12070iAE92..GT..SA199104-199106

3RD GEAR SIDE

main33368-12071iAE92..GT199202-199308

3RD GEAR SIDE

main33368-20030×2iAE95..5F198710-199008

main33368-32020×2iCE90199004-199106

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-12020×2iAE92,EE9#..MTM..(GL,STD,XL)198808-198905

main33371-12040×3iAE92..5F199104-199308

main33371-20010×2iCE90198705-199004

main33371-20020×2iAE95..5F198710-199008

main33371-32020×2iCE90199004-199106

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-32011×2iCE90198705-199004

main33391-12020×2iAE92,EE9#..MTM198905-198908

main33391-12040×3iAE92..5F199104-199308

main33391-20010×2iAE95..5F198710-199008

main33391-32010×2iCE90199004-199106

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-10030iEE90..(LB,SED)..MTM198705-199308

main33402-12021iEE90..WG;AE92,EE97..MTM198705-198808

main33402-12031iAE95..5F198710-199008

main33402-12040iEE90..WG;AE92,EE97..MTM199104-199308

main33402-32010iCE90198705-199004

main33402-32020iCE90199004-199205

33422BGEAR, 4TH DRIVEN

main33422-12010iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

VENEZUELA SPEC

main33422-12030iAE95..SED198710-198908

main33422-12040iAE95..WG..5F198802-199008

main33422-12050iAE92,EE9#..MTM199104-199308

main33422-32011iCE90198705-199005

main33422-32040iCE90199005-199106

33423AGEAR, 3RD DRIVEN

main33423-10011iEE90..(LB,SED)..MTM198705-199308

main33423-12010iEE90..WG;AE92,EE97..MTM199104-199308

main33423-12030iAE95..5F198710-199008

main33423-32010iCE90198705-199005

main33423-32030iCE90199005-199106

33431BSPACER, OUTPUT SHAFT

main33431-12020iEE9#..4F198705-199308

33431CSPACER, OUTPUT GEAR

main33431-12010iAE92,EE9#..MTM198905-198908

main33431-20080iAE95..5F198710-199008

main33431-32010iCE90198705-199005

main33431-32020iCE90199005-199106

33451SHAFT, REVERSE IDLER GEAR

main33451-10021iEE90..(LB,SED)..MTM198705-199308

main33451-12021iEE9#..WG;AE92..5F..(GL,STD,XL)198808-198905

main33451-12031iAE95..5F198710-199004

main33451-12032iAE95..5F199004-199008

main33451-32010iCE90198705-199106

33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)

main90105-08041iCE90198705-199106

main90105-08150iAE95..5F198710-199008

main90109-08097iAE92,EE9#..MTM; AE92..LHD..LB..5F;AE92..LHD..5F..(STD,XL)..GEN198908-199104

VENEZUELA SPEC

33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)

main90430-08006iAE92,CE90,EE9#..MTM198705-198710

main90430-08010iAE9#,CE90,EE9#..MTM198905-198908

33462WASHER, REVERSE IDLER THRUST

main33462-12010iAE92,EE9#..MTM198905-198908

main33462-20050iAE95..5F198710-199008

main33462-32010iCE90199004-199106

9161160812

main91611-60812

50 parts on this diagram · 6 diagrams in section
