Toyota COROLLA SED/LB/WG151 — AIR CLEANER

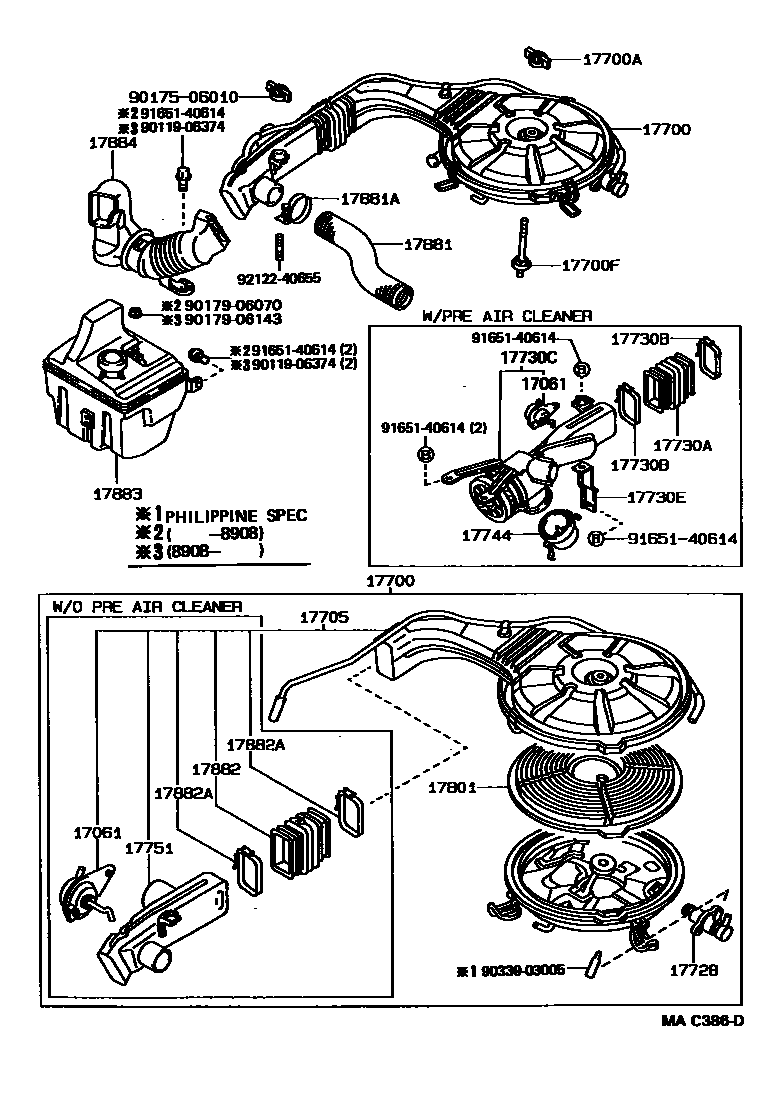

Parts diagram

17061DIAPHRAGM SUB-ASSY

17700ANUT, WING(FOR AIR CLEANER)

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

17705CAP SUB-ASSY, AIR CLEANER

17728VALVE, THERMOSTATIC

17730PRECLEANER ASSY, AIR W/HOSE

17730AHOSE, PRECLEANER

17730BCLAMP, HOSE(FOR PRECLEANER HOSE)

17730CCASE, PRECLEANER

17730EBRACKET, PRECLEANER, NO.1

17744CUP, PRECLEANER

17751INLET, AIR CLEANER, NO.1

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

17881HOSE, AIR CLEANER, NO.1

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

17882HOSE, AIR CLEANER, NO.2

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

17883HOSE, AIR CLEANER, NO.3

17884HOSE, AIR CLEANER, NO.4

9011906374

9017506010

9017906070

9017906143

9033903005

9165140614

9212240655

27 parts on this diagram · 10 diagrams in section

AIR CLEANER for Toyota COROLLA SED/LB/WG151

This section contains 52 genuine Toyota parts for the AIR CLEANER system of the Toyota COROLLA SED/LB/WG151. Key components include: VENTILATION HOSE, DIAPHRAGM SUB-ASSY, VACUUM PIPING, CLEANER ASSY, AIR, NUT, WING(FOR AIR CLEANER).
