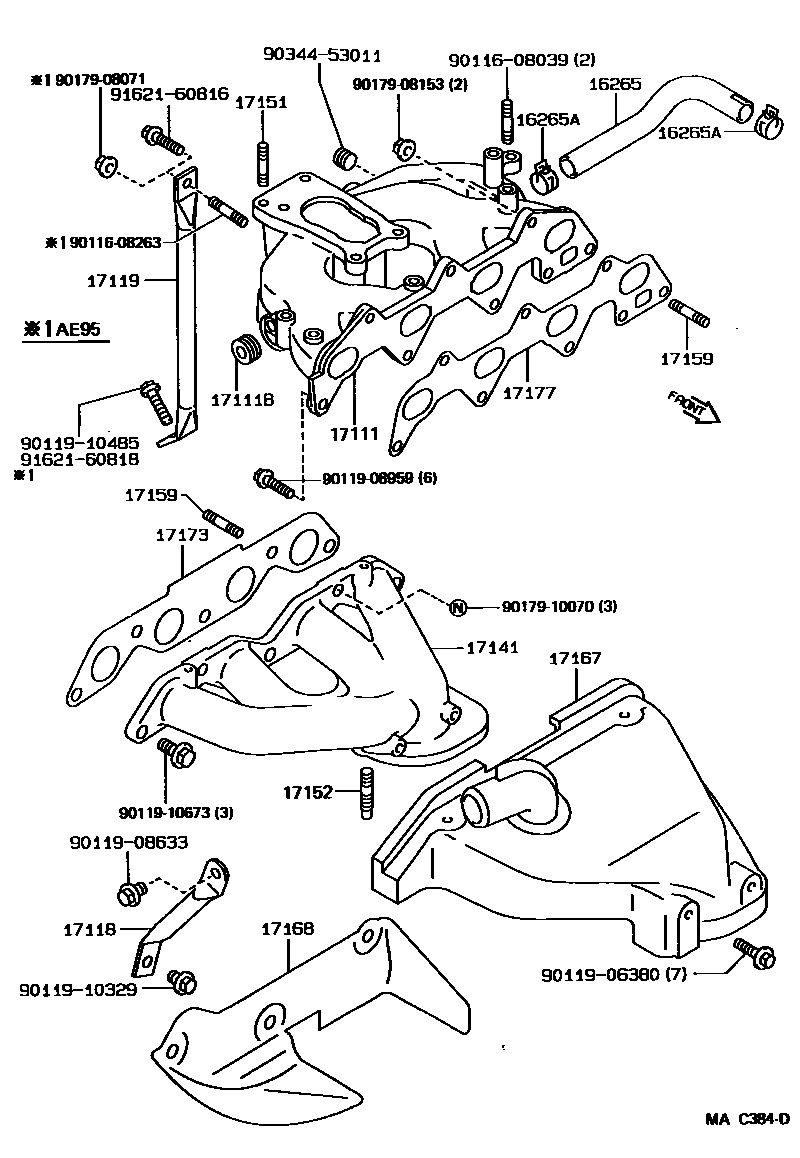

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16265HOSE, INTAKE MANIFOLD WATER

main16265-11010i2E..EE9#198705-199308

main16265-15020i4AF..AE9#198705-199308

16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)

main90467-21001i2E..EE9#198705-199308

sub90467-21006

main90467-21006i4AF..AE92198711-199308

17111MANIFOLD, INTAKE

main17101-10060i2E..EE9#198705-199207

main17101-11110i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main17101-11210i2E..EE90..SA198912-199308

main17101-11210i2E..EE90..RHD..5F..XL..GEN198908-199205

NEW ZEALAND SPEC

main17101-16080i4AF..AE92198705-199308

main17101-16130i4AGE..AE92198705-198908

main17101-16160i4AFE..AE95198802-199008

main17101-16210i4AGE..AE92198908-199308

main17111-64090i1C..CE90198705-198908

main17111-64150i1C..CE90198908-199205

17111BPLUG, NO.2

main90344-54003i4AF..AE9#198705-199308

17118STAY, MANIFOLD

main17118-11130i2E..EE90..RHD..5F..XL..GEN198909-199205

NEW ZEALAND SPEC

main17118-11130i2E..EE90..SA198912-199308

main17118-16050i4AF..AE92..3FC,5F;4AF..AE92..SE..SA198705-199308

main17118-16070i4AFE..AE95;4AF..AE92..4FC..GEN198802-199008

sub17118-16071

sub90119-10329

main17118-16071i4AF..AE92..4FC..GEN199008-199205

main17139-16040i4AGE..AE92198705-199308

17119STAY, MANIFOLD, NO.2

main17118-16040i4AGE..AE92198705-199308

main17139-15020i4AF..AE92198705-199308

main17139-16020i4AF..AE95198710-199009

main17139-16050i4AFE..AE95198802-199009

17141MANIFOLD, EXHAUST

main17141-11040i2E..EE9#198705-198906

sub17141-11041

main17141-11041i2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC198906-199308

main17141-16180i4AGE..AE92198705-198908

sub17141-16260

main17141-16200i4AF..AE9#198705-199308

main17141-16220i4AFE..AE95198802-198810

sub17141-16221

sub90119-06817

main17141-16250i4AFE..AE95198810-199008

sub17141-19015

main17141-16260i4AGE..AE92198908-199308

main17141-64100i1C..CE90198705-198906

sub17141-64101

sub17173-64060

main17141-64101i1C..CE90198906-199205

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main90116-08204i2E..EE90..RHD..GEN198705-198908

NEW ZEALAND SPEC

main92112-40832i4AF..AE9#198705-198808

main92112-60832i4AF..AE92198808-199308

main92122-40828i2E..EE9#198705-199308

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017i2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC198705-199308

main90116-10058i4AGE..AE92198705-199205

main90116-10146i4AF..AE92198805-199308

main90126-10003i4AGE..AE92199012-199104

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08218i4AGE..AE92198705-198908

INTAKE MANIFOLD

main90116-08317i4AGE..AE92..SA198908-199308

INTAKE MANIFOLD

main90116-08317i4AGE..AE92..GEN198911-199308

INTAKE MANIFOLD SIDE

main90116-10037i4AGE..AE92..SA;4AGE..AE92..GTI198705-199308

EXHAUST MANIFOLD

main90116-10095i1C..CE90198905-199002

main90116-10095i1C..CE90198705-199205

EXHAUST MANIFOLD

main92112-60825i4AF..AE92198705-199308

INTAKE MANIFOLD

main92112-61028i4AF..AE92198907-199308

EXHAUST MANIFOLD

main92112-61032i4AF#..AE9#198705-198907

EXHAUST MANIFOLD

main92122-60820i1C..CE90198705-199205

INTAKE MANIFOLD

main92122-61028i2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC198705-199308

EXHAUST MANIFOLD

main92132-60825i2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC198705-199308

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17107-11030i2E..EE90..RHD..5F..XL..GEN198705-199205

NEW ZEALAND SPEC

main17107-11030i2E..EE90..SA198912-199308

main17107-11090i2E..EE97;2E..EE90..3FC..GEN;2E..EE90..LHD..MTM..GEN198705-198908

NEW ZEALAND SPEC OR W(HOT AIR INTAKE)

main17107-11090i2E..EE97;2E..EE90..3FC..GEN;2E..EE90..LHD..MTM..GEN198705-199205

W(HOT AIR INTAKE)

main17107-11090i2E..EE90..SA198908-198912

main17107-16070i4AF..AE9#..GEN198705-199206

W(HOT AIR INTAKE)

sub17107-16071

main17107-16070i4AF..AE92..SA198910-199206

sub17107-16071

main17107-16071i4AF..AE92..SA199206-199308

main17167-11040i2E..EE9#..GCC,GEN198705-199207

main17167-16050i4AGE..AE92198705-199308

main17167-16090i4AF..AE9#198705-199206

sub17167-16150

main17167-16100i4AFE..AE95198802-199008

sub17167-15060

main17167-16150i4AF..AE92..GCC199206-199207

main17167-64031i1C..CE90198705-199205

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-10011i2E..EE9#198705-199308

main17168-16050i4AF..AE92198705-199308

sub17168-16080

main17168-16060i4AGE..AE92198705-199308

main17168-16070i4AFE..AE95198802-199008

sub17168-16071

main17168-64050i1C..CE90198705-199205

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-10020i2E..EE9#198705-198912

sub17173-10021

main17173-10021i2E..EE9#198912-199308

main17173-15010i4AF#..AE9#198705-198912

sub17173-15011

main17173-15011i4AF..AE92..GEN,SA198912-199308

main17173-15040i4AF..AE92..GCC199107-199207

main17173-16010i4AGE..AE92198705-198905

sub17173-16011

main17173-16011i4AGE..AE92198905-199308

main17173-64020i1C..CE90198705-198906

sub17173-64050

main17173-64060i1C..CE90198906-199205

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-15020i4AFE..AE95198802-198912

sub17171-15021

main17171-15021i4AFE..AE95198912-199008

main17171-16030i4AF..AE9#198705-198912

sub17171-16031

main17171-16031i4AF..AE92198912-199308

main17171-16040i4AGE..AE92..GEN198908-199205

main17177-10010i2E..EE9#198705-198912

sub17177-10011

main17177-10011i2E..EE9#198912-199104

sub17177-10020

main17177-10020i2E..EE9#199104-199308

main17177-16012i4AGE..AE92198705-198908

main17177-64010i1C..CE90198705-198903

sub17177-64020

main17177-64020i1C..CE90198903-199205

9011608039

main90116-08039

9011608263

main90116-08263

9011906380

main90119-06380

9011908633

main90119-08633

9011908959

main90119-08959

9011910329

main90119-10329

9011910485

main90119-10485

9011910673

main90119-10673

9017908071

main90179-08071

9017908153

main90179-08153

9017910070

main90179-10070

9034453011

main90344-53011

9162160816

main91621-60816

9162160818

main91621-60818

28 parts on this diagram · 6 diagrams in section
