MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-11050i2E..EE90..3FC198705-199207

main12311-11060i2E..EE9#..MTM198705-199006

main12311-16040i4AF,4AGE..AE92198705-199308

main12311-16050i4AF#..AE95198710-199009

main12311-64090i1C..CE90198705-199205

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-11020i2E..EE90..SA198908-199308

main12315-11030i2E..EE9#..GCC,GEN198908-199006

main12315-15070i4AF..AE92199008-199308

main12315-16040i4AGE..AE92198705-199308

main12315-64040i1C..CE90198705-198905

main12315-64050i1C..CE90198905-199205

12317STAY, ENGINE MOUNTING, RH

main12317-11010i2E..EE90..SA198908-199308

main12317-11030i2E..EE9#..MTM..(GCC,GEN)198908-199006

main12317-15010i4AF#..AE9#198705-198908

main12317-15020i4AF#..AE9#..ARL,GCC,GEN198908-199207

main12317-16010i4AGE..AE92198705-199308

12318STAY, ENGINE MOUNTING, LH

main12318-11010i2E..EE90..(LB,SED)..MTM198705-198908

main12318-11020i2E..EE90..3FC198705-199207

main12318-15010i4AF..AE92..3FC198705-199308

main12318-16010i2E..EE9#..WG; 4AF,4AGE..AE92..5F198911-199006

main12318-16040i4AF#..AE9#..4FC198802-199308

main12318-16070i4AF#..AE95..5F198710-199009

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-11060i2E..EE90..5F..GCC;2E..EE9#..MTM..(GEN,SA)199006-199308

main12321-15050i4AF,4AGE..AE92..5F198705-199308

main12321-15060i2E..EE90..3FC; 4AF..AE92..3FC198705-199308

main12321-15070i4AF..AE92..4FC198808-199308

main12321-16090i4AF#..AE95..5F198710-199009

main12321-16100i4AFE..AE95..4FC198802-199009

main12321-64140i1C..CE90198705-199205

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11050i2E..EE90..SED..5F..GCC;2E..EE90..MTM..(GEN,SA)199006-199308

main12325-15050i2E..EE90..3FC; 4AF..AE92..3FC198705-199308

main12325-16060i2E..EE97;2E..EE90..WG..5F; 4AF,4AGE..AE92..5F199006-199308

main12325-16070i4AF..AE92..4FC198808-199308

main12325-16080i4AF#..AE95..5F198710-199009

main12325-16090i4AFE..AE95..4FC198802-199009

main12325-64010i1C..CE90198705-199205

12329SUPPORT, ENGINE MOUNTING STAY

main12329-11010i2E..EE90..RHD..3FC198802-198908

NEW ZEALAND SPEC

main12329-15010i4AF#..AE9#198705-199308

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-16040i2E..EE9#..MTM; 4AF,4AGE..AE92..5F198705-199006

main12361-16090i2E..EE90..3FC; 4AF..AE92..ATM198705-199308

main12361-16110i4AF#..AE95..5F198710-199009

main12361-16120i4AFE..AE95..4FC198802-199009

main12361-64130i1C..CE90198705-199205

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-11070i2E..EE90..SA198908-199308

main12362-11100i2E..EE9#..GEN;2E..EE90..(3FC,5F)..GCC199006-199207

main12362-15130i4AF..AE92198705-198908

main12362-15160×2i4AF..AE92..GCC,GEN198908-199207

main12362-16070i4AGE..AE92198705-198908

main12362-16120i4AF#..AE95198710-198908

main12362-16141i4AF#..AE95198908-199009

main12362-16150i4AGE..AE92198908-199308

main12362-64060i1C..CE90198705-198908

main12362-64120i1C..CE90198908-199205

12363INSULATOR, ENGINE MOUNTING, CENTER

main12363-11010i2E..EE9#198705-199006

main12363-15010i4AF..AE92..ATM198705-199308

main12363-15020i4AF,4AGE..AE92..5F198705-199308

main12363-64020i1C..CE90198705-198908

main12363-64030i1C..CE90198908-199205

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11210i2E..EE9#..MTM198705-199006

main12371-15200×2i4AF,4AGE..AE92..5F198705-198908

main12371-15230i2E..EE90..3FC; 4AF..AE92..3FC198705-199308

main12371-16120i4AF#..AE95..5F198710-199009

main12371-16130i4AFE..AE95..4FC198802-199009

main12371-16190i4AF,4AGE..AE92..5F198908-199308

main12371-64120i1C..CE90198705-199205

main12371-64141i4AF..AE92..4FC198808-199308

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-15110i2E..EE9#; 4AF..AE92..3FC,5F198705-199006

main12372-15130i4AF..AE92..4FC198808-199308

main12372-16060i4AGE..AE92198705-199308

main12372-16130i4AFE..AE95..4FC198802-199009

main12372-16150i4AF#..AE95..5F198710-199009

main12372-64080i1C..CE90198705-198908

main12372-64100i1C..CE90198908-199205

12511BRACKET, ALTERNATOR, NO.1

main12511-11010i2E..EE9#198705-198908

main12511-11020i2E..EE9#..GEN,SA;2E..EE90..(3FC,5F)..GCC199006-199308

main12511-15040i4AF#..AE9#198705-199008

main12511-16030i4AGE..AE92198705-199308

main12511-64020i1C..CE90198705-199205

12511ABUSH, ALTERNATOR BRACKET

main90387-10013i4AF#..AE9#198712-199008

9010508040

main90105-08040

9010508100

main90105-08100

9010510065

main90105-10065

9010510069

main90105-10069

9010510143

main90105-10143

9010510193

main90105-10193

9010510213

main90105-10213

9010510215

main90105-10215

9010510227

main90105-10227

9010510328

main90105-10328

9010512153

main90105-12153

9010512155

main90105-12155

9010910115

main90109-10115

9011610143

main90116-10143

9011910499

main90119-10499

9011910592

main90119-10592

9017910041

main90179-10041

9017910098

main90179-10098

9017910108

main90179-10108

9017910109

main90179-10109

9017910114

main90179-10114

9017910115

main90179-10115

9017912016

main90179-12016

9017912069

main90179-12069

9161161018

main91611-61018

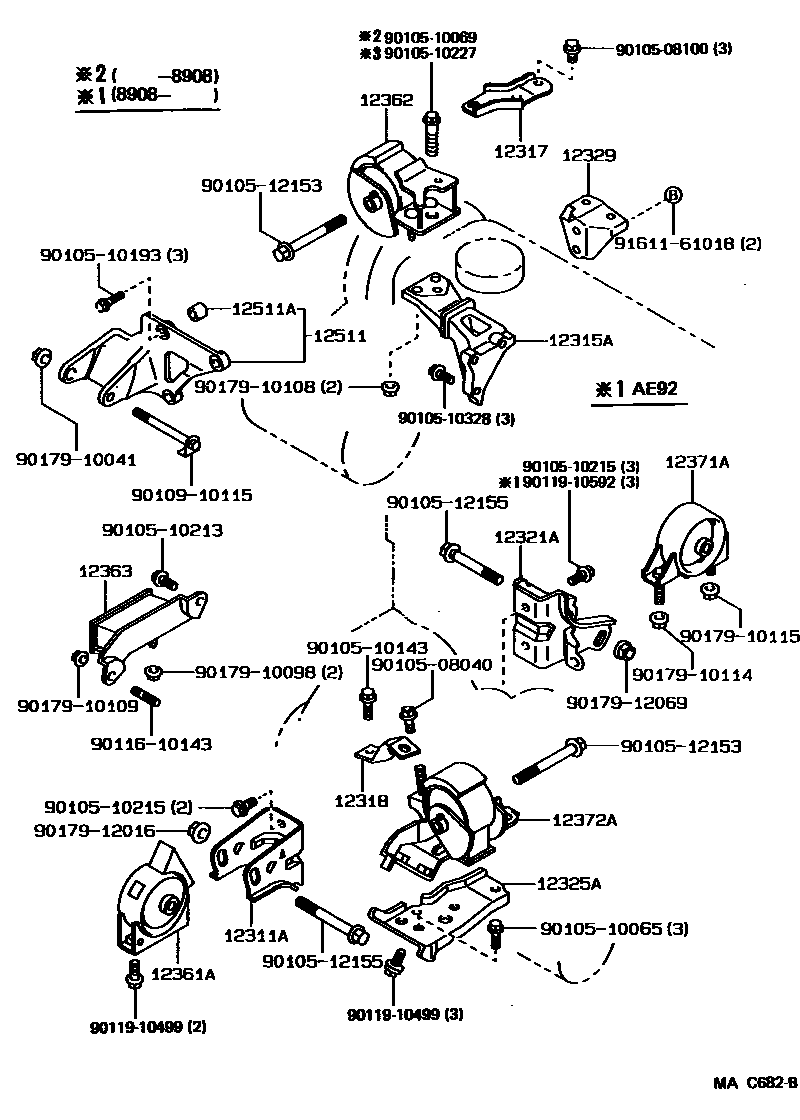

39 parts on this diagram · 7 diagrams in section
