HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0005 1

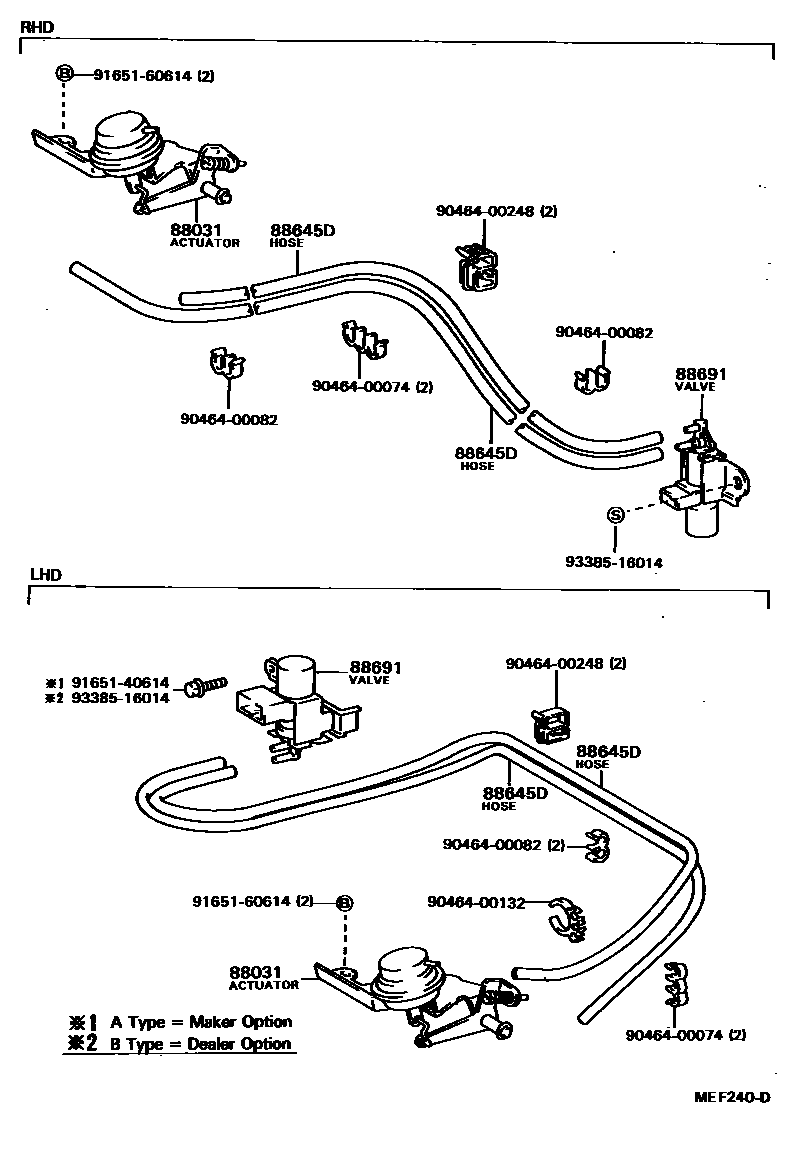

88031ACTUATOR SET, IDLE-UP

main88031-10010iEE80..GEN,SA,SAA198410-198804

main88031-10020iEE80..LHD..EUR198410-198704

FRENCH TERRITORY SPEC

main88031-12150iCE80..LHD..EUG; CE80..XL198308-198704

HEATER IDLE UP

main88031-12160iAE8#..ARL198411-198511

main88031-12170iAE80;AE82..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL198511-198807

main88031-16020iAE8#..(DX,GL,SE,STD,XL)..(GEN,SA,SAA)198305-198804

main88031-30070iCE80..LHD..EUG198404-198505

FRENCH TERRITORY SPEC

88645DHOSE (FOR IDLE UP DEVICE)

main90445-08163iAE8#..RHD..(DX,GL,STD,XL)..(GEN,SA)198305-198505

L=1200

main90445-08194iAE82..(DX,GL)..SA198505-198605

*H,L=1200

main90445-08205iAE8#..RHD..(DX,GL,STD,XL)..(GEN,SA)198305-198505

L=1150

main90445-08207iAE82..(DX,GL)..SA198505-198605

L=1450(*H,L=1150)

main95411-10030iAE8#..(4DS,5D,5DS)..LHD..(GEN,SAA)198305-198707

*H,L=40,MARK=#0

main95411-10060iCE80..GEN198305-198704

*H,L=390,MARK=#0

main95411-10095iEE80..SA198605-198804

*H,L=900,MARK=#0

main95411-19930iAE8#..CS,CSX,S198411-198605

*H,L=80,MARK=#*

main95411-19960iAE8#..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL198605-198807

*H,L=360,MARK=#*

main95411-19995iAE82..RHD..(GL,XL)..GEN; EE80..LHD..GEN; EE80..RHD..GEN198505-198704

*H,L=700,MARK=#*; *H,L=850,MARK=#*,B TYPE; *H,L=950,MARK=#*

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-12280iEE80..LHD..EUG198410-198505

FRENCH TERRITORY SPEC

main88690-12281iEE80..LHD..EUR198505-198704

FRENCH TERRITORY SPEC

main88690-12370iAE80..ARL;AE82..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL198411-198807

main88691-12080iAE82..RHD..GT..(ARL,GEN,SA)198410-198807

main88691-12090iAE82..LHD..GT..GEN198410-198704

main88691-30430iAE8#,EE80..RHD..(DX,GL,STD,XL)..(GEN,SA)198305-198505

main88691-90K02iAE82,EE80..(DX,GL,SE,STD)..SA198605-198804

9046400074

main90464-00074

9046400082

main90464-00082

9046400132

main90464-00132

9046400248

main90464-00248

9046480882

main90464-80882

9165140614

main91651-40614

9165160614

main91651-60614

9338516014

main93385-16014
