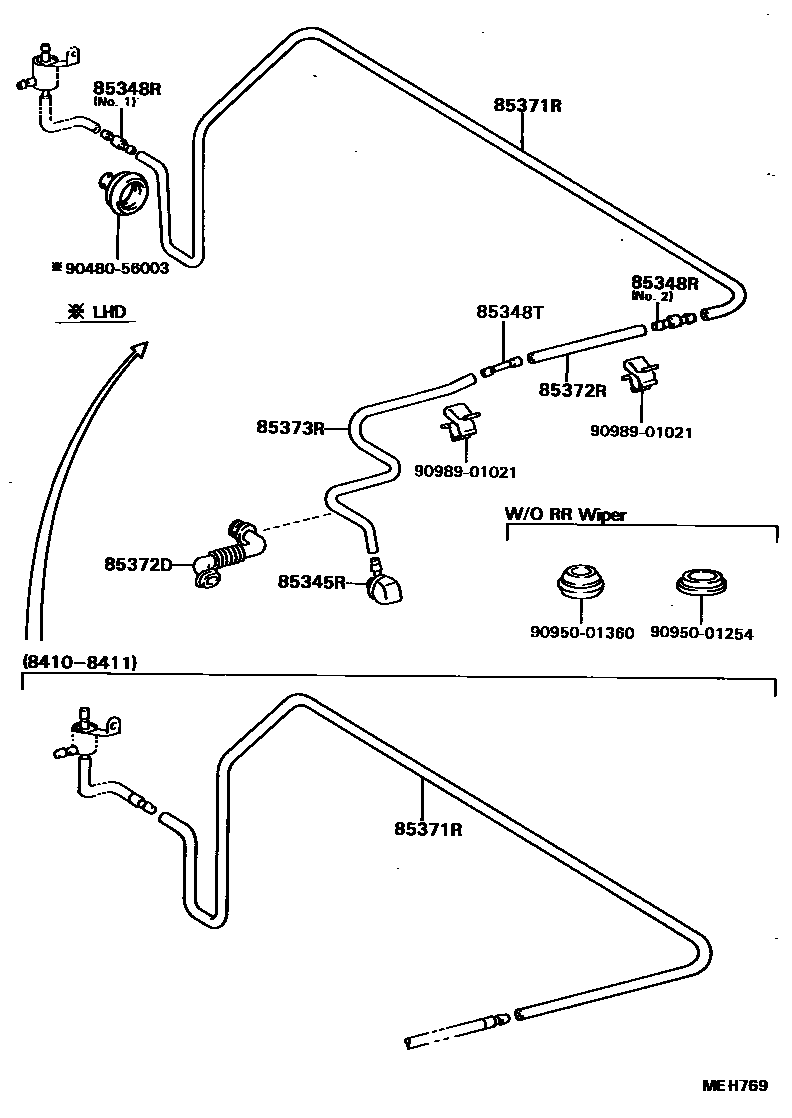

REAR WASHER

0001 1 0002 1

85345RNOZZLE, REAR WASHER

main85035-12160iAE8#,CE80,EE80..(3DS,5D,5DS)..(EUR,GEN,SAA)198305-198707

85348RJOINT, REAR WASHER HOSE, NO.1

main85031-12250iAE82,CE80,EE80..5D198508-198807

NO.1

main85349-89122iAE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)198411-198704

NO.2

85348TJOINT, REAR WASHER HOSE, NO.2

main85355-20080iAE8#,CE80,EE80..(3DS,5D,5DS)..(EUR,GEN,SAA)198305-198707

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33445iAE8#,CE80,EE80..3DS,5DS198410-198411

L=3300(*H,L=3150)

main90099-33490iAE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)198411-198704

L=3050

main90446-07001iAE8#,CE80,EE80..5D198305-198807

L=1450(*H,L=600)

85372DGROMMET, REAR WASHER HOSE

main85372-14020iAE8#,CE80,EE80..(3DS,5D,5DS)..(EUR,GEN,SAA)198305-198707

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33299iAE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)198411-198704

L=1450(*H,L=100)

main90099-33409iAE8#,CE80,EE80..5D198305-198807

L=2420

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAE8#,CE80,EE80..(3DS,5D,5DS)..(EUR,GEN,SAA)198408-198707

L=1000(*H,L=400)

main90099-33299iAE8#,CE80..5D198305-198408

L=1000(*H,L=400)

9048056003

main90480-56003

9095001254

main90950-01254

9095001360

main90950-01360

9098901021

main90989-01021

11 parts on this diagram · 2 diagrams in section
