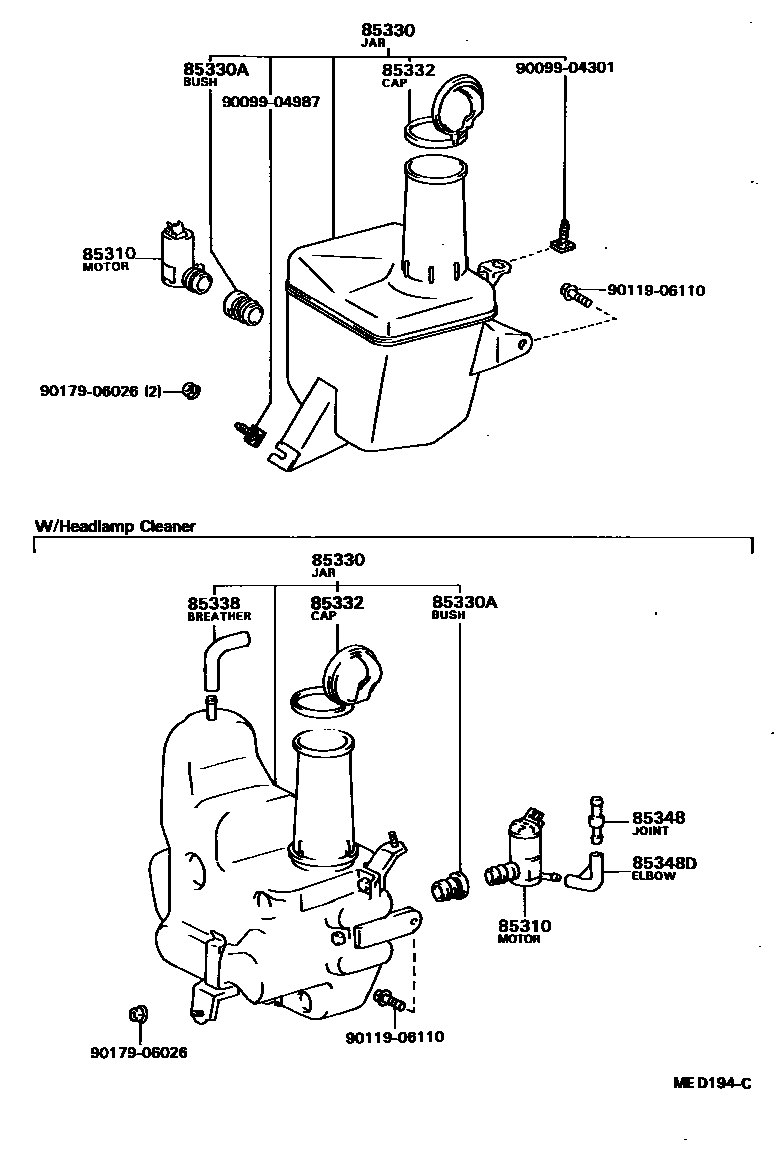

WINDSHIELD WASHER

0001 1 0002 1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-12150iAE82,CE80,EE80..EUR198505-198704

sub85310-89114

main85310-22080iAE8#,CE80,EE80198305-198807

85330JAR ASSY, WINDSHIELD WASHER

main85331-12240iAE8#,CE80,EE80..LHD..EUR198305-198704

W/HEADLAMP CLEANER

main85331-20430iAE8#,CE80,EE80..(DX,GL,STD,XL)..(GEN,SAA)198305-198707

1.5 LITTER

main85331-20430iAE8#,EE80..SED..SA198402-198804

1.5LITTER

main85331-20440iAE8#..ARL198305-198807

2.5 LITTER

main85331-20440iAE8#,EE80..(3DS,5D,5DS)..(GEN,SA,SAA)198305-198804

2.5 LITTER,W/RR WIPER

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198807

85332CAP, WINDSHIELD WASHER JAR

main85332-20430iAE8#,CE80..GEN,SAA198305-198406

1.5 LITTER

sub85332-20431

main85332-20431iAE8#,CE80,EE80..(DX,GL,STD,XL)..(GEN,SAA)198406-198804

1.5 LITTER

main85332-20440iAE8#,CE80..LHD..EUR198305-198406

W/HEADLAMP CLEANER

main85332-20440iAE8#,CE80..LHD..EUR198305-198406

2.5 LITTER

main85332-20440iAE8#,CE80..LHD..EUR198305-198406

2.5 LITTER,W/RR WIPER

main85332-20441iAE8#..ARL198406-198807

2.5 LITTER

main85332-20441iAE8#,CE80,EE80..LHD..EUR198406-198704

W/HEADLAMP CLEANER

main85332-20441iAE8#,EE80..(3DS,5D,5DS)..(GEN,SA,SAA)198406-198804

2.5 LITTER,W/RR WIPER

85338HOSE, BREATHER

main85338-12240iAE8#,CE80,EE80..LHD..EUR198305-198704

W/HEADLAMP CLEANER

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198807

3WAY

main85349-89122iAE82,CE80,EE80..EUR198505-198807

2WAY

main85355-87201iAE8#,CE80,EE80..EUR,GEN,SA,SAA198305-198804

2WAY

sub85349-89122

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iAE8#..ARL198305-198807

9009904301

main90099-04301

9009904987

main90099-04987

9011906110

main90119-06110

9017906026

main90179-06026

11 parts on this diagram · 2 diagrams in section
