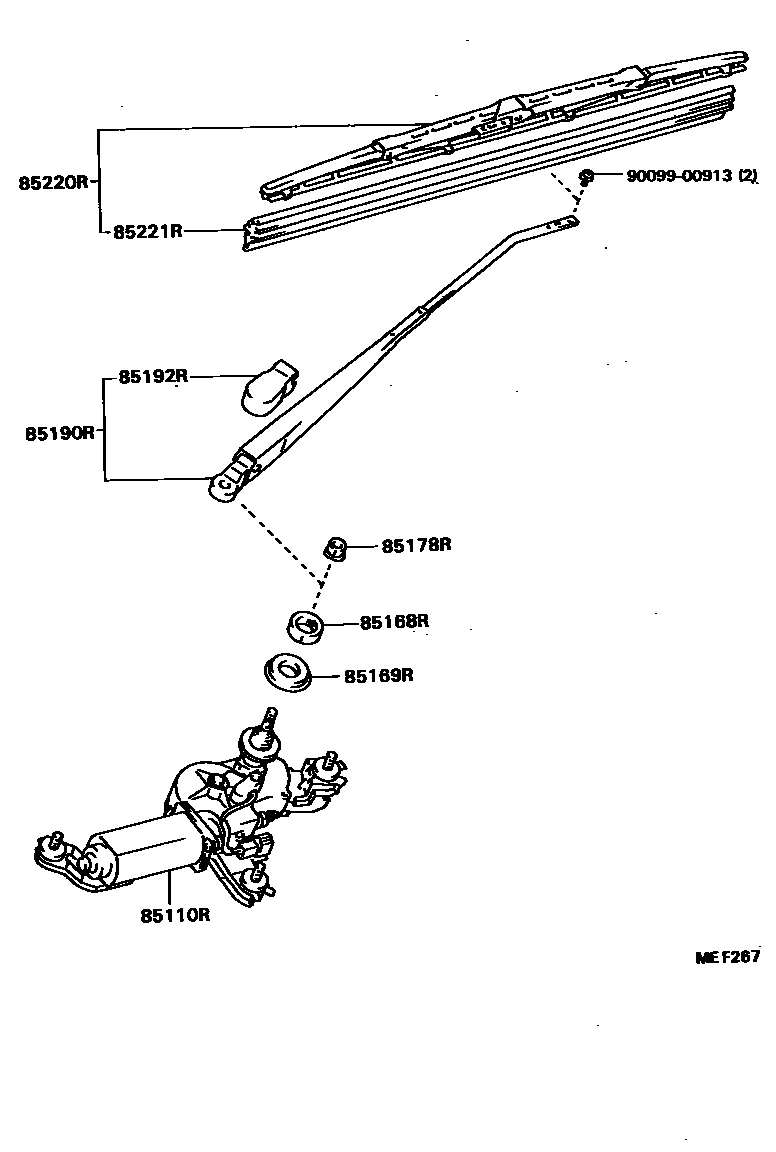

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85110-12400iAE8#,CE80,EE80..5D198305-198605

main85110-12430iEE80..5DS..SA198410-198807

main85110-12530iAE82,CE80,EE80..5D..(EUR,GEN,SAA)198505-198807

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iAE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)198410-198807

main90099-05176iAE8#,CE80..5D198305-198403

sub90179-22012

main90179-22012iAE8#,CE80,EE80..5D198403-198807

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-12400iAE8#,CE80..5D198305-198403

sub90210-28001

main85179-16150iAE8#,CE80,EE80..(3DS,5DS)..(EUR,GEN)198410-198807

main90210-28001iAE8#,CE80,EE80..5D198403-198807

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAE8#,CE80,EE80..(3DS,5D,5DS)..(EUR,GEN,SAA)198305-198807

85190RARM ASSY, REAR WIPER

main85190-12650iAE8#,CE80,EE80..5D198305-198605

sub85190-12770

main85190-12760iAE8#..5DS..RHD..(CS,CSX,DX,GT)198410-198605

main85190-12770iAE82,CE80,EE80..5D..(EUR,GEN,SAA)198505-198807

main85190-12790iAE82,CE80,EE80..(3DS,5DS)..(EUR,GEN)198505-198807

85192RCOVER, REAR WIPER ARM

main85192-14020iAE8#..5DS..RHD..(CS,CSX,DX,GT)198410-198807

sub85192-13060

main85192-32010iAE8#,CE80,EE80..5D198305-198807

85220RBLADE ASSY, REAR WIPER

main85220-16430iAE82..5D..(ARL,SA)198403-198605

sub85242-24010

main85220-16440iAE82,CE80,EE80..5D..(EUR,GEN,SAA)198505-198807

sub85220-16441

main85220-22510iAE8#..5DS..RHD..(CS,CSX,DX,GT)198410-198605

sub85220-22600

main85220-22520iAE82,CE80,EE80..(3DS,5DS)..(EUR,GEN)198505-198807

main85220-32120iAE8#,CE80..5D198305-198403

85221RBLADE, REAR WIPER

main85221-12170iAE8#,EE80..5DS..(CS,CSX,DX,GT,STD)..(ARL,SA)198505-198807

sub85243-10010

main85221-14210iAE8#,CE80,EE80..5D198305-198605

sub85214-24H90

main85221-16080iAE82,CE80,EE80..5D..(EUR,GEN,SAA)198505-198807

main85221-87002iAE8#..5DS..RHD..(CS,CSX,DX,GT)198410-198605

sub85214-12H90

9009900913

main90099-00913

9 parts on this diagram · 2 diagrams in section
