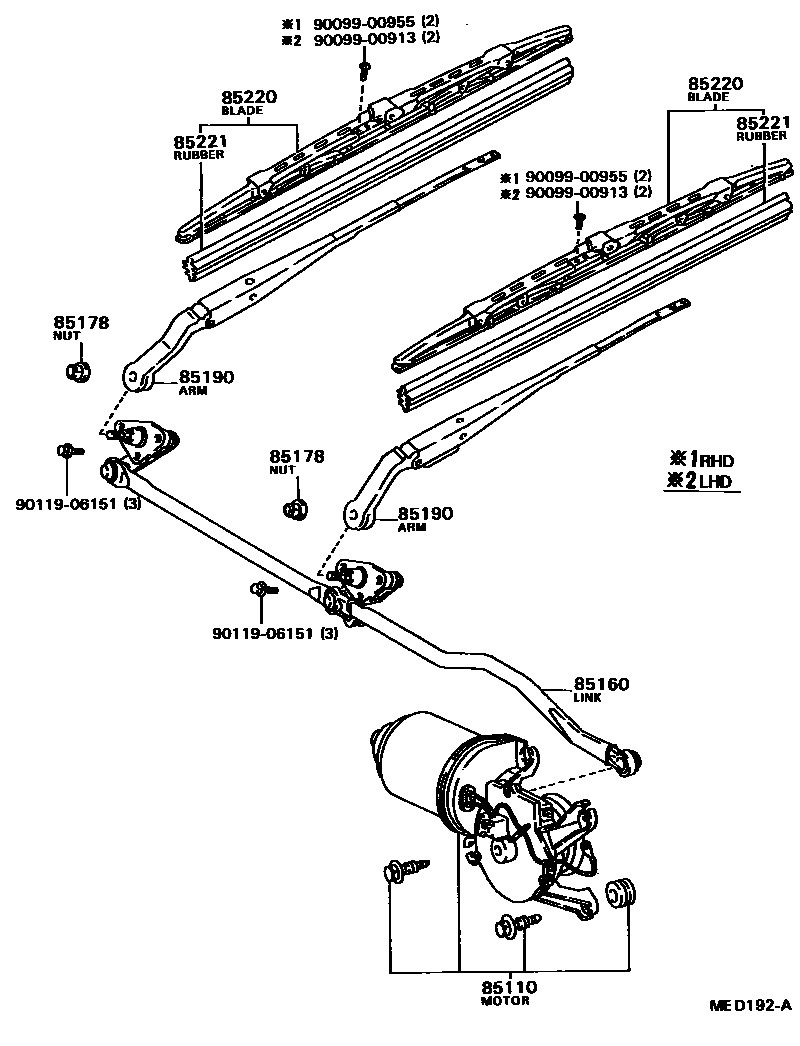

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12350iAE8#,CE80..RHD198305-198408

main85110-12360iAE8#,CE80,EE80..LHD..EUG; AE82..SDZ198305-198505

COLD SPEC; SWEDEN SPEC

main85110-12390iAE8#,CE80,EE80..LHD198305-198504

main85110-12420iAE8#,CE80,EE80..RHD..(EUR,GEN,SA)198408-198505

main85110-12440iAE82,CE80,EE80..RHD..(EUR,GEN)198505-198704

main85110-12510iAE8#,CE80,EE80..LHD198504-198707

main85110-12520iAE82..5D..5F..GL..FRG; AE82..SED..DX..FRG198612-198704

SWEDEN SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85160-12400iAE8#,CE80,EE80..RHD..(EUR,GEN,SA)198305-198804

main85160-12410iAE8#,CE80,EE80..LHD198305-198707

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029×2iAE8#,CE80,EE80198305-198507

main90176-08033×2iAE8#,CE80,EE80198507-198807

85190ARM ASSY, WINDSHIELD WIPER

main85190-12620iAE8#,CE80,EE80..RHD..(GEN,SA)198305-198807

RH

main85190-12630iAE8#,CE80,EE80..LHD..EUR198305-198704

LH

main85190-12640iAE8#,CE80,EE80..LHD..(GEN,SAA)198305-198707

LH

main85190-12690iAE8#,CE80,EE80..RHD..EUG198305-198704

RH

main85210-12160iAE8#,CE80,EE80..RHD..(EUR,GEN,SA)198305-198807

LH

main85210-12170iAE8#,CE80,EE80..LHD198305-198707

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12450iAE8#,CE80,EE80..RHD..(EUR,GEN,SA)198305-198807

LH

main85220-12510iAE8#,CE80,EE80..LHD198305-198707

RH

main85220-16180iAE8#,CE80,EE80..RHD..(EUR,GEN,SA)198305-198807

RH

main85220-16270iAE8#,CE80,EE80..LHD198305-198707

LH

85221BLADE, WINDSHIELD WIPER

main85221-12210iAE8#,CE80,EE80..LHD198308-198707

RH

main85221-12230iAE8#..ARL198605-198807

LH

main85221-17020iAE8#..ARL; AE82,CE80,EE80..RHD..(EUR,GEN,SA)198608-198807

RH

main85221-30100iAE8#,CE80..LHD; AE8#,CE80..RHD198305-198308

LH; RH

main85221-30120iAE8#..ARL198605-198608

RH

9009900913

main90099-00913

9009900955

main90099-00955

9011906151

main90119-06151

9 parts on this diagram · 1 diagram in section
