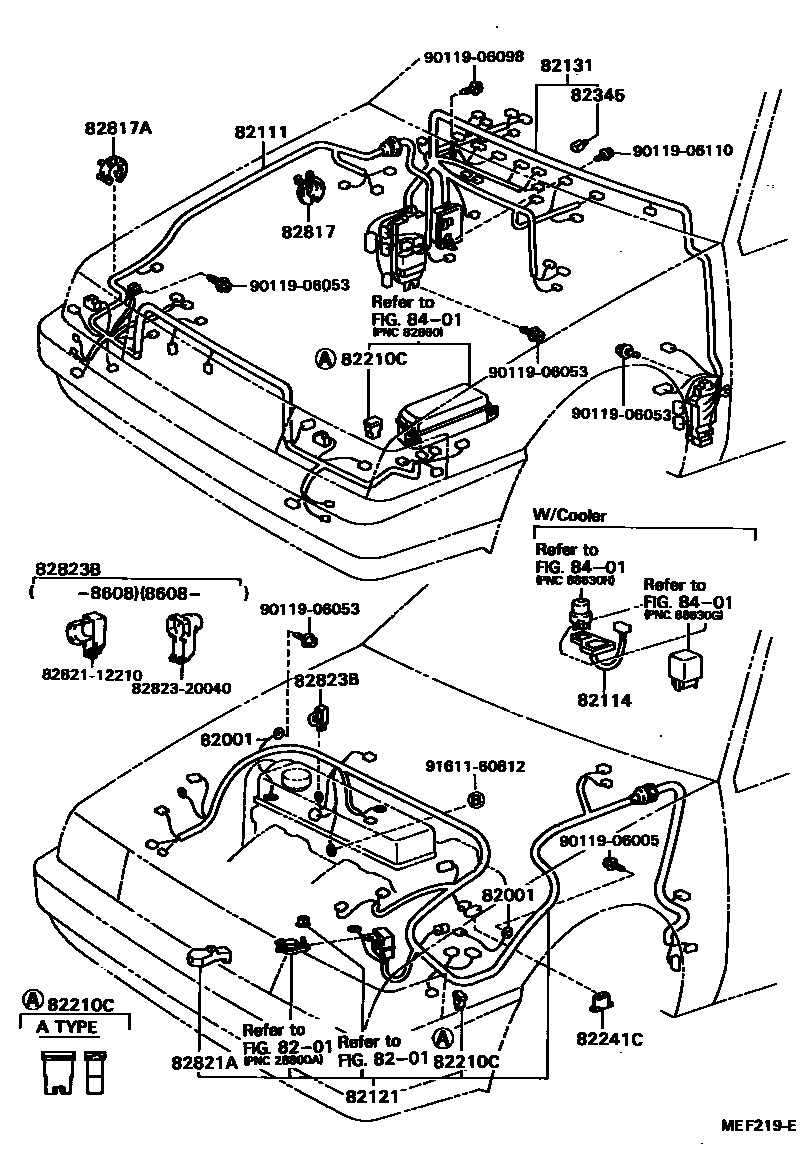

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

82001CABLE, BOND, NO.1

main90980-07206iEE80198410-198807

L=150,FENDER,LH

main90980-07228iAE8#198305-198405

L=170,ENGINE-FENDER,RH

main90980-07235iAE82..GT..(EUR,GEN,SA)198410-198804

L=100,ENGINE-FENDER,RH

main90980-07236iAE8#..(5D,5DS)..(CS,CSX,S);AE82..4DS..(3FC,4F,5F)..ARL198605-198807

L=170,ENGINE-FENDER,RH

main90980-07248iEE80198410-198807

L=260,FENDER,RH

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

82111WIRE, ENGINE ROOM MAIN

main82111-12240iAE8#,CE80..RHD..(GEN,SA)198305-198406

main82111-12241iAE8#,CE80..RHD..GEN198406-198410

main82111-12242iAE8#,CE80..(4DS,5D)..RHD..GEN198410-198505

main82111-12250iAE80,CE80..RHD..EUG198305-198410

main82111-12251iCE80,EE80..RHD..EUG198410-198505

main82111-12290iAE8#,CE80..LHD..EUR198305-198403

main82111-12291iAE8#,CE80..LHD..EUR198403-198410

main82111-12292iAE82,CE80,EE80..LHD..EUR198410-198505

main82111-12300iAE8#,CE80..LHD..(DX,GL)..EUG198305-198403

FRG SPEC

main82111-12301iAE8#,CE80..LHD..(DX,GL)..EUG198403-198410

FRG SPEC

main82111-12302iAE82,CE80,EE80..LHD..(DX,GL,GT)..EUG198410-198504

FRG SPEC

main82111-12303iAE82,CE80,EE80..LHD..(DX,GL,GT)..EUG198504-198505

FRG SPEC

main82111-12310iAE8#,CE80..LHD..(GEN,SAA)198305-198406

main82111-12311iAE8#,CE80..LHD..(GEN,SAA)198406-198410

main82111-12312iAE8#,CE80..(4DS,5D,5DS)..LHD..GEN198410-198505

main82111-12560iAE82..RHD..GT..GEN198410-198505

main82111-12570iAE82..LHD..GT..GEN; EE80..LHD..(GEN,SAA)198410-198505

main82111-12630iEE80..RHD..GEN198410-198505

main82111-12640iAE82..RHD..EUG198410-198505

main82111-12690iAE82..RHD..(GL,XL)..GEN198505-198704

main82111-12700iCE80,EE80..(4DS,5D)..RHD..EUG198505-198704

main82111-12720iAE82..4DS..DX..FRG; AE82..5D..5F..GL..FRG198612-198704

SWEDEN SPEC

main82111-12730iAE82..(4DS,5D)..FRG198508-198704

main82111-12740iAE82,CE80..(4DS,5D)..LHD..GEN198505-198704

main82111-12760iAE82..RHD..GT..GEN198505-198704

main82111-12770iAE82..LHD..GT..GEN198505-198704

main82111-12780iEE80..RHD..GEN198505-198704

main82111-12790iAE82..RHD..EUG198505-198704

main82111-1A070iEE80..(4DS,5D)..LHD..EUR198505-198704

main82111-1A080iEE80..(3DS,5DS)..RHD..EUG198505-198704

main82111-1A090iAE82,CE80..(3DS,5DS)..LHD..EUR198505-198704

main82111-1A100iAE82,CE80,EE80..(3DS,5DS)..LHD..(DX,GL,GT)..EUG198505-198605

FRG SPEC

main82111-1A101iAE82,CE80,EE80..(3DS,5DS)..LHD..(DX,GL,GT)..EUG; AE82..(3DS,5DS)..FRG; EE80..(3DS,5DS)..FRG198605-198704

FRG SPEC

main82111-1A110iEE80..(3DS,5DS)..LHD..EUR198505-198704

main82111-1A490iEE80..(4DS,5D)..RHD..GL..EUG198611-198704

ENGLAND SPEC

main82111-1A500iEE80..3DS..RHD..GL198611-198704

ENGLAND SPEC

main82111-1A510iAE82..RHD..EUG198611-198704

ENGLAND SPEC

82114WIRE, ENGINE ROOM, NO.4

main82114-32010iAE8#,CE80,EE80..ARL,GEN,SA198305-198807

W/COOLER

82121WIRE, ENGINE

main82121-12070iAE82..(DX,GL)..SA198505-198605

BATTERY:32C24L(N40L)

main82121-12080iCE80..DX..GEN198305-198505

main82121-12130iAE80..LHD..(GEN,SAA); AE82..LHD..(GL,XL)..GEN198305-198505

34B19L(NS40ZAL); BATTERY:28B19L(NS40SL)

main82121-12140iCE80..XL198305-198505

main82121-12150iCE80..LHD..EUG198305-198402

main82121-12151iCE80..LHD..EUG198402-198505

main82121-12160iAE80..LHD..EUG198305-198410

BATTERY:32C24L(N40L)

main82121-12170iCE80..RHD..EUG198305-198505

main82121-12280iAE80..RHD..GEN; AE82..RHD..(GL,XL)..GEN198305-198505

34B19L(NS40ZAL); BATTERY:28B19L(NS40SL)

main82121-12290iAE82..(DX,GL)..EUR198305-198505

main82121-12310iAE80..RHD..EUG198305-198402

main82121-12320iAE82..5D..RHD..5F..GL..GEN198605-198704

SINGAPORE SPEC

main82121-12330iEE80..RHD..EUG198410-198505

main82121-12340iEE80..RHD..GEN198410-198505

BATTERY:28B19L(NS40SL)

main82121-12350iEE80..RHD..(GEN,SA)198410-198505

BATTERY:32C24L(N40L)

main82121-12360iEE80..LHD..EUG198410-198505

main82121-12370iEE80..LHD..(GEN,SAA)198410-198505

BATTERY:28B19L(NS40SL)

main82121-12380iEE80..LHD..(GEN,SAA)198410-198505

BATTERY:32C24L(N40L)

main82121-12390iAE82..GT..ARL198511-198605

main82121-12420iAE82..RHD..GT198410-198505

main82121-12440iAE82..LHD..GT198410-198505

main82121-12520iAE82..RHD..(GL,XL)..GEN198505-198704

BATTERY:32C24L(N40L)

main82121-12570iAE82..(4DS,5D)..LHD..GEN198505-198704

BATTERY:34B19L(NS40ZAL)

main82121-12580iCE80..GEN198505-198704

main82121-12590iCE80..LHD..EUG198505-198704

main82121-12600iAE82..(4DS,5D)..LHD..GEN198505-198704

BATTERY:32C24L(N40L)

main82121-12610iCE80..RHD198505-198704

main82121-12620iAE82..RHD..(GL,XL)..GEN198505-198704

BATTERY:34B19L(NS40ZAL)

main82121-12630iAE82..3FC..SDZ198703-198704

main82121-12640iEE80..RHD..EUG198505-198608

main82121-12641iEE80..RHD..EUG198608-198609

main82121-12642iEE80..RHD..3FC..EUG198701-198704

main82121-12650iEE80..RHD..GEN198505-198608

BATTERY:28B19L(NS40SL)

main82121-12651iEE80..RHD..GEN198609-198609

BATTERY:28B19L(NS40SL)

main82121-12652iEE80..RHD..GEN198609-198704

BATTERY:28B19L(NS40SL)

main82121-12660iEE80..RHD..GEN198505-198608

BATTERY:32C24L(N40L)

main82121-12661iEE80..RHD..GEN198608-198609

BATTERY:32C24L(N40L)

main82121-12662iEE80..RHD..GEN198609-198704

BATTERY:32C24L(N40L)

main82121-12670iEE80..LHD..EUR198505-198608

main82121-12671iEE80..LHD..EUR198608-198609

main82121-12672iEE80..LHD..EUR198609-198701

main82121-12680iEE80..LHD..(GEN,SAA)198505-198508

BATTERY:28B19L(NS40SL)

main82121-12681iEE80..LHD..(GEN,SAA)198508-198608

BATTERY:28B19L(NS40SL)

main82121-12682iEE80..LHD..(GEN,SAA)198608-198609

BATTERY:28B19L(NS40SL)

main82121-12683iEE80..LHD..(GEN,SAA)198609-198707

BATTERY:28B19L(NS40SL)

main82121-12690iEE80..LHD..(GEN,SAA)198505-198508

BATTERY:32C24L(N40L)

main82121-12691iEE80..LHD..(GEN,SAA)198508-198608

BATTERY:32C24L(N40L)

main82121-12692iEE80..LHD..(GEN,SAA)198608-198609

BATTERY:32C24L(N40L)

main82121-12693iEE80..LHD..(GEN,SAA)198609-198707

BATTERY:32C24L(N40L)

main82121-12700iAE82..GT..ARL198605-198609

main82121-12702iAE82..GT..ARL198609-198708

main82121-12720iAE82..RHD..GT..(EUR,GEN)198505-198608

main82121-12721iAE82..RHD..GT..(EUR,GEN,SA)198608-198609

main82121-12722iAE82..GT..SA198608-198708

main82121-12730iAE82..LHD..GT198505-198608

main82121-12731iAE82..LHD..GT198608-198609

main82121-12732iAE82..LHD..GT198609-198704

main82121-1A020iAE82..5F..GL..EUG198504-198505

FRG SPEC

main82121-1A030iAE82..FRG198508-198605

main82121-1A031iAE82..FRG198605-198608

main82121-1A032iAE82..FRG198608-198609

main82121-1A033iAE82..FRG198609-198704

main82121-1A100iEE80..FRG198605-198608

main82121-1A101iEE80..FRG198608-198609

main82121-1A102iEE80..FRG198609-198704

main82121-1A720iEE80..RHD..5F..EUG198701-198704

main82121-1A730iEE80..LHD..MTM..EUR198701-198704

main82121-1A840iAE82..(DX,GL)..EUG; AE82..5F..SDZ198703-198704

main82121-1A850iAE82..GT..SA198708-198804

main82121-1A860iAE82..GT..ARL198708-198807

82131WIRE, COWL

main82131-12430iAE8#..RHD198305-198410

main82131-12431iAE8#,EE80..RHD..(DX,GL,STD,XL)198410-198505

main82131-12440iCE80..RHD..EUG198305-198410

main82131-12441iCE80..RHD..EUG198410-198505

main82131-12480iAE8#..LHD..GEN198305-198410

main82131-12481iAE8#,EE80..LHD..(DX,GL,STD,XL)..GEN198410-198505

main82131-12490iCE80..XL198305-198410

main82131-12491iCE80..XL198410-198505

main82131-12510iAE8#..LHD..EUR198305-198410

main82131-12511iAE82,EE80..LHD..(DX,GL,STD)..EUR198410-198505

main82131-12520iCE80..LHD..EUG198305-198410

main82131-12521iCE80..LHD..EUG198410-198505

main82131-12530iAE8#..LHD..(DX,GL)..EUG198305-198410

*FRG

main82131-12531iAE82,EE80..LHD..(DX,GL)..EUG198410-198505

*FRG

main82131-12540iCE80..LHD..EUG198305-198410

*FRG

main82131-12541iCE80..LHD..EUG198410-198505

*FRG

main82131-12550iAE80..SAA198308-198410

main82131-12551iAE82,EE80..LHD..(GL,STD,XL)..GEN; EE80..SAA198410-198505

*ME

main82131-12700iCE80..DX..GEN198305-198410

main82131-12701iCE80..DX..GEN198410-198505

main82131-12770iAE82..GT..SA198505-198605

main82131-12780iAE82..LHD..GT198410-198505

main82131-12800iAE82..LHD..GT..EUG198410-198505

*FRG

main82131-1A010iAE82,EE80..RHD..(DX,GL,STD,XL)..(EUR,GEN)198505-198704

main82131-1A020iCE80..RHD198505-198704

main82131-1A060iAE82,EE80..LHD..(GL,STD,XL)..GEN198505-198510

main82131-1A070iCE80..GEN198505-198704

main82131-1A080iAE82,EE80..LHD..(DX,GL,STD)..(EUG,SDZ)198505-198704

main82131-1A090iCE80..LHD..EUG198505-198704

main82131-1A100iEE80..FRG198605-198704

*FRG

main82131-1A110iCE80..LHD..DX198505-198704

*FRG

main82131-1A120iAE82,EE80..LHD..(GL,STD,XL)..GEN198510-198704

main82131-1A150iAE82..RHD..GT..(EUR,GEN)198505-198608

main82131-1A151iAE82..RHD..GT..(EUR,GEN)198608-198704

main82131-1A160iAE82..LHD..GT198505-198608

main82131-1A161iAE82..LHD..GT198608-198704

main82131-1A170iAE82..LHD..GT..EUG198505-198608

*FRG

main82131-1A171iAE82..LHD..GT..EUG198608-198704

*FRG

main82131-1A190iAE82..5F..GL..EUG198504-198505

FRG SPEC

main82131-1A200iAE82,EE80..LHD..(DX,GL,STD)..EUG; AE82..SDZ198505-198704

NORWAY SPEC; SWEDEN SPEC

main82131-1A210iCE80..LHD..EUG198505-198704

NORWAY SPEC

main82131-1A240iAE82..LHD..GT..EUG198505-198608

NORWAY SPEC

main82131-1A241iAE82..LHD..GT..EUG198608-198704

NORWAY SPEC

main82131-1A410iEE80..RHD..GL..EUG198611-198704

ENGLAND SPEC

main82131-1A420iAE82..RHD..EUG198611-198704

ENGLAND SPEC

main82131-1A430iAE82,EE80..LHD..(DX,GL,STD)..EUG198410-198505

NORWAY SPEC

main82131-1A440iCE80..LHD..EUG198410-198505

NORWAY SPEC

main82131-1A450iAE82..LHD..GT..EUG198410-198505

NORWAY SPEC

main82131-1A470iAE82..FRG198508-198704

main82131-1E320iEE80..4DS..RHD..5F..GL..GEN198609-198704

W/*PW

main82131-1E340iAE82..5D..5F..GL..FRG; AE82..SED..DX..FRG198612-198704

SWEDEN SPEC

82210CFUSIBLE LINK

main90982-08188×3iAE8#,CE80,EE80198305-198807

30A,TERM.:FEMALE,PNK,30A,A TYPE

main90982-08189iAE82..FRG198508-198704

40A,TERM.:FEMALE,GRN,40A,A TYPE

main90982-08190iAE82..4DS..4FC..ARL;AE8#,EE80..DX,GL,SE,STD,XL198305-198804

60A,TERM.:FEMALE,YEL,60A,A TYPE

main90982-08202iCE80198305-198704

60A,TERM.:MALE,YEL,60A,B TYPE

main90982-08203iCE80198305-198704

80A,TERM.:MALE,BLK,80A,B TYPE

main90982-08223iAE82..GT198410-198807

30A,TERM.:MALE,PNK,30A,B TYPE

82241CWIRE, RELAY

main82824-12110iAE8#,CE80..MTM198305-198406

82345DIODE

main82345-12010iAE82..GT..SA198605-198804

2-POLE CONNECTOR,BLACK

main82345-12020×2iAE82..GT198410-198505

2-POLE CONNECTOR

main82345-12050×2iAE82..FRG198508-198704

2-POLE CONNECTOR,BLACK

main82345-22010×2iAE82..GT198410-198807

4-POLE CONNECTOR

main82345-32020iAE82,CE80,EE80..LHD..(DX,GL,STD)..(EUG,SDZ)198505-198510

3-POLE CONNECTOR

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-14360iAE8#,CE80,EE80198305-198807

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-32010iAE8#,CE80,EE80198305-198807

82821ACOVER, CONNECTOR

main82821-12180iCE80198305-198704

main82821-12190iAE8#,EE80198305-198807

82823CAP, TERMINAL, NO.1

main82823-12050iAE82..GT..ARL198605-198807

1-POLE CONNECTOR(PLASTIC)

main82823-20010iAE82..GT198410-198505

1-POLE CONNECTOR(RUBBER)

82823BCAP, TERMINAL, NO.3

main82821-12210iEE80198410-198608

main82823-17010iAE82..FRG; AE82..LHD..GT198609-198704

main82823-20040iEE80198608-198609

main82823-20050iEE80198609-198807

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8282112210RETAINER, HEADLAMP HARNESS

main82821-12210

8282320040CAP, TERMINAL, NO.1

main82823-20040

9011906005

main90119-06005

9011906053

main90119-06053

9011906098

main90119-06098

9011906110

main90119-06110

9161160812

main91611-60812

22 parts on this diagram · 11 diagrams in section
