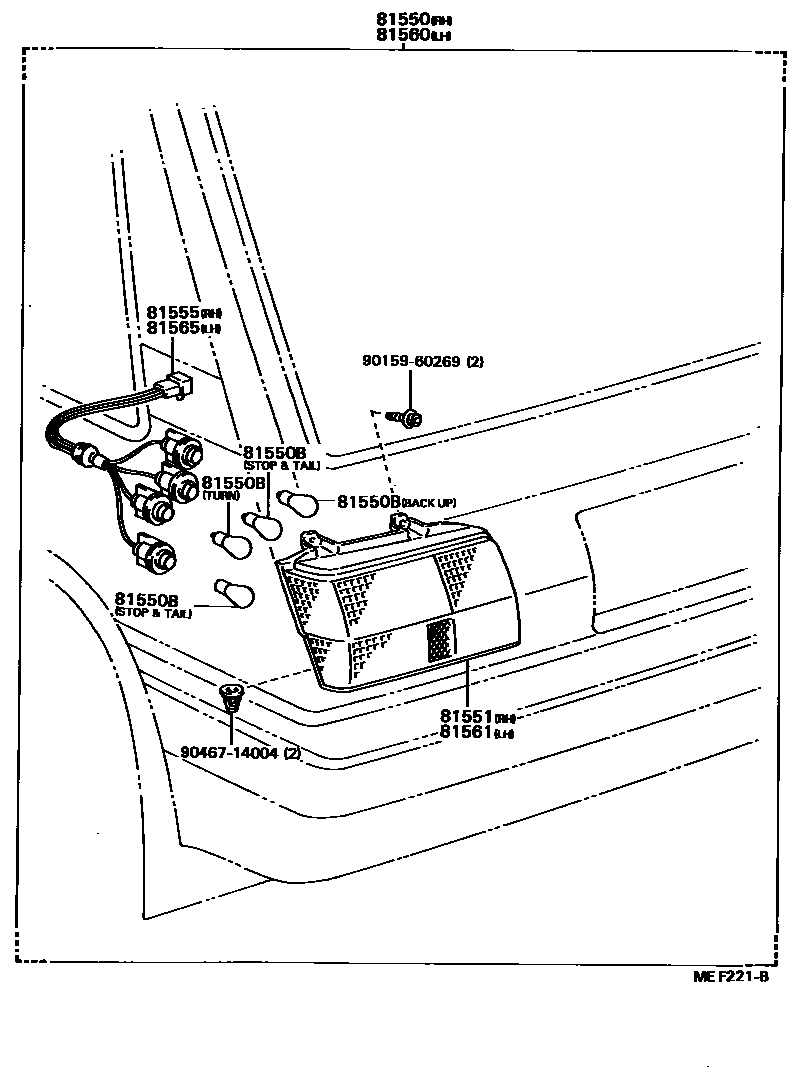

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-80249iAE8#,EE80..(3DS,5DS)..(ARL,GEN,SA)198410-198604

main81550-80250iAE82,CE80,EE80..(3DS,5DS)..EUR198410-198704

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×6iAE8#,CE80,EE80..EUR198305-198704

12V 21W,12V 21W(TURN,BACK OR RR FOG)

main99132-11230×4iAE8#,CE80,EE80..ARL,GEN,SA,SAA198305-198604

12V 23W,12V 23W(TURN OR BACK)

main99132-21210×4iAE8#,CE80,EE80198305-198807

12V 21/5W,12V 21/5W(STOP/TAIL)

81551LENS, REAR COMBINATION LAMP, RH

main81551-1A340iAE8#,EE80..(3DS,5DS)..(ARL,GEN,SA)198410-198604

main81551-1A350iAE82,EE80..5DS..SA198604-198804

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-1A100iAE82..4DS..ARL198604-198807

KOITO

main81555-1A150iAE8#,CE80,EE80..4DS..(ARL,GEN,SA,SAA)198305-198505

KOITO

main81555-1A160iAE8#,CE80,EE80..4DS..EUR198305-198505

main81555-1A161iAE82,CE80,EE80..4DS..EUR198505-198704

main81555-1A180iAE82..5D..(ARL,SA)198505-198604

main81555-1A181iAE82..5D..ARL198604-198807

main81555-1A190iAE8#,CE80,EE80..5D..EUR198305-198505

main81555-1A191iAE82..5D..SA198604-198804

main81555-1A310iAE8#,EE80..4DS..(ARL,SA)198505-198604

IKI(CKD SPEC)

main81555-1A311iAE82..4DS..ARL198604-198807

IKI(CKD SPEC)

main81555-1A330iAE82,EE80..4DS..SA198604-198804

main81555-1A340iAE8#,EE80..(3DS,5DS)..(ARL,GEN,SA)198410-198605

main81555-1A350iAE82,CE80,EE80..(3DS,5DS)..EUR198410-198704

81560LAMP ASSY, REAR COMBINATION, LH

main81560-80259iAE8#,EE80..(3DS,5DS)..(ARL,GEN)198604-198807

main81560-80260iAE82,EE80..5DS..SA198604-198804

81561LENS, REAR COMBINATION LAMP, LH

main81561-1A340iAE8#,EE80..(3DS,5DS)..(ARL,GEN,SA)198410-198604

main81561-1A350iAE82,CE80,EE80..(3DS,5DS)..EUR198410-198704

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-1A181iAE82,EE80..5D..(GEN,SAA)198505-198707

main81555-1A340iAE8#,EE80..(3DS,5DS)..(ARL,GEN,SA)198410-198604

main81555-1A350iAE82,EE80..5DS..SA198604-198804

main81565-12630iAE82,EE80..4DS..SA198604-198804

main81565-1A150iAE8#,CE80,EE80..4DS..(ARL,GEN,SA,SAA)198305-198604

KOITO

main81565-1A160iAE8#,CE80,EE80..4DS..EUR198305-198704

main81565-1A180iAE82..5D..(ARL,SA)198505-198604

main81565-1A181iAE82..5D..ARL198604-198807

main81565-1A190iAE8#,CE80,EE80..5D..EUR198305-198505

main81565-1A191iAE82,CE80,EE80..5D..EUR198505-198704

main81565-1A310iAE82,CE80,EE80..4DS..(ARL,GEN,SAA)198604-198807

IKI (CKD SPEC)

9015960269

main90159-60269

9046714004

main90467-14004

9 parts on this diagram · 3 diagrams in section
