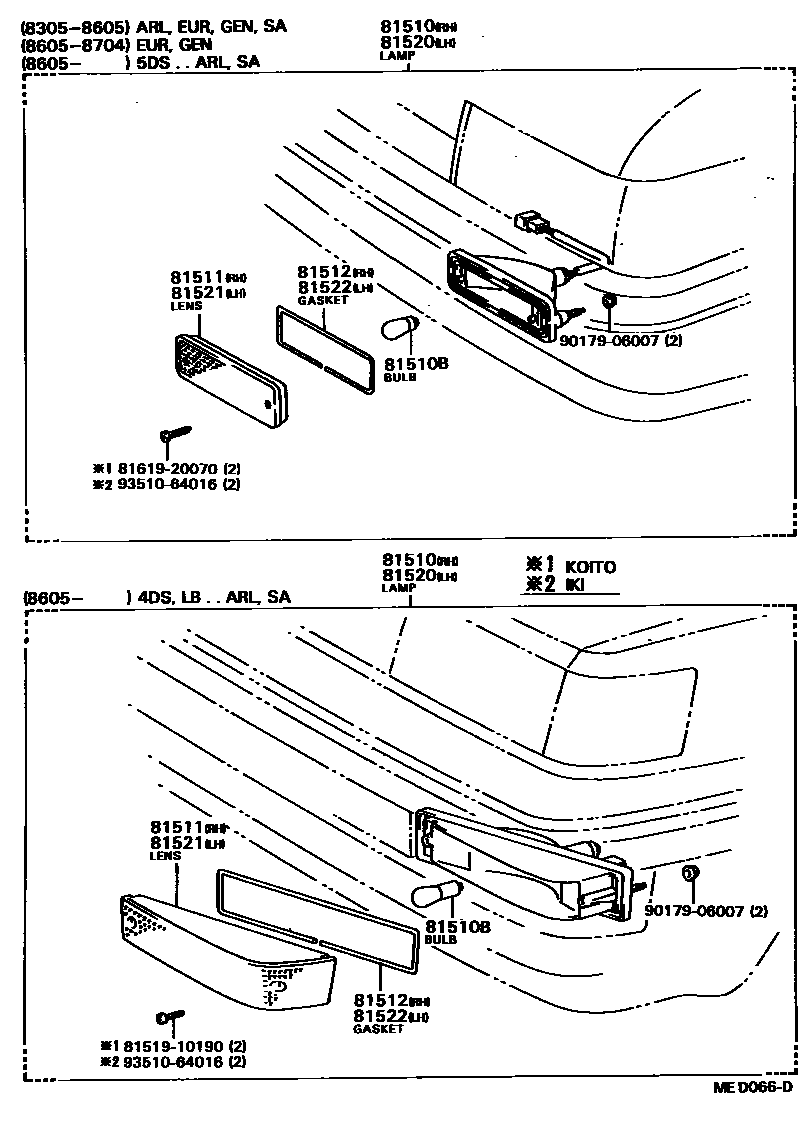

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-19875iAE82,EE80..5DS..SA198605-198804

main81510-19895iAE82,CE80,EE80..GEN198605-198704

main81510-29705iAE80,EE80..SAA198308-198707

main81510-80022iAE82..(4DS,5D)..ARL198605-198807

main81510-80024iAE82,EE80..(4DS,5D)..SA198605-198804

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iAE8#,CE80,EE80..EUR198305-198704

12V 21W,12V 21W

main99132-11230×2iAE8#,CE80,EE80..ARL,GEN,SA198305-198605

12V 23W,12V 23W

main99132-11270×2iAE80,EE80..SAA198308-198707

12V 27W,12V 27W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-12420iAE82,CE80,EE80..GEN198605-198704

KOITO

main81511-12450iAE82,CE80,EE80..GEN198605-198704

IKI

main81511-12470iAE82..(4DS,5D)..ARL198605-198807

KOITO

main81511-12480iAE82..(4DS,5D)..ARL198605-198807

IKI

main81511-12490iAE82,EE80..(4DS,5D)..SA198605-198804

main81511-22220iAE80,EE80..SAA198308-198707

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-12450iAE82,CE80,EE80..GEN198605-198704

IKI

main81512-12470iAE82,EE80..(4DS,5D)..SA198605-198804

main81512-12480iAE82..(4DS,5D)..ARL198605-198807

IKI

main81512-14140iAE80,EE80..SAA198308-198707

main81512-14150iAE8#,CE80,EE80..EUR198305-198704

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-19875iAE8#,CE80,EE80..EUR198305-198704

main81520-19895iAE8#..5DS..ARL198605-198807

main81520-29695iAE80,EE80..SAA198308-198707

main81520-80022iAE82..(4DS,5D)..ARL198605-198807

main81520-80024iAE82,EE80..(4DS,5D)..SA198605-198804

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-12400iAE8#..5DS..ARL198605-198807

KOITO

main81521-12430iAE82,CE80,EE80..GEN198605-198704

IKI

main81521-12450iAE82..(4DS,5D)..ARL198605-198807

KOITO

main81521-12460iAE82..(4DS,5D)..ARL198605-198807

IKI

main81521-12470iAE82,EE80..(4DS,5D)..SA198605-198804

main81521-22220iAE80,EE80..SAA198308-198707

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-12450iAE82,CE80,EE80..GEN198605-198704

IKI

main81512-12470iAE82,EE80..(4DS,5D)..SA198605-198804

main81512-12480iAE82..(4DS,5D)..ARL198605-198807

IKI

main81512-14140iAE80,EE80..SAA198308-198707

main81512-14150iAE82,EE80..5DS..SA198605-198804

8151910190BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-10190

8161920070

main81619-20070

9017906007

main90179-06007

9351064016

main93510-64016

11 parts on this diagram · 2 diagrams in section
